2012 LINCOLN MKS Owners Manual

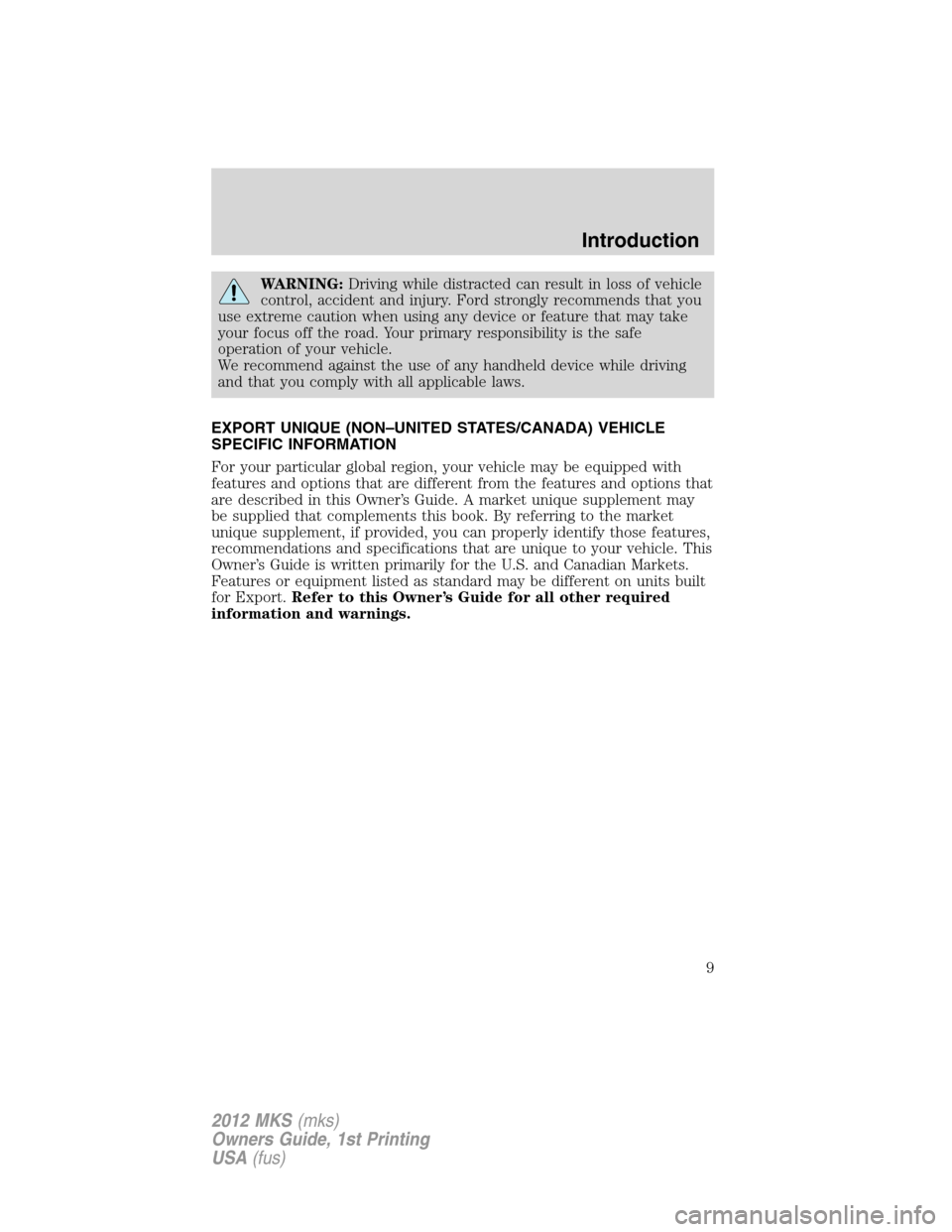

WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of your vehicle.
We recommend against the use of any handheld device while driving
and that you comply with all applicable laws.
EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export.Refer to this Owner’s Guide for all other required
information and warnings.
Introduction
9
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

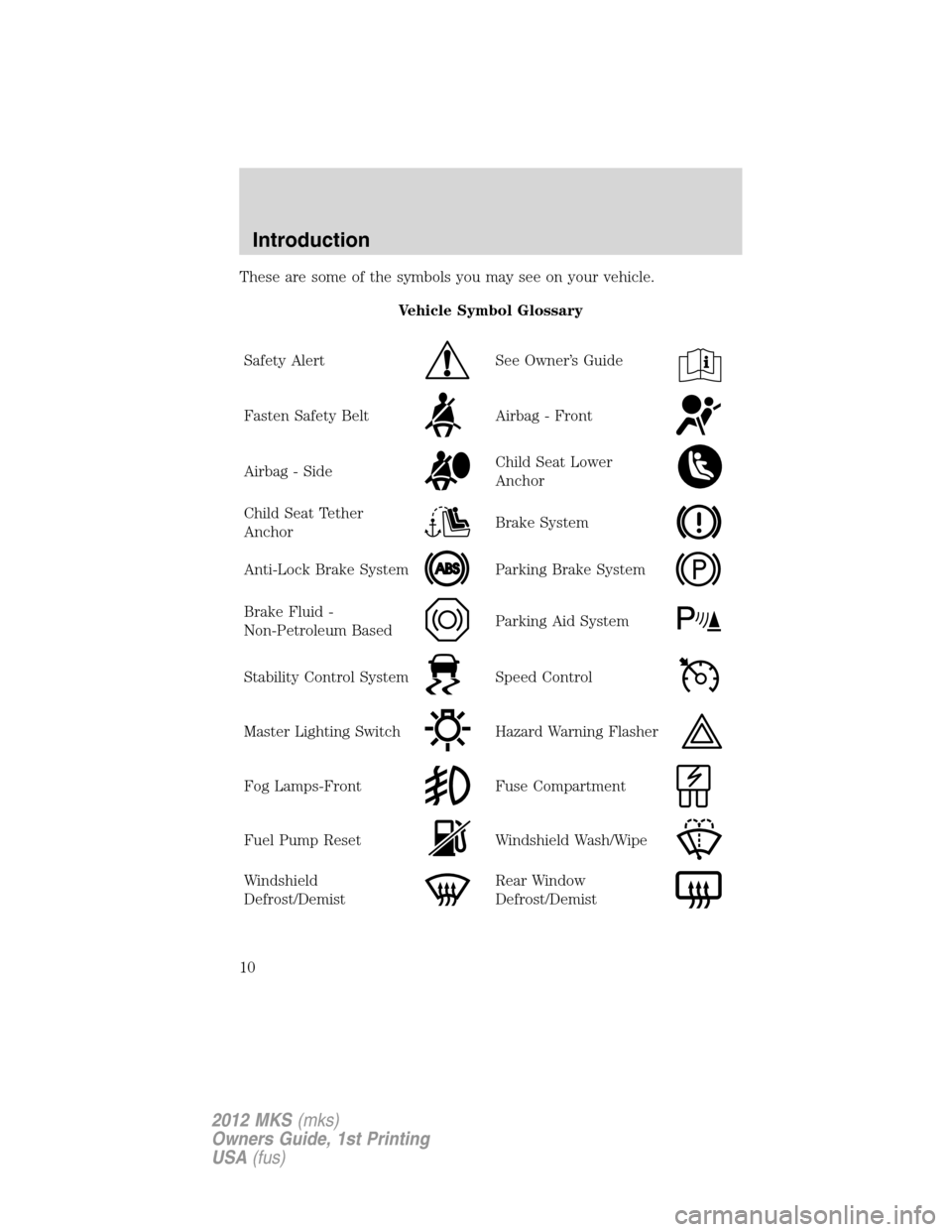

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
10
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

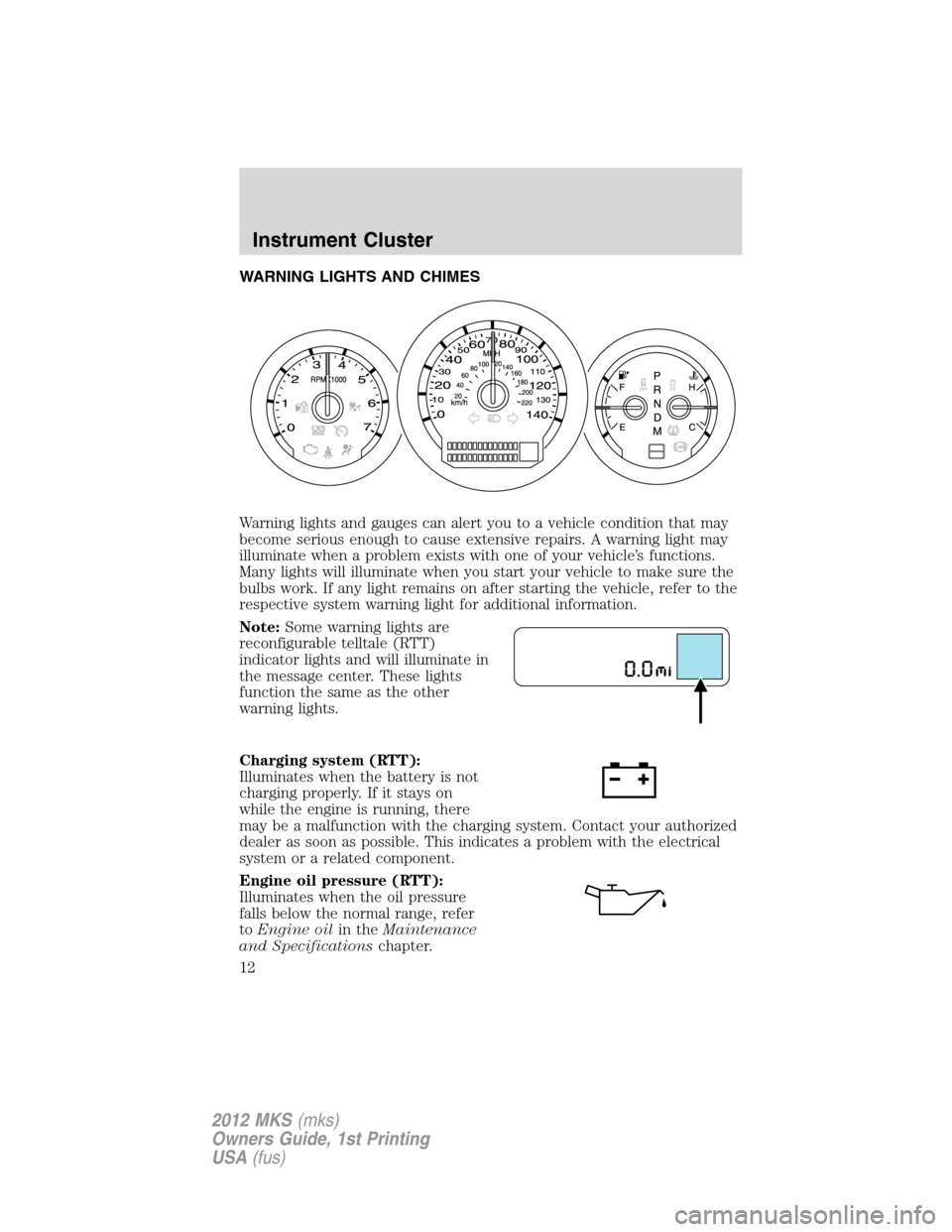

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Note:Some warning lights are
reconfigurable telltale (RTT)
indicator lights and will illuminate in
the message center. These lights
function the same as the other
warning lights.
Charging system (RTT):
Illuminates when the battery is not
charging properly. If it stays on
while the engine is running, there
may be a malfunction with the charging system. Contact your authorized
dealer as soon as possible. This indicates a problem with the electrical
system or a related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range, refer
toEngine oilin theMaintenance
and Specificationschapter.
Instrument Cluster
12
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Engine coolant temperature
(RTT):Illuminates when the engine
coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let cool. Refer
toEngine coolantin theMaintenance and Specificationschapter.
Low fuel (RTT):Illuminates when
the fuel level in the fuel tank is at
or near empty. Refer toFuel gauge
in this chapter.
Low washer fluid (RTT):
Illuminates when the washer level in
the washer fluid reservoir is low.
Throttle Control/Transmission
(RTT):Illuminates when a
powertrain or an AWD fault has
been detected. Contact your
authorized dealer as soon as possible.
Door ajar (RTT):Illuminates when
the ignition is in the run position
and any door is not completely
closed.
Trunk ajar (RTT):Illuminates in
the message center display when
the ignition is in the run position
and the trunk is open.
Service engine soon:TheService
engine soonindicator light
illuminates when the ignition is first
turned on to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, theService engine soonlight will stay on until the
engine is cranked, then turn itself off if no malfunctions are present.
However, if after 15 seconds theService engine soonlight blinks eight
times, it means that the vehicle is not ready for I/M testing. See the
Readiness for Inspection/Maintenance (I/M) testingin the
Maintenance and Specificationschapter.
Instrument Cluster
13
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned on when the
engine is not running, or in a position between on and start, or by
applying the parking brake when the ignition is turned on. If the brake
system warning light does not illuminate at this time, seek service
immediately from your authorized dealer. Illumination after releasing the
parking brake indicates low brake fluid level or a brake system
malfunction and the brake system should be inspected immediately by
your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
P!
BRAKE
ABS
Instrument Cluster
14
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Airbag readiness:If this light fails
to illuminate when the ignition is
turned on, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will sound if
there is a malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minderchime feature.
AdvanceTrac/Traction control:
Illuminates when the
AdvanceTrac/Traction control is
active. If the light remains on, have
the system serviced immediately,
refer to theDrivingchapter for more information.
AdvanceTrac/Traction
Control™ off light:Illuminates
when the AdvanceTrac/Traction
Control™ has been disabled by the
driver. Refer to theDrivingchapter
for more information.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for three
seconds to ensure the bulb is working. If the light does not turn on or
begins to flash, have the system inspected by your authorized dealer. For
more information on this system, refer toTire pressure monitoring
system (TPMS)in theTires, Wheels and Loadingchapter.
Adaptive cruise control (ACC)
(if equipped):Illuminates when
there is a vehicle in front of you.
Refer toAdaptive cruise controlin
theDriver Controlschapter for
more information.
OFF
Instrument Cluster
15
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Speed control:Illuminates when
the speed control is engaged or
when the ACC is engaged without
following a vehicle. Turns off when
the speed control system is
disengaged or when the ACC is
activated.
Anti-theft system:Flashes when
the SecuriLockPassive Anti-theft
System has been activated.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Heads up display (if equipped):
A red bar will illuminate on the
windshield in certain instances when
using adaptive cruise control and/or
the collision warning system. It will
also illuminate momentarily when
you start your vehicle to make sure the display works. See theDriving
chapter for more information.
Key-in-ignition warning chime (if equipped):Sounds when the key
is left in the ignition in the off or accessory position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key [if equipped] is not in the
ignition) and the driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
16
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
