2012 Lexus IS220d park assist

TABLE OF CONTENTS
8
ISF_IS_ISC_Navi_EE ISF_IS_ISC_Navi_EE1. LEXUS PARKING ASSIST
MONITOR ....................................... 324
LEXUS PARKING ASSIST
MONITOR ........................................324
PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE) ............................330
PERPENDICULAR PARKING
(PARKING ASSIST GUIDE LINE
DISPLAY MODE) ............................333
PARALLEL PARKING ......................335
LEXUS PARKING ASSIST MONITOR
PRECAUTIONS ...............................342
THINGS YOU SHOULD KNOW.......347
2. LEXUS PARKING
ASSIST-SENSOR............................ 349
LEXUS PARKING
ASSIST-SENSOR .............................349
LEXUS PARKING
ASSIST SETTING ............................356
ALPHABETICAL INDEX ................... 360
10PERIPHERAL MONITORING
SYSTEM
INDEX

322
ISF_IS_ISC_Navi_EE1. LEXUS PARKING ASSIST
MONITOR ................................... 324
LEXUS PARKING ASSIST MONITOR .....
324
DRIVING PRECAUTIONS................... 324
SCREEN DISPLAY ............................... 326
USING THE SYSTEM WHEN
PERPENDICULAR PARKING .......... 327
USING THE SYSTEM WHEN
PARALLEL PARKING ...................... 328
SWITCHING THE PARKING MODE
SCREEN .............................................. 329
2. PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE) ....................... 330
SCREEN DESCRIPTION ...................... 330
PARKING .............................................. 332
3. PERPENDICULAR PARKING
(PARKING ASSIST GUIDE LINE
DISPLAY MODE) ....................... 333
SCREEN DESCRIPTION ...................... 333
PARKING .............................................. 334
1LEXUS PARKING ASSIST
MONITOR

10
323
1
3
4
5
6
7
8
9
10
2
ISF_IS_ISC_Navi_EE4. PARALLEL PARKING ................. 335
VEHICLE MOVEMENT
PROCEDURE ..................................... 335
PARKING .............................................. 336
NARROW MODE ................................. 341
5. LEXUS PARKING
ASSIST MONITOR
PRECAUTIONS........................... 342
AREA DISPLAYED ON SCREEN....... 342
THE CAMERA ...................................... 343
DIFFERENCES BETWEEN
THE SCREEN AND
THE ACTUAL ROAD ........................ 344
WHEN APPROACHING
THREE-DIMENSIONAL OBJECTS . 345
6. THINGS YOU SHOULD KNOW.. 347
IF YOU THINK SOMETHING IS
WRONG .............................................. 347
1. LEXUS PARKING
ASSIST-SENSOR ........................ 349
TYPES OF SENSORS............................ 349
SETTING THE LEXUS PARKING
ASSIST-SENSOR MODE ................... 349
DISPLAY................................................ 350
THE DISTANCE DISPLAY AND
BUZZER .............................................. 351
DETECTION RANGE OF
THE SENSORS ................................... 353
SENSOR DETECTION
INFORMATION .................................. 353
LEXUS PARKING ASSIST-SENSOR
FAILURE WARNING......................... 355
2. LEXUS PARKING ASSIST
SETTING ..................................... 356
SETTING AN ALERT VOLUME ......... 356
SETTING A PARKING SONAR
DISPLAY ............................................. 357
SETTING A DISPLAY AND
TONE INDICATION........................... 357
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while

324
ISF_IS_ISC_Navi_EE
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the
view behind the vehicle while back-
ing up, for example while parking.
The parking assist monitor assists
with the following 2 backing-up op-
erations:
(1) Perpendicular parking (parking in
a garage, etc.)
(2) Parallel parking (parking at the
side of the road, etc.)
INFORMATION
The screen illustrations used in this
text are intended as examples, and
may differ from the image that is
actually displayed on the screen.
DRIVING PRECAUTIONS
When backing up, be sure to visually
check all around the vehicle both di-
rectly and using the mirrors before
proceeding. If you do not, you may
hit another vehicle, and could possi-
bly cause an accident.
Pay attention to the following pre-
cautions when using the parking as-
sist monitor.
CAUTION
The parking assist monitor is a sup-
plemental device intended to assist
the driver when backing up. Never
depend on the parking assist monitor
entirely when backing up. Always
make sure your intended path is clear.
Use caution, just as you would when
backing up any vehicle.
Never back up while looking only at
the screen.
The image shown on the screen may
differ from the actual state, and you
could collide with another vehicle or
obstacles if backing up looking only
at the screen, possibly causing an
accident. When backing up, be sure to
visually check all around the vehicle
both directly and using the mirrors
before proceeding.
Be sure to back up slowly, depressing
the brake pedal to control vehicle
speed.
If you seem likely to hit nearby vehi-
cles, obstacles, people or mount the
shoulder, depress the brake pedal to
stop the vehicle, then disable the
assist system by selecting on
the screen to cancel the system.

325
1. LEXUS PARKING ASSIST MONITOR
10
PERIPHERAL MONITORING SYSTEM
ISF_IS_ISC_Navi_EE
CAUTION
The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when
parking. It is necessary to be fully
aware of this before using the parking
assist system.
When parking, be sure to check that
the parking space will accommodate
your vehicle before maneuvering into
it.
Do not use system in the following
cases:
• On icy or slick road surfaces, or in
snow
• When using tyre chains
• When the trunk is not closed com-
pletely
• When the retractable hardtop is open
partially. (IS250C)
• On roads that are not flat or straight,
such as curves or slopes
In low temperatures, the screen may
darken or the image may become
faint. The image could distort when
the vehicle is moving, or you may
become unable to see the image on
the screen. Be sure to visually check
all around the vehicle both directly
and using the mirrors before proceed-
ing.
If the tyre sizes are changed, the posi-
tion of the guide lines displayed on
the screen may change.
The camera uses a special lens. The
distances between objects and pedes-
trians that appear in the image dis-
played on the screen will differ from
the actual distances. (See page 345.)

326
1. LEXUS PARKING ASSIST MONITOR
ISF_IS_ISC_Navi_EE
The parking assist monitor displays the last-used parking mode first.
Perpendicular parkingParallel parking
When the shift lever is shifted to the “R” position and any mode button (such as
the “NAV” button) is pressed
The parking assist monitor is canceled, and the screen is switched to the
mode of the button that was pressed.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted
to the “R” position while the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
No.DisplayFunction
Display mode switch screen
buttonSwitches the display mode.
Parking mode switch screen
buttonSwitches the parking mode (between perpen-
dicular parking and parallel parking assist
screens)
Narrow mode screen on-off
buttonSwitch the narrow mode on and off. (See page
329.)
Lexus parking assist-sensorIf an obstacle is detected while the Lexus
parking assist-sensors are on, a display is
shown in the top right corner of the screen.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any
position other than the “R” position.

327
1. LEXUS PARKING ASSIST MONITOR
10
PERIPHERAL MONITORING SYSTEM
ISF_IS_ISC_Navi_EE
Estimated course line display mode
(See page 330.)Parking assist guide line display
mode
(See page 333.)
This is recommended for those who are
used to the feel of the vehicle (those
who can park without having to use the
projected path guidance mode).
Distance guide line display mode
This is suggested for those who do not
need guidance.

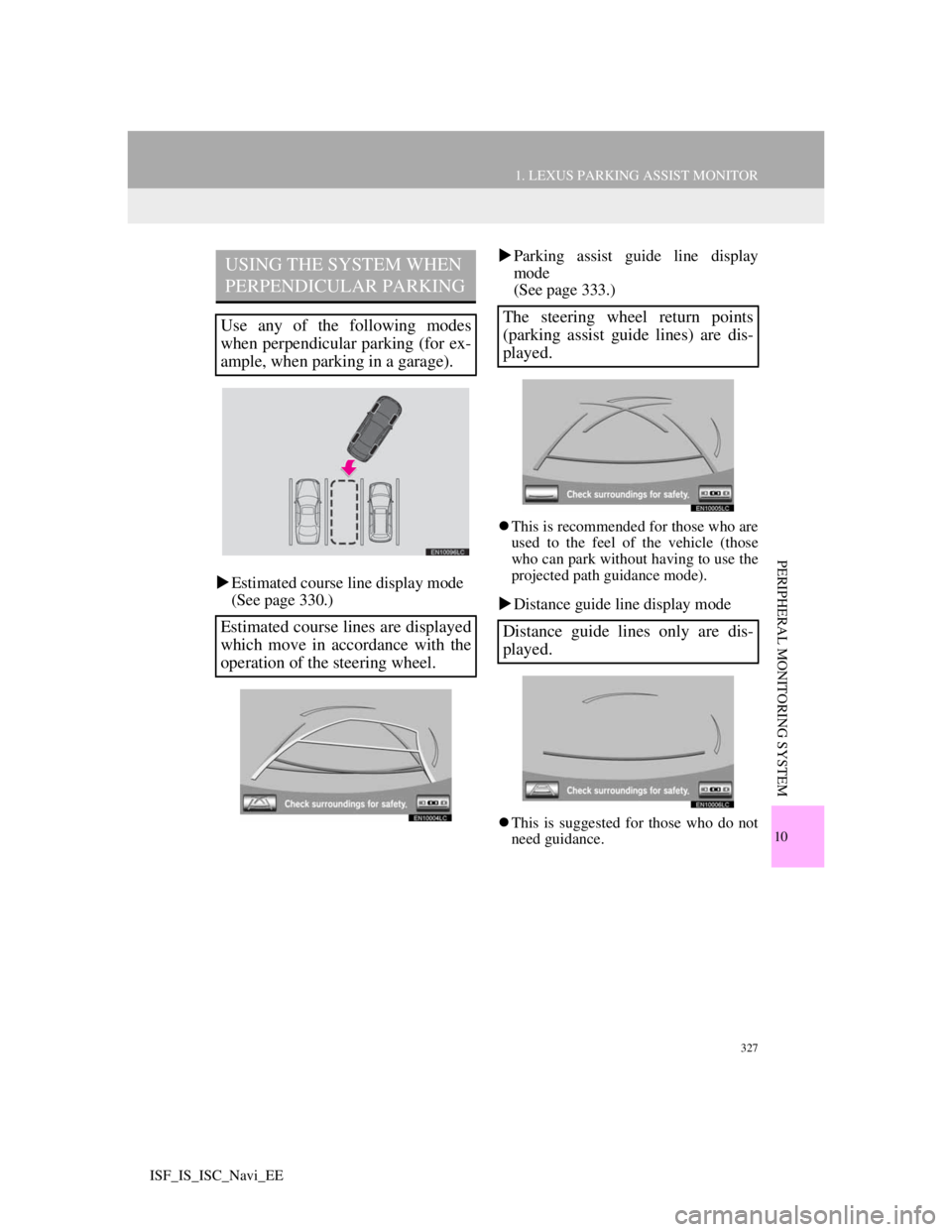

USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes
when perpendicular parking (for ex-
ample, when parking in a garage).
Estimated course lines are displayed
which move in accordance with the
operation of the steering wheel.The steering wheel return points
(parking assist guide lines) are dis-
played.
Distance guide lines only are dis-
played.

328
1. LEXUS PARKING ASSIST MONITOR
ISF_IS_ISC_Navi_EE
1Touch the display mode switch
screen button.
With each touch, the perpendicular
parking assist screen switches as fol-
lows:
SWITCHING THE DISPLAY
MODE
Distance guide line dis-
play
Parking assist guide line
display mode
Estimated course line
display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at
which you should turn the steering
wheel when parallel parking. If the
position the vehicle is to be parked in
is narrower than usual, narrow mode
can be used.
