2012 KIA Soul sunroof

Index
8I
Seating capacity ··················\
··················\
··················\
·······5-52
Seats ··················\
··················\
··················\
··················\
·········3-2Armrest(front) ··················\
··················\
··················\
·······3-9
Folding the rear seat ··················\
··················\
··············3-10
Front seat adjustment ··················\
··················\
··············3-4
Headrest(front) ··················\
··················\
··················\
······3-6
Headrest(rear) ··················\
··················\
··················\
······3-12
Rear seat ··················\
··················\
··················\
··············3-10
Seat warmer··················\
··················\
··················\
···········3-8
Seatback pocket··················\
··················\
··················\
·····3-9
Shopping bag holder ··················\
··················\
················4-103
Side impact air bag ··················\
··················\
··················\
··3-47
Smart key ··················\
··················\
··················\
··················\
·4-9
Smooth cornering··················\
··················\
··················\
·····5-46
Snow tires ··················\
··················\
··················\
················5-49
Spare tire Compact spare tire ··················\
··················\
················6-19
Compact spare tire replacement ··················\
··············7-45
Removing and storing the spare tire ··················\
·······6-14
Special driving conditions ··················\
··················\
·········5-44 Driving at night ··················\
··················\
··················\
···5-46
Driving in flooded areas··················\
··················\
········5-47
Driving in the rain ··················\
··················\
·················5-47\
Hazardous driving conditions ··················\
·················5-44\
Highway driving··················\
··················\
··················\
··5-48
Rocking the vehicle··················\
··················\
···············5-45
Smooth cornering ··················\
··················\
··················\
5-46
Speedometer··················\
··················\
··················\
·············4-41
Sports mode ··················\
··················\
··················\
·············5-22 SRS components and functions ··················\
··················\
·3-36
Starting difficulties, see engine will not start ··················\
6-4
Steering wheel···············\
··················\
··················\
·············4-34
Electric power steering··················\
··················\
··········4-34
Horn··················\
··················\
··················\
··················\
···4-35
Tilt steering ··················\
··················\
··················\
·········4-35
Steering wheel audio control ··················\
··················\
···4-110
Steps For Determining Correct Load Limit ··················\
5-53
Storage compartment ··················\
··················\
·················4-98\
Center console storage ··················\
··················\
··········4-98
Glove box ··················\
··················\
··················\
············4-98
Luggage box ··················\
··················\
··················\
········4-99
Multi box ··················\
··················\
··················\
·············4-99
Sunroof··················\
··················\
··················\
··················\
···4-30
Sunvisor ··················\
··················\
··················\
·················4-10\
1
Tachometer··················\
··················\
··················\
···············4-41
Tailgate··················\
··················\
··················\
··················\
···4-20
Tether anchor system ··················\
··················\
·················3-28\
Tilt steering ··················\
··················\
··················\
··············4-35
Tire and loading information label ··················\
··············5-52
Tire mobility kit ··················\
··················\
··················\
·······6-21
Tire pressure monitoring system (TPMS) ··················\
·····6-8
Tire specification and pressure label ··················\
·············8-8
T

4
Keys / 4-2
Remote keyless entry / 4-6
Smart key / 4-9
Door locks / 4-16
Tailgate / 4-20
Windows / 4-22
Hood / 4-25
Fuel filler door / 4-27
Sunroof / 4-30
Steering wheel / 4-34
Mirrors / 4-36
Instrument cluster / 4-40
Rearview camera / 4-63
Hazard warning flasher / 4-64
Lighting / 4-65
Wipers and washers / 4-69
Interior light / 4-72
Defroster / 4-75
Manual climate control system / 4-76
Automatic climate control system / 4-85
Windshield defrosting and defogging / 4-94
Storage compartment / 4-98
Interior features / 4-100
Exterior feature / 4-107
Audio system / 4-109
Features of your vehicle

423
Features of your vehicle
Power windows
The ignition switch must be in the ON
position for power windows to oper-
ate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock button which can block the oper-
ation of passenger windows. The
power windows can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK position. However,
if the front doors are opened, the
power windows cannot be operated
even within the 30 second period.
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
✽ ✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
OAM049013

Features of your vehicle
30
4
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The sunroof can only be opened,
closed, or tilted when the ignition
switch is in the ON position. In cold and wet climates, the sunroof
may not work properly due to freez-
ing conditions.
After the vehicle is washed or in a
rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
The sunroof cannot slide when it is in
the tilt position nor can it be tilted
while in an open or slide position.Sliding the sunroof
To open or close the sunroof (manu-
al slide feature), pull or push the sun-
roof control lever backward or for-
ward to the first detent position.
Pulling the control lever downward
also closes the sunroof.
SUNROOF (IF EQUIPPED)
OAM049018OAM049019
CAUTION - Sunroof
control lever
Do not continue to move the
sunroof control lever after thesunroof is fully opened, closed,or tilted. Damage to the motor orsystem components couldoccur.

431
Features of your vehicle
To open the sunroof automatically:
Pull the sunroof control lever back-
ward to the second detent position
and then release it.
The sunroof will slide open automat-
ically but will not open all the way. If
you would like to completely open
the sunroof, pull the lever once more.
However, the second time the lever is
pulled, the sunroof will open only
while the lever is pulled.
To stop the sunroof sliding at any
point, pull or push the sunroof control
lever momentarily.
To close the sunroof automatically:
Push the sunroof control lever for-
ward to the second detent position
and then release it. The sunroof will
automatically close all the way.
To stop the sunroof sliding at any
point, pull or push the sunroof control
lever momentarily.
Automatic reversal
If an object is detected while the sun-
roof is closing automatically, it will
reverse the direction, and then stop.
The auto reverse function does not
work if a small obstacle is between
the sliding glass and the sunroof
sash. You should always check that
all passengers and objects are away
from the sunroof before closing it.
Tilting the sunroof
To open the sunroof (autotilt feature),
push the sunroof control lever
upward to the second detent. The
sunroof will tilt all the way open. To
stop the sunroof tilting at any point,
operate the control lever.
To close the sunroof, pull the sunroof
lever downward until the sunroof
moves to the desired position.
OHM048026OAM049020

Features of your vehicle
32
4
Do not extend the face, neck, arms
or body outside the sunroof while
driving.
Periodically remove any dirt that may
accumulate on the guide rail. The
sunroof is made to slide together
with the sunshade. Do not leave the
sunshade closed while the sunroof is
opened.
While using sunroof for a long time, a
dust between sunroof and roof panel
can make a noise. Open the sunroof
and remove regularly the dust using
clean cloth.

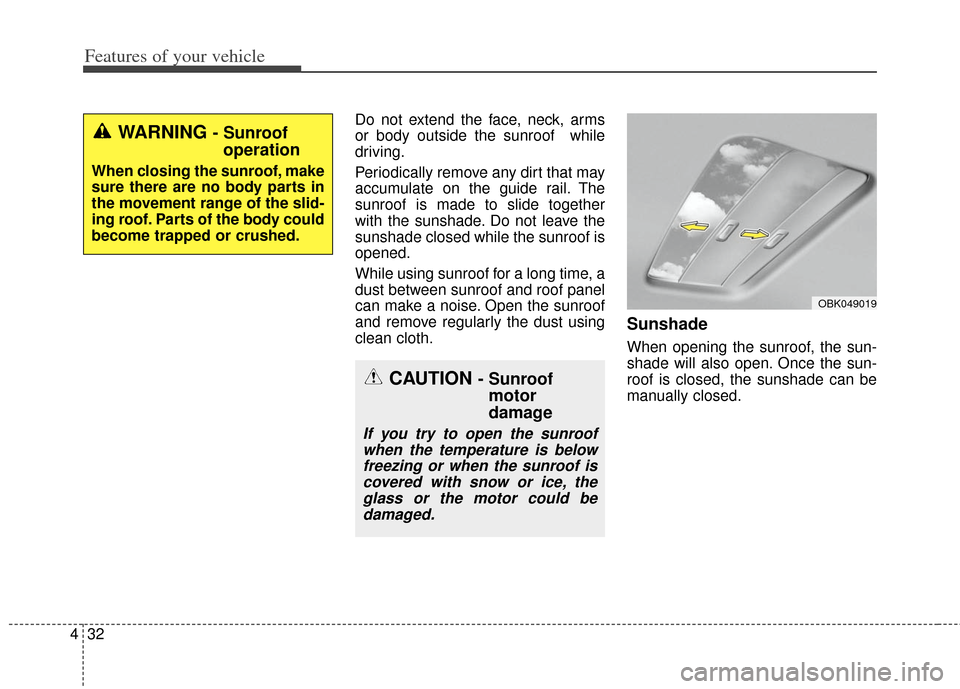

Sunshade
When opening the sunroof, the sun-
shade will also open. Once the sun-
roof is closed, the sunshade can be
manually closed.
OBK049019
WARNING - Sunroof
operation
When closing the sunroof, make
sure there are no body parts in
the movement range of the slid-
ing roof. Parts of the body could
become trapped or crushed.
CAUTION - Sunroof motor
damage
If you try to open the sunroof
when the temperature is belowfreezing or when the sunroof iscovered with snow or ice, theglass or the motor could bedamaged.

433
Features of your vehicle
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, you must
reset your sunroof system as follows:
1.Turn the ignition switch to the ONposition.
2.According to the position of the sunroof, do the following.
1) In case the sunroof is closed completely or tilted:
Push the sunroof control lever
upward until the sunroof tilts
completely upward.
2) In case the sunroof is open: Push the sunroof control lever
forward until the sunroof closes
completely. Push the sunroof
control lever upward until the
sunroof tilts completely upward.
3.Release the sunroof control lever.
4.Push the sunroof control lever upward (for about 10 seconds)
until the sunroof has returned to
the original tilt position after it is
raised a little higher than the maxi-
mum tilt position. Then, release the
lever. 5.Push the sunroof control lever
upward (for about 6 seconds) until
the sunroof operates as follows;
TILT DOWN → SLIDE OPEN →
SLIDE CLOSED
Then release the lever.
When this is complete, the sunroof
system has been reset.

4107
Features of your vehicle

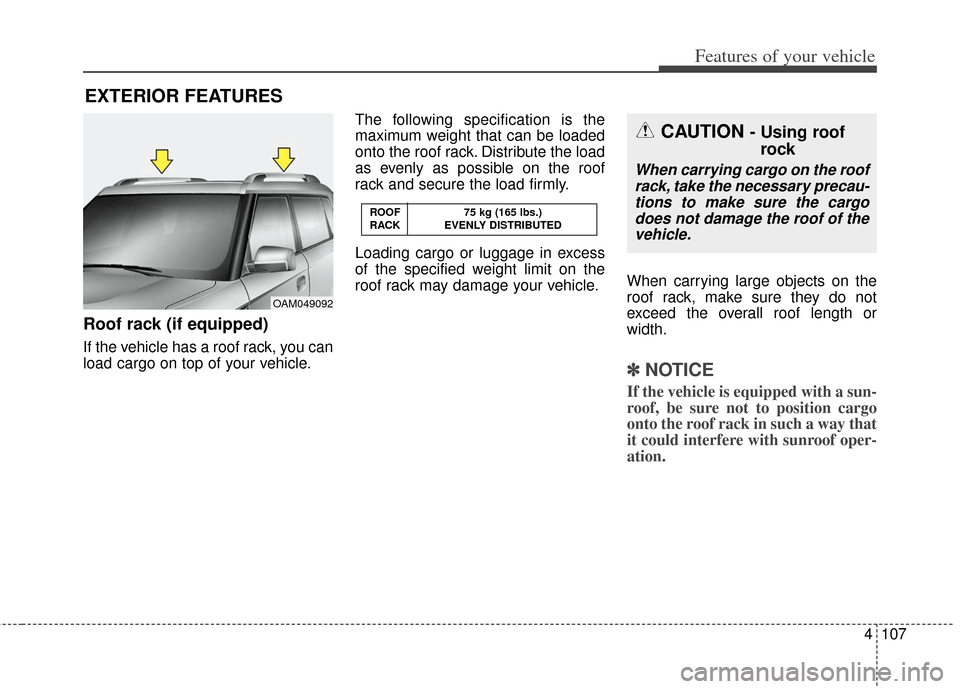

Roof rack (if equipped)
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.The following specification is the
maximum weight that can be loaded
onto the roof rack. Distribute the load
as evenly as possible on the roof
rack and secure the load firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof rack may damage your vehicle.
When carrying large objects on the
roof rack, make sure they do not
exceed the overall roof length or
width.
✽ ✽
NOTICE
If the vehicle is equipped with a sun-
roof, be sure not to position cargo
onto the roof rack in such a way that
it could interfere with sunroof oper-
ation.
EXTERIOR FEATURES
OAM049092 ROOF 75 kg (165 lbs.)
RACK EVENLY DISTRIBUTED
CAUTION - Using roof
rock
When carrying cargo on the roof
rack, take the necessary precau-tions to make sure the cargodoes not damage the roof of thevehicle.
