2012 JEEP GRAND CHEROKEE reset

NOTE:
The Electronic Speed Control system main-
tains speed up and down hills. A slight
speed change on moderate hills is normal.
On steep hills, a greater speed loss or gain may
occur so it may be preferable to drive without
Electronic Speed Control.
WARNING!
Electronic Speed Control can be dangerous
where the system cannot maintain a constant
speed. Your vehicle could go too fast for the
conditions, and you could lose control and
have an accident. Do not use Electronic
Speed Control in heavy traffic or on roads that
are winding, icy, snow-covered or slippery.
ADAPTIVE CRUISE CONTROL (ACC)
— IF EQUIPPED
Adaptive Cruise Control (ACC) increases the
driving convenience provided by cruise control
while traveling on highways and major road-
ways. However, it is not a safety system and not
designed to prevent collisions.
ACC will allow you to keep cruise control en-
gaged in light to moderate traffic conditions
without the constant need to reset your cruise
control. ACC utilizes a radar sensor designed
to detect a vehicle directly ahead of you.
NOTE:
•If the sensor does not detect a vehicle
ahead of you, ACC will maintain a fixed
set speed.
• If the ACC sensor detects a vehicle ahead,
ACC will apply limited braking or accel-
eration (not to exceed the original set
speed) automatically to maintain a preset
following distance, while matching the
speed of the vehicle ahead.
WARNING!
•Adaptive Cruise Control (ACC) is a conve-
nience system. It is not a substitute for
active driving involvement. It is always the
driver’s responsibility to be attentive of
road, traffic, and weather conditions, ve-
hicle speed, distance to the vehicle ahead;
and, most importantly, brake operation to
ensure safe operation of the vehicle under
all road conditions. Your complete attention
is always required while driving to maintain
safe control of your vehicle. Failure to fol-
low these warnings can result in a collision
and death or serious personal injury.
• The ACC system:
Does not react to pedestrians, oncoming
vehicles, and stationary objects (e.g., a
stopped vehicle in a traffic jam or a
disabled vehicle).
Cannot take street, traffic, and weather
conditions into account, and may be
limited upon adverse sight distance con-
ditions.
(Continued)11 7

WARNING!(Continued)
Does not predict the lane curvature or
the movement of preceding vehicles and
will not compensate for such changes.
Does not always fully recognize com-
plex driving conditions, which can result
in wrong or missing distance warnings.
Can only apply a maximum of 25% of
the vehicle’s braking capability, and will
not bring the vehicle to a complete stop.
WARNING!
You should switch off the ACC system:
• When driving in fog, heavy rain, heavy
snow, sleet, heavy traffic, and complex
driving situations (i.e., in highway construc-
tion zones).
• When entering a turn lane or highway off
ramp; when driving on roads that are wind-
ing, icy, snow-covered, slippery, or have
steep uphill or downhill slopes.
(Continued)
WARNING!(Continued)
• When towing a trailer up or down steep
slopes.
• When circumstances do not allow safe
driving at a constant speed.
Failure to follow these warnings can result in a
collision or serious personal injury.
The Cruise Control system has two control
modes:
• Adaptive Cruise Control mode for maintain-
ing an appropriate distance between ve-
hicles.
• Normal (fixed speed) cruise control mode for
cruising at a constant preset speed. For
additional information, refer to “Normal
(Fixed Speed) Cruise Control Mode” in this
section.
NOTE:
The system will not react to preceding ve-
hicles. Always be aware of the mode se-
lected. You can change the mode by using the Cruise
Control buttons. The two control modes func-
tion differently. Always confirm which mode is
selected.
Adaptive Cruise Control (ACC)
Operation
The speed control buttons (located on the right
side of the steering wheel) operates the ACC
system.
1 — DISTANCE SETTING
2 — RES
+
3 — SET -
4 — CANCEL
5 — ON/OFF
6 — MODE
11 8

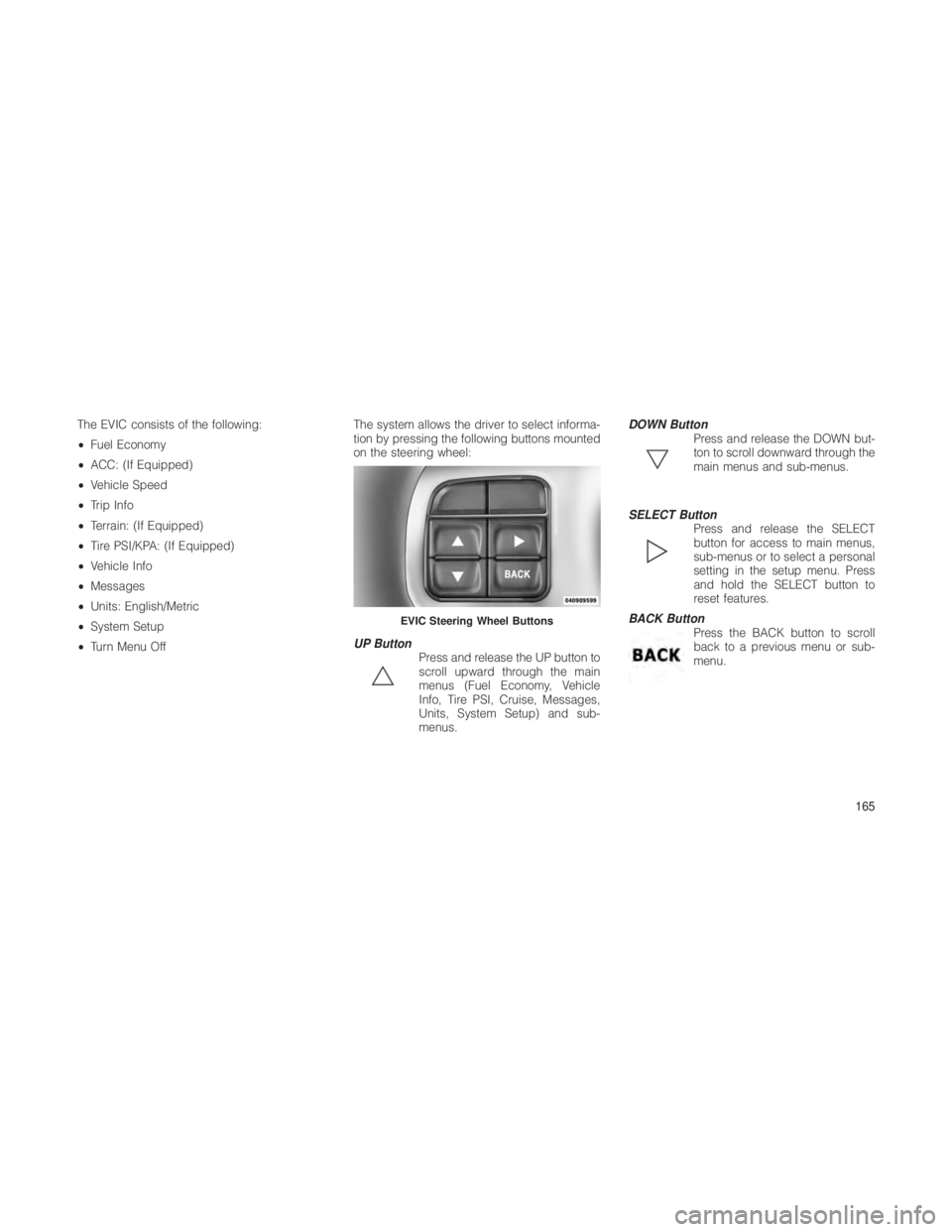

The EVIC consists of the following:
•Fuel Economy
• ACC: (If Equipped)
• Vehicle Speed
• Trip Info
• Terrain: (If Equipped)
• Tire PSI/KPA: (If Equipped)
• Vehicle Info
• Messages
• Units: English/Metric
• System Setup
• Turn Menu Off The system allows the driver to select informa-
tion by pressing the following buttons mounted
on the steering wheel:
UP Button
Press and release the UP button to
scroll upward through the main
menus (Fuel Economy, Vehicle
Info, Tire PSI, Cruise, Messages,
Units, System Setup) and sub-
menus. DOWN Button
Press and release the DOWN but-
ton to scroll downward through the
main menus and sub-menus.
SELECT Button Press and release the SELECT
button for access to main menus,
sub-menus or to select a personal
setting in the setup menu. Press
and hold the SELECT button to
reset features.
BACK Button Press the BACK button to scroll
back to a previous menu or sub-
menu.
EVIC Steering Wheel Buttons
165

•Eco — Fuel Saver Indicator
• Terrain Settings — Automatic
• Terrain Settings — Rock
• Terrain Settings — Sand/Mud
• Terrain Settings — Snow
• Terrain Settings — Sport
• Sport Not Available In 4 Low 4 High Is
Required
• Rock Not Available In 4 Low 4 High Is
Required
• To Tow Vehicle Safely, Read Neutral Shift
Procedure In Owners Manual
• For 4x4 Low Slow Below 5 Mph Or 8 Kph Put
Trans In N Press 4 Low
• For 4x4 High Slow Below 5 Mph Or 8 Kph Put
Trans In N Press 4 Low
• Terrain System Settings Not Available
• Raising Vehicle Ride Height (with icon)
• Lowering Vehicle Ride Height (with icon) •
Normal Vehicle Ride Height — This message
is displayed (for five seconds) when the
vehicle has achieved the Normal Vehicle
Ride Height.
• Off Road Ride Height Level 1 — This mes-
sage is displayed (for five seconds) when
the vehicle has achieved the Off Road
Height Level 1.
• Off Road Ride Height Level 2 — This mes-
sage is displayed (for five seconds) when
the vehicle has achieved the Off Road
Height Level 2.
• Vehicle Lowered To Entry/Exit (Park) Height
— This message is displayed (for five sec-
onds) when the vehicle has achieved the
Park Height.
• Entry/Exit (Park) Height in Progress — This
message is displayed (for five seconds)
when the request is made to go into Entry/
Exit Height while the vehicle speed is be-
tween 15 and 25 mph. This shows that the
request has been recognized and will lower
to Entry/Exit height when vehicle is below
15 mph. •
Service Air Suspension System — This is
displayed when a fault has occurred in the
system. The system will have limited opera-
tion at that point.
• Immediate Air Suspension Service/Repair
Required — This is displayed when a fault
has occurred in the system which results in a
complete system shutdown. The system will
be non operational at that point.
• Reduce Speed To Maintain Selected Ride
Height — This message is displayed in ad-
vance warning to the driver that the vehicle
will be moved to the next lower preset posi-
tion unless the speed is reduced.
• Selected Ride Height Not Permitted — The
vehicle speed is too high to enter one of the
preset levels (Entry/Exit Level/Off Road Ride
Height Level 1/Off Road Ride Height Level
2).
• Air Suspension System Cooling Down –
Please Wait — This message is displayed if
the compressor temperature level is too
high. Level control is suspended until the
compressor has cooled down.
168

•Engine Temperature Warning Light
This light warns of an overheated en-
gine condition. As temperatures rise
and the gauge approaches H,this
indicator will illuminate and a single
chime will sound after reaching a set threshold.
Further overheating will cause the temperature
gauge to pass H,a continuous chime will occur
until the engine is allowed to cool.
If the light turns on while driving, safely pull
over and stop the vehicle. If the A/C system is
on, turn it off. Also, shift the transmission into
NEUTRAL and idle the vehicle. If the tempera-
ture reading does not return to normal, turn the
engine off immediately and call for service.
Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.
• Transmission Temperature Light
This light indicates that there is
excessive transmission fluid tem-
perature that might occur with se-
vere usage such as trailer towing.
It may also occur when operating
the vehicle in a high torque con-
verter slip condition, such as 4-wheel-drive
operation (e.g., snow plowing, off- road opera- tion). If this light comes on, stop the vehicle and
run the engine at idle or faster, with the trans-
mission in NEUTRAL until the light goes off.
CAUTION!
Continuous driving with the Transmission
Temperature Indicator illuminated will eventu-
ally cause severe transmission damage or
transmission failure.
WARNING!
If the Transmission Temperature Warning
Light is illuminated and you continue operat-
ing the vehicle, in some circumstances you
could cause the fluid to boil over, come in
contact with hot engine or exhaust compo-
nents and cause a fire.
Engine Oil Change Indicator System
Oil Change Due
Your vehicle is equipped with an engine oil
change indicator system. The “Oil Change
Due” message will flash in the EVIC display for
approximately 10 seconds after a single chime
has sounded, to indicate the next scheduled oil
change interval. The engine oil change indica-
tor system is duty cycle based, which means
the engine oil change interval may fluctuate,
dependent upon your personal driving style.
Unless reset, this message will continue to
display each time you turn the ignition switch to
the ON/RUN position or cycle the ignition to the
ON/RUN position if equipped with Keyless
Enter-N-Go. To turn off the message temporar-
ily, press and release the MENU button. To
reset the oil change indicator system (after
performing the scheduled maintenance) refer
to the following procedure.
Vehicles Equipped With Keyless
Enter-N-Go
1. Without pressing the brake pedal, push the
ENGINE START/STOP button and cycle the
ignition to the ON/RUN position (Do not start
the engine.)
2. Fully depress the accelerator pedal, slowly,
three times within 10 seconds.
172

3. Without pressing the brake pedal, push the
ENGINE START/STOP button once to return the
ignition to the OFF/LOCK position.
Vehicles Not Equipped With Keyless
Enter-N-Go
1. Turn the ignition switch to the ON/RUN po-
sition (Do not start the engine.)
2. Fully depress the accelerator pedal, slowly,
three times within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK
position.
NOTE:
If the indicator message illuminates when
you start the vehicle, the oil change indica-
tor system did not reset. If necessary, repeat
this procedure.Fuel EconomyPress and release the UP or DOWN button until
“Fuel Economy” displays highlighted in the
EVIC and press the SELECT button. Press and
release the UP/DOWN buttons until one of the
following Fuel Economy functions displays in
the EVIC:
•Average Fuel Economy/Fuel Saver Mode
• Distance To Empty (DTE)
• Current Miles Per Gallon (MPG) or 100L/Km
Average Fuel Economy / Fuel Saver Mode
— If Equipped
Shows the average fuel economy since the last
reset. When the fuel economy is reset, the
display will read “RESET” or show dashes for
two seconds. Then, the history information will
be erased, and the averaging will continue from
the last fuel average reading before the reset.
The ECO message will display above the aver-
age fuel economy in the EVIC display. This
message will appear whenever the Multi-
Displacement System (MDS) (if equipped) al-
lows the engine to operate on four cylinders, or
if you are driving in a fuel efficient manner. This feature allows you to monitor when you are
driving in a fuel efficient manner, and it can be
used to modify driving habits in order to in-
crease fuel economy.
Distance To Empty (DTE)
Shows the estimated distance that can be
traveled with the fuel remaining in the tank. This
estimated distance is determined by a
weighted average of the instantaneous and
average fuel economy, according to the current
fuel tank level. DTE cannot be reset through the
SELECT button.
Fuel Saver Mode — On
173

NOTE:
Significant changes in driving style or ve-
hicle loading will greatly affect the actual
drivable distance of the vehicle, regardless
of the DTE displayed value.
When the DTE value is less than 30 miles
(48 km) estimated driving distance, the DTE
display will change to a “LOW FUEL” message.
This display will continue until the vehicle runs
out of fuel. Adding a significant amount of fuel
to the vehicle will turn off the “LOW FUEL”
message and a new DTE value will display.
Miles Per Gallon (MPG) Or 100L/Km
This display shows the instantaneous MPG or
100L/Km in bar graph form while driving. This
will monitor the gas mileage in real-time as you
drive and can be used to modify driving habits
in order to increase fuel economy.Adaptive Cruise ControlPress and release the UP or DOWN button until
ACC(if equipped with Adaptive Cruise Con-
trol) is highlighted in the EVIC. Status of the
ACC is displayed in the menu line also. Press
and release the SELECT (right arrow) button to
display the following information:
• If equipped with ACC, one of several mes-
sages will be displayed giving a dynamic
update of the status of the feature as the
driver changes feature status or following
conditions change. If ACC is active and a
warning or other feature is in the EVIC main
display, the ACC status will be displayed in
place of the EVIC odometer line.
Press and release the BACK button to return to
the main menu.
Vehicle SpeedPress and release the UP or DOWN button until
“Vehicle Speed” displays highlighted in the
EVIC and press the SELECT button. Press the
SELECT button to display the current speed in
mph or km/h. Pressing the SELECT button a
second time will toggle the unit of measure
between mph or km/h. NOTE:
Changing the unit of measure in the Vehicle
Speed menu will not change the unit of
measure in the EVIC.
Trip InfoPress and release the UP or DOWN button until
“Trip Info” displays highlighted in the EVIC and
press the SELECT button. Press and release
the UP/DOWN buttons until one of the following
Trip functions displays in the EVIC:
•
Trip A
• Trip B
• Elapsed Time
Trip A
Shows the total distance traveled for Trip A
since the last reset.
Trip B
Shows the total distance traveled for Trip B
since the last reset.
174

Elapsed Time
Shows the total elapsed time of travel since the
last reset when the ignition switch is in the ACC
position. Elapsed time will increment when the
ignition switch is in the ON or START position.
To Reset The Display
Reset will only occur while a resettable function
is being displayed. Press and release the SE-
LECT button once to clear the resettable func-
tion being displayed.
UnitsPress and release the UP or DOWN button until
“Units” displays highlighted in the EVIC and
press the SELECT button. The EVIC, odometer,
and navigation system (if equipped) can be
changed between English and Metric units of
measure. To make your selection, scroll up or
down until the preferred setting is highlighted,
then press and release the SELECT button until
a check-mark appears next to the setting,
showing that the setting has been selected.
Vehicle Info
(Customer Information Features)
Press and release the UP or DOWN button until
“Vehicle Info” displays highlighted in the EVIC
and press the SELECT button. Press the UP
and DOWN button to scroll through the avail-
able information displays, then press SELECT
to display any one of the following choices.
•Oil Temp (If Equipped)
Displays the actual oil temperature.
• Oil Pressure (If Equipped)
Displays the actual oil pressure.
• Coolant Temp
Displays the actual coolant temperature.
• Trans Temperature
Displays the actual transmission temperature
when the shift lever is in the Drive position. •
Engine Hours
Displays the number of hours of engine opera-
tion.
Tire PSI or Tire KPA
Press and release the UP or DOWN button until
“Tire PSI” or “Tire KPA” displays highlighted in
the EVIC and press the SELECT button. Press
and release the UP/DOWN buttons until one of
the following System Status messages displays
in the EVIC:
• System OK
• System Warnings Displayed (will display all
currently active System Warnings)
175
