2012 INFINITI M ECO mode

6-14In case of emergency
SCE0488
All-wheel drive models
Intelligent All-Wheel Drive (AWD)
models
INFINITI recommends that towing dollies be
used when towing your vehicle or the
vehicle be placed on a flat bed truck as
illustrated.
CAUTION
Never tow Intelligent AWD models with any
of the wheels on the ground as this may
cause serious and expensive damage to the
powertrain.SCE0885

7-6Appearance and care
The use of INFINITI floor mats can extend
the life of your vehicle carpet and make it
easier to clean the interior. Mats should be
maintained with regular cleaning and
replaced if they become excessively worn.
SAI0050
Front (example)
Floor mat positioning aid
This model includes front floor mat brack-
ets to act as floor mat positioning aid.
INFINITI floor mats have been specially
designed for your vehicle model. The front
floor mats have grommet holes in them. To
install, simply position the mat by placing
the floor mat bracket through the floor mat
grommet hole while centering the mat in
the floor pan contour.
Periodically check to make certain that the
mats are properly positioned.
SAI0051
Bracket positions
The illustration shows the location of the
floor mat brackets.
SEAT BELTS
The seat belts can be cleaned by wiping
them with a sponge dampened in a mild
soap solution. Allow the belts to dry
completely before using them.
See “Seat belts ”in the “1. Safety —Seats,
seat belts and supplemental restraint
system” section.

8-34Maintenance and do-it-yourself
SDI1839
Vanity mirror lightIf you have a flat tire, see
“Flat tire”in the
“6. In case of emergency ”section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears in the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light ”in the “2. Instruments and
controls ”section, “Tire Pressure Monitoring
System (TPMS) ”in the “5. Starting and
driving ”section and “Tire Pressure Mon-
itoring System (TPMS) ”in the “6. In case
of emergency” section.
Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al-
ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
WHEELS AND TIRES

8-36Maintenance and do-it-yourself
SDI2567
Tire and Loading Information label
*1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
*2Vehicle load limit: See“Vehicle
loading information ”in the “9. Technical and consumer informa-
tion
”section.
*3Original size: The size of the tires
originally installed on the vehicle
at the factory.
*4Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6
km) at moderate speeds. The
recommended cold tire inflation
is set by the manufacturer to
provide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the
vehicle ’s GVWR.
*5Tire size —see “Tire labeling ”
later in this section.
*6Spare tire size or compact spare
tire size (if so equipped)

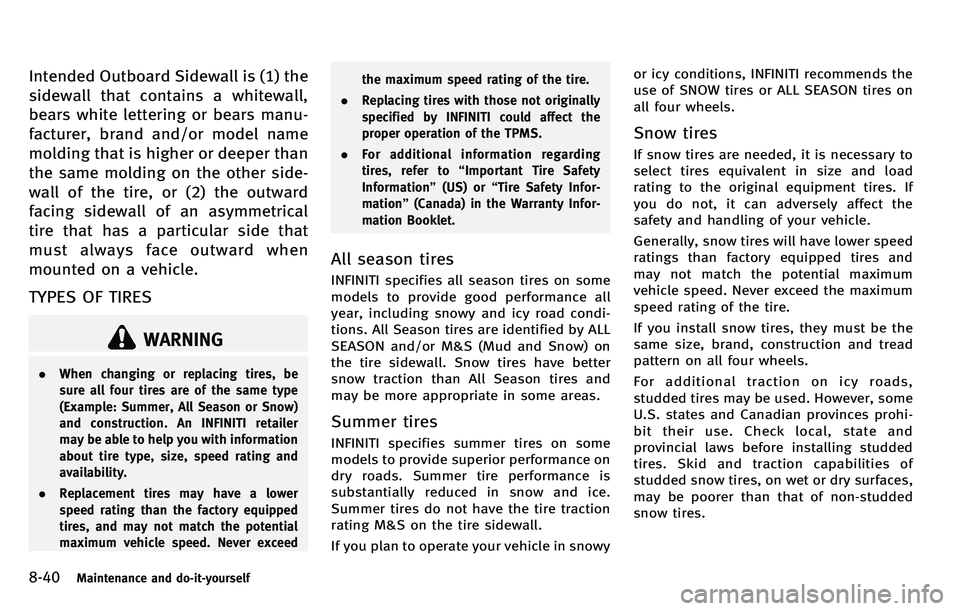

8-40Maintenance and do-it-yourself
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed the maximum speed rating of the tire.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information ”(US) or “Tire Safety Infor-
mation ”(Canada) in the Warranty Infor-
mation Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.

8-44Maintenance and do-it-yourself
mation”(Canada) in the Warranty Infor-
mation Booklet.
Intelligent All-Wheel Drive (AWD)
models
CAUTION
. Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.
. ONLY use spare tires specified for the
Intelligent AWD model.
If excessive tire wear is found, it is
recommended that all four tires be re-
placed with tires of the same size, brand,
construction and tread pattern. The tire
pressure and wheel alignment should also
be checked and corrected as necessary.
Contact an INFINITI retailer.
Wheel balance
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to “Important Tire Safety Information ”
(US) or “Tire Safety Information ”(Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheels
See “Cleaning exterior ”in the “7. Appear-
ance and care ”section for details about
care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
Observe the following precautions if the T-
type spare tire must be used, otherwise
your vehicle could be damaged or involved
in an accident.
WARNING
. The T-type spare tire should be used for
emergency use. It should be replaced
with the standard tire at the first
opportunity to avoid possible tire or
differential damage.
. Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
. Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire at
60 psi (420 kPa, 4.2 bar). Always keep
the pressure of the full size spare tire (if
so equipped) at the recommended pres-
sure for standard tires, as indicated on
the Tire and Loading Information label.
For Tire and Loading Information label
location, see “Tire and loading informa-
tion label ”in the “9. Technical and
consumer information ”.
. With the TEMPORARY USE ONLY spare
tire installed do not drive your vehicle at
speeds faster than 50 MPH (80 km/h).
. When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY

This vehicle is equipped with an Event
Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or
near crash-like situations, such as an air
bag deployment or hitting a road obstacle,
data that will assist in understanding how
a vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to
record such data as:
. How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data (e.g. name, gender, age and crash loca-
tion) are recorded. However, other parties,
such as law enforcement, could combine
the EDR data with the type of personally
identifying data routinely acquired during
a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI
retailer, other parties, such as law en-
forcement, that have the special equip-
ment, can read the information if they
have access to the vehicle or the EDR. EDR
data will only be accessed with the
consent of the vehicle owner or lessee or
as otherwise required or permitted by law.
Genuine INFINITI Service Manual for this
model and prior models can be purchased.
A genuine INFINITI Service Manual is the
best source of service and repair informa-
tion for your vehicle. This manual is the
same one used by the factory trained
technicians working at an INFINITI retailer.
Genuine INFINITI Owner
’s Manuals can also
be purchased.
In the USA:
For current pricing and availability of
genuine INFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of
genuine INFINITI Owner ’s Manuals ,con-
tact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner ’s Manual for this
model year and prior, contact an INFINITI
retailer. For the phone number and location
of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representa-
tive will assist you.
Technical and consumer information9-23
EVENT DATA RECORDERS (EDR) OWNER
’S MANUAL/SERVICE MANUAL
ORDER INFORMATION

10 Index
Number
4 Wheel Active Steer (4WAS) system ............... 5-100
4 Wheel Active Steer (4WAS) warning light ....... 2-13
A
ABS (Anti-lock Braking System) ......................... 5-96
Active noise control ........................................ 5-103
Adjustable headrests .......................................... 1-8
Air bag systemFront-seat mounted side-impact supplemental
air bag system ............................................. 1-49
Roof-mounted curtain side-impact supplemental
air bag system ............................................. 1-49
Air bag warning labels ...................................... 1-52
Air bag warning light ............................... 1-52, 2-16
Air cleaner housing filter ................................... 8-22
Air conditioner Air conditioner specification label ................ 9-13
Air conditioning system refrigerant and
lubricant recommendations ............................ 9-7
Automatic climate control ............................ 4-33
In-cabin microfilter ....................................... 4-47
Air filter In-cabin microfilter ....................................... 4-47
Alarm
How to stop alarm (see vehicle
security system) ........................................... 2-30
Alcohol, drugs and driving .................................. 5-8
Antenna ............................................................ 4-88 Anti-lock Braking System (ABS) ......................... 5-96
Appearance care
Exterior appearance care................................ 7-2
Interior appearance care ................................ 7-4
Armrest ............................................................. 1-10
Ashtrays (See cigarette lighter and ashtrays) .... 2-47
Audible reminders ............................................ 2-19
Audio operation precautions ............................. 4-48
Audio system .................................................... 4-48 Steering wheel audio controls ...................... 4-87
Autolight system ............................................... 2-35
Automatic Automatic climate control .................. 4-36, 4-40
Automatic transmission fluid (ATF) ............... 8-16
Climate control ............................................ 4-33
Driving with automatic transmission ............ 5-14
Automatic door locks .......................................... 3-6
Automatic drive positioner ................................ 3-28
Automatic moonroof.......................................... 2-55
Automatic seat positioner ................................. 3-28
Average fuel consumption and speed................ 2-27
Avoiding collision and rollover ............................ 5-6
B
Battery .............................................................. 8-19
Battery replacement, Intelligent Key ............... 3-2
Battery saver system ................................... 2-36
Intelligent Key .............................................. 8-29
Variable voltage control system ................... 8-20 Before starting the engine ................................ 5-13
Belts (See drive belts) ....................................... 8-21
Blind Spot Intervention (BSI) ON
indicator light ................................................... 2-17
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-89
Bluetooth
®hands-free phone system
(models without navigation system) ................ 4-100
Bluetooth
®streaming audio ............................. 4-73
Brake Anti-lock Braking System (ABS) .................... 5-96
Brake fluid ................................................... 8-17
Brake force distribution ............................... 5-99
Brake system ............................................... 5-93
Parking brake operation ............................... 5-18
Brake warning light........................................... 2-11
Break-in schedule ............................................. 5-90
Brightness control Display ON/OFF button ................................ 4-10
Bulb check/instrument panel ............................ 2-10
Bulb replacement .............................................. 8-31
C
Cabin air filter................................................... 4-47
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-89
Card holder ....................................................... 2-51
Catalytic converter
Three way catalyst ......................................... 5-3
