1-34Safety—Seats, seat belts and supplemental restraint system
SSS0640
Forward-facing (front passenger seat) —
step 1
Refer to all Warnings and Cautions in the
“Child safety” and“Child restraints” sec-
tions before installing a child restraint.
Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front
passenger seat:
1. If you must install a child restraint in
the front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and, therefore,
must not be used in the front seat. 2. Position the child restraint on the seat.
Always follow the child restraint man-
ufacturer’s instructions.
The back of the child restraint should
be secured against the vehicle seat-
back.
If necessary, adjust or remove the head
restraint to obtain the correct child
restraint fit. If the head restraint is
removed, store it in a secure place. Be
sure to reinstall the head restraint
when the child restraint is removed.
See “Head restraints” (P.1-9) for head
restraint adjustment, removal and in-
stallation information.
If the seating position does not have an
adjustable head restraint and it is
interfering with the proper child re-
straint fit, try another seating position
or a different child restraint.
SSS0360B
Forward-facing —step 3
3. Route the seat belt tongue through the
child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child
restraint manufacturer’s instructions
for belt routing.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point (rear seat installa-
tion only). See “Installing top tether
strap” (P.1-37). Do not install child
restraints that require the use of a top
tether strap in seating positions that do
not have a top tether anchor.

Black plate (57,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SSS0651
Forward-facing—step 4
4. Pull the shoulder belt until the belt is
fully extended. At this time, the seat
belt retractor is in the Automatic Lock-
ing Retractor (ALR) mode (child restraint
mode). It reverts to Emergency Locking
Retractor (ELR) mode when the seat belt
is fully retracted.
SSS0652
Forward-facing —step 5
5. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack
in the belt.
SSS0653
Forward-facing —step 6
6. Remove any additional slack from the
seat belt; press downward and rear-
ward firmly in the center of the child
restraint with your knee to compress
the vehicle seat cushion and seatback
while pulling up on the seat belt.
7. Tighten the tether strap according to the manufacturer’s instructions to re-
move any slack.
Safety —Seats, seat belts and supplemental restraint system1-35

Black plate (58,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-36Safety—Seats, seat belts and supplemental restraint system

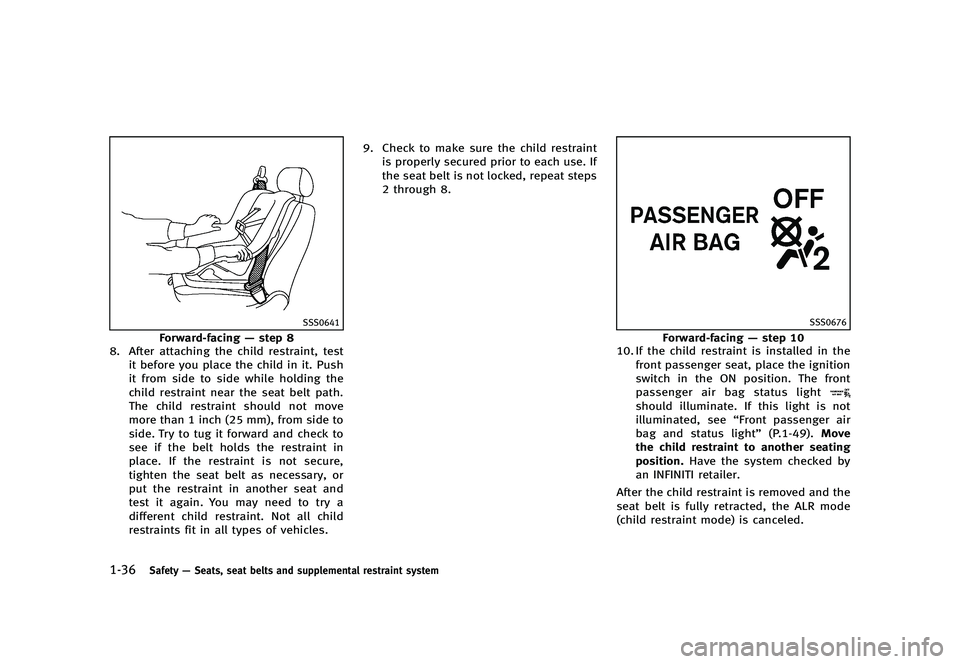

SSS0641
Forward-facing —step 8
8. After attaching the child restraint, test
it before you place the child in it. Push
it from side to side while holding the
child restraint near the seat belt path.
The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to
see if the belt holds the restraint in
place. If the restraint is not secure,
tighten the seat belt as necessary, or
put the restraint in another seat and
test it again. You may need to try a
different child restraint. Not all child
restraints fit in all types of vehicles. 9. Check to make sure the child restraint
is properly secured prior to each use. If
the seat belt is not locked, repeat steps
2 through 8.
SSS0676
Forward-facing —step 10
10. If the child restraint is installed in the
front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should illuminate. If this light is not
illuminated, see “Front passenger air
bag and status light” (P.1-49).Move
the child restraint to another seating
position. Have the system checked by
an INFINITI retailer.
After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

Black plate (59,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SSS0791
Sedan
SSS0790
Coupe
INSTALLING TOP TETHER STRAPGUID-C9A5E577-AFA4-46B6-97E2-D077C8A3DBABFirst, secure the child restraint with the
LATCH lower anchors (rear outboard seat
positions only) or the seat belt, as applic-
able.
1.Flip up the anchor cover from the
anchor point which is located directly
behind the child seat.
2. Position the top tether strap over the top of the seatback.
3. Secure the tether strap to the tether anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this
section before tightening the tether
strap.
If you have any questions when installing
a top tether strap, consult your INFINITI
retailer for details.
BOOSTER SEATSGUID-F369878B-DD25-483E-8198-275B4D15BF3F
Precautions on booster seatsGUID-25C42A16-09BB-45D5-A28E-6C3CA2A753FF
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured in
a sudden stop or collision greatly increases:
. Make sure the shoulder portion of the
belt is away from the child’s face and
neck and the lap portion of the belt does
not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child’s
arm.
. A booster seat must only be installed in
a seating position that has a lap/
shoulder belt.
Safety —Seats, seat belts and supplemental restraint system1-37

Black plate (60,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-38Safety—Seats, seat belts and supplemental restraint system
LRS0455
Booster seats of various sizes are offered
by several manufacturers. When selecting
any booster seat, keep the following points
in mind:
. Choose only a booster seat with a label
certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.
. Check the booster seat in your vehicle
to be sure it is compatible with the
vehicle’s seat and seat belt system.
LRS0453
. Make sure the child’s head will be
properly supported by the booster seat
or vehicle seat. The seatback must be at
or above the center of the child’s ears.
For example, if a low back booster seat
*1is chosen, the vehicle seatback
must be at or above the center of the
child’s ears. If the seatback is lower
than the center of the child’s ears, a
high back booster seat
*2should be
used.
. If the booster seat is compatible with
your vehicle, place your child in the
booster seat and check the various
adjustments to be sure the booster seat is compatible with your child.
Always follow all recommended proce-
dures.

Black plate (61,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
LRS0464
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to
booster seat installation in the rear seats
or the front passenger seat.
Booster seat installationGUID-F402278F-CB4D-47C2-8CA5-E6E93C16F092
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Refer to all Warnings and Cautions in the
“Child safety”,“Child restraints” and
“Booster seats” sections earlier in this
section before installing a child restraint.
Follow these steps to install a booster seat
in the rear seat or in the front passenger
seat:
SSS0640
1. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direc-
tion. Always follow the booster seat
manufacturer’s instructions.
Safety —Seats, seat belts and supplemental restraint system1-39

Black plate (62,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
1-40Safety—Seats, seat belts and supplemental restraint system
LRS0454
Front passenger position
3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint to obtain the correct booster
seat fit. If the head restraint is
removed, store it in a secure place. Be
sure to reinstall the head restraint
when the booster seat is removed.
See “Head restraints” (P.1-9) for head
restraint, removal and installation in-
formation.
If the seating position does not have an
adjustable head restraint and it is
interfering with the proper booster seat fit, try another seating position or a
different booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be
sure to follow the booster seat manu-
facturer’s instructions for adjusting the
seat belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up
extra slack. Be sure the shoulder belt is
positioned across the top, middle por-
tion of the child’s shoulder. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
6. Follow the warnings, cautions and
instructions for properly fastening a
seat belt shown in “Seat belts”(P.1-
14).
SSS0676
7. If the booster seat is installed in the front passenger seat, push the ignition
switch to the ON position. The front
passenger air bag status light
may
or may not illuminate depending on the
size of the child and the type of booster
seat used. See “Front passenger air
bag and status light” (P.1-49).

Black plate (63,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-EE61FDD4-27FE-47E6-AA0F-DDD90D621C3B
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
GUID-95EB1259-7EC1-45A1-A102-14E1973C8879This Supplemental Restraint System (SRS)
section contains important information
concerning the driver and passenger front
impact supplemental air bags (INFINITI
Advanced Air Bag System), front seat-
mounted side-impact supplemental air
bag system, roof-mounted curtain side-
impact supplemental air bag and seat belt
with pretensioners.
Supplemental front-impact air bag system:
The INFINITI Advanced Air Bag System can
help cushion the impact force to the head
and chest of the driver and front passenger
in certain frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system:This system can
help cushion the impact force to the chest
and pelvis area of the driver and front
passenger in certain side impact collisions.
The side air bag is designed to inflate on
the side where the vehicle is impacted.
Roof-mounted curtain side-impact supple-
mental air bag system: This system can
help cushion the impact force to the head
of occupants in front and rear outboard
seating positions in certain side impact collisions. The curtain air bags are de-
signed to inflate on the side where the
vehicle is impacted.
These supplemental restraint systems are
designed to
supplementthe crash protec-
tion provided by the driver and passenger
seat belts and are not a substitutefor
them. Seat belts should always be cor-
rectly worn and the occupant seated a
suitable distance away from the steering
wheel, instrument panel and door fin-
ishers. (See “Seat belts” (P.1-14) for
instructions and precautions on seat belt
usage.)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The supplemental air
bag warning light will turn off after about
7 seconds if the systems are operational.
Safety —Seats, seat belts and supplemental restraint system1-41
SUPPLEMENTAL RESTRAINT SYSTEM
