2012 INFINITI G Owners Manual

Black plate (176,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
3-34Pre-driving checks and adjustments
approximately 0.5 second. When the
memory has stored in position, the
indicator light will stay on for approxi-
mately 5 seconds.
. If the battery cable is disconnected, or if
the fuse opens, the memory will be
canceled. In this case, reset the desired
position using the previous procedure.
. If optional Intelligent Keys are added to
your vehicle, the memory storage pro-
cedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be performed
again for each Intelligent Key. For
additional Intelligent Key information,
see “Keys” (P.3-2).
Selecting the memorized positionGUID-739A81F0-8862-49C2-BBA8-117F41F648F91.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Use one of the following methods to move the driver’s seat, the outside
mirrors and the steering wheel.
.Push the ignition switch to the ONposition and push the memory
switch (1 or 2) fully for at least 1
second.
.Within 45 seconds of opening the
driver’s door, push the memory
switch (1 or 2) fully for at least 1
second.
The driver’s seat, steering column
and outside mirrors will move to the
memorized position with the indica-
tor light flashing, and then the light
will stay on for approximately 5
seconds.
For manual transmission models, the
memory positions can be selected even
when the engine is running. In this case,
move the shift lever to the N (Neutral)
position and apply the parking brake.
Then, perform step 2.
SYSTEM OPERATIONGUID-0383C8BF-12F8-48D0-9B28-5A2A0DCC8D55The automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle speed is above 4 MPH
(7 km/h).
. When the adjusting switch for the
driver’s seat and steering column is
turned on while the automatic drive positioner is operating.
. When the memory switch 1 or 2 is not
pushed for at least 1 second.
. When the seat, steering column and
outside mirrors have already been
moved to the memorized position.
. When no position is stored in the
memory switch.
. When the parking brake is released (MT
models).
. When the speed is above 4 MPH (7
km/h) while the parking brake is
applied (MT models).
To restart the drive positioner system,
move the parking brake to off and on.
. When the engine is started while
moving the automatic drive positioner.
. When the AT selector lever is moved
from the P (Park) position to any other
position. (However, it will not be
canceled if the switch is pushed while
the seat and steering column are
returning to the previous positions
(entry/exit function).)
. When the driver’s door remains open
for more than 45 seconds and the
ignition switch is not in the ON posi-
tion.

Black plate (177,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

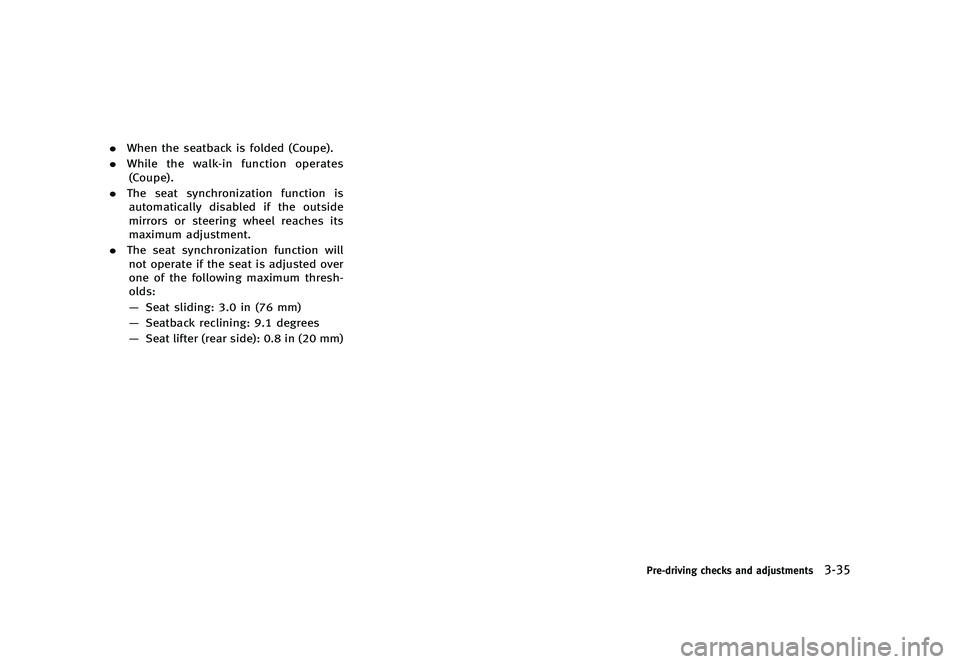

.When the seatback is folded (Coupe).
. While the walk-in function operates
(Coupe).
. The seat synchronization function is
automatically disabled if the outside
mirrors or steering wheel reaches its
maximum adjustment.
. The seat synchronization function will
not operate if the seat is adjusted over
one of the following maximum thresh-
olds:
— Seat sliding: 3.0 in (76 mm)
— Seatback reclining: 9.1 degrees
— Seat lifter (rear side): 0.8 in (20 mm)
Pre-driving checks and adjustments3-35

Black plate (178,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
3-36Pre-driving checks and adjustments
MEMO

Black plate (179,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Center multi-function control panel ...
...................... 4-3
How to use INFINITI controller ...
.......................... 4-5
How to use touch screen (models with
navigation system) ...
.......................................... 4-5
Menu options (models with
navigation system) ...
.......................................... 4-7
How to select menus on the screen ...
................. 4-8
Vehicle information and settings ...
.......................... 4-9
How to use STATUS button ...
.............................. 4-9
How to use brightness control and display
ON/OFF button ...
................................................ 4-9
How to use INFO button ...
.................................. 4-9
How to use SETTING button ...
........................... 4-14
RearView monitor (if so equipped) ...
..................... 4-23
How to read displayed lines ...
.......................... 4-24
How to park with predicted course lines ...
........ 4-24
Difference between predicted and
actual distances ...
............................................ 4-26
Predictive course line settings ...
....................... 4-29
How to adjust screen ...
.................................... 4-29
Operating tips ...
............................................... 4-29
Ventilators ...
......................................................... 4-30
Automatic climate control ...
.................................. 4-31
Automatic climate control (Type A) ...
................. 4-32 Automatic climate control (Type B)
...
............... 4-34
Automatic climate control (Type C) ...
............... 4-37
Operating tips ...
.............................................. 4-40
In-cabin microfilter ...
....................................... 4-40
Servicing climate control ...
.............................. 4-41
Audio system ...
.................................................... 4-41
Audio operation precautions ...
........................ 4-41
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................... 4-57
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
.................. 4-62
USB input operation (if so equipped) ...
........... 4-66
Bluetooth
®streaming audio (models with
navigation system) ...
....................................... 4-70
iPod
®player operation (if so equipped) ...
....... 4-75
Music Box®(if so equipped) ...
........................ 4-77
Auxiliary input jacks (if so equipped) ...
........... 4-85
CD/DVD/USB memory care and cleaning ...
...... 4-86
Steering-wheel-mounted controls
for audio ...
..................................................... 4-87
Antenna ...
....................................................... 4-89
Car phone or CB radio ...
...................................... 4-89
Bluetooth
®Hands-Free Phone System
(models with navigation system) ...
....................... 4-90
Regulatory information ...
................................. 4-91

Black plate (180,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Voice commands...
........................................... 4-91
Control buttons ...
............................................. 4-92
Connecting procedure ...
.................................... 4-92
Phone selection ...
............................................. 4-93
Vehicle phonebook ...
........................................ 4-93
Making a call ...
................................................ 4-95
Receiving a call ...
............................................. 4-96
During a call ...
................................................. 4-97
Phone setting ...
................................................ 4-98
Troubleshooting guide ...
................................... 4-99
Bluetooth
®Hands-Free Phone System
(models without navigation system)
(if so equipped) ...
............................................... 4-100
Regulatory information ...
................................ 4-101
Control buttons ...
........................................... 4-102
Voice Recognition System ...
............................ 4-102 Pairing procedure
...
...................................... 4-107
Phonebook registration ...
.............................. 4-108
Making a call ...
............................................. 4-109
Receiving a call ...
.......................................... 4-109
During a call ...
.............................................. 4-109
Phone settings ...
........................................... 4-110
Voice adaptation mode ...
.............................. 4-113
INFINITI Voice Recognition system
(models with navigation system) ...
..................... 4-114
INFINITI Voice Recognition
STANDARD mode ...
........................................ 4-115
Using the system ...
....................................... 4-118
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-127
Using the system ...
....................................... 4-136
Troubleshooting guide ...
............................... 4-142

Black plate (181,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “STATUS” status display button
(P.4-9)
2, 6, 7, 10, 11. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)
3. INFINITI controller (P.4-5)
4. “PHONE” Bluetooth
®Hands-Free
Phone System button (P.4-90)
5. “
OFF” brightness control and
display ON/OFF button (P.4-9)
8. “AM·FM·SAT” band selector button
(P.4-41) 9.
“DISC·AUX” selector button (P.4-41)
12. “INFO” vehicle and navigation infor-
mation button (P.4-9)
13. “SETTING” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL

Black plate (182,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-4Monitor, climate, audio, phone and voice recognition systems
SAA1524
Models without navigation system
1. “AUX” button (P.4-41)
2. “RADIO AM·FM” band selector button
(P.4-41)
3. INFINITI controller (P.4-5)
4. “
OFF” brightness control and
display ON/OFF button (P.4-9)
5. “INFO” vehicle information button
(P.4-9)
6. “DISC” selector button (P.4-41)
7. “STATUS” status display button
(P.4-9)
8. “SETTING” button (P.4-14)
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
SAA1541
Models with navigation system
SAA1508
Models without navigation system

Black plate (183,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
HOW TO USE INFINITI CONTROLLERGUID-7A498997-935F-4751-B393-57B01CF46DDFChoose an item on the display using the
main directional buttons
*2(or additional
directional buttons
*6with navigation
system) or center dial
*3, and push the
ENTER button
*1for operation.
If you push the BACKbutton
*4before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button
*4and return to the previous
screen.
For the VOICEbutton
*5functions, refer to
the separate Navigation System Owner’s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-6611C03E-CDBF-4D30-B540-4F9F66BCB2C5
CAUTION
. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. Do not touch the glass if
it breaks. Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Touch screen operationGUID-9E906F90-D180-4427-8288-7815C56B83FBWith this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Monitor, climate, audio, phone and voice recognition systems4-5
