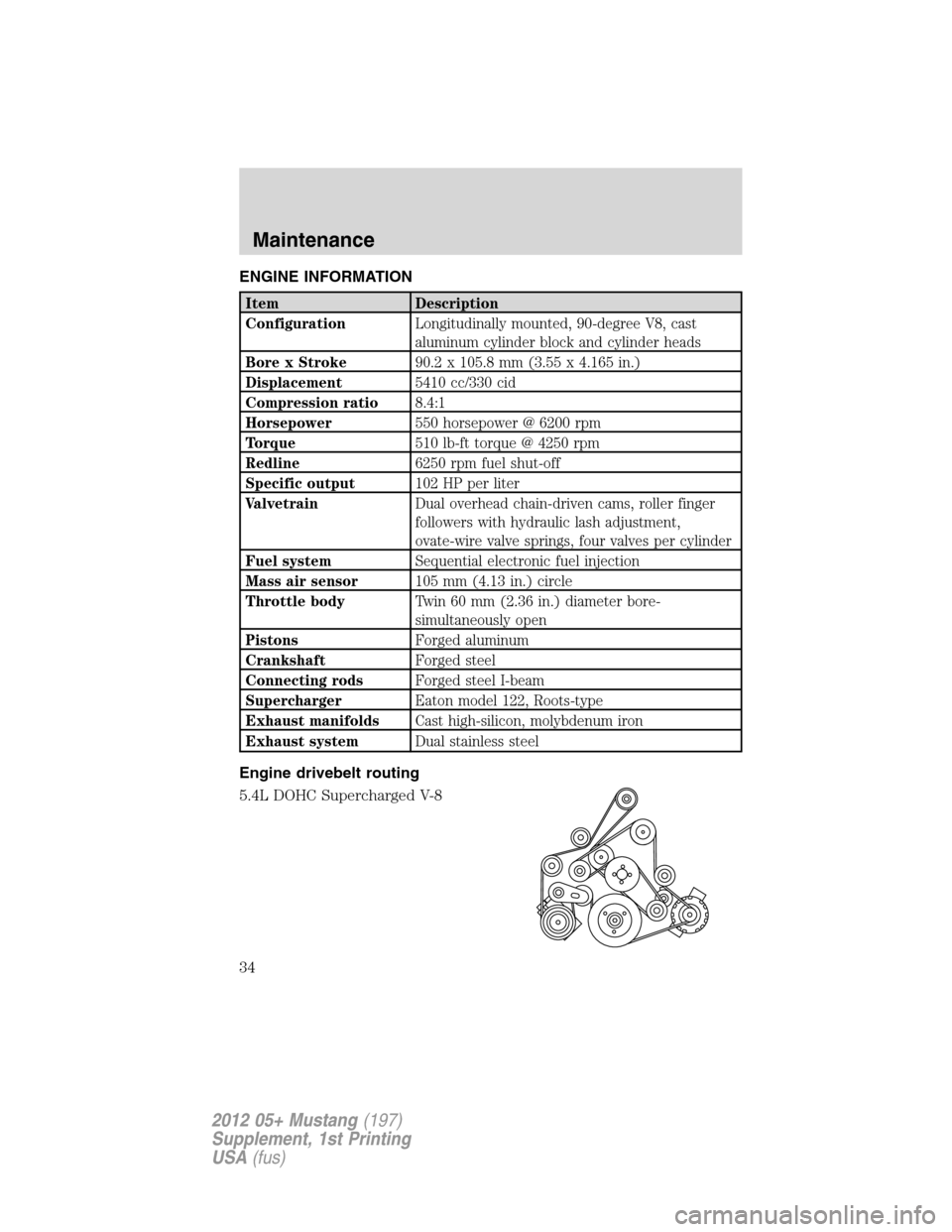

ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree V8, cast
aluminum cylinder block and cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in.)
Displacement5410 cc/330 cid
Compression ratio8.4:1
Horsepower550 horsepower @ 6200 rpm
Torque510 lb-ft torque @ 4250 rpm
Redline6250 rpm fuel shut-off
Specific output102 HP per liter
ValvetrainDual overhead chain-driven cams, roller finger
followers with hydraulic lash adjustment,
ovate-wire valve springs, four valves per cylinder
Fuel systemSequential electronic fuel injection
Mass air sensor105 mm (4.13 in.) circle
Throttle bodyTwin 60 mm (2.36 in.) diameter bore-
simultaneously open
PistonsForged aluminum
CrankshaftForged steel
Connecting rodsForged steel I-beam
SuperchargerEaton model 122, Roots-type
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
Engine drivebelt routing
5.4L DOHC Supercharged V-8
Maintenance
34
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

WARRANTY COVERAGE
The Shelby GT500 carries the same warranty as other Ford Mustang
models. This information is covered in its entirety in the Ford Motor
Company Warranty Guide.
Warranty service for the Shelby GT500 or any SVT vehicle can be
obtained at any Ford dealer nationwide.
SVT does not recommend modifying or racing SVT vehicles, as they are
designed and built to be driven as delivered from the factory. The Ford
Motor Company Warranty Guide discusses vehicle usage and the
installation of aftermarket parts and their effect on warranty coverage.
Please see the Warranty Guide for complete information.
In the event the vehicle is intended for track use, and the loss of
warranty coverage is not of concern, the following vehicle durability
modifications are required:
•Install transmission oil cooler. Permanent damage to the transmission
will result if the vehicle is subjected to competition conditions without
installation of a transmission oil cooler.
•Install rear differential cooler. Permanent damage to the rear
differential will result if the vehicle is subjected to competition
conditions without installation of a differential cooler.
•Install Ford Racing brake cooling duct kit. Excessive brake wear will
occur if the vehicle is subjected to competition conditions without
installation of a brake cooling kit.
•Replace the rear axle lubricant after the first 1 hour of high-speed
operation or if the vehicle is subjected to competition conditions and
every 12 hours thereafter.
Additionally, perform multi-point inspection and the maintenance
outlined in the 150,000 mile (240,000 km) normal maintenance schedule
of thescheduled maintenance informationbefore and after track use.
Refer to the vehicle service manual for removal and installation
procedures. Replace with Genuine Ford and Motorcraftservice parts as
needed.
These modifications may not necessarily protect your engine from
damage in competition conditions. Subjecting your vehicle to competition
conditions even with these proposed modifications may render repairs
non-reimbursable under the warranty.
Warranty Coverage
35
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

GENERAL MAINTENANCE INFORMATION
Why Maintain Your Vehicle?
Carefully following this schedule helps protect against major repair
expenses resulting from neglect or inadequate maintenance and may also
help to increase the value of your vehicle when you sell or trade it.
It is your responsibility to see that all scheduled maintenance is
performed and that the materials used meet Ford engineering
specifications as identified in theMaintenance and Specifications
chapter. Failure to perform scheduled maintenance specific in this guide
will invalidate warranty coverage on parts affected by the lack of
maintenance. Be sure receipts for completed maintenance are kept with
the vehicle and confirmation of the work performed is always recorded in
this guide.
Your dealer has factory-trained technicians who can perform the required
maintenance using genuine Ford parts. They are committed to meeting
your service needs and to assuring your continuing satisfaction.
Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is very sophisticated and built with multiple complex
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That’s why it’s
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of genuine Ford replacement parts.
Parts other than Ford, Motorcraftor Ford-authorized remanufactured
parts that are used for maintenance replacement or for the service of
components affecting emission control must be equivalent to genuine
Scheduled Maintenance Guide
36
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oil6 months or 7,500 miles (12,000 km)
(whichever comes first)
Engine coolant, initial
change6 years or 105,000 miles (168,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 45,000 miles (72,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Scheduled Maintenance Guide
38
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Check every six months
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Multi-Point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and
window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance Guide
39
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the “Normal Schedule”. This schedule is presented at specific
mileage (kilometer) intervals with exceptions noted.Miles (x 1,000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75
Kilometers (x 1,000) 12 24 36 48 60 72 84 96 108 120
Months 6 121824303642485460
Change engine oil and filter• •••••••••
For tire rotation schedule, refer toTire rotationin theTire Informationchapter
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake•••••
Inspect engine cooling system concentration and
hoses•••••
Inspect exhaust system and heat shields•••••
Inspect and lubricate steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and U-joints if
equipped with grease fittings•••••
Inspect cabin air filter (if equipped)• ••••
Scheduled Maintenance Guide
41
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

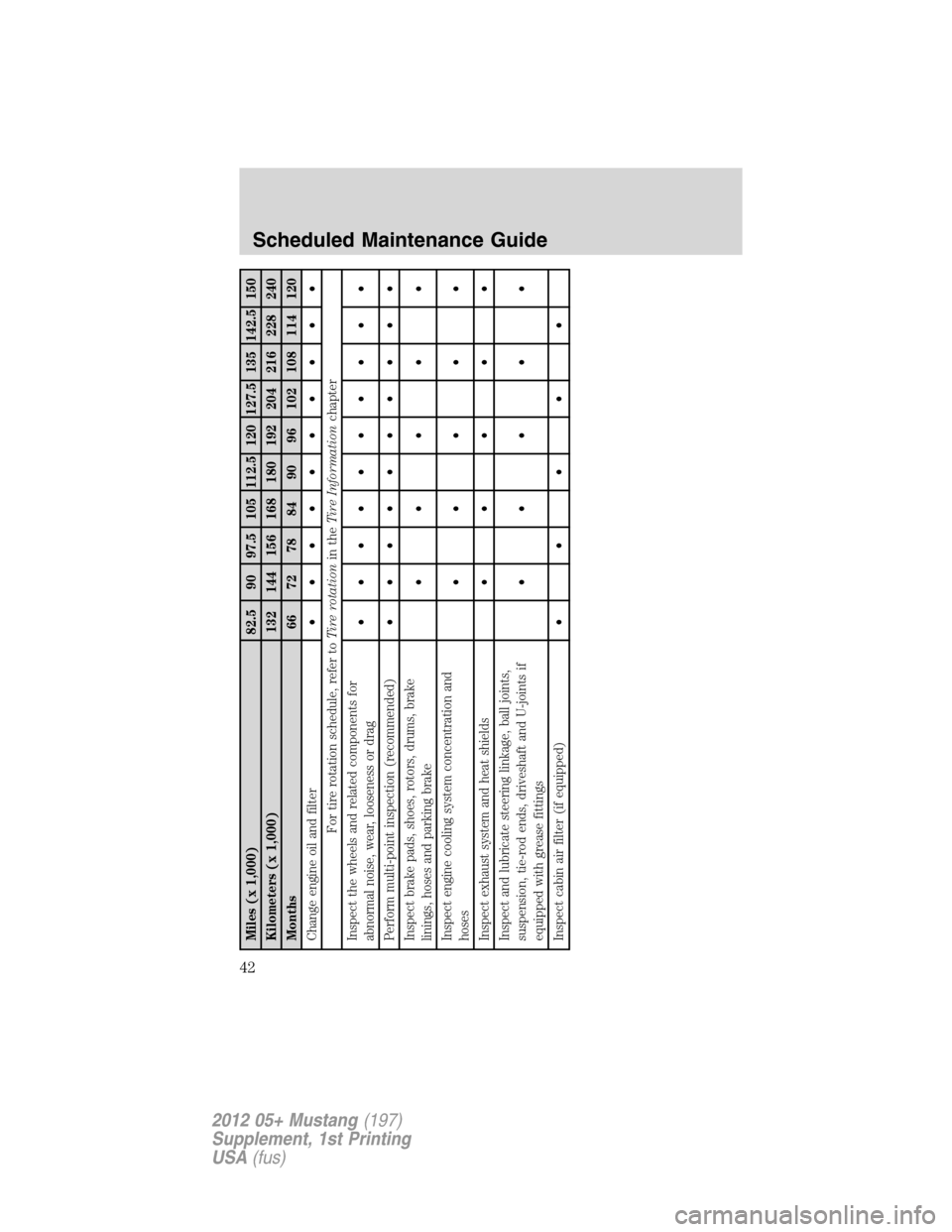

Miles (x 1,000) 82.5 90 97.5 105 112.5 120 127.5 135 142.5 150
Kilometers (x 1,000) 132 144 156 168 180 192 204 216 228 240
Months 66 72 78 84 90 96 102 108 114 120
Change engine oil and filter• •••••••••
For tire rotation schedule, refer toTire rotationin theTire Informationchapter
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake•••••
Inspect engine cooling system concentration and
hoses•••••
Inspect exhaust system and heat shields•••••
Inspect and lubricate steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and U-joints if
equipped with grease fittings•••••
Inspect cabin air filter (if equipped)• ••••
Scheduled Maintenance Guide
42
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace engine air filter
Replace fuel filter
Every 45,000 miles
(72,000 km)Replace spark plugs
Every 105,000 miles
(168,000 km)Change engine coolant
1
Inspect accessory drive belt(s)2
Every 150,000 miles
(240,000 km)Change manual transmission fluid
Change rear axle fluid
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
1Initial replacement at 105,000 miles (168,000 km) or 72 months; every
45,000 miles (72,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
43
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
