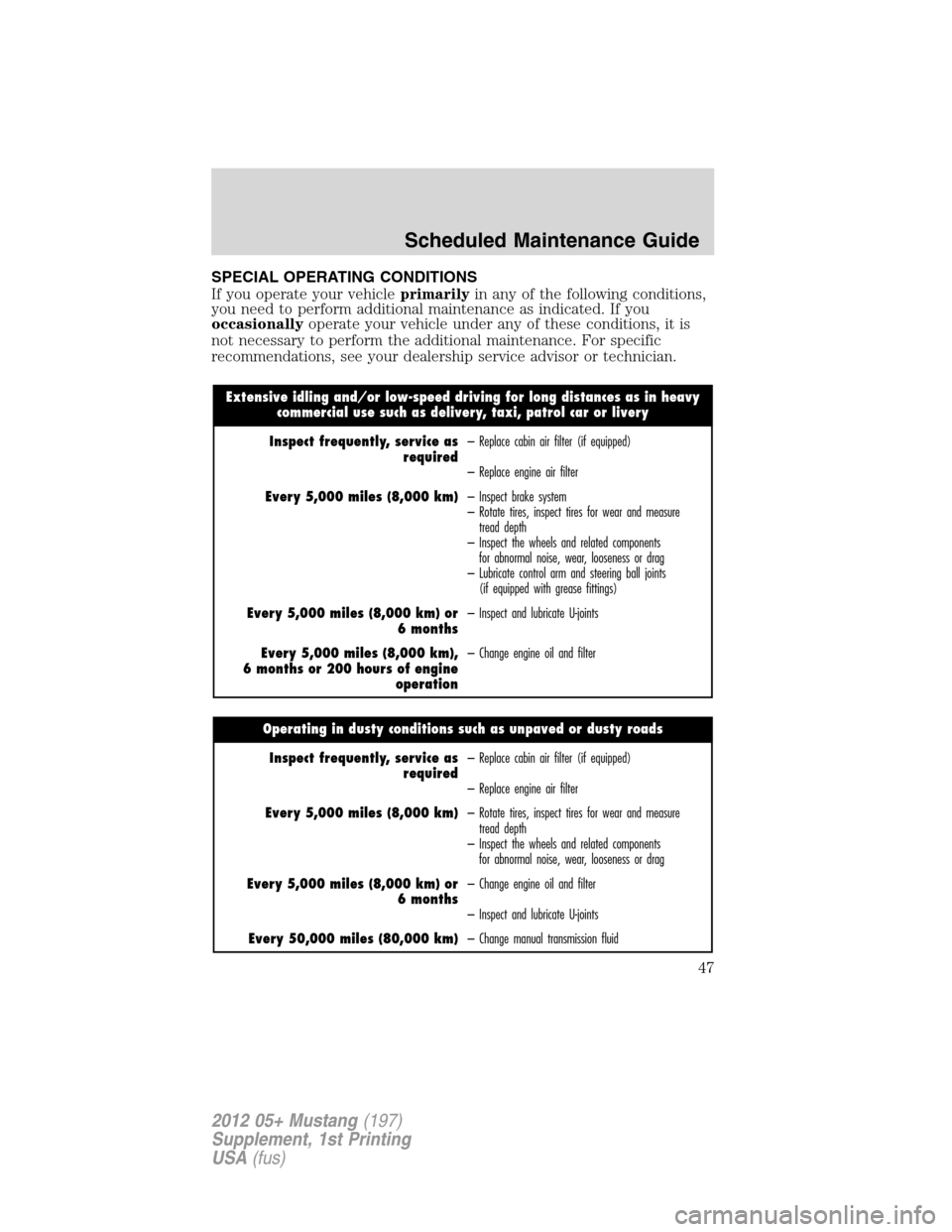

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 5,000 miles (8,000 km)– Inspect brake system
– Rotate tires, inspect tires for wear and measure
tread depth
– Inspect the wheels and related components
for abnormal noise, wear, looseness or drag
– Lubricate control arm and steering ball joints
(if equipped with grease fittings)
Every 5,000 miles (8,000 km) or
6 months– Inspect and lubricate U-joints
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation– Change engine oil and filter
Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 5,000 miles (8,000 km)– Rotate tires, inspect tires for wear and measure
tread depth
– Inspect the wheels and related components
for abnormal noise, wear, looseness or drag
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and filter
– Inspect and lubricate U-joints
Every 50,000 miles (80,000 km)– Change manual transmission fluid
Scheduled Maintenance Guide
47
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles
are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle and PTO fluids should be changed anytime the axle and PTO have
been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open throttle for
extended periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be changed every 3,000 miles
(4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) fluid change interval may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles (refer to
Maintenance product specifications and capacitiesin theMaintenance and Specificationschapter for details). The axle fluid
should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Change rear axle fluid every 100,000 miles (160,000 km). Rear axle fluid change may be waived if the axle was filled
with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles.
The axle fluid should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If the vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this
maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful
life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified
intervals and to record all vehicle service.
Middle East hot climate specifications
❑Vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with similar climates using an American
Petroleum Institute (API) Certified for Gasoline Engines (Certification mark) oil or SM or greater, the normal oil change
interval is 5,000 miles (8,000 km). If using an oil that is less than the API SM (i.e. SL) category, then the oil change
service interval is 3,000 mile (4,800 km).
❑Edge/MKX AWD only– vehicles operating off-road in sand during high ambient temperatures must replace the AWD
PTU (All-wheel drive Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
50
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

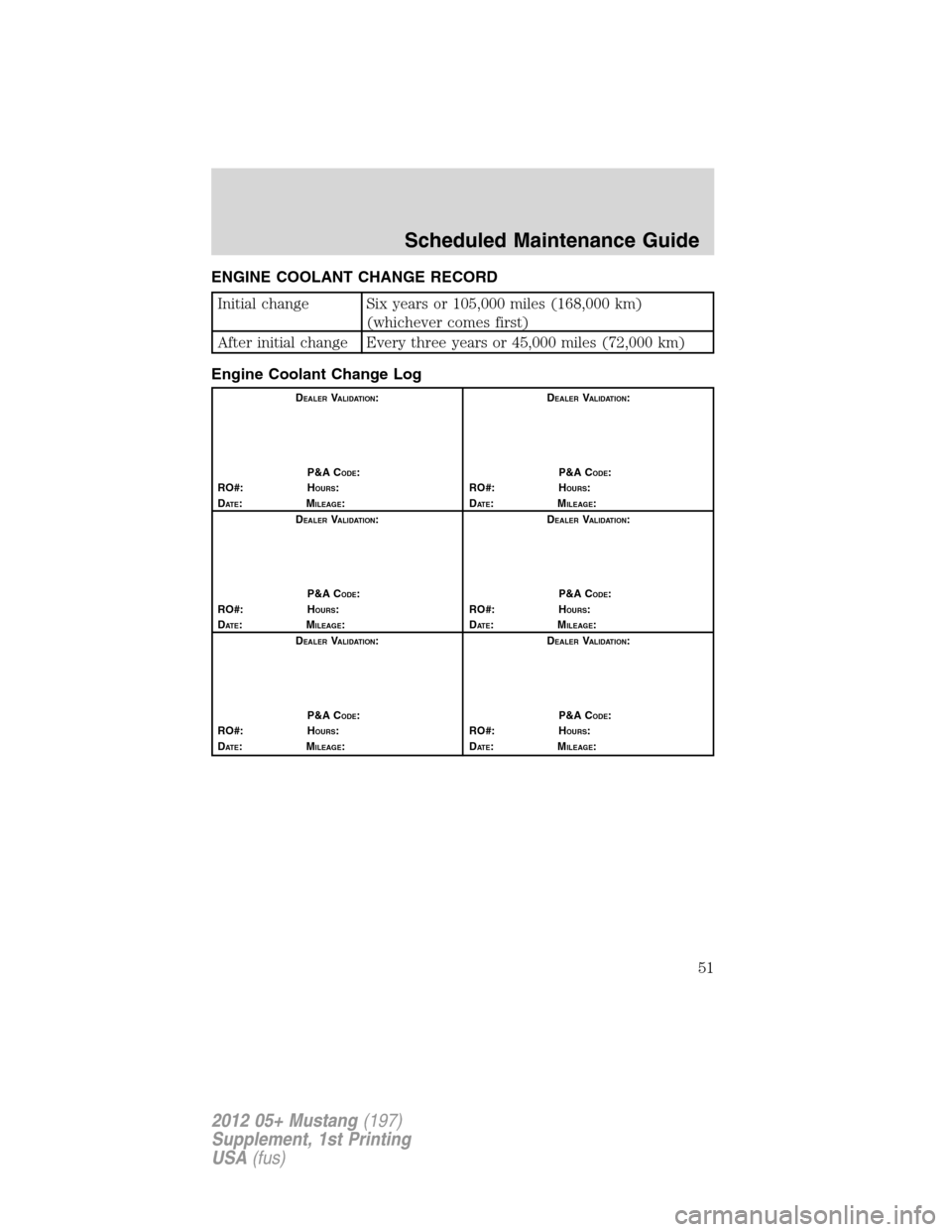

ENGINE COOLANT CHANGE RECORD
Initial change Six years or 105,000 miles (168,000 km)
(whichever comes first)
After initial change Every three years or 45,000 miles (72,000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
51
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

A
AdvanceTrac ................................11
Air cleaner filter .........................30
Air suspension .............................13
Axle
refill capacities ..........................31
B
Battery
replacement, specifications .....30
Brakes
fluid, refill capacities ................31
Break-in period .............................4
C
Capacities for refilling fluids ......31
Clutch
recommended shift speeds ......11
Coolant
refill capacities ..........................31
E
Engine ..........................................34
refill capacities ..........................31
service points ............................23
Engine oil
filter, specifications ..................30
refill capacities ..........................31
F
Fluid capacities ...........................31
Fuel
capacity .....................................31
filter, specifications ..................30octane rating .......................29, 34
H
Headlamps
bulb specifications ....................33
I
Ignition .........................................34
Instrument panel
cluster ..........................................7
L
Lamps
bulb replacement
specifications chart ..................33
Lights, warning and indicator ......7
Lug nuts ......................................14
M
Manual transmission
fluid capacities ..........................31
Motorcraftparts ........................30
O
Octane rating ..............................29
P
Parts (see Motorcraftparts) ...30
S
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ...............41
Spark plugs, specifications ...30, 34
