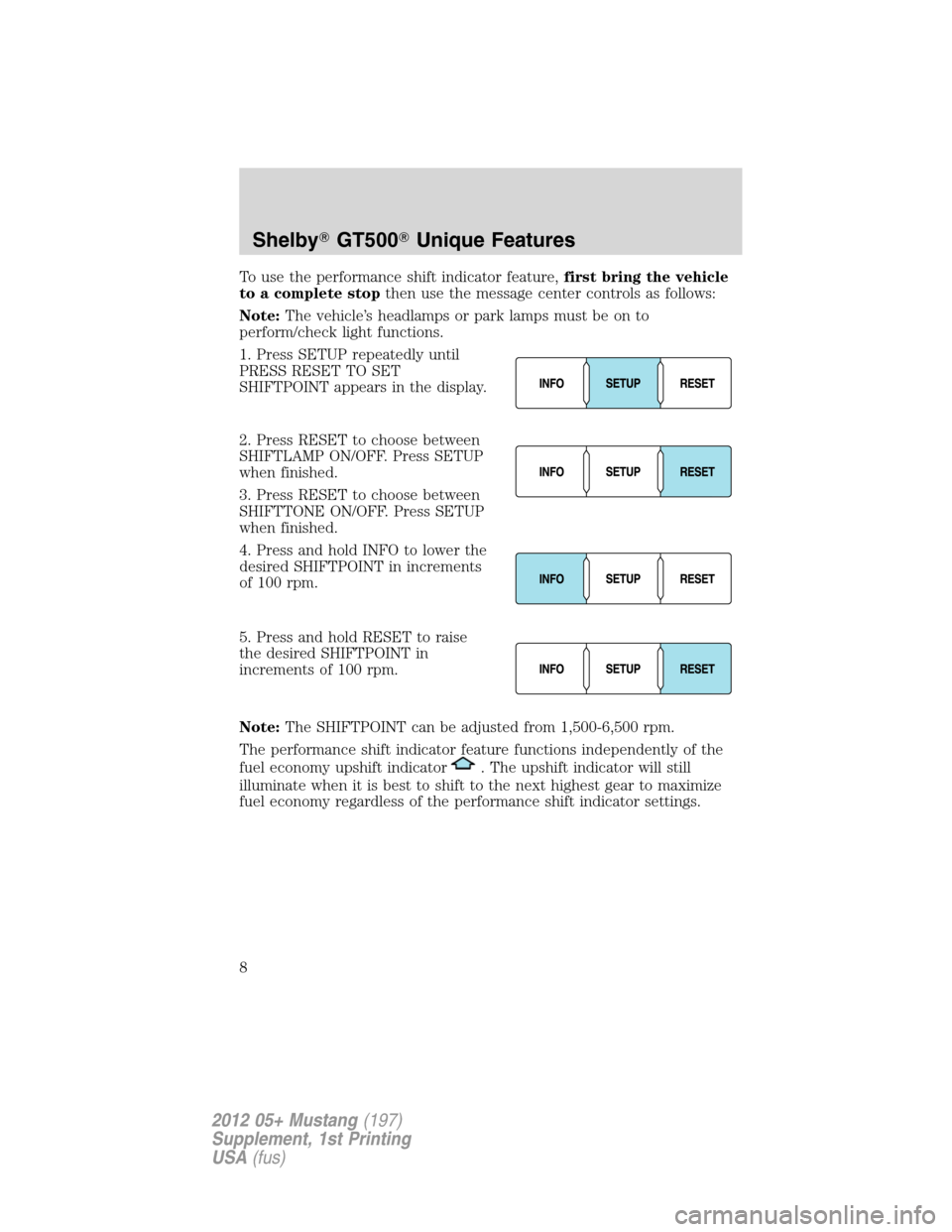

To use the performance shift indicator feature,first bring the vehicle
to a complete stopthen use the message center controls as follows:
Note:The vehicle’s headlamps or park lamps must be on to
perform/check light functions.
1. Press SETUP repeatedly until
PRESS RESET TO SET
SHIFTPOINT appears in the display.
2. Press RESET to choose between
SHIFTLAMP ON/OFF. Press SETUP
when finished.
3. Press RESET to choose between
SHIFTTONE ON/OFF. Press SETUP
when finished.
4. Press and hold INFO to lower the
desired SHIFTPOINT in increments
of 100 rpm.
5. Press and hold RESET to raise
the desired SHIFTPOINT in
increments of 100 rpm.
Note:The SHIFTPOINT can be adjusted from 1,500-6,500 rpm.
The performance shift indicator feature functions independently of the
fuel economy upshift indicator
. The upshift indicator will still
illuminate when it is best to shift to the next highest gear to maximize
fuel economy regardless of the performance shift indicator settings.
ShelbyGT500Unique Features
8
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

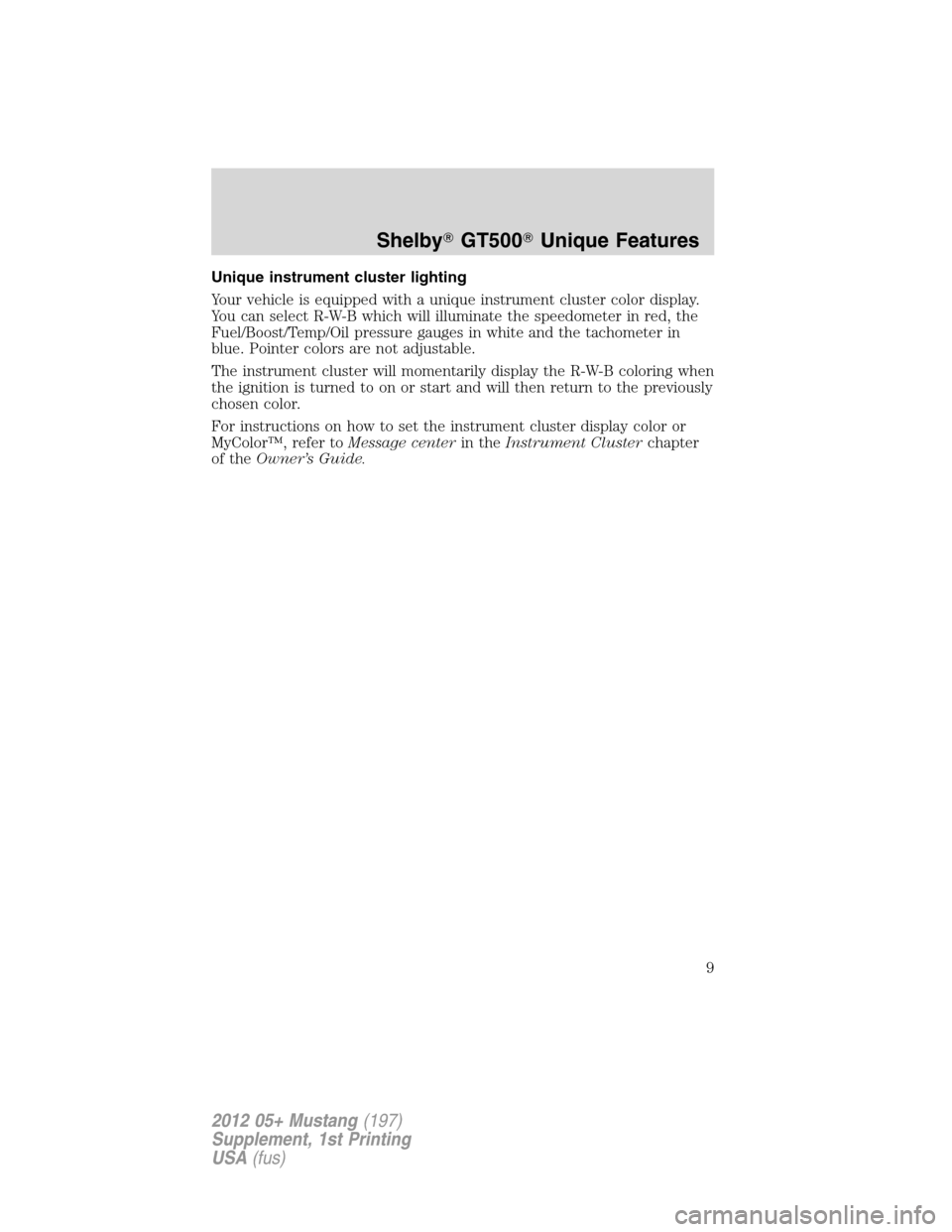

Unique instrument cluster lighting
Your vehicle is equipped with a unique instrument cluster color display.
You can select R-W-B which will illuminate the speedometer in red, the
Fuel/Boost/Temp/Oil pressure gauges in white and the tachometer in
blue. Pointer colors are not adjustable.
The instrument cluster will momentarily display the R-W-B coloring when
the ignition is turned to on or start and will then return to the previously
chosen color.
For instructions on how to set the instrument cluster display color or
MyColor™, refer toMessage centerin theInstrument Clusterchapter
of theOwner’s Guide.
ShelbyGT500Unique Features
9
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
