2012 FORD MUSTANG Shelby GT500 Supplement Manual

WARNING:For vehicles equipped with optional performance
package tires (P265/40-19 front, P285/35-20 rear), only replace
wheels and tires with the EXACT original brand, size and construction
tire with which your vehicle was originally equipped. Use of any other
wheel/tire combinations, even with identical size ratings, may result in
insufficient running clearances, tire rubbing and eventual puncture.
Loss of tire pressure could lead to a loss of vehicle control leading to
serious injury or death.
Summer tires
The Shelby GT500 Performance Package is equipped with D.O.T.
approved ultra high performance summer tires with track capability. The
rubber compounds used in these tires lose flexibility and may develop
surface cracks in the tread area at temperatures below 20°F (-7°C).
Always store your tires indoors at temperatures above 20°F (-7°C). If the
tires have been subjected to 20°F (-7°C) or less, warm them in a heated
space to at least 40°F (5°C) for at least 24 hours before installing them
on a vehicle, or moving the vehicle with the tires installed, or checking
tire inflation. Do not place tires near heaters or heating devices used to
warm the room where the tires are stored. Do not apply heat or blow
heated air directly on the tires. Always inspect the tires after storage
periods and before use as outlined in the owner’s guide. Ford does not
recommend using these high performance summer tires when
temperatures drop to approximately 40°F (5°C) or below, or in snow/ice
conditions.
Winter driving
The original equipment tires on your SVT vehicle are designed for
maximum performance in dry and wet summer conditions. They are not
designed for winter use on ice or snow and cannot be used with snow
chains. If you will be operating your vehicle in these conditions, winter
or all-season tires must be used.
•Use winter tires with a “V” speed rating and a 93 load index or higher
for all models. You may also use P255/45R-18 winter tires with a “V”
speed rating and a 93 load index and 18 in. wheels from the
2007-2010 model year Shelby GT500. Using these wheels will ensure
adequate brake and suspension clearance.
Wheels and Tires
17
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

•Do not use a winter tire with less than a “V” speed rating, and even
with clear, dry driving conditions do not operate your vehicle above
posted speed limits while using winter tires. Never perform high speed
driving with winter tires.
Please call the Ford Performance Info Center at 1-800-FORD-SVT
(367-3788) for specific winter tire recommendations.
Tire rotation
Because your vehicle is equipped with unique larger tires on the rear
wheels, you can only rotate the tires side to side. You must not rotate
tires in a crisscross pattern or front to rear. If you notice that the tires
wear unevenly, have them checked.
Note:The optional performance package tires (P265/40-19 front,
P285/35-20 rear) are directional. Tire rotation is not recommended for
directional tires.
The tires on your Shelby GT500 should be rotated every 5,000 miles
(8,000 km). This will help your tires wear more evenly, providing better
tire performance and longer tire life.

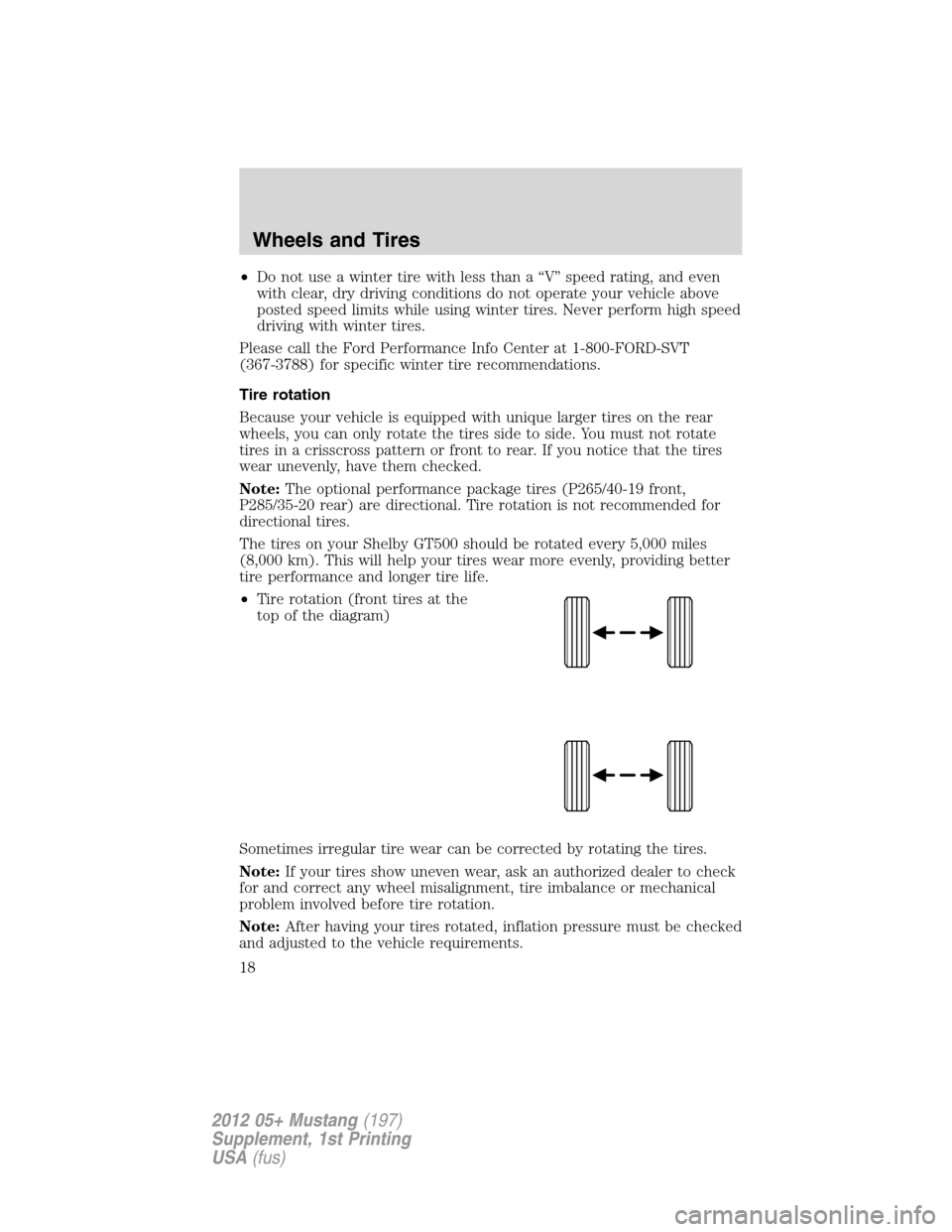

•Tire rotation (front tires at the
top of the diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If your tires show uneven wear, ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
Wheels and Tires
18
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

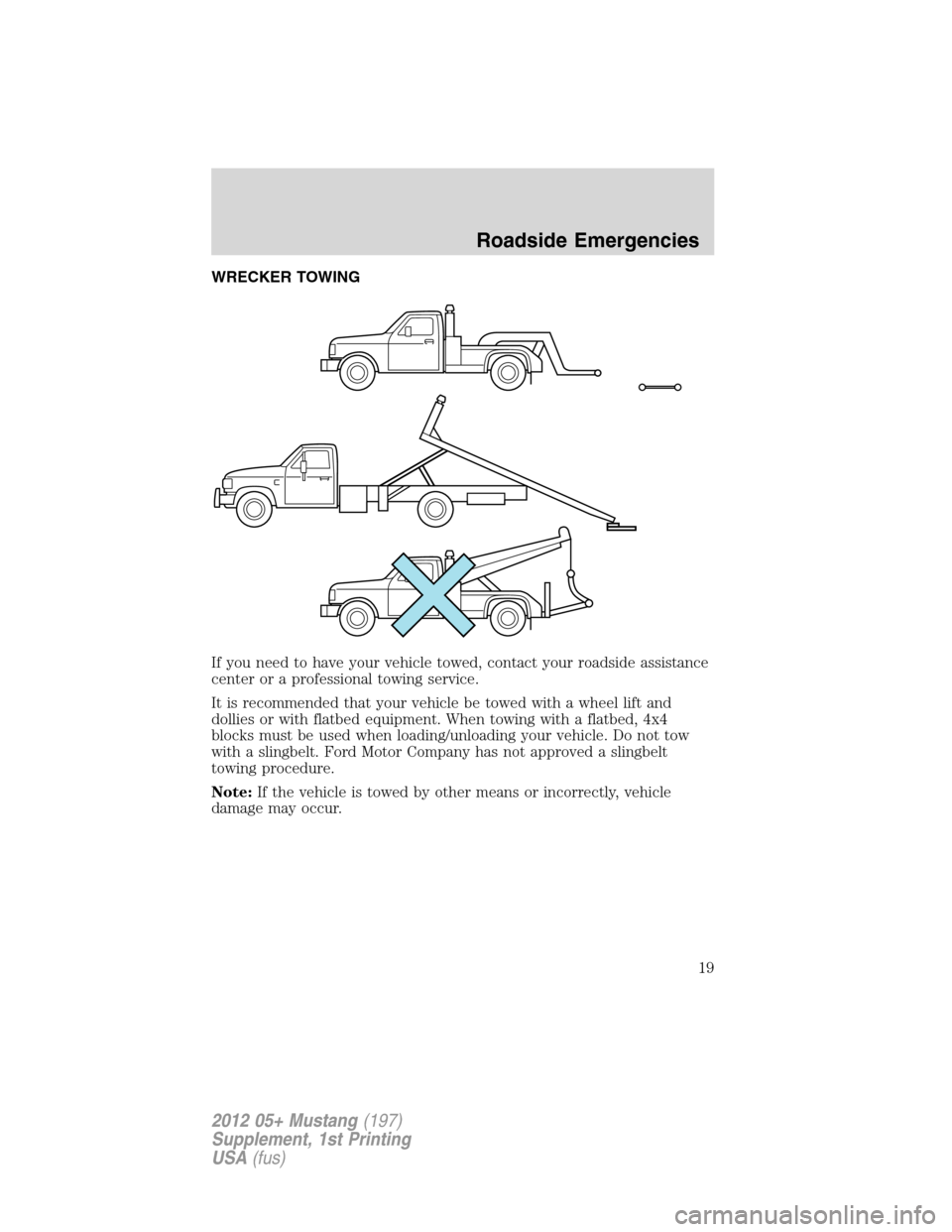

WRECKER TOWING
If you need to have your vehicle towed, contact your roadside assistance
center or a professional towing service.
It is recommended that your vehicle be towed with a wheel lift and
dollies or with flatbed equipment. When towing with a flatbed, 4x4
blocks must be used when loading/unloading your vehicle. Do not tow
with a slingbelt. Ford Motor Company has not approved a slingbelt
towing procedure.
Note:If the vehicle is towed by other means or incorrectly, vehicle
damage may occur.
Roadside Emergencies
19
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

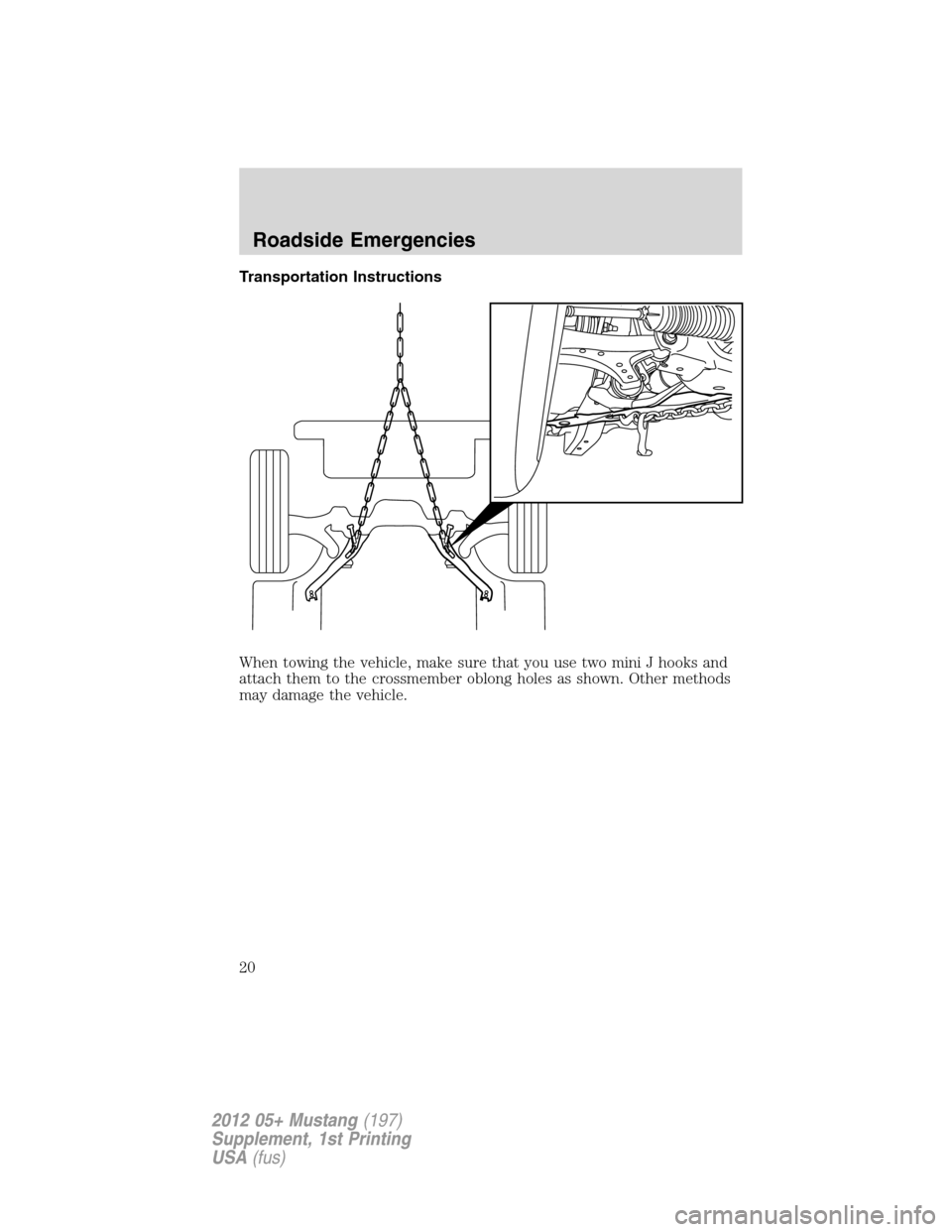

Transportation Instructions
When towing the vehicle, make sure that you use two mini J hooks and
attach them to the crossmember oblong holes as shown. Other methods
may damage the vehicle.
Roadside Emergencies
20
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

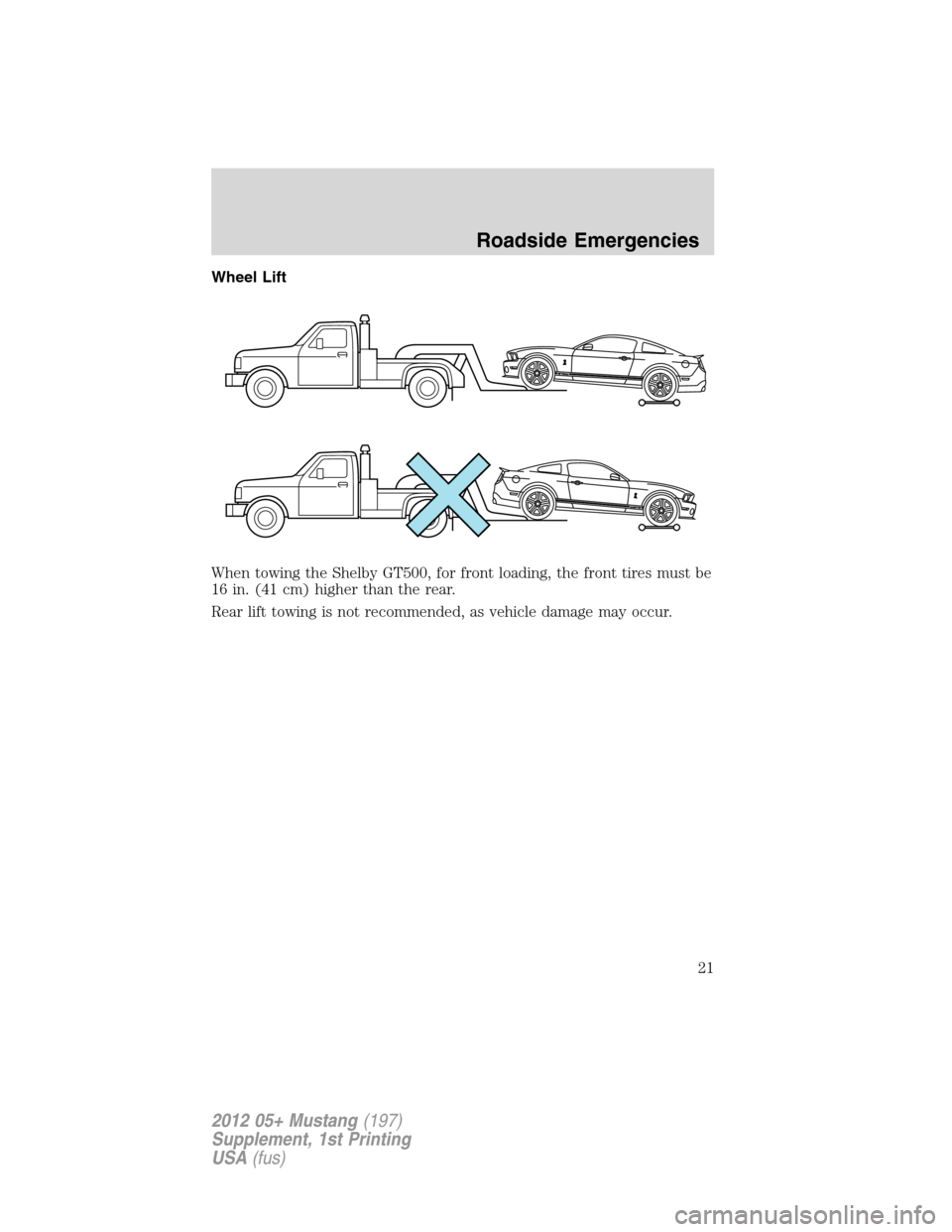

Wheel Lift
When towing the Shelby GT500, for front loading, the front tires must be
16 in. (41 cm) higher than the rear.
Rear lift towing is not recommended, as vehicle damage may occur.
Roadside Emergencies
21
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

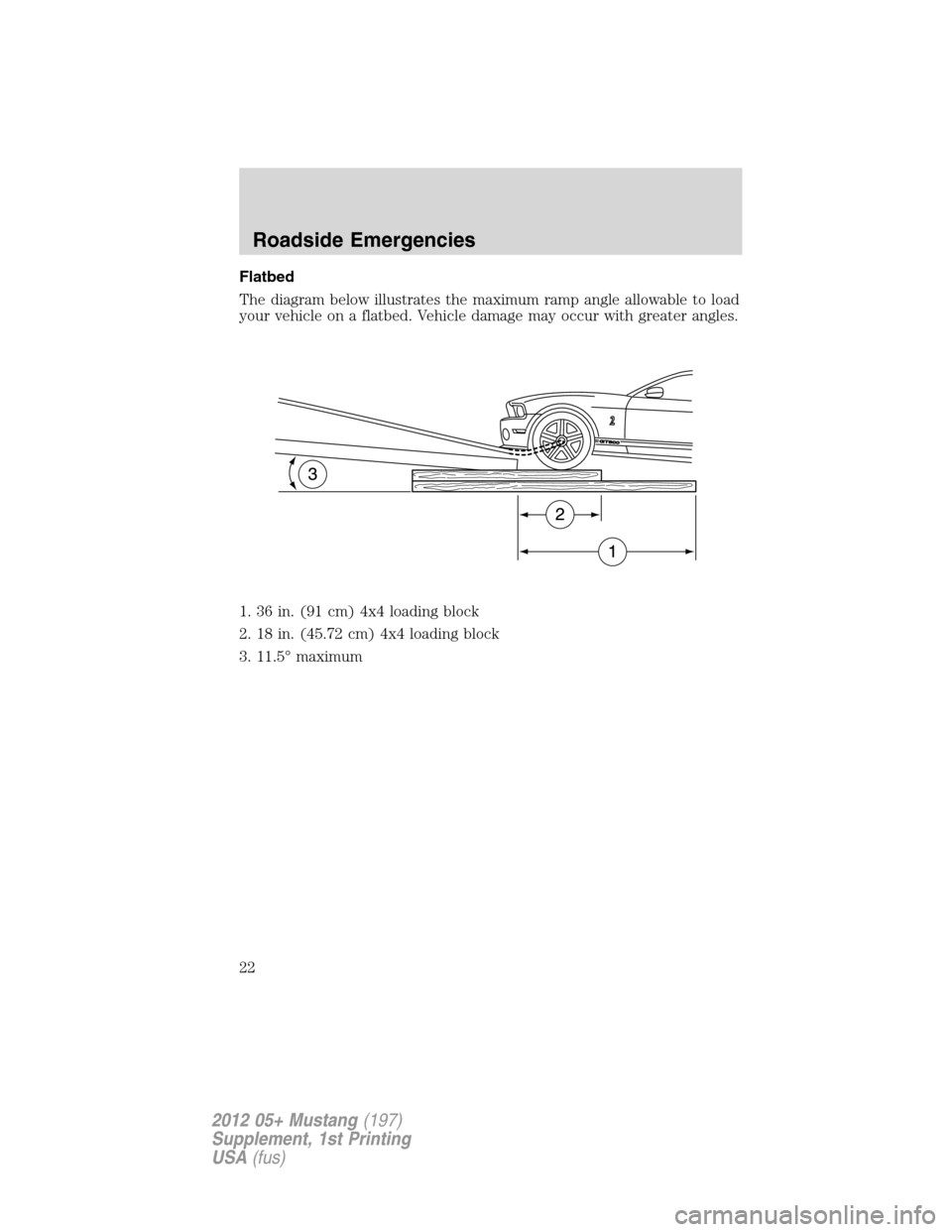

Flatbed
The diagram below illustrates the maximum ramp angle allowable to load
your vehicle on a flatbed. Vehicle damage may occur with greater angles.
1. 36 in. (91 cm) 4x4 loading block
2. 18 in. (45.72 cm) 4x4 loading block
3. 11.5° maximum
Roadside Emergencies
22
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

5.4L DOHC SUPERCHARGED V8 ENGINE
1. Battery
2. Supercharger
3. Engine oil dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Intercooler coolant reservoir
7. Engine coolant reservoir
8. Engine oil filler cap
9. Windshield washer reservoir
10. Power distribution box
134
1098756
2
Maintenance
23
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
