2012 FORD FOCUS ELECTRIC maintenance

Unscrew the cap slowly. Any pressure will escape as you unscrew the cap.
Add prediluted coolant meeting the Ford specification. See the technical
specifications chart in theCapacities and Specifications chapter for
more information.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough prediluted coolant to bring the coolant level to
the proper level.
Recycled coolant
Ford Motor Company does NOT recommend the use of recycled coolant
since a Ford-approved recycling process is not yet available.
Used coolant should be disposed of in an appropriate manner.
Follow your community’s regulations and standards for recycling and
disposing of automotive fluids.
Severe climates
If you drive in extremely cold climates:
Note: It may be necessary to have an authorized Ford dealer increase
the coolant concentration above 50%.
Note: A coolant concentration of 60% will provide improved freeze point
protection. Increased coolant concentrations above 60% will decrease the
overheat protection characteristics of the coolant and may cause damage.
If you drive in extremely hot climates:
Note: It may be necessary to have an authorized Ford dealer decrease
the coolant concentration to 40%.
Note: A coolant concentration of 40% will provide improved overheat
protection. Decreased coolant concentrations below 40% will decrease
the corrosion/freeze protection characteristics of the coolant and may
cause damage.
Vehicles driven year-round in non-extreme climates should use
prediluted coolant meeting the Ford specification for optimum cooling
system protection.
Maintenance and Specifications 333
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

BRAKE FLUID CHECK
The fluid level will drop slowly as the
brakes wear, and will rise when the
brake components are replaced. Fluid
levels between the MIN and MAX
lines are within the normal operating
range; there is no need to add fluid.
If the fluid levels are outside of the
normal operating range, the
performance of the system could be
compromised; seek service from your
authorized dealer immediately.
Note:Keep brake fluid clean. Contamination with dirt, water, petroleum
products or other materials may result in brake system damage and
possible failure.
Checking single-speed transmission
The transmission does not have an underhood transmission fluid dipstick.
Your transmission does not consume fluid. It is designed to be filled for
life. However, the fluid level should be checked if the transmission is not
working properly, or if you notice some sign of fluid leakage.
Note: Transmission fluid should be checked and, if required, fluid should
be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
• Store all vehicles in a dry, ventilated place.
• Protect from sunlight, if possible.
• If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
334 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See the Cleaning chapter for more information.
• Periodically wash vehicles stored in exposed locations.
• Touch-up raw or primed metal to prevent rust.
• Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Rewax as necessary when the vehicle is
washed. See the Cleaningchapter for more information.
• Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See the Cleaningchapter for more information.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and solvents.
Cooling system
• Protect against freezing temperatures.
• When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Brakes
• Make sure brakes and parking brake are fully released.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
• Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications 335
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

LOW AND HIGH VOLTAGE BATTERY STORAGE
If your vehicle is to be stored for 30 days or longer, the high voltage
battery should be charged to above 25% state of charge and the low
voltage (under hood) battery negative terminal should be disconnected.
If your vehicle is to be stored for 3 months or longer, the high voltage
battery should be charged to between 80% and 100% state of charge and
the low voltage (under hood) battery negative terminal should be
disconnected. Failure to do this could damage the batteries.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
MOTORCRAFT PART NUMBERS
Component Part number
12 Volt battery BXT-96R-500/BXT-96R-590
Cabin air filter FP70
Windshield wiper blade WW-2201-PF (driver side) WW-1901-PF (passenger side)
336Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
ItemCapacityFord Part Name or
Equivalent Ford Part Number / Ford
Specification
Brake fluid Between MIN and
MAX on reservoir Motorcraft
High
Performance DOT 4 LV Motor Vehicle Brake Fluid WSS-M6C65-A2 /
ISO 4925 Class 6
Door latch, hood latch, auxiliary hood latch,
trunk latch, seat tracks. —
Multi-Purpose Grease
(Lithium grease) XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinder —Motorcraft
Penetrating
and Lock Lubricant XL-1 /
None
Electric Powertrain Assembly coolant
1
15.8 quarts (15.0L) Motorcraft
Orange
Antifreeze/Coolant Prediluted VC-3DIL-B (US)
CVC-3DIL-B (Canada) / WSS-M97B44-D2
Transmission fluid
2
1.32 quarts (1.25L) Motorcraft
MERCON LV AT F XT-10-QLV /
MERCON LV
Windshield washer fluid Fill as required Motorcraft
Premium
Windshield Washer Concentrate (US)Premium Quality
Windshield Washer Fluid (Canada) ZC-32-A (US)
CXC-37-(A, B, D, and F) (Canada) /
WSB-M8B16-A2/- -
1Add the coolant type originally equipped in your vehicle.2Using any transmission fluid other than those that meet the recommended specification may cause
internal transmission damage. Do not use Motorcraft Continuously Variable Chain Type Transmission
Fluid (blue). This vehicle uses Motorcraft MERCONLV approved ATF.
Maintenance and Specifications 337
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

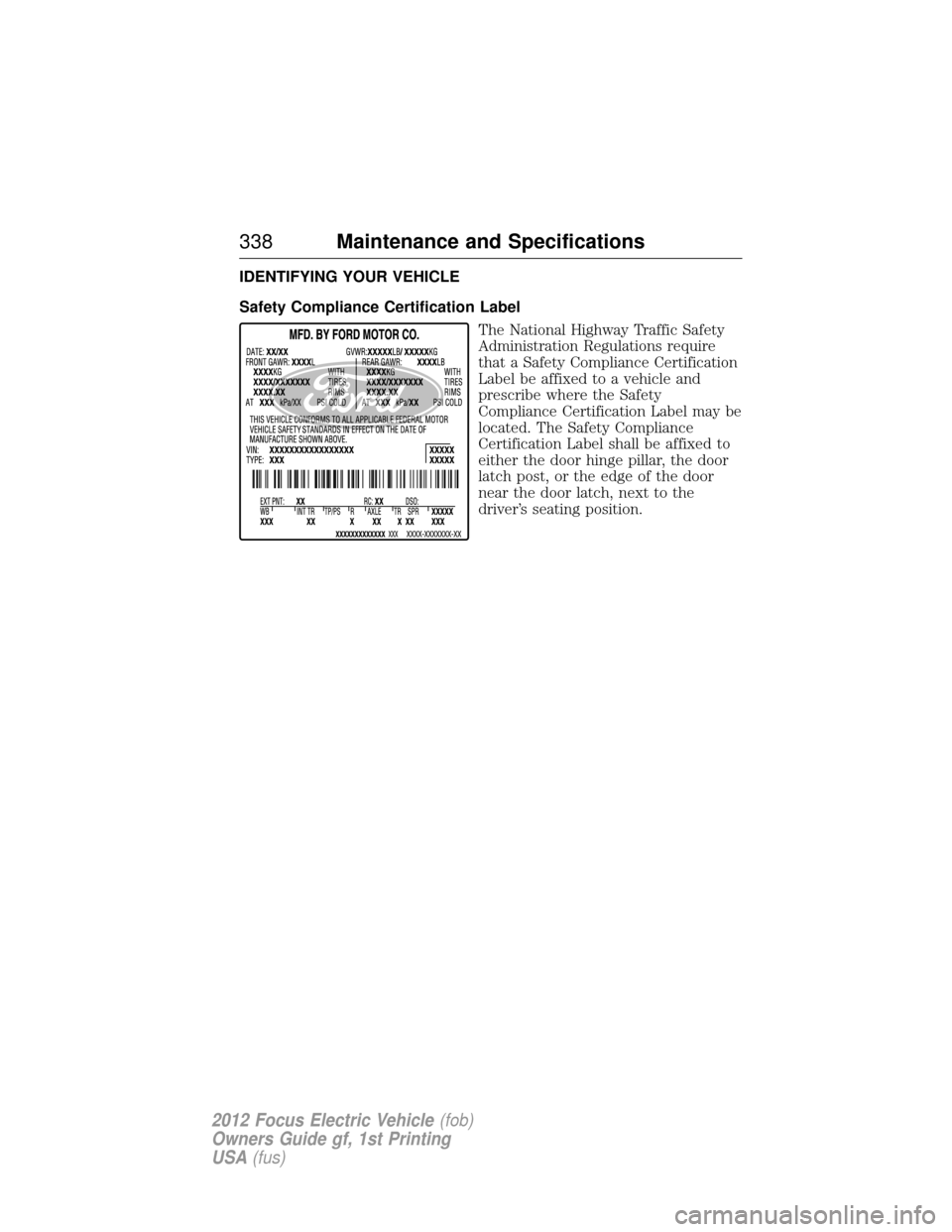

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification LabelThe National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
338Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Vehicle identification number (VIN)The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information: 1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications 339
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
• Wiper blades •Brake pads and linings
• Spark plugs (except
California) •
Shock absorbers
• Clutch disc •Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
