2012 FORD FIESTA USB

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Trip computer 17
Message center 18
Multifunction display 19
Entertainment Systems 23
AM/FM stereo with CD 23
Auxiliary input jack (Line in) 33
USB port 34
Satellite radio information 38
SYNC41
Privacy Information 43
Pairing your phone for the first time 47
Connecting a digital media player to SYNC75
Climate Controls 100
Manual heating and air conditioning 100
Rear window defroster 102
Lights 104
Headlamps 104
Turn signal control 107
Bulb replacement 109
Driver Controls 119
Windshield wiper/washer control 119
Steering wheel adjustment 120
Power windows 121
Mirrors 123
Speed control 125
Table of Contents
1
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is
moving.
WARNING:Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio
extension cable must be long enough to allow the portable music
player to be safely stored while the vehicle is in motion.
USB port (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any handheld
device while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect the use of electronic devices while driving.
Your vehicle may be equipped with a
USB port. This feature allows you to
plug in media playing devices,
memory sticks, and also to charge
devices if they support this feature.
For further information on this
feature, refer to theSYNC
supplement.
Entertainment Systems
34
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

SYNC(IF EQUIPPED)
Ford ingenuity brings you SYNC– an in-car connectivity system
designed with convenience in mind.
SYNC literally ‘syncs up’ with yourBluetoothenabled cellular phone
and portable media player, creating a comprehensive and easy-to-use
system offering features such as:
•Making and receiving calls on yourBluetoothcellular phone
•Accessing and playing music from your portable music player
•911 Assist™, Vehicle Health Reports, Traffic, Directions &
Information, (if equipped)
•Using applications such as Pandora and Stitcher via SYNC
AppLink™, (if equipped)
•Accessing phonebook contacts and music via voice commands
•Streaming music from yourBluetoothenabled cellular phone
•Text messaging
•Advanced voice recognition fluent in English, French and Spanish
•USB device charging (if your device supports this)
Welcome to technology that is both fun and functional, welcome to
SYNC.
Entertainment Systems
41
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

consent, a court order, or where required by law enforcement, other
government authorities, or other third parties acting with lawful authority.
Other parties may seek to access the information independently of Ford
Motor Company and Ford of Canada. For further privacy information, see
the sections on 911 Assist™ (if equipped), Vehicle Health Report (if
equipped), and Traffic, Directions and Information (if equipped).
Using your voice recognition system
Your SYNCsystem comes equipped with an advanced voice recognition
(VR) system. This system is easy to use and helps you control many
features via voice commands, thereby allowing you to keep your hands
on the wheel and focus on what is in front of you.
Here we’ll cover the basics of how the system works and some global
voice commands. The majority of the voice commands will be covered
later in the supplement with their respective modes (phone, media, etc.)
and will also be indicated with the voice icon shown below.
Initiating a voice session
To initiate a voice session with your SYNC system:
1. Press
.
2. Wait until you hear a tone prompt and Listening appears in the display.
3. Say any of the following global commands:
•“Phone”: Say to make calls.
•“USB”: Say to access the device connected to your USB port.
•“Bluetooth Audio”: Say to stream audio from your phone.
•“Line in” : Say to access the device connected to the auxiliary
input jack.
•“Cancel”: Say to cancel the requested action.
•“SYNC”: Say to return to the main menu.
•“Voice settings”: Say to adjust the level of voice interaction and
feedback.
•“Help”: Say for an audible list of voice commands available in the
current mode.
•“Vehicle Health Report” (if equipped, U.S. only): Say to run a
health report.
•“ Services” (if equipped, U.S. only): Say to access the SYNC
Services portal.
Entertainment Systems
44
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

** If you have said, “Menu”, you can then say any of the following
commands:
•[Phone] settings [message]
notification on•[Phone] settings [message]
notification off
•[Phone] connections•Phone name
•Signal•Battery
•[Phone] settings [set] phone
ringer•[Phone] settings [set] ringer 1
•[Phone] settings [set] ringer 2•[Phone] settings [set] ringer 3
•Text message inbox•[Phone] settings [set] ringer off
Note:With the above commands, words in [ ] are optional and do not
have to be spoken for the system to understand the command.
At any time, you can say the following global commands:
•SYNC•USB
•Line in•Bluetooth Audio
•Phone•Voice settings
•Cancel•Vehicle Health Report (if
equipped, U.S. only)
•Services (if equipped, U.S. only)•Mobile Apps (if equipped, U.S.
only)
•Help
Making a call
To make a call, press
and when prompted say:
•“Call ” or
•“Dial” and the desired number. When the system confirms the
number, say “Dial” again to initiate the call.
Note:To erase the last spoken digit, say “Delete” or press
. To erase
all spoken digits, say “Clear” or press and hold
.
To end a call:
•Select ‘End’ on-screen using the system’s soft keys beneath the audio
system
•Press and hold PHONE on the audio system
•Press and hold
on the steering wheel controls
Entertainment Systems
50
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

To access from the phone menu:
1. Press
or PHONE to enter thePhone Menu.
2. Scroll repeatedly untilMobile Appsappears in the display.
3. Press OK to enter the menu and view a list of available
applications (for example, Pandora).
4. Scroll to access the desired application menu (for example,
Pandora menu) and press OK. From here you can access the
features which accompany the application such as Thumbs up,
Thumbs down, etc. For more information, please visit
www.SyncMyRide.com.
Note:iPhoneusers need to connect the phone to the USB port in
order to start an application.
Note:If using an iPhone, it is recommended that the phone is
locked after starting the application.
Media features with SYNC
SYNCallows you to access and
play music from your digital music
player over the vehicle’s speaker
system using the system’s media
menu or voice commands.
You can also choose to sort and play
your music by specific metadata
categories such as:
•Artists
•Albums
•Genres
•Playlists
•Tracks
•Similar Music
Compatibility
SYNC is capable of hosting nearly any digital media player including:
iPod, Zune™, “Plays from device” players, and most USB drives.
SYNC will also support audio formats such as MP3, WMA, WAV and ACC.
Entertainment Systems
74
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Connecting your digital media player to SYNCvia the USB port
Note:If your digital media player has an On/Off switch, ensure that the
device is turned On.
1. Plug the device into the vehicle’s USB port.
2. Press AUX and then MENU.
3. WhenMedia Player Menuis selected, press OK.
3. Depending on how many digital media files are on your
connected device,Indexingmay appear in the radio display until
indexing is complete. You will then be taken to thePlay Menu.
4. Press OK and scroll through selections of:
•Play All
•Albums
•Genres
•Playlists
•Tracks
•Explore USB
•Similar Music
•Return
5. When the desired selection appears in the display, press OK to
build your desired music selection.
For more information, refer toAccessing your play menulater in
this chapter.
What’s playing?
At any time while a track is playing, you can press
and say, “What’s
playing?”. SYNC will read the metadata tags of the playing track to you
(if populated).
Entertainment Systems
75
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

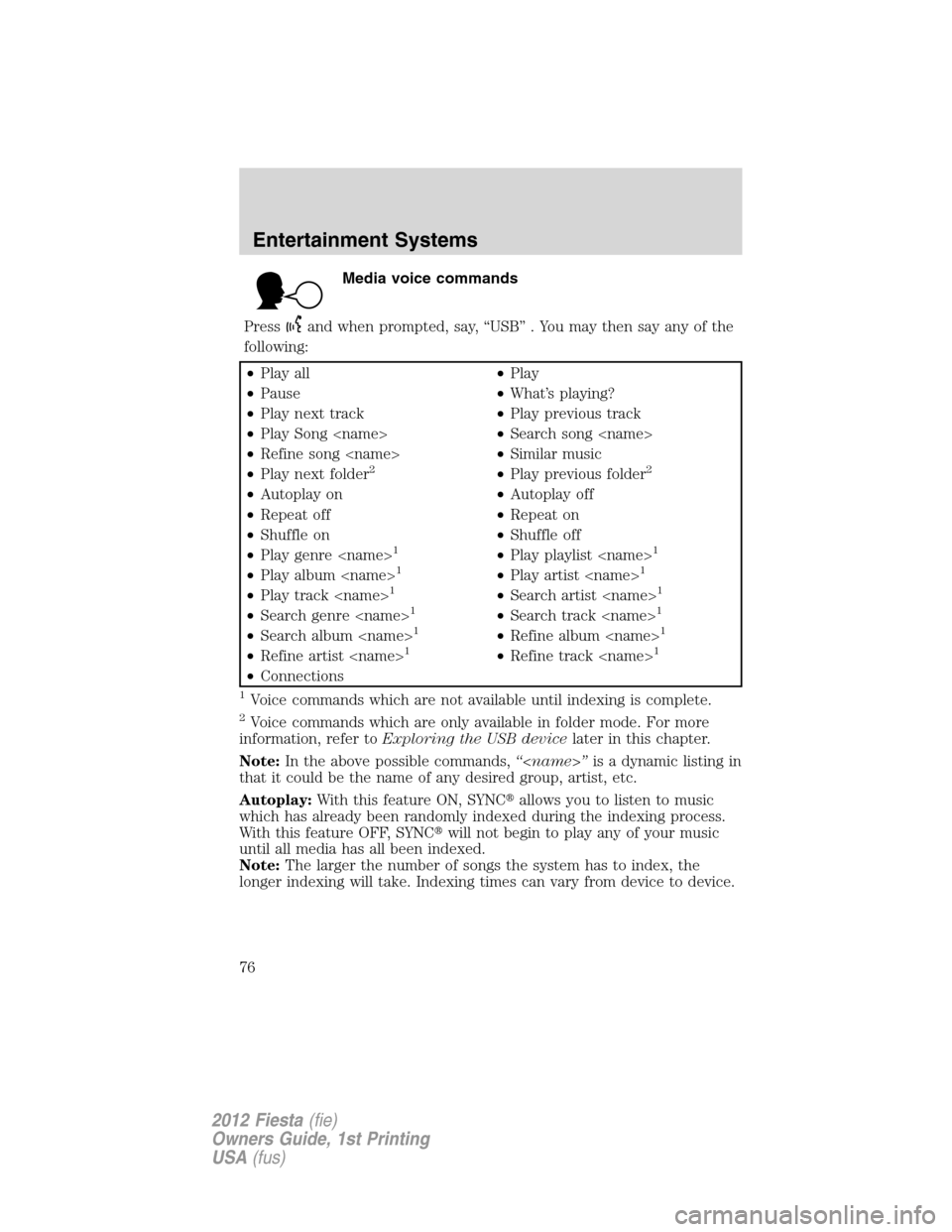

Media voice commands
Press
and when prompted, say, “USB” . You may then say any of the
following:
•Play all•Play
•Pause•What’s playing?
•Play next track•Play previous track
•Play Song •Search song
•Refine song •Similar music
•Play next folder
2•Play previous folder2
•Autoplay on•Autoplay off
•Repeat off•Repeat on
•Shuffle on•Shuffle off
•Play genre
1•Play playlist 1
•Play album 1•Play artist 1
•Play track 1•Search artist 1
•Search genre 1•Search track 1
•Search album 1•Refine album 1
•Refine artist 1•Refine track 1
•Connections
1Voice commands which are not available until indexing is complete.
2Voice commands which are only available in folder mode. For more
information, refer toExploring the USB devicelater in this chapter.
Note:In the above possible commands,“”is a dynamic listing in
that it could be the name of any desired group, artist, etc.
Autoplay:With this feature ON, SYNCallows you to listen to music
which has already been randomly indexed during the indexing process.
With this feature OFF, SYNCwill not begin to play any of your music
until all media has all been indexed.
Note:The larger the number of songs the system has to index, the
longer indexing will take. Indexing times can vary from device to device.
Entertainment Systems
