2012 FORD F550 coolant capacity

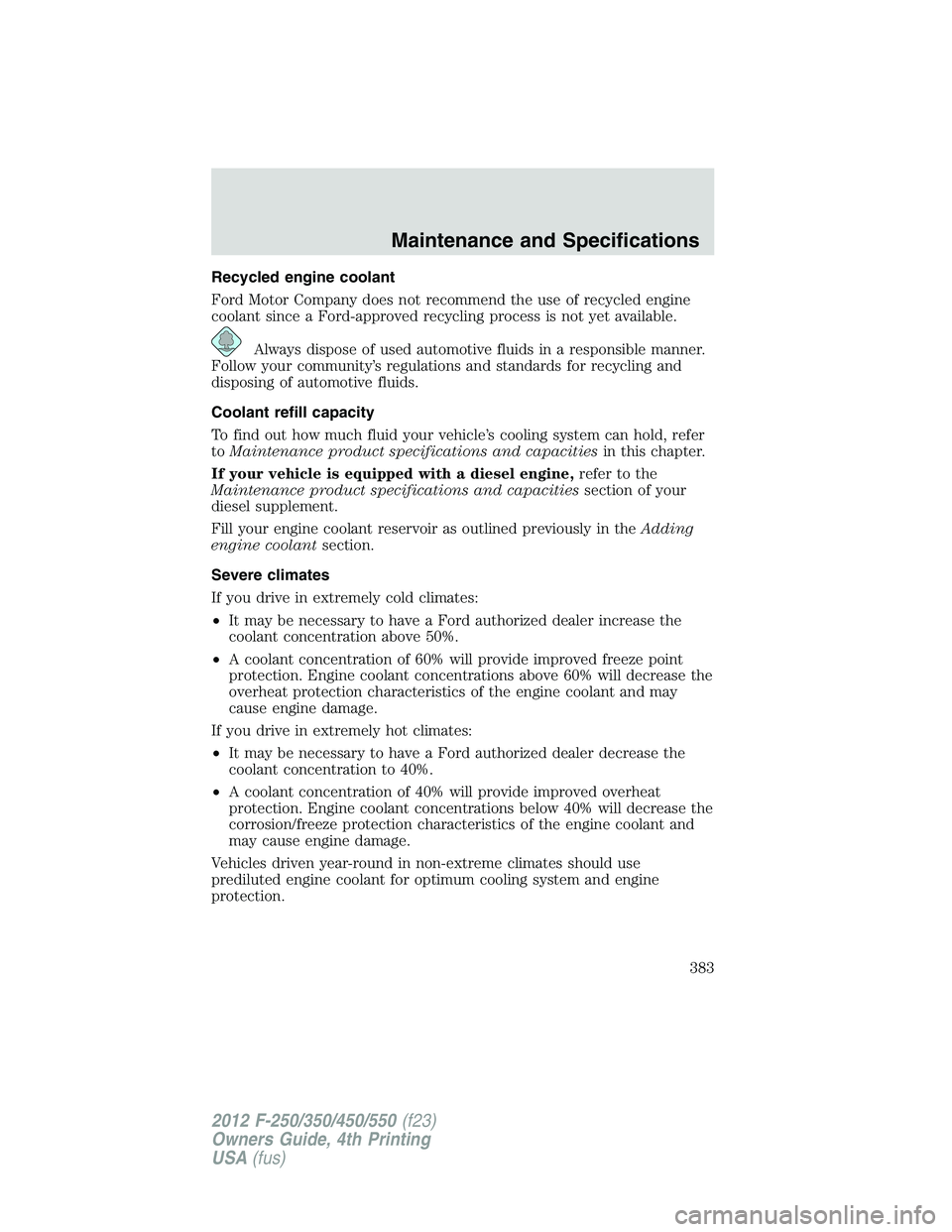

Recycled engine coolant
Ford Motor Company does not recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Always dispose of used automotive fluids in a responsible manner.
Follow your community’s regulations and standards for recycling and
disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
to Maintenance product specifications and capacities in this chapter.
If your vehicle is equipped with a diesel engine, refer to the
Maintenance product specifications and capacities section of your
diesel supplement.
Fill your engine coolant reservoir as outlined previously in the Adding
engine coolant section.
Severe climates
If you drive in extremely cold climates:
• It may be necessary to have a Ford authorized dealer increase the
coolant concentration above 50%.
• A coolant concentration of 60% will provide improved freeze point
protection. Engine coolant concentrations above 60% will decrease the
overheat protection characteristics of the engine coolant and may
cause engine damage.
If you drive in extremely hot climates:
• It may be necessary to have a Ford authorized dealer decrease the
coolant concentration to 40%.
• A coolant concentration of 40% will provide improved overheat
protection. Engine coolant concentrations below 40% will decrease the
corrosion/freeze protection characteristics of the engine coolant and
may cause engine damage.
Vehicles driven year-round in non-extreme climates should use
prediluted engine coolant for optimum cooling system and engine
protection. Maintenance and Specifications
383
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part name Ford part number /
Ford specification
Front axle 5.8 pints (2.8L) Motorcraft  SAE 80W-90
Premium Rear Axle
Lubricant XY-80W-90–QL /
WSP-M2C197–A
Spindle bearing — High Temperature 4X4
Front Axle and Wheel
Bearing Grease XG-11 /
WSS-M1C267-A1
Rear axle - F-250/350
(10.50 inch axle)
16.9 pints (3.3L) Motorcraft  SAE
75W-140 Synthetic Rear
Axle Lubricant XY-75W140–QL /
WSL-M2C192-A
Rear axle - F-350 (Dana
M80) 8.5 pints (4.0L) Motorcraft  SAE 75W-90
Synthetic Rear Axle
Lubricant XY-75W90–QLS /
WSS–M2C918–A
Rear axle - F-450/550
(Dana S110/S130) 14.0 pints (6.6L) Motorcraft  SAE
75W-140 Synthetic Rear
Axle Lubricant XY-75W140–QL /
WSL-M2C192-A
Brake fluid Between
MIN/MAX on
brake fluid
reservoir Motorcraft  High
Performance DOT 3
Motor Vehicle Brake
Fluid PM-1–C / WSS-M6C62-A
or WSS-M6C65-A1
Engine coolant
(6.2L V8 engine)
221.3 quarts
(20.2L) Motorcraft  Orange
Antifreeze/Coolant
Prediluted VC-3DIL-B (US) /
CVC-3DIL-B (Canada) /
WSS-M97B44-D2Engine coolant
(6.8L V10 engine)
226.7 quarts
(25.3L)Maintenance and Specifications
411
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Engine and fuel coolant
- diesel engine Refer to the diesel supplement.
Engine oil (includes
filter change) - 6.2L V8
and 6.8L V10 gas
engines
57.0 quarts (6.6L) • Motorcraft  SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
• Motorcraft  SAE 5W-20
Full Synthetic Motor Oil
(US)
• Motorcraft  SAE 5W-20
Super Premium Motor
Oil (Canada)
• Motorcraft  SAE 5W-20
Synthetic Motor Oil
(Canada) • XO-5W20-QSP (US)
• XO-5W20-QFS (US)
• CXO-5W20–LSP12
(Canada)
• CXO-5W-20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
Engine oil (includes
filter change) - diesel
engine Refer to the diesel supplement.
Fuel tank (mid-ship) 28 gallons (106L) — —
Fuel tank (plastic) 35 gallons (132L) — —
Fuel tank (Aft axle) 40 gallons (151L) — —
Fuel tank - diesel
engine Refer to the diesel supplement.Maintenance and Specifications
412
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Windshield washer fluid Fill as required Motorcraft  Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada) ZC-32–A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16–A2 /- -
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.
2Add the coolant type originally equipped in your vehicle.
3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to your scheduled maintenance information to determine the
correct service interval.
Automatic transmissions that require MERCON  LV should only use MERCON  LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.
6Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type A.
7Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type B.Maintenance and Specifications
414
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
