2012 FORD F550 clock

1. / (Tuner): Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in AUDIO mode to gain
access to various settings.
2. AUDIO: Press AUDIO repeatedly
to access the following settings:
• TREB (Treble): Press AUDIO to reach the treble setting.
Use
/ / SEEK .
• BASS (Bass): Press AUDIO to reach the bass setting.
Use
/ / SEEK
• BAL (Balance): Press AUDIO to reach the balance setting.
Use
/ / SEEK to adjust between the left and right
speakers.
• Setting the clock: Press and hold CLK until the hours start to flash,
then use
/ / SEEK to adjust. To adjust minutes, press
CLK again to make the minutes start to flash and use / /
SEEK to adjust. Press CLK again to exit the clock setting mode.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
3. SEEK: Press SEEK to
access the previous/next strong
station.
4. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5. AM/FM: Press AM/FM to select
AM/FM1/FM2 frequency band. Entertainment Systems
61
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

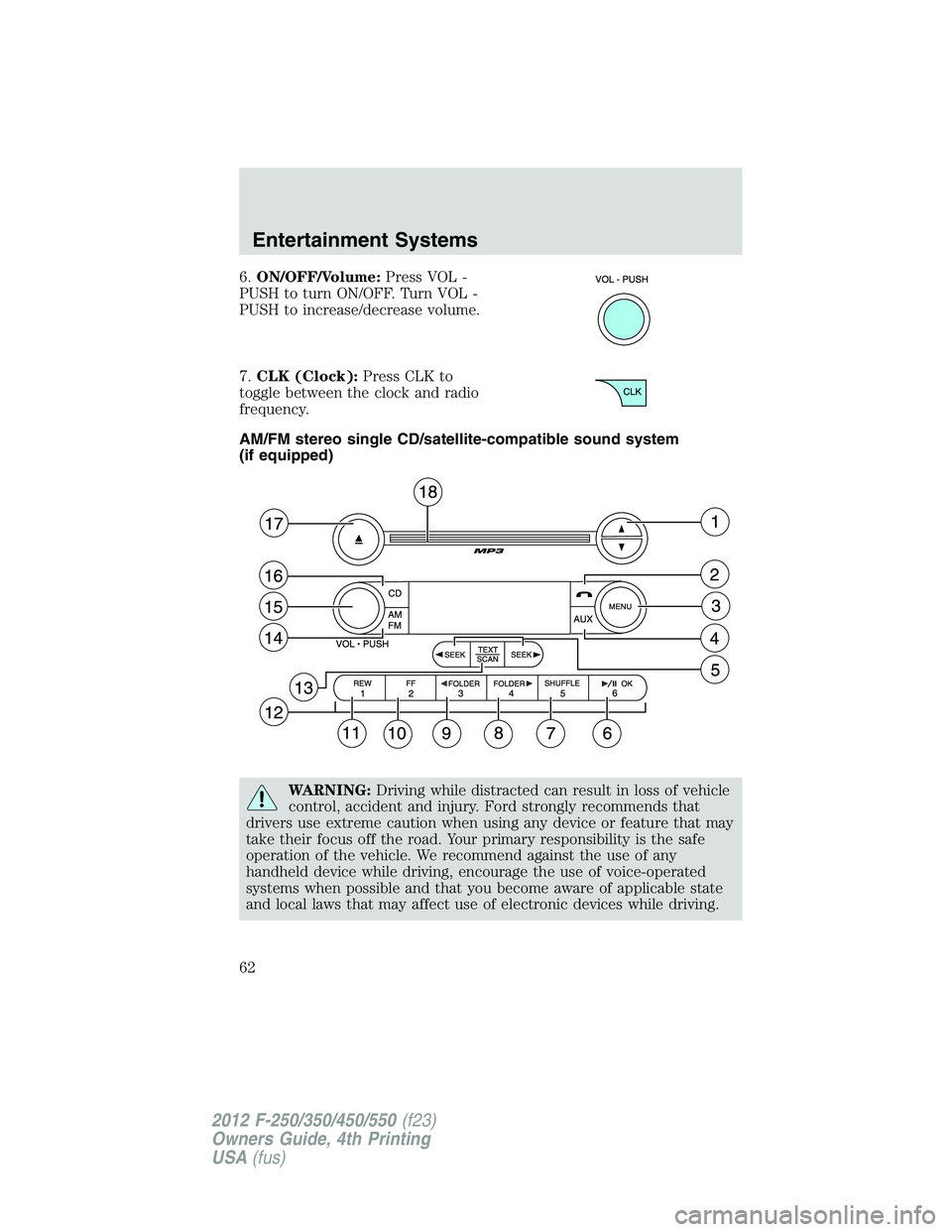

6. ON/OFF/Volume: Press VOL -
PUSH to turn ON/OFF. Turn VOL -
PUSH to increase/decrease volume.
7. CLK (Clock): Press CLK to
toggle between the clock and radio
frequency.
AM/FM stereo single CD/satellite-compatible sound system
(if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.Entertainment Systems
62
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Accessory delay: Your vehicle is equipped with accessory delay which
allows you to operate the window switches and the audio for up to
10 minutes after the ignition has been turned off or until either front
door is opened.
1. / : Press / to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
In satellite radio mode (if equipped) , press / to tune to the
next/previous channel.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
2. (Phone): If your vehicle is
equipped with SYNC  , press to
access SYNC PHONE features. For
further information, please refer to your SYNC  supplement.
If your vehicle is not equipped with SYNC  , the display will read NO
PHONE.
3. MENU: Press MENU repeatedly
to access to the following settings:
Setting the clock: Press MENU until SET HOUR or SET MINUTES is
displayed. Use / / SEEK, SEEK to adjust the
hours/minutes.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
SATELLITE RADIO MENU (if equipped): Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press / to cycle through the following options:
• CATEGORY: Press OK to enter category mode. Press / to
scroll through the list of available SIRIUS  channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS  categories and channels.
Press OK to close and return to the main menu. Entertainment Systems
63
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

HEADLAMP CONTROL
Rotate the headlamp control
clockwise to the first position to
turn on the parking lamps.
Rotate clockwise to the second
position to also turn on the
headlamps.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
• To turn autolamps on, rotate the
control to .
• To turn autolamps off, rotate the
control from the autolamp
position.
Note: If the vehicle is equipped with autolamps, it will have the
headlamps on with windshield wipers feature. If the windshield
wipers are turned on, the exterior lamps will turn on with the headlamp
control in the autolamp position.
The autolamp system also keeps the lights on for a predetermined
amount of time after the ignition switch is turned to off. You can change
the amount of time the lamps stay on by using the programming
procedure that follows:
Autolamps - Programmable exit delay
Programmable exit delay allows the length of the autolamp exit delay to
be changed.
To program the auto lamp exit time delay:
1. Start with the ignition in the off position and the headlamp control in
the autolamp position.
2. Turn the headlamp control to off. Lights
87
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

5. Locate the vertical adjuster on
each headlamp, then use a #2
Phillips head to turn the adjuster
either counterclockwise (to adjust
down) or clockwise (to adjust up)
aligning the upper edge of the light
pattern up to the horizontal line.
6. Repeat Steps 3–5 for the other
headlamp.
7. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
The turn signal lever does not mechanically lock in the upward or
downward position when activated. The turn signal control activation and
cancellation is electronic.
• To operate the left turn signal,
push the lever down until it stops
and release.
• To operate the right turn signal,
push the lever up until it stops
and release.
• To manually cancel turn signal operation, push the lever again in
either direction.
Lane change
To indicate a left or right lane change:
• Push the lever up/down to the first stop position and release. The turn
signals will flash three times and stop.
• Push the lever up/down to the first stop position and hold. The turn
signals will flash for as long as the lever is held in this position. Lights
91
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

10. For the headlamp bulb, remove
the bulb by turning it
counterclockwise and pulling it
straight out.
11. For the park or turn lamp bulb,
remove the bulb by turning it
counterclockwise and pulling it
straight out.
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Install the new bulb(s) in reverse order.
Replacing brake/tail/turn/back-up lamp bulbs (pick-ups only)
1. Make sure the headlamps are off,
then open the tailgate to expose the
lamp assemblies.
2. Remove the two bolts from the
tail lamp assembly and carefully pull
the lamp assembly from the tailgate
pillar by releasing the two retaining
tabs. Lights
95
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

3. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
4. Pull the bulb straight out of the socket.
Install the new bulb(s) in reverse order.
Replacing brake/tail/turn/back-up lamp bulbs (chassis cabs only)
(if equipped)
1. Make sure the headlamps are off.
2. Remove the four screws and the
lamp lens from lamp assembly.
3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
Replacing cargo lamp and high-mount brake lamp bulbs
1. Make sure the headlamps are off.
2. Remove the screws and lamp
assembly from the vehicle as wiring
permits.
3. Remove the bulb socket by
rotating it counterclockwise.
4. Pull the bulb straight out of the
socket.Lights
96
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Replacing front clearance and identification lamp bulbs
(if equipped)
1. Make sure the headlamps are off.
2. Remove the screw and lens from
the lamp assembly.
3. Pull the bulb straight out of the
socket.
Install the bulb(s) in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamps are off.
2. Remove the bulb socket from the
fog lamp by turning it
counterclockwise.
3. Disconnect the electrical
connector from the fog lamp bulb.
Install the new bulb(s) in reverse order.
Replacing license plate lamp bulbs
The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:
1. Reach behind the rear bumper to
locate the bulb.
2. Twist the bulb socket
counterclockwise and carefully pull
to remove it from the lamp
assembly.
3. Pull out the old bulb from the
socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise. Lights
97
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
