2012 FORD F550 fold seats

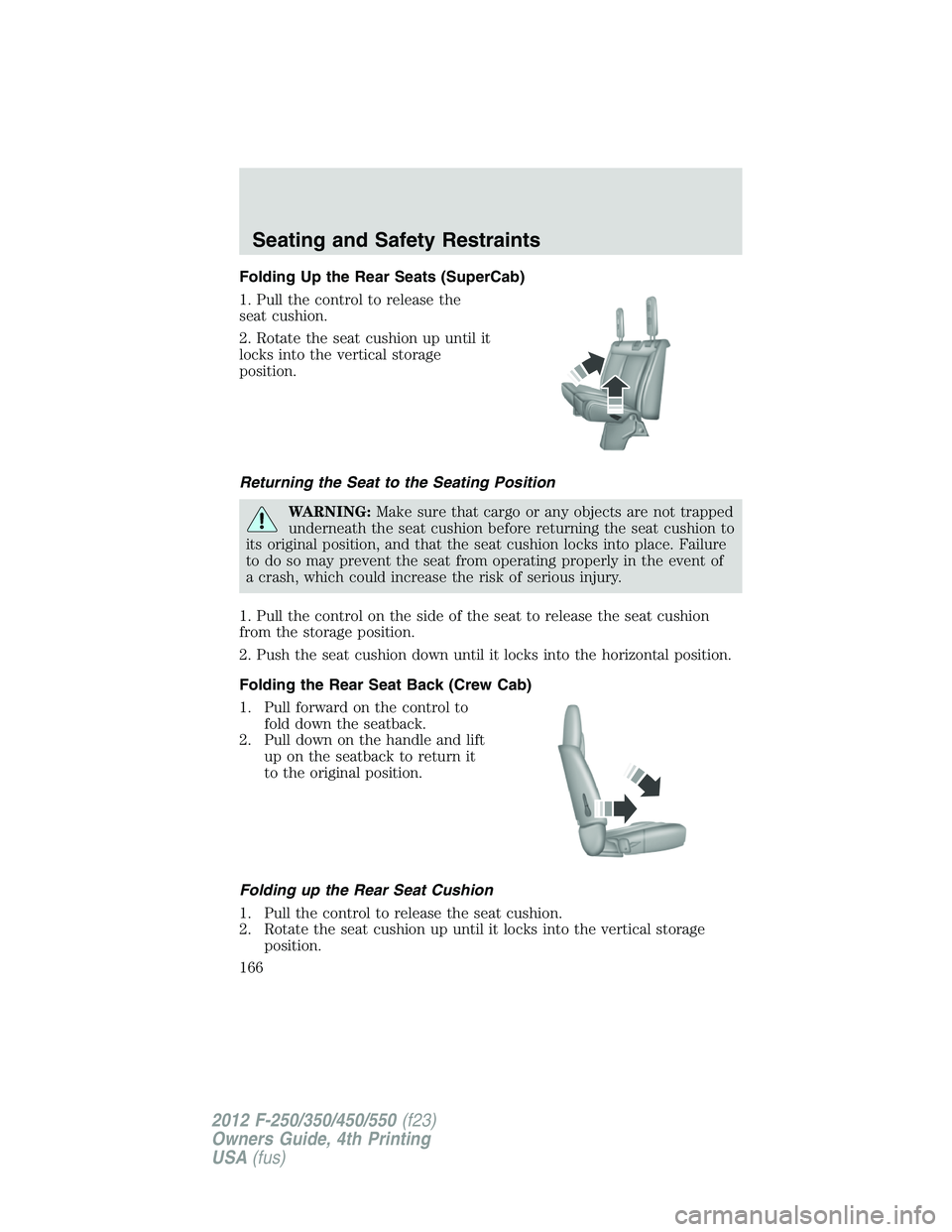

Folding Up the Rear Seats (SuperCab)
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the Seat to the Seating Position
WARNING: Make sure that cargo or any objects are not trapped
underneath the seat cushion before returning the seat cushion to
its original position, and that the seat cushion locks into place. Failure
to do so may prevent the seat from operating properly in the event of
a crash, which could increase the risk of serious injury.
1. Pull the control on the side of the seat to release the seat cushion
from the storage position.
2. Push the seat cushion down until it locks into the horizontal position.
Folding the Rear Seat Back (Crew Cab)
1. Pull forward on the control to
fold down the seatback.
2. Pull down on the handle and lift
up on the seatback to return it
to the original position.
Folding up the Rear Seat Cushion
1. Pull the control to release the seat cushion.
2. Rotate the seat cushion up until it locks into the vertical storage
position.Seating and Safety Restraints
166
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Attach the tether strap only to the appropriate tether anchor as shown.
The tether strap may not work properly if attached somewhere other
than the correct tether anchor.
Once the child safety seat has been installed using the safety belt, you
can attach the top tether strap.
Tether strap attachment
1. Route the child safety seat tether strap over the back of the seat.
For vehicles with adjustable head restraints, route the tether strap under
the head restraint and between the head restraint posts, other wise route
the tether strap over the top of the seatback. If the top of the safety seat
hits the head restraint, raise the head restraint to let the child seat fit
further rearward.
2. Locate the correct anchor for the selected seating position.
3. You may need to pull the seatback forward to access the tether
anchors. Make sure the seat is locked in the upright position before
installing the child seat. Refer to the Rear folding seat system with load
floor section in this chapter for information on how to operate the rear
seats.
4. Remove tether cover.Seating and Safety Restraints
208
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Infant seats
(see Safety seats) .....................199
Inspection/maintenance (I/M)
testing ........................................398
Instrument panel
cleaning ...........................365–366
cluster ........................................14
lighting up panel and
interior .......................................89
J
Jack ............................................331
positioning ...............................331
storage .....................................331
Jump-starting your vehicle ......348
K
Keyless entry system
autolock ...................................137
keypad .....................................148
locking and unlocking doors ..149
programming entry code .......148
Keys ...................................129, 150
positions of the ignition .........265
L
Lamps
autolamp system .......................87
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........88
instrument panel, dimming .....89
interior lamps ...........................92
replacing bulbs ...................94–97
LATCH anchors .........................206
Lights, warning and indicator ....14 anti-lock brakes (ABS) ..........272
Loading instructions .................251
Load limits .................................244
Locks
autolock ...................................137
childproof ................................141
doors ........................................137
Lug nuts ....................................347
Lumbar support, seats .....160–161
M
Manual transmission
fluid capacities ........................411
Message center ...............22–23, 39
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .........................107–109
heated ........................................81
programmable memory ..........143
side view mirrors (power) .....106
signal .......................................109
Moon roof ..................................115
Motorcraft  parts ......................410
MyKey ........................................129
N
Navigation system .......................77
O
Octane rating ............................391
Oil (see Engine oil) ..................375 Index
445
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
