Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
7. Press the RESET button until the display reads RESET FOR
CALIBRATION to start the compass calibration function.
8. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until
the CIRCLE SLOWLY TO CALIBRATE display changes to CALIBRATION
COMPLETED. It will take up to five circles to complete calibration.
9. The compass is now calibrated.
Note: If the RESET button is pressed or three minutes has expired, the
display will go back to the INFO menu and will show CAL instead of the
compass heading until the compass is calibrated.
RESET FOR REMOTE START (if equipped)
Press RESET to enable remote start on or off and choose the remote
start duration time (5, 10, 15 minutes) and other options.
REAR PARK AID (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
Press RESET to turn this feature on or off. You can also choose to turn
this feature on/off when the vehicle is placed in reverse.
TBC MODE (if equipped)
Allows you to choose the trailer brake mode.
Press RESET to choose:
• ELECTRIC
• EOH (electric over hydraulic)
TRAILER SWAY (if equipped)
This feature uses the electronic stability control to mitigate trailer sway,
Press RESET to turn it off or on.
LANGUAGE = ENGLISH / SPANISH / FRENCH
Allows you to choose which language the message center will display in.
Selectable languages are English, Spanish, or French.
Waiting four seconds or pressing the RESET button cycles the message
center through each of the language choices.
Press and hold the RESET button for two seconds to set the language
choice.Instrument Cluster
28
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

TIRES NOT TRAINED – REPEAT (if equipped) — Displayed when
an error occurs while training the TPMS. Refer to TPMS reset procedure
in the Tires, Wheels and Loading chapter for more information.
TRAINING COMPLETE (if equipped) — Displayed when training of
the TPMS is complete. Refer to TPMS reset procedure in the Tires,
Wheels and Loading chapter for more information.
TRACTION CONTROL OFF (if equipped) — Displayed when the
traction control has been disabled by the driver. Refer to the Driving
chapter for more information.
INTKEY COULD NOT PROGRAM — Displayed when an attempt is
made to program a fifth integrated key to the remote keyless entry
system. For more information on integrated key, refer to the Locks and
Security chapter.
KEY COULD NOT PROGRAM — Displayed when an attempt is made
to program a spare key using two existing MyKeys. Refer to MyKey  in
the Locks and Security chapter for more information.
VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey  is in
use and the Admin has enabled the MyKey speed limit and the vehicle
speed is 80 mph (130 km/h). Refer to MyKey  in the Locks and
Security chapter for more information.
SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle
and MyKey  is in use and the MyKey speed limit is on. Refer to MyKey
in the Locks and Security chapter for more information.
CHECK SPEED DRIVE SAFELY — Displayed when a MyKey  is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer to MyKey  in the Locks and Security chapter for more
information.
VEHICLE NEAR TOP SPEED — Displayed when a MyKey  is in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer to MyKey  in the Locks and Security
chapter for more information.
TOP SPEED MYKEY SETTING — Displayed when a MyKey  is in use
and the MyKey speed limit is on and the vehicle speed is 80 mph
(130 km/h). Refer to MyKey  in the Locks and Security chapter for
more information.
BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey  is in
use and Belt-Minder  is activated. Refer to MyKey  in the Locks and
Security chapter for more information. Instrument Cluster
31
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Vehicle* (cont’d)
Menu Control Standard: with standard set, pressing the up/down
arrows from a lower level menu will escape to the
main menu.
Memory On: with memory on set, pressing the
up/down arrows will navigate to the previous lower
level menu.
Oil Life Reset (if
equipped) Set to XXX% (Press and hold OK to set).
Remote Start Duration 5, 10 or 15 minutes
System Enable/Disable
Wiper Control On/Off
* If equipped—your vehicle may be equipped with some or all of these
options.
MyKey
Create MyKey Hold OK to create MyKey
*AdvanceTrac Always on or Selectable
*MAX Speed 80 MPH (120 km/h) or Off
*Speed Warning 45, 55 or 65 MPH (75, 90 or 105 km/h), Off
*Volume Limiter On/Off
*Clear MyKeys Hold OK to Clear MyKeys
*Only displays if MyKey is programmed.
Language
English, Español, Français
Units
Units English or Metric
System Reset
Hold OK to Reset System to Factory DefaultInstrument Cluster
46
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

HILL DESCENT CONTROL READY (if equipped) — Displayed
when the hill descent control switch is turned on.
REDUCE ACCELERATOR TO PREVENT WHEEL SLIP (if
equipped) — Displayed when the vehicle senses that torque to the
drive wheels has overcome the available traction.
SHIFT DELAYED PULL FORWARD (if equipped) — May display
when shifting to or from 4X4 LOW. For more information, refer to
Four-wheel drive (4WD) operation in the Driving chapter.
SLOW VEHICLE TO XX KM/H FOR ELD (if equipped) — Displayed
when the vehicle speed requirement for the electronic locking
differential mode has not been met.
SLOW VEHICLE TO XX MPH FOR ELD (if equipped) — Displayed
when the vehicle speed requirement for the electronic locking
differential mode has not been met.
CHECK LOCKING DIFFERENTIAL (if equipped) — Displayed
when an electronic locking differential (ELD) system fault is present. For
more information, refer to Electronic locking differential (ELD) in the
Driving chapter.
CHECK SPEED DRIVE SAFELY — Displayed when a MyKey  is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer to MyKey  in the Locks and Security chapter for more
information.
COULD NOT PROGRAM INTEGRATED KEY — Displayed when an
attempt is made to program a fifth integrated key to the remote keyless
entry system. For more information on integrated key, refer to the Locks
and Security chapter.
ESC ALWAYS ON - MYKEY SETTING — Displayed when a MyKey  is
in use and the ESC cannot be deactivated. Refer to MyKey  in the Locks
and Security chapter for more information.
MYKEY ACTIVE DRIVE SAFELY — Displayed when a MyKey  is in
use. Refer to MyKey  in the Locks and Security chapter for more
information.
MYKEY COULD NOT PROGRAM — Displayed when an attempt is
made to program a spare key using two existing MyKeys. Refer to
MyKey  in the Locks and Security chapter for more information.
SECURITY SYSTEM FAULT (if equipped) — Displayed when the
security system has detected a fault. See your authorized dealer for
service. Instrument Cluster
57
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

REAR WINDOW DEFROSTER (IF EQUIPPED) R
The rear defroster control is located on the climate control panel and
works to defrost your rear window from fog and thin ice. If equipped, it
also operates the heated mirror to remove snow and thin ice from the
side mirrors.
Ensure that the ignition on. Press to turn the defroster on/off. The
indicator light will illuminate when activated. For vehicles with a sliding
rear window– the defroster will be disabled when the window is opened.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
REMOTE START CLIMATE OPERATION (IF EQUIPPED)
The climate control system will condition the cabin temperature during
remote start based on the outside temperature. Engine idle may increase
to help with adjusting the cabin temperature.
Note: No climate control adjustments will be recognized during remote
start operation and none of the climate function indicators will be
illuminated while the vehicle is in remote start. Once the ignition is
cycled to the on position, the climate control system will return to the
previous settings (last ignition-on cycle) and adjustments can be made
normally. If the previous setting was off, the climate control system will
turn off.
If you previously had any of the following activated: heated seats (if
equipped), cooled seats (if equipped), heated mirrors (if equipped), or
rear defrost, they will not return to their previous settings (on) when the
ignition is turned on and will need to be re-activated if desired.
For more information on remote start climate settings and options, refer
to Message Center in the Instrument Cluster chapter.
Manual climate control
For hot weather conditions:
• The climate control system will be set to MAX A/C.
For cold weather conditions:
• The climate control system will be set to provide maximum heating
in (floor/defrost) mode.
• Rear defrost/heated mirrors (if equipped) will be activated. Climate Controls
85
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

INTERIOR LAMPS
Front map lamps (if equipped)
The map lamps are located on the overhead console. Press the controls
on either side of each map lamp to turn on the lamps. The map lamps
also light when:
• any door is opened,
• the instrument panel dimmer
switch is rotated up until the
courtesy lamps come on, and
• any of the remote entry controls
are pressed and the ignition is
off.
Rear dome/map lamps
Your vehicle may have map lamps
within the rear dome lamp. Press
the switches on either side of the
dome lamp to turn the lamps on.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
• Presence of thin mist (no streaks, drip marks or droplets)
• Fine mist covers less than 50% of the lensLights
92
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

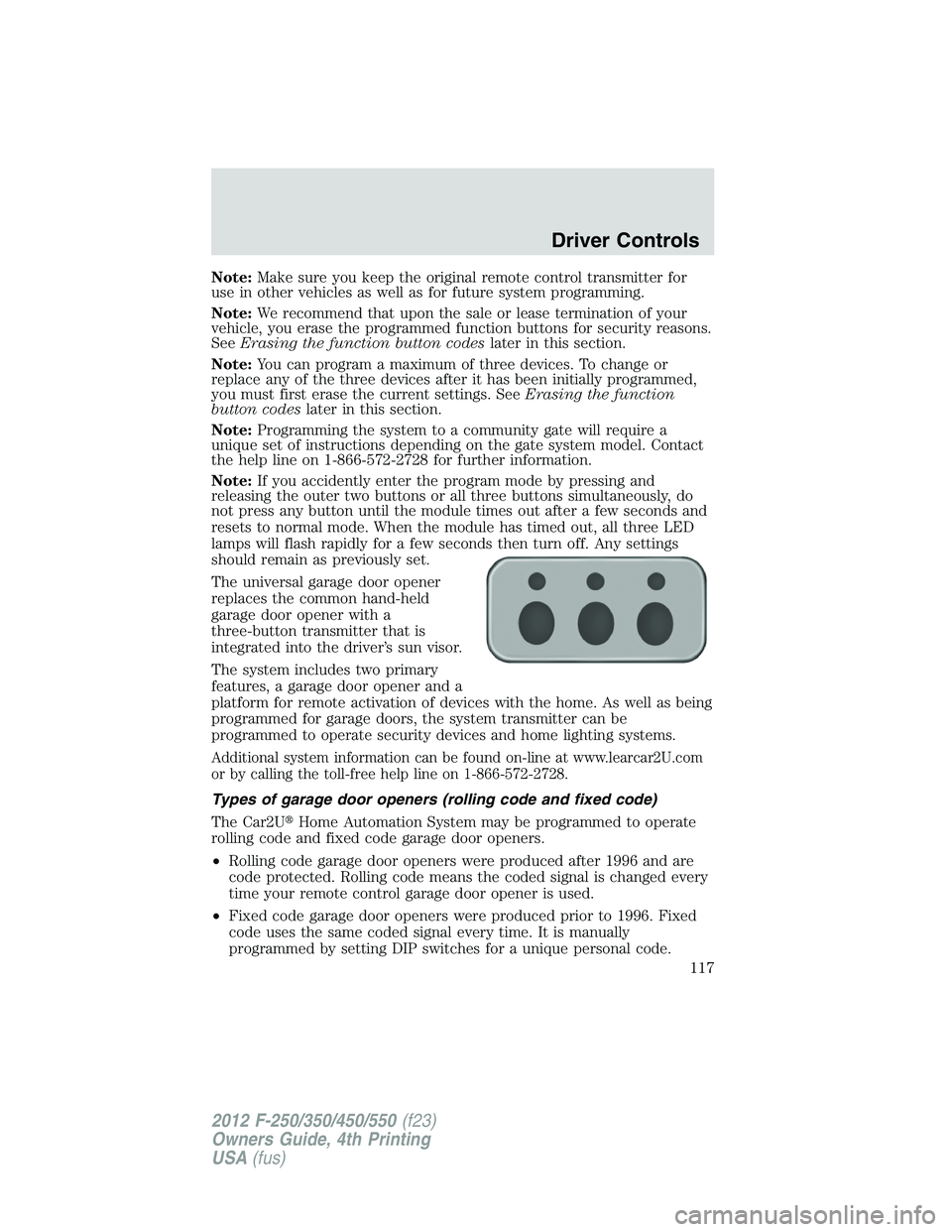

Note: Make sure you keep the original remote control transmitter for
use in other vehicles as well as for future system programming.
Note: We recommend that upon the sale or lease termination of your
vehicle, you erase the programmed function buttons for security reasons.
See Erasing the function button codes later in this section.
Note: You can program a maximum of three devices. To change or
replace any of the three devices after it has been initially programmed,
you must first erase the current settings. See Erasing the function
button codes later in this section.
Note: Programming the system to a community gate will require a
unique set of instructions depending on the gate system model. Contact
the help line on 1-866-572-2728 for further information.
Note: If you accidently enter the program mode by pressing and
releasing the outer two buttons or all three buttons simultaneously, do
not press any button until the module times out after a few seconds and
resets to normal mode. When the module has timed out, all three LED
lamps will flash rapidly for a few seconds then turn off. Any settings
should remain as previously set.
The universal garage door opener
replaces the common hand-held
garage door opener with a
three-button transmitter that is
integrated into the driver’s sun visor.
The system includes two primary
features, a garage door opener and a
platform for remote activation of devices with the home. As well as being
programmed for garage doors, the system transmitter can be
programmed to operate security devices and home lighting systems.
Additional system information can be found on-line at www.learcar2U.com
or by calling the toll-free help line on 1-866-572-2728.
Types of garage door openers (rolling code and fixed code)
The Car2U  Home Automation System may be programmed to operate
rolling code and fixed code garage door openers.
• Rolling code garage door openers were produced after 1996 and are
code protected. Rolling code means the coded signal is changed every
time your remote control garage door opener is used.
• Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code. Driver Controls
117
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

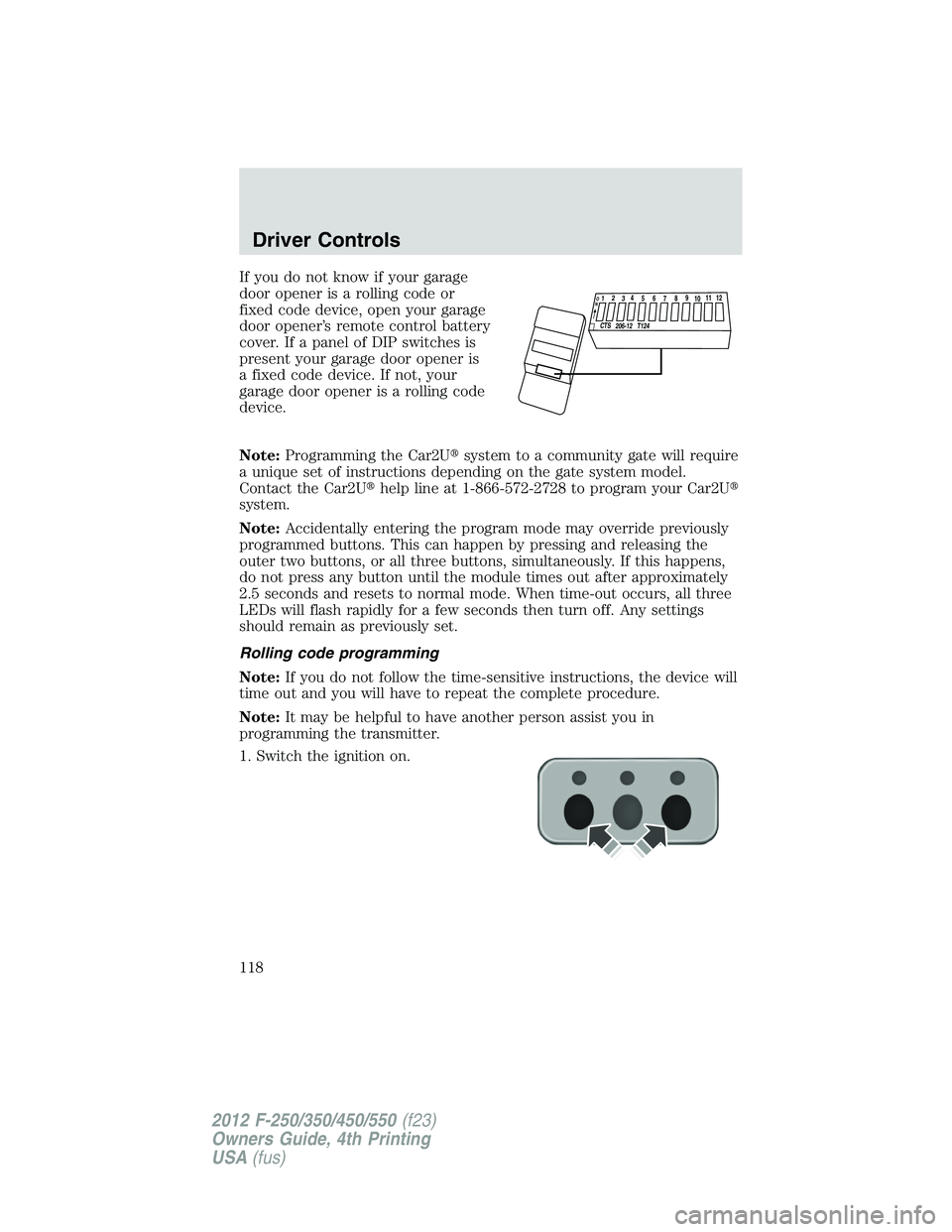

If you do not know if your garage
door opener is a rolling code or
fixed code device, open your garage
door opener’s remote control battery
cover. If a panel of DIP switches is
present your garage door opener is
a fixed code device. If not, your
garage door opener is a rolling code
device.
Note: Programming the Car2U  system to a community gate will require
a unique set of instructions depending on the gate system model.
Contact the Car2U  help line at 1-866-572-2728 to program your Car2U
system.
Note: Accidentally entering the program mode may override previously
programmed buttons. This can happen by pressing and releasing the
outer two buttons, or all three buttons, simultaneously. If this happens,
do not press any button until the module times out after approximately
2.5 seconds and resets to normal mode. When time-out occurs, all three
LEDs will flash rapidly for a few seconds then turn off. Any settings
should remain as previously set.
Rolling code programming
Note: If you do not follow the time-sensitive instructions, the device will
time out and you will have to repeat the complete procedure.
Note: It may be helpful to have another person assist you in
programming the transmitter.
1. Switch the ignition on. 1 2
3
4
5
6
7 8 9
1 0 1 1
1 2
C TS 206-12
T 124 O
N
Driver Controls
118
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
