There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door and the hood is armed individually, and if any are open, they
must be closed before the open entry point can enter the 20 second
countdown.
The turn signal lamps will flash once when all doors and the hood are
closed indicating the vehicle is locked and entering the 20 second
countdown.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the control on your remote entry
transmitter.
• Turn the ignition to the on position with a programmed coded ignition
key.
• Unlock the doors by using your keyless entry pad.
• If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door or hood is opened
without using the key or the remote entry transmitter.Locks and Security
152
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

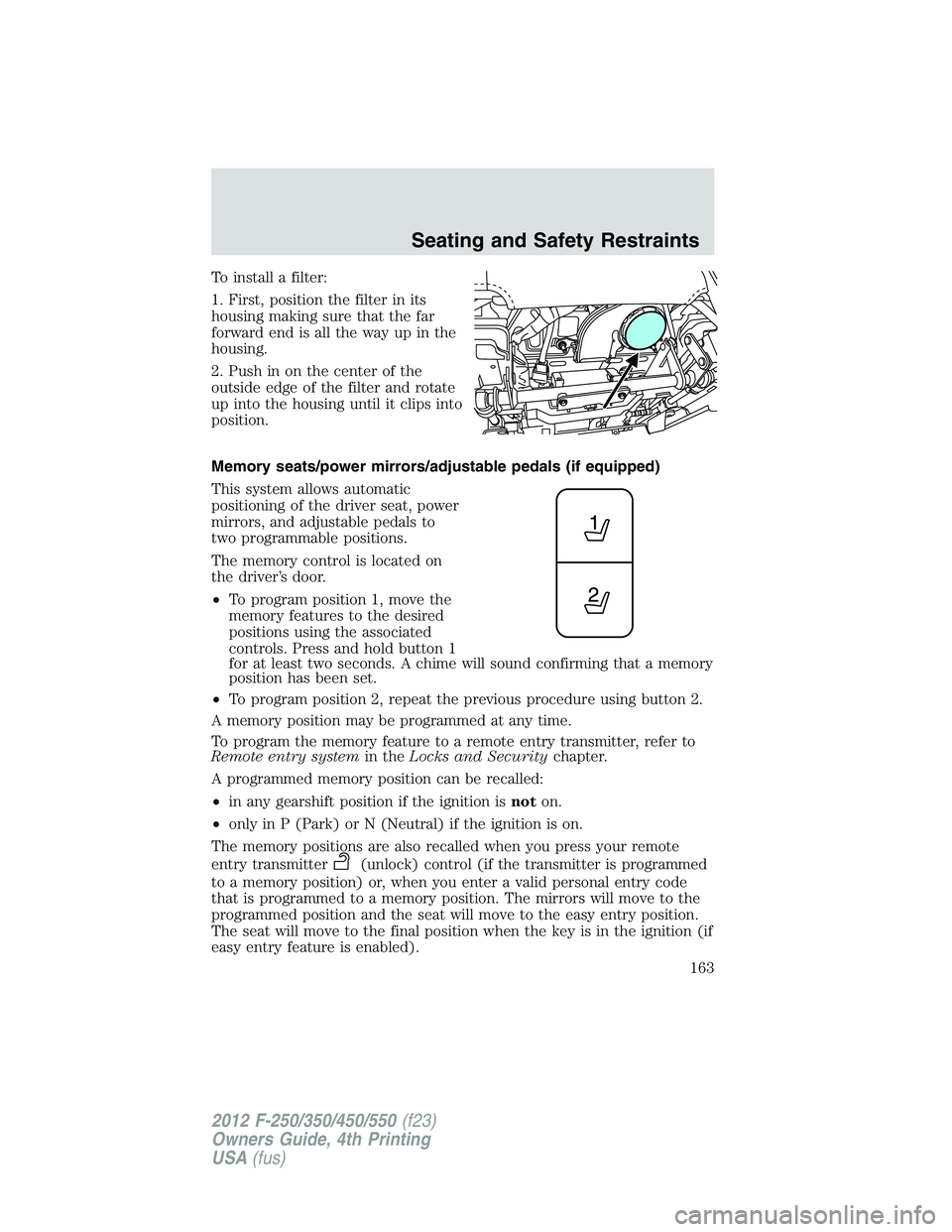

To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
Memory seats/power mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat, power
mirrors, and adjustable pedals to
two programmable positions.
The memory control is located on
the driver’s door.
• To program position 1, move the
memory features to the desired
positions using the associated
controls. Press and hold button 1
for at least two seconds. A chime will sound confirming that a memory
position has been set.
• To program position 2, repeat the previous procedure using button 2.
A memory position may be programmed at any time.
To program the memory feature to a remote entry transmitter, refer to
Remote entry system in the Locks and Security chapter.
A programmed memory position can be recalled:
• in any gearshift position if the ignition is not on.
• only in P (Park) or N (Neutral) if the ignition is on.
The memory positions are also recalled when you press your remote
entry transmitter (unlock) control (if the transmitter is programmed
to a memory position) or, when you enter a valid personal entry code
that is programmed to a memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the key is in the ignition (if
easy entry feature is enabled). Seating and Safety Restraints
163
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer to Warning lights and
chimes in the Instrument Cluster chapter. Routine maintenance of the
side airbag is not required.
A difficulty with the system is indicated by one or more of the following:
• The readiness light (same light as for front airbag system) will either
flash or stay lit.
• The readiness light will not illuminate immediately after ignition is
turned on.
• A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized dealer immediately. Unless serviced, the system may
not function properly in the event of a collision.
SOS Post-Crash Alert System™
The system automatically flashes the turn signal lamps and sounds the
horn three times at four second intervals in the event of a serious impact
that deploys an airbag (front, side, side curtain [if equipped] or Safety
Canopy  [if equipped]) or the safety belt pretensioners.
The system can be turned off when any one of the following actions are
taken by the driver or any other person:
• pressing the hazard control button,
• or pressing the panic button on the remote entry transmitter.
The feature will continue to operate until the vehicle runs out of power. Seating and Safety Restraints
189
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
12 15A Interior lighting, Lighted running
board lamps
13 15A Right turn signals and brake
lamps, Right trailer tow (TT) stop
turn relay
14 15A Left turn signals and brake lamps,
Left TT stop turn relay
15 15A High-mounted stop lamps, Backup
lamps, TT backup relay
16 10A Right low beam headlamp
17 10A Left low beam headlamp
18 10A Keypad illumination, Passive
anti-theft indicator (PATS),
Powertrain control module
(PCM), Brake shift interlock
19 20A Subwoofer
20 20A Power door locks
21 10A Brake on/off switch
22 20A Horn
23 15A Not used (spare)
24 15A Steering wheel control module,
Diagnostic connector, Power fold
mirror relay, Remote keyless entry
25 15A Not used (spare)
26 5A Steering wheel control module
27 20A Amplifier
28 15A Ignition switch
29 20A SYNC  , GPS module, Radio
faceplate
30 15A Parking lamp relay, TT parking
lamp relayRoadside Emergencies
325
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

P
Parental MyKey
programming .............................129
Parking brake ............................273
Parts
(see Motorcraft  parts) ...........410
Pedals (see Power adjustable
foot pedals) ...............................110
Power adjustable foot pedals ...110
Power distribution box
(see Fuses) ...............................327
Power door locks ......................137
Power mirrors ...........................106
Powerpoint ................................101
Power steering ..........................282
fluid, checking and adding ....399
fluid, refill capacity ................411
Power Windows .........................103
Preparing to drive your
vehicle ........................................285
R
Radio ......................................60, 62
Rear-view camera system .........298
Recommendations for
attaching safety restraints
for children ................................197
Relays ........................................321
Remote entry system .......141–142
illuminated entry ....................145
locking/unlocking doors .........142
Remote start ...........................146
replacement/additional
transmitters .............................145
replacing the batteries ...........144 Remote start .............................146
Remote start climate
operation .....................................85
Reverse sensing system ...........296
Roadside assistance ..................319
S
Safety belts
(see Safety restraints) ...........168,
170, 172, 174–175
Safety Canopy ...................185–186
Safety defects, reporting ..359–360
Safety restraints ...............168, 170,
172, 174–175
Belt-Minder  ...........................176
extension assembly ................175
for adults .................170, 172, 174
for children .............................195
warning light and chime ........176
Safety restraints -
LATCH anchors .........................206
Safety seats for children ..........199
Safety Compliance
Certification Label ....................416
Satellite Radio Information ........74
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............428
Seats ..........................................153
child safety seats ....................199
cleaning ...................................368
climate control ..................81, 162
easy access/easyout feature ..164
memory seat ...................143, 163
SecuriCode keyless entry
system ........................................147Index
446
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
