2012 FORD F250 Owners Manual

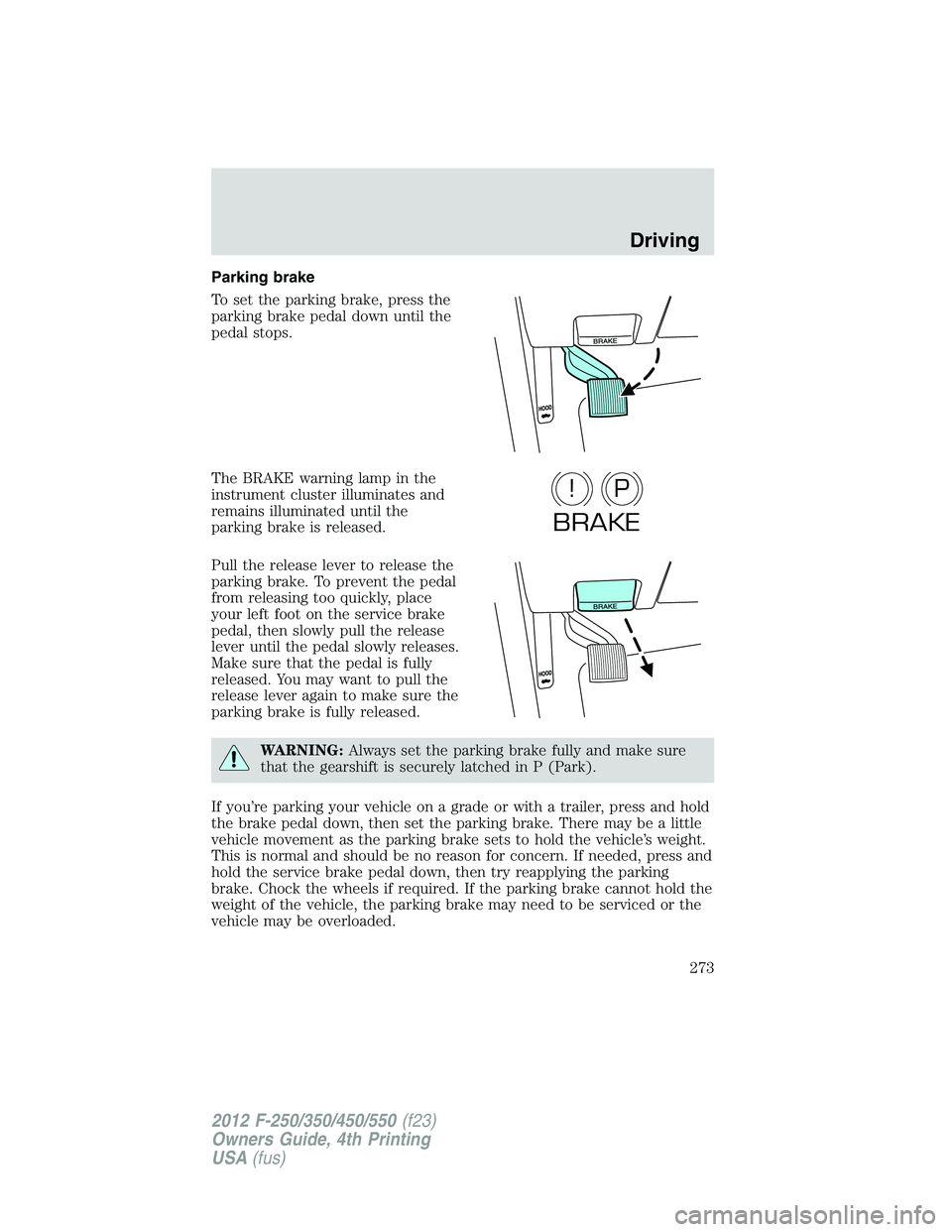

Parking brake
To set the parking brake, press the
parking brake pedal down until the
pedal stops.
The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated until the
parking brake is released.
Pull the release lever to release the
parking brake. To prevent the pedal
from releasing too quickly, place
your left foot on the service brake
pedal, then slowly pull the release
lever until the pedal slowly releases.
Make sure that the pedal is fully
released. You may want to pull the
release lever again to make sure the
parking brake is fully released.
WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park).
If you’re parking your vehicle on a grade or with a trailer, press and hold
the brake pedal down, then set the parking brake. There may be a little
vehicle movement as the parking brake sets to hold the vehicle’s weight.
This is normal and should be no reason for concern. If needed, press and
hold the service brake pedal down, then try reapplying the parking
brake. Chock the wheels if required. If the parking brake cannot hold the
weight of the vehicle, the parking brake may need to be serviced or the
vehicle may be overloaded.
P!
BRAKE
Driving
273
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

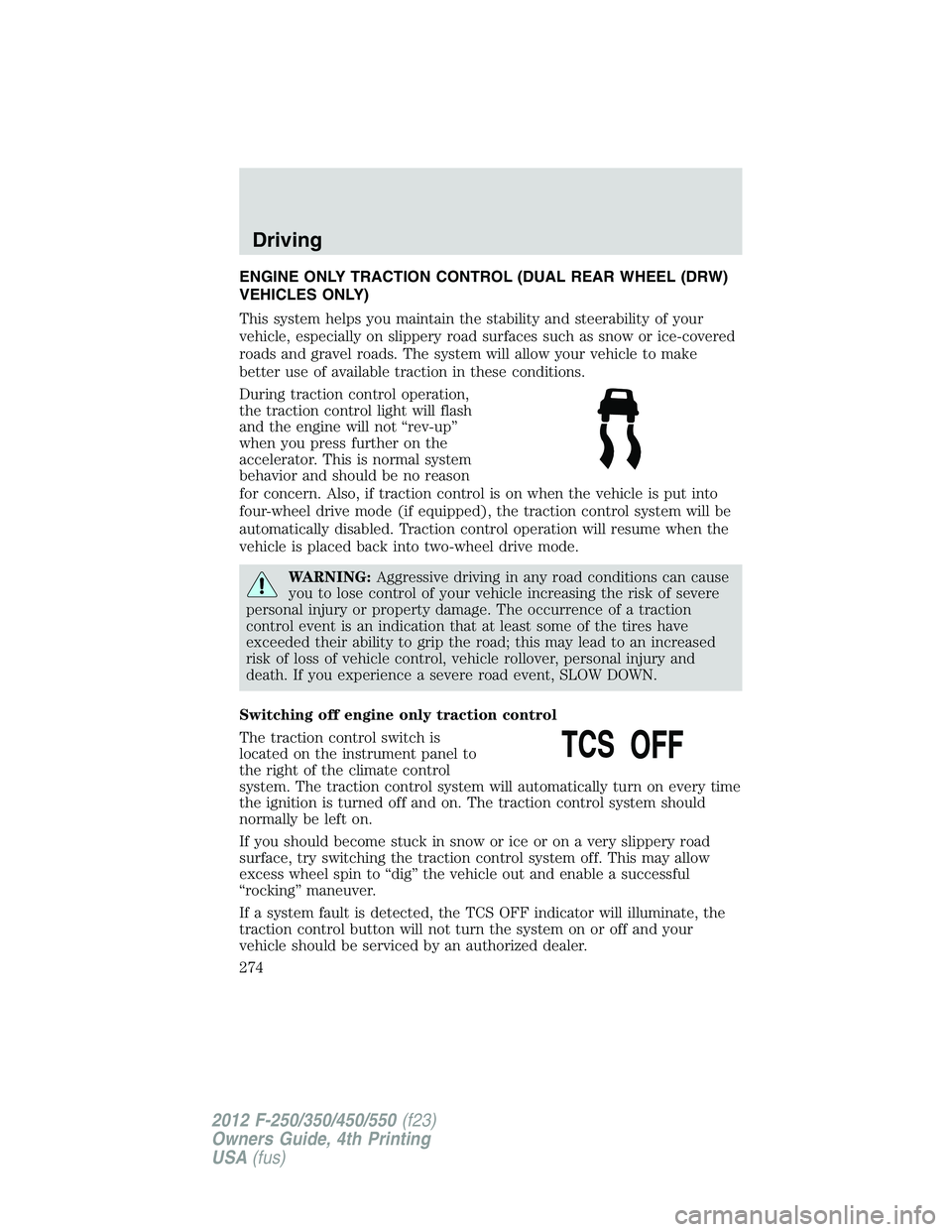

ENGINE ONLY TRACTION CONTROL (DUAL REAR WHEEL (DRW)
VEHICLES ONLY)
This system helps you maintain the stability and steerability of your
vehicle, especially on slippery road surfaces such as snow or ice-covered
roads and gravel roads. The system will allow your vehicle to make
better use of available traction in these conditions.
During traction control operation,
the traction control light will flash
and the engine will not “rev-up”
when you press further on the
accelerator. This is normal system
behavior and should be no reason
for concern. Also, if traction control is on when the vehicle is put into
four-wheel drive mode (if equipped), the traction control system will be
automatically disabled. Traction control operation will resume when the
vehicle is placed back into two-wheel drive mode.
WARNING:Aggressive driving in any road conditions can cause
you to lose control of your vehicle increasing the risk of severe
personal injury or property damage. The occurrence of a traction
control event is an indication that at least some of the tires have
exceeded their ability to grip the road; this may lead to an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death. If you experience a severe road event, SLOW DOWN.
Switching off engine only traction control
The traction control switch is
located on the instrument panel to
the right of the climate control
system. The traction control system will automatically turn on every time
the ignition is turned off and on. The traction control system should
normally be left on.
If you should become stuck in snow or ice or on a very slippery road
surface, try switching the traction control system off. This may allow
excess wheel spin to “dig” the vehicle out and enable a successful
“rocking” maneuver.
If a system fault is detected, the TCS OFF indicator will illuminate, the
traction control button will not turn the system on or off and your
vehicle should be serviced by an authorized dealer.
Driving
274
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

Engine only traction control (DRW only)
Button functions TCS OFF indicator TCS
Default at start-up Not illuminated Enabled
Button pressed
momentarilyIlluminated Disabled
Button pressed again
after deactivationNot illuminated Enabled
Transfer case switched to
4WD
1Illuminated Disabled
1Engaging 4WD automatically disables TCS.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
(SINGLE REAR WHEEL (SRW) VEHICLES ONLY)
The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides.
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracwith RSCsystem. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTracwith RSCsystem. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTracwith RSCsensors. Reducing the effectiveness
of the AdvanceTracwith RSCsystem could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
Driving
275
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

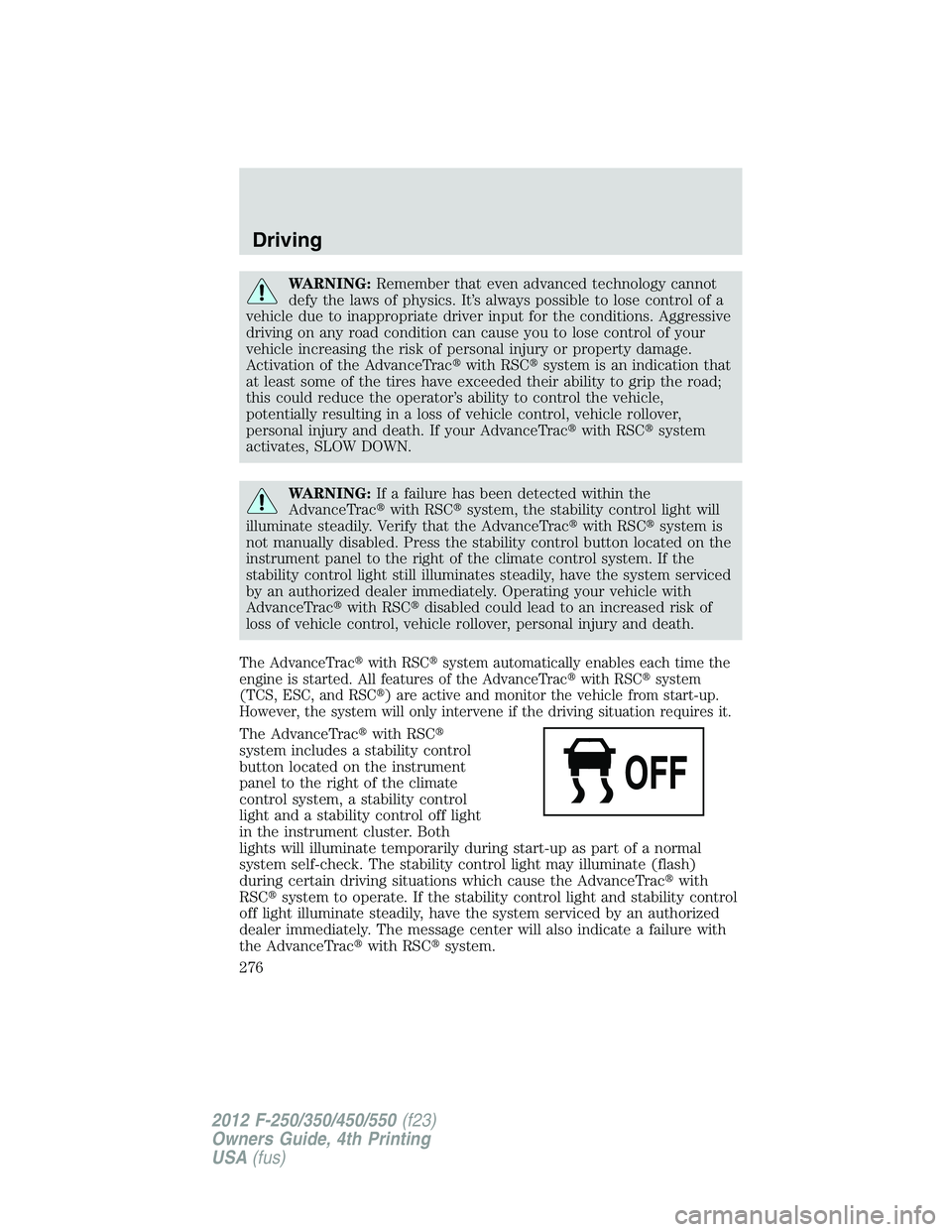

WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracwith RSCsystem is an indication that
at least some of the tires have exceeded their ability to grip the road;
this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your AdvanceTracwith RSCsystem
activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTracwith RSCsystem, the stability control light will
illuminate steadily. Verify that the AdvanceTracwith RSCsystem is
not manually disabled. Press the stability control button located on the
instrument panel to the right of the climate control system. If the
stability control light still illuminates steadily, have the system serviced
by an authorized dealer immediately. Operating your vehicle with
AdvanceTracwith RSCdisabled could lead to an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
The AdvanceTracwith RSCsystem automatically enables each time the
engine is started. All features of the AdvanceTracwith RSCsystem
(TCS, ESC, and RSC) are active and monitor the vehicle from start-up.
However, the system will only intervene if the driving situation requires it.
The AdvanceTracwith RSC
system includes a stability control
button located on the instrument
panel to the right of the climate
control system, a stability control
light and a stability control off light
in the instrument cluster. Both
lights will illuminate temporarily during start-up as part of a normal
system self-check. The stability control light may illuminate (flash)
during certain driving situations which cause the AdvanceTracwith
RSCsystem to operate. If the stability control light and stability control
off light illuminate steadily, have the system serviced by an authorized
dealer immediately. The message center will also indicate a failure with
the AdvanceTracwith RSCsystem.
Driving
276
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

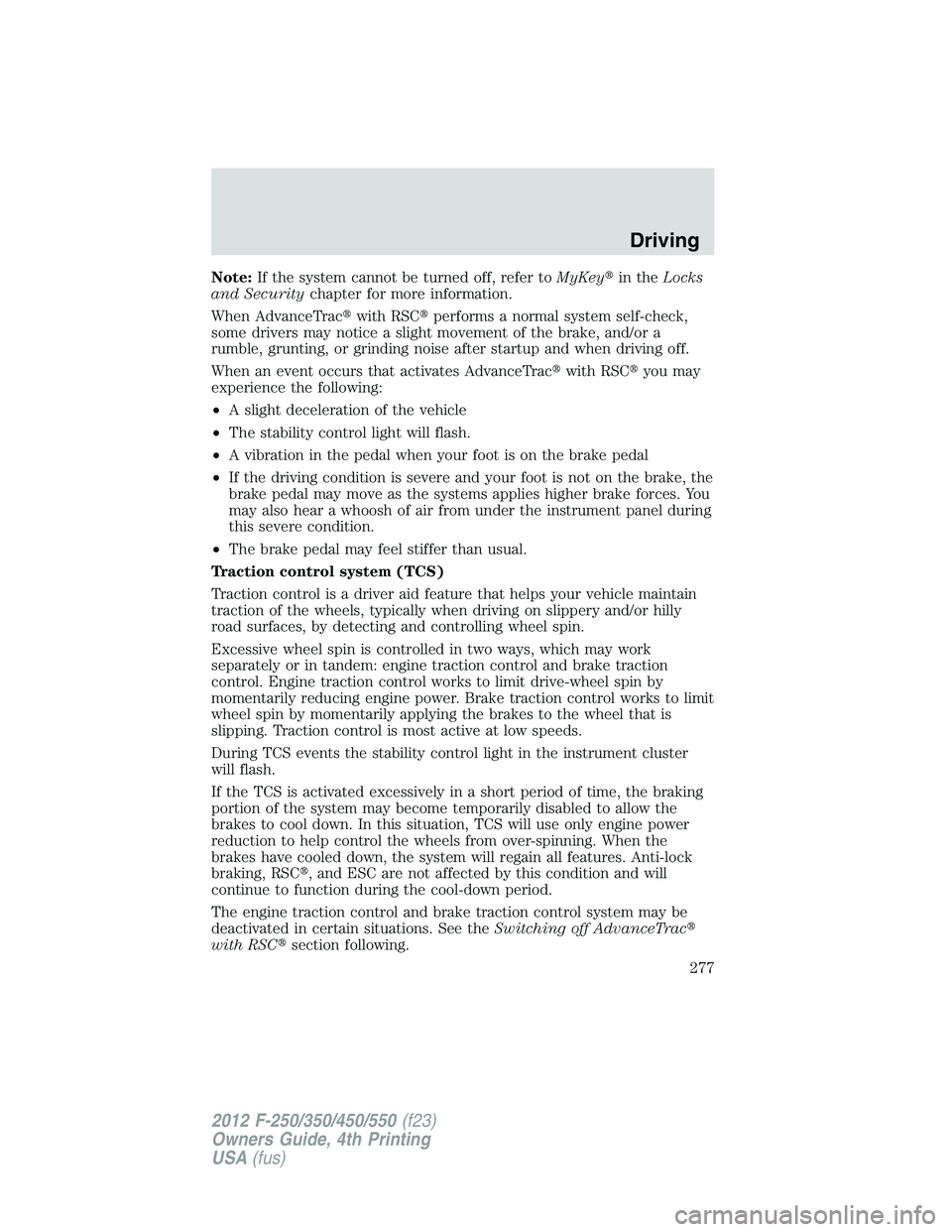

Note:If the system cannot be turned off, refer toMyKeyin theLocks
and Securitychapter for more information.
When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSCyou may
experience the following:
•A slight deceleration of the vehicle
•The stability control light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction control system (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: engine traction control and brake traction
control. Engine traction control works to limit drive-wheel spin by
momentarily reducing engine power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction control is most active at low speeds.
During TCS events the stability control light in the instrument cluster
will flash.
If the TCS is activated excessively in a short period of time, the braking
portion of the system may become temporarily disabled to allow the
brakes to cool down. In this situation, TCS will use only engine power
reduction to help control the wheels from over-spinning. When the
brakes have cooled down, the system will regain all features. Anti-lock
braking, RSC, and ESC are not affected by this condition and will
continue to function during the cool-down period.
The engine traction control and brake traction control system may be
deactivated in certain situations. See theSwitching off AdvanceTrac
with RSCsection following.
Driving
277
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

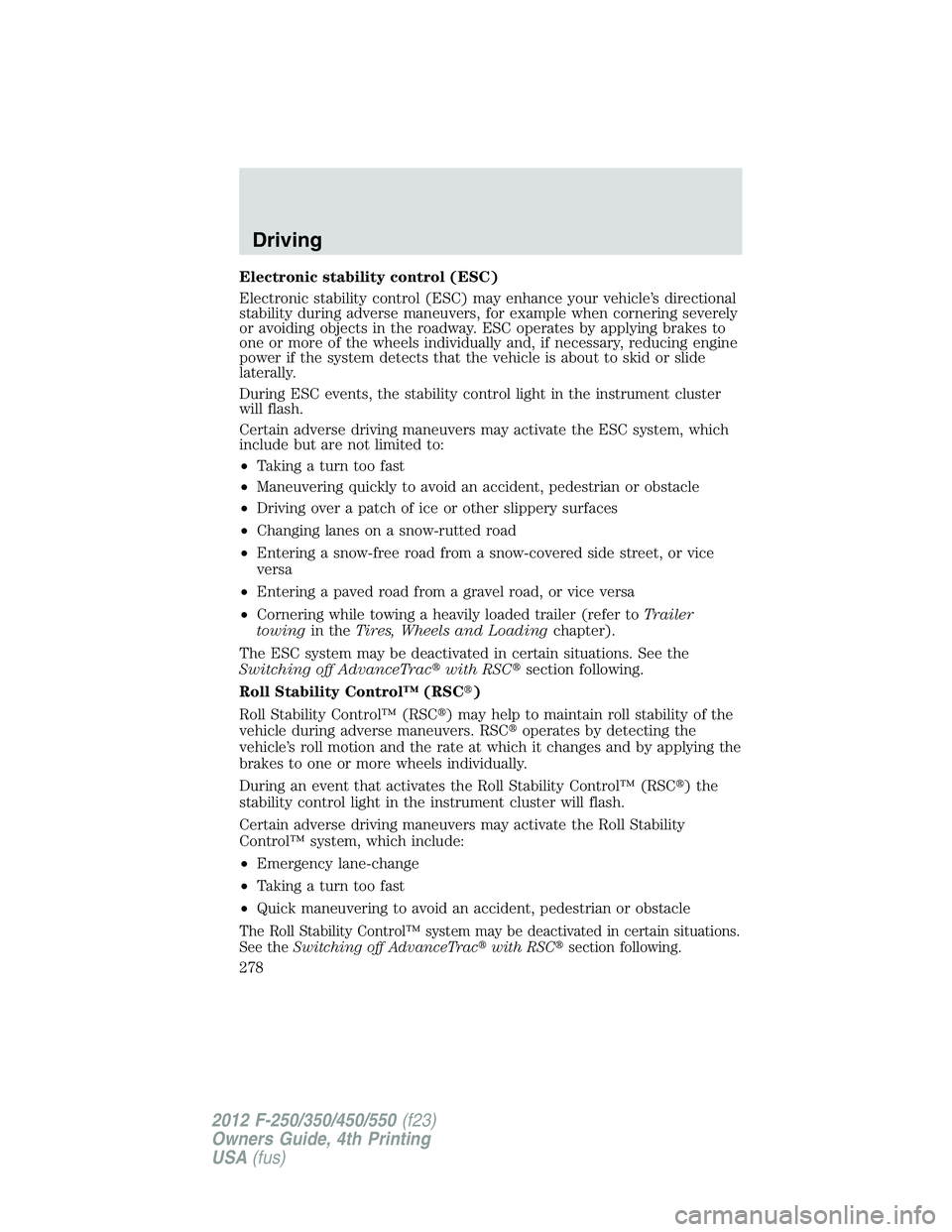

Electronic stability control (ESC)
Electronic stability control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During ESC events, the stability control light in the instrument cluster
will flash.
Certain adverse driving maneuvers may activate the ESC system, which
include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
The ESC system may be deactivated in certain situations. See the
Switching off AdvanceTracwith RSCsection following.
Roll Stability Control™ (RSC)
Roll Stability Control™ (RSC) may help to maintain roll stability of the
vehicle during adverse maneuvers. RSCoperates by detecting the
vehicle’s roll motion and the rate at which it changes and by applying the
brakes to one or more wheels individually.
During an event that activates the Roll Stability Control™ (RSC)the
stability control light in the instrument cluster will flash.
Certain adverse driving maneuvers may activate the Roll Stability
Control™ system, which include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
The Roll Stability Control™ system may be deactivated in certain situations.
See theSwitching off AdvanceTracwith RSCsection following.
Driving
278
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

Switching off AdvanceTracwith RSC
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTracwith RSC
system may be beneficial because the wheels are allowed to spin. This
will restore full engine power and will enhance momentum through the
obstacle. To switch off the AdvanceTracwith RSCsystem, press the
stability control button located on the instrument panel to the right of
the climate control system. Full features of the AdvanceTracwith RSC
system can be restored by pressing the button again or by turning off
and restarting the engine.
If you switch off the AdvanceTracwith RSCsystem, the stability
control off light will illuminate steadily. Pressing the stability control
button again will turn off the stability control off light and reactivate the
system.
In R (Reverse), ABS and the engine traction control and brake traction
control features will continue to function; however, ESC and RSCare
disabled.
AdvanceTracwith RSCFeatures (SRW only)
Button functionsStability
control
light
RSCESC TCS
Default at start-upIlluminated
during bulb
checkEnabled Enabled Enabled
Button pressed
momentarilyIlluminated
solidEnabled Enabled
1Disabled
Button pressed and
held for more than
5 seconds at vehicle
speed under 35 mph
(56 km/h)Flashes then
illuminated
solid
2Disabled Disabled Disabled
Vehicle speed
exceeds 35 mph
(56 km/h) after
button is pressed
and held for more
than 5 secondsIlluminated
solidEnabled Enabled
1Disabled
Driving
279
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

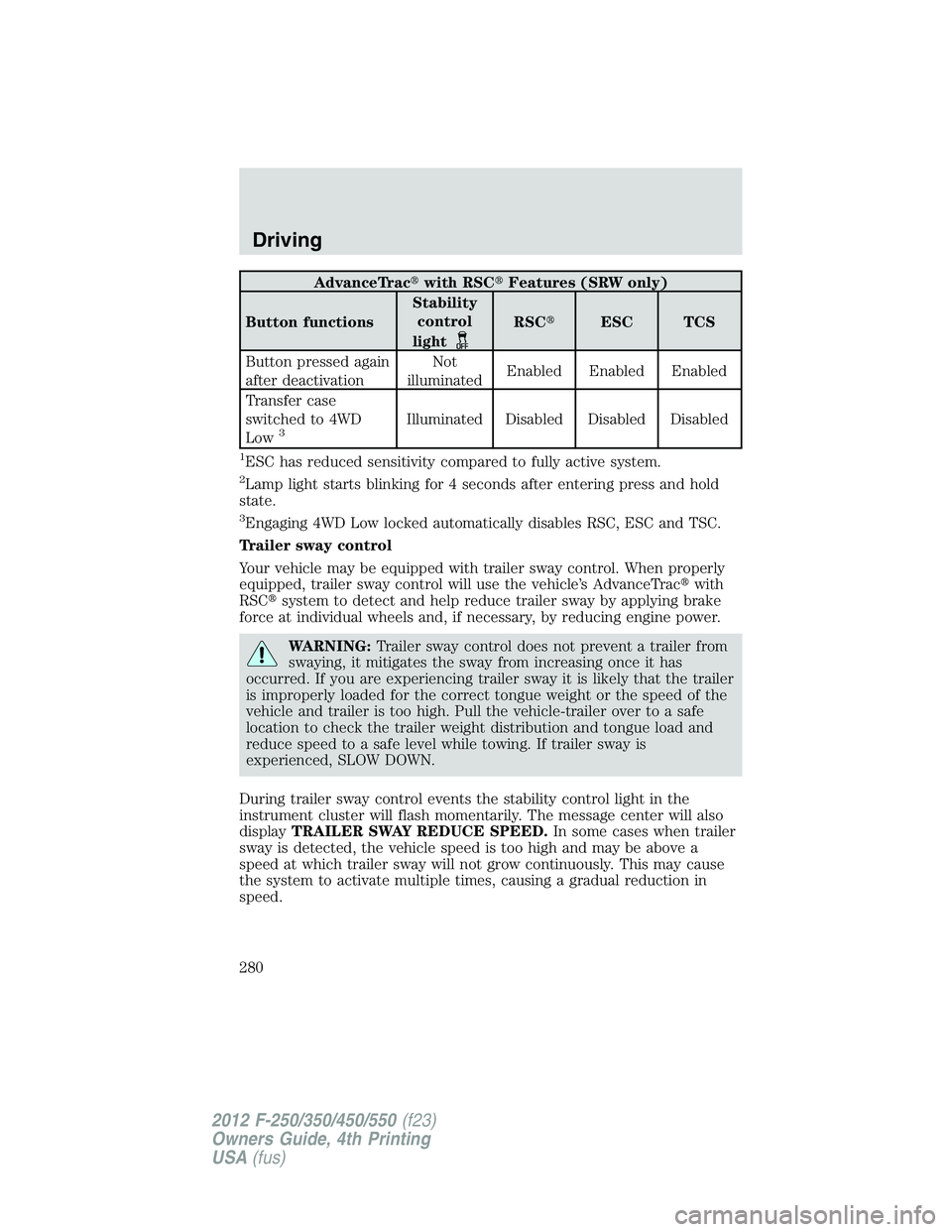

AdvanceTracwith RSCFeatures (SRW only)
Button functionsStability
control
light
RSCESC TCS
Button pressed again
after deactivationNot
illuminatedEnabled Enabled Enabled
Transfer case
switched to 4WD
Low
3Illuminated Disabled Disabled Disabled
1ESC has reduced sensitivity compared to fully active system.
2Lamp light starts blinking for 4 seconds after entering press and hold
state.
3Engaging 4WD Low locked automatically disables RSC, ESC and TSC.
Trailer sway control
Your vehicle may be equipped with trailer sway control. When properly
equipped, trailer sway control will use the vehicle’s AdvanceTracwith
RSCsystem to detect and help reduce trailer sway by applying brake
force at individual wheels and, if necessary, by reducing engine power.
WARNING:Trailer sway control does not prevent a trailer from
swaying, it mitigates the sway from increasing once it has
occurred. If you are experiencing trailer sway it is likely that the trailer
is improperly loaded for the correct tongue weight or the speed of the
vehicle and trailer is too high. Pull the vehicle-trailer over to a safe
location to check the trailer weight distribution and tongue load and
reduce speed to a safe level while towing. If trailer sway is
experienced, SLOW DOWN.
During trailer sway control events the stability control light in the
instrument cluster will flash momentarily. The message center will also
displayTRAILER SWAY REDUCE SPEED.In some cases when trailer
sway is detected, the vehicle speed is too high and may be above a
speed at which trailer sway will not grow continuously. This may cause
the system to activate multiple times, causing a gradual reduction in
speed.
Driving
280
2012 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)
