2012 FORD F150 Raptor Supplement Manual

•Do not overload your vehicle. Maximum vehicle and axle weights are
listed on the tire information placard.
•Extra caution should be taken when operating the vehicle near its
maximum load, including assuring proper tire pressure and reducing
speeds.
•In the event that you encounter an abnormally harsh impact, inspect
your tires for damage.
•Inspect your tires for damage on a regular basis. If a tire is damaged,
replace it immediately.
•Proper suspension alignment is critical for maximum performance and
optimal tire wear. If you notice uneven tire wear, have your alignment
checked.
•Your SVT vehicle follows a more stringent tire rotation schedule as
compared to the base F-150. Refer toTire rotationin the
Maintenancechapter for more information.
•When replacing tires, the only way to assure original performance is to
use the original equipment tire. If a different tire is used, it should be
the same size, speed rating and load rating.
WHEELS
Your SVT vehicle is equipped with unique wheels matched to the tires.
To avoid damage to your wheels:
•Maintain proper tire pressure (see “Tires” previously listed).
•Due to extreme tire/wheel width, this vehicle cannot be taken through
an automatic car wash that uses mechanical tracks, as wheel damage
may result.
•When installing wheels, always torque lug nuts to specification with a
torque wrench.
•Inspect your wheels for damage on a regular basis. If a wheel is
damaged, replace it immediately.
•In the event that you encounter an abnormally harsh impact, inspect
the outer diameter of your wheels, both inside and out, for damage.
Tire Information
33
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

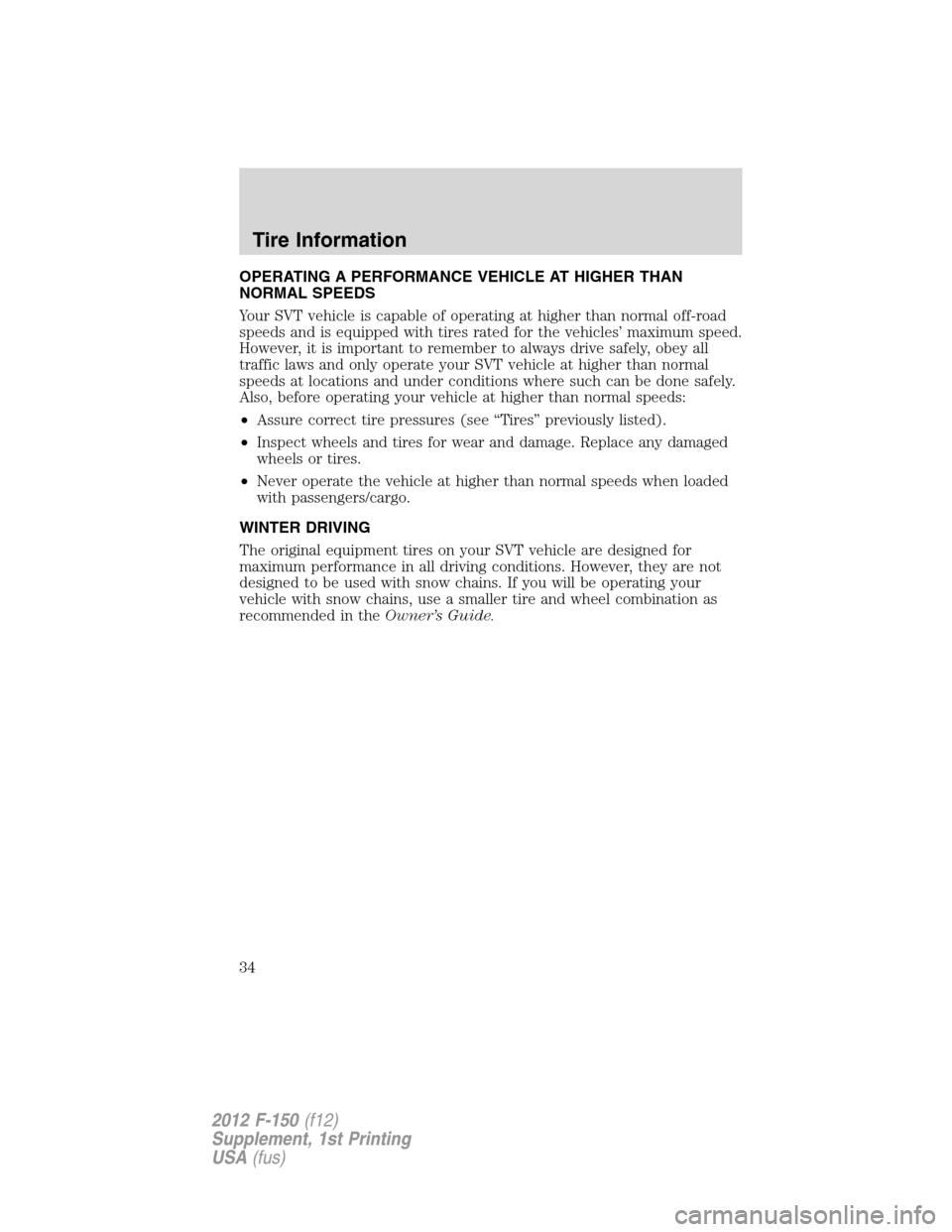

OPERATING A PERFORMANCE VEHICLE AT HIGHER THAN
NORMAL SPEEDS
Your SVT vehicle is capable of operating at higher than normal off-road
speeds and is equipped with tires rated for the vehicles’ maximum speed.
However, it is important to remember to always drive safely, obey all
traffic laws and only operate your SVT vehicle at higher than normal
speeds at locations and under conditions where such can be done safely.
Also, before operating your vehicle at higher than normal speeds:
•Assure correct tire pressures (see “Tires” previously listed).
•Inspect wheels and tires for wear and damage. Replace any damaged
wheels or tires.
•Never operate the vehicle at higher than normal speeds when loaded
with passengers/cargo.
WINTER DRIVING
The original equipment tires on your SVT vehicle are designed for
maximum performance in all driving conditions. However, they are not
designed to be used with snow chains. If you will be operating your
vehicle with snow chains, use a smaller tire and wheel combination as
recommended in theOwner’s Guide.
Tire Information
34
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

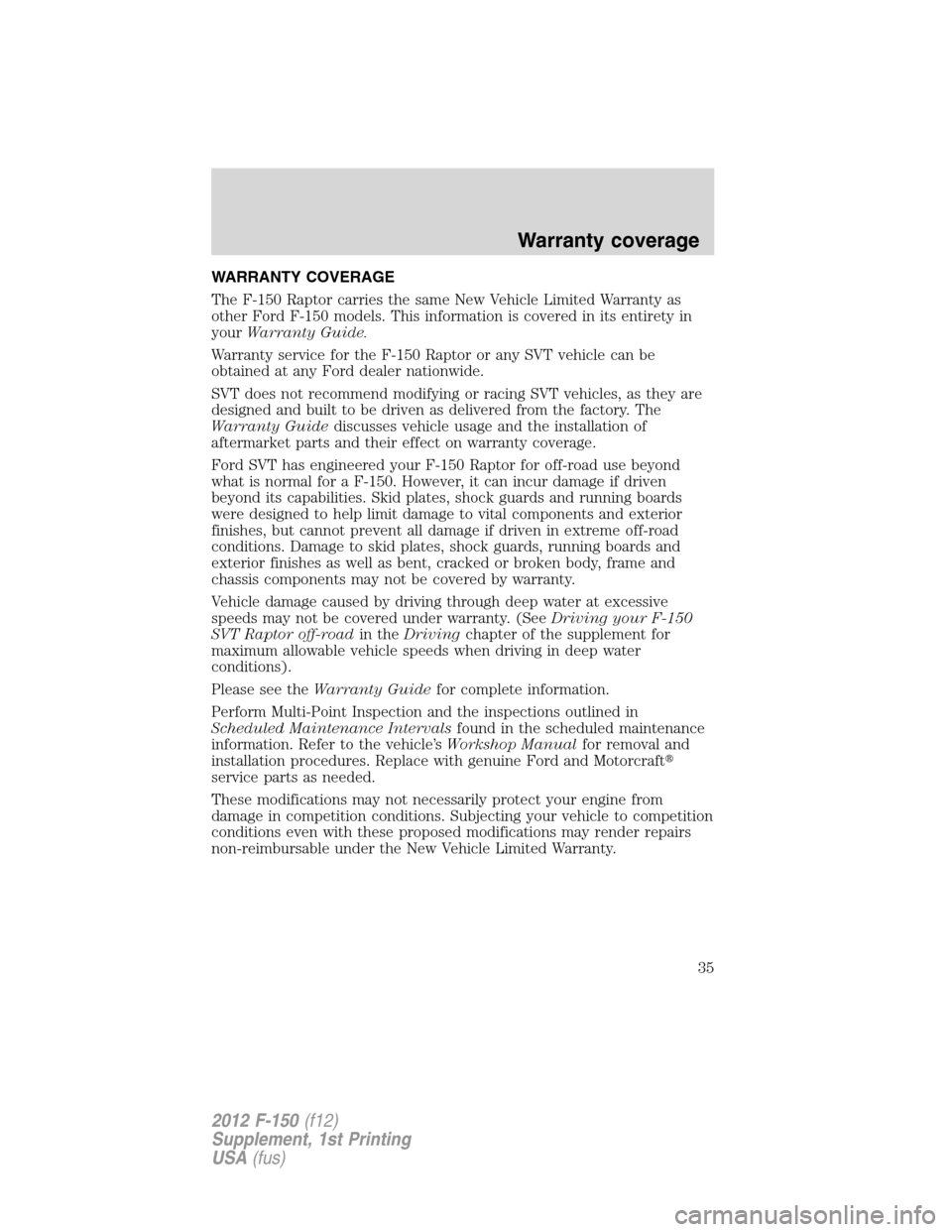

WARRANTY COVERAGE
The F-150 Raptor carries the same New Vehicle Limited Warranty as
other Ford F-150 models. This information is covered in its entirety in
yourWarranty Guide.
Warranty service for the F-150 Raptor or any SVT vehicle can be
obtained at any Ford dealer nationwide.
SVT does not recommend modifying or racing SVT vehicles, as they are
designed and built to be driven as delivered from the factory. The
Warranty Guidediscusses vehicle usage and the installation of
aftermarket parts and their effect on warranty coverage.
Ford SVT has engineered your F-150 Raptor for off-road use beyond
what is normal for a F-150. However, it can incur damage if driven
beyond its capabilities. Skid plates, shock guards and running boards
were designed to help limit damage to vital components and exterior
finishes, but cannot prevent all damage if driven in extreme off-road
conditions. Damage to skid plates, shock guards, running boards and
exterior finishes as well as bent, cracked or broken body, frame and
chassis components may not be covered by warranty.
Vehicle damage caused by driving through deep water at excessive
speeds may not be covered under warranty. (SeeDriving your F-150
SVT Raptor off-roadin theDrivingchapter of the supplement for
maximum allowable vehicle speeds when driving in deep water
conditions).
Please see theWarranty Guidefor complete information.
Perform Multi-Point Inspection and the inspections outlined in
Scheduled Maintenance Intervalsfound in the scheduled maintenance
information. Refer to the vehicle’sWorkshop Manualfor removal and
installation procedures. Replace with genuine Ford and Motorcraft
service parts as needed.
These modifications may not necessarily protect your engine from
damage in competition conditions. Subjecting your vehicle to competition
conditions even with these proposed modifications may render repairs
non-reimbursable under the New Vehicle Limited Warranty.
Warranty coverage
35
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

A
Air cleaner filter .........................28
Automatic transmission
fluid, refill capacities ................29
Axle
refill capacities ..........................29
B
Battery
replacement, specifications .....28
C
Capacities for refilling fluids ......29
Coolant
refill capacities ..........................29
E
Engine ............................................8
refill capacities ..........................29
service points ..............................7
Engine oil
filter, specifications ..................28
refill capacities ..........................29
F
Fluid capacities ...........................29
Fuel
capacity .....................................29
filter, specifications ..................28
octane rating .........................8, 31I
Ignition ...........................................8
M
Motorcraftparts ........................28
O
Octane rating ..............................31
P
Parts (see Motorcraftparts) ...28
S
Spark plugs, specifications .....8, 28
T
Tires
changing ....................................31
rotating ......................................31
Towing
wrecker ......................................26
Transmission
fluid, refill capacities ................29
U
Upfitter controls .........................14
W
Wrecker towing ...........................26
Index
36
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)
