2012 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

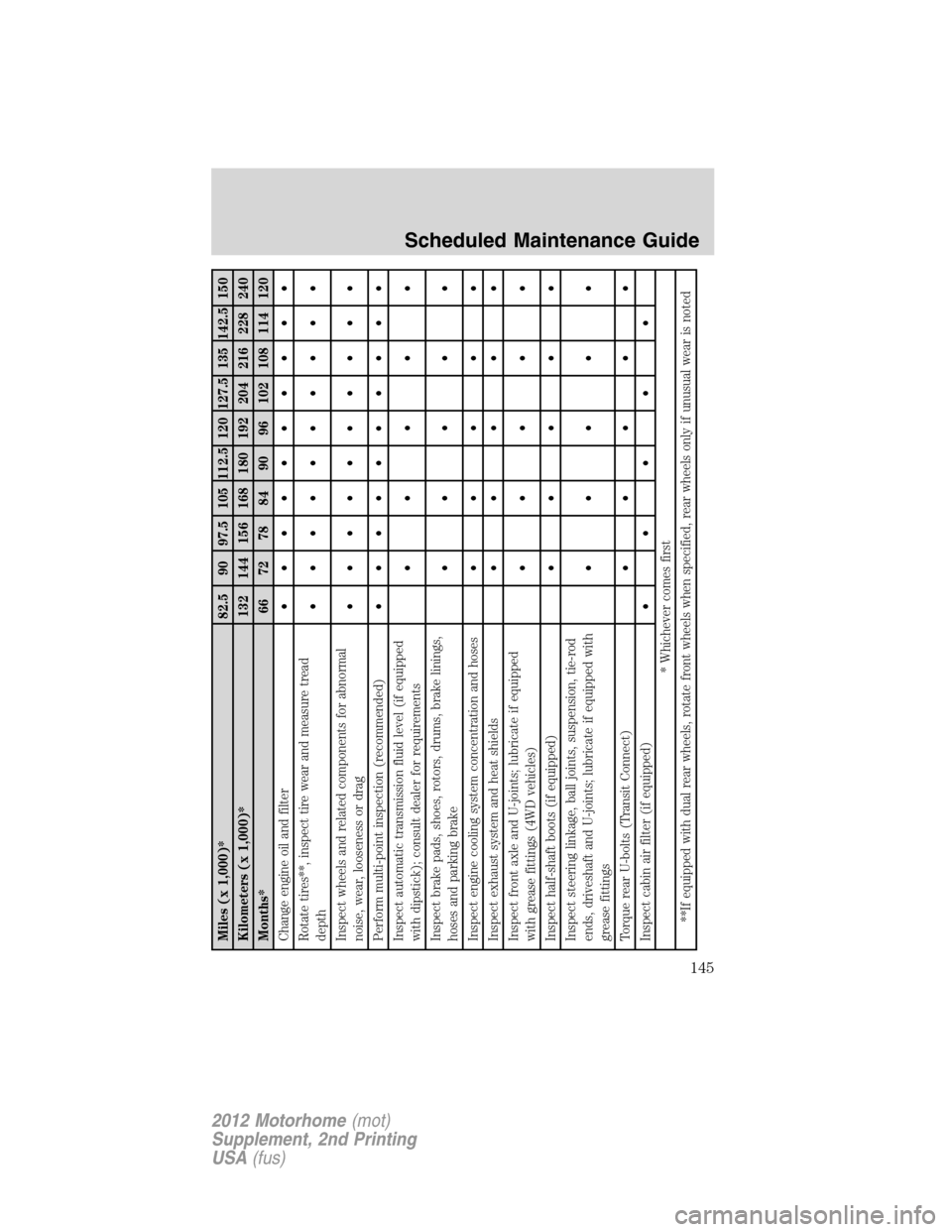

Miles (x 1,000)* 82.5 90 97.5 105 112.5 120 127.5 135 142.5 150
Kilometers (x 1,000)* 132 144 156 168 180 192 204 216 228 240
Months* 66 72 78 84 90 96 102 108 114 120
Change engine oil and filter• •••••••••
Rotate tires**, inspect tire wear and measure tread
depth• •••••••••
Inspect wheels and related components for abnormal
noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect automatic transmission fluid level (if equipped
with dipstick); consult dealer for requirements•••••
Inspect brake pads, shoes, rotors, drums, brake linings,
hoses and parking brake•••••
Inspect engine cooling system concentration and hoses•••••
Inspect exhaust system and heat shields•••••
Inspect front axle and U-joints; lubricate if equipped
with grease fittings (4WD vehicles)•••••
Inspect half-shaft boots (if equipped)•••••
Inspect steering linkage, ball joints, suspension, tie-rod
ends, driveshaft and U-joints; lubricate if equipped with
grease fittings•••••
Torque rear U-bolts (Transit Connect)•••••
Inspect cabin air filter (if equipped)•••••
* Whichever comes first
**If equipped with dual rear wheels, rotate front wheels when specified, rear wheels only if unusual wear is noted
Scheduled Maintenance Guide
145
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter (if
equipped)
Replace engine air filter
Every 37,500 miles
(60,000 km)Inspect valve clearances; adjust as necessary
(Transit Connect CNG vehicles)
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 97,500 miles
(156,000 km)Replace spark plugs
Every 105,000 miles
(168,000 km)Change engine coolant
1
Change manual transmission fluid (except
Escape)
Change rear axle fluid (Dana axles)
Inspect accessory drive belt(s)
2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid (RWD vehicles)
Change transfer case fluid (4WD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals if
non-sealed bearings are used (2WD vehicles)
1Initial replacement at 105,000 miles (168,000 km) or 72 months; every
45,000 miles (72,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
146
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

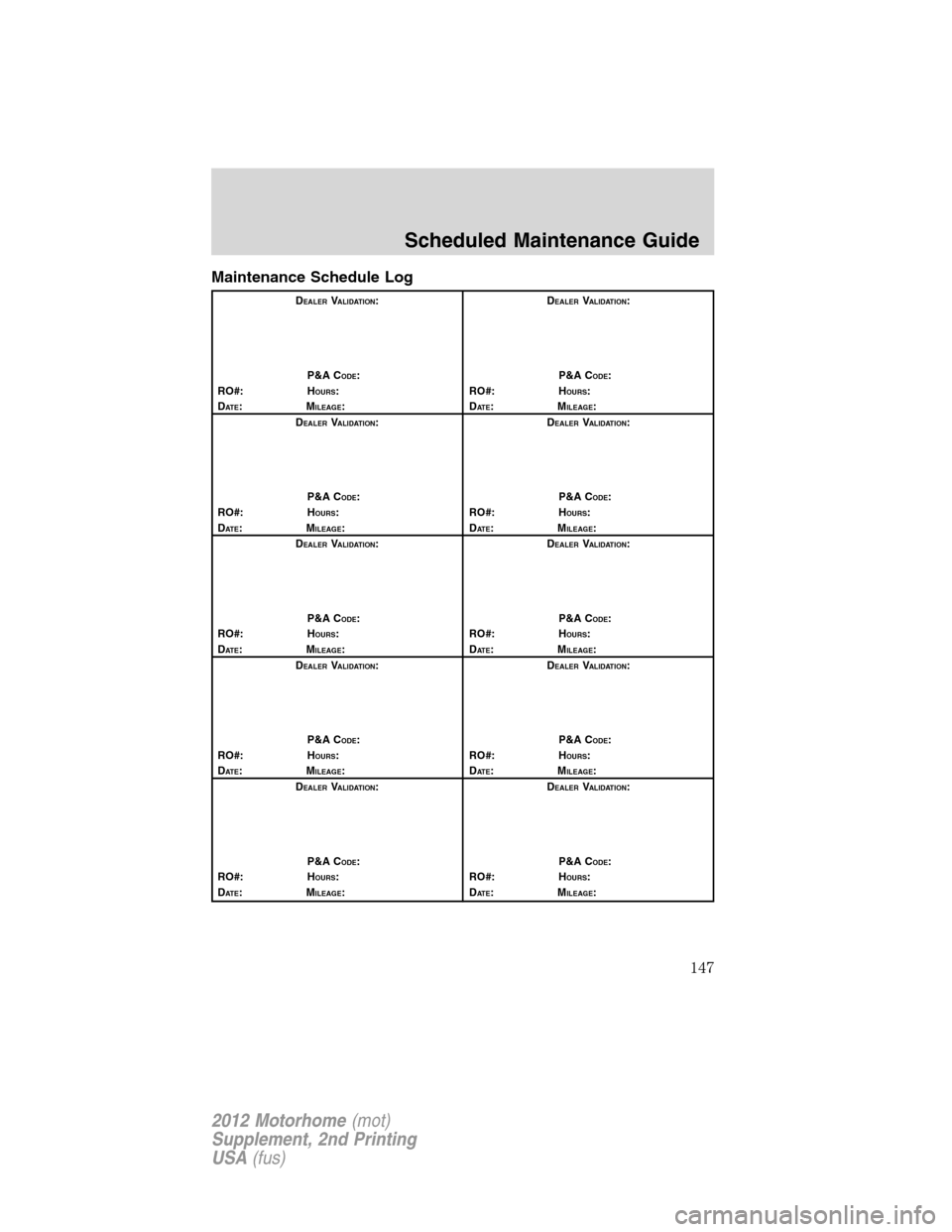

Maintenance Schedule Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
147
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
148
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
149
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin one of the more demanding
conditions listed below, you will need to have some items maintained
more frequently. If you onlyoccasionallyoperate your vehicle under
these conditions, it is not necessary to perform the additional
maintenance. For specific recommendations, see your dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
*Rotate front wheels when specified, rear wheels only if unusual wear
is noted
Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tires for wear and measure
tread depth
Scheduled Maintenance Guide
150
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Every 5,000 miles
(8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Replace spark plugs
*Rotate front wheels when specified, rear wheels only if unusual wear
is noted
Operating in dusty or sandy conditions such as unpaved or
dusty roads
Inspect frequently,
service as requiredReplace engine air filter
Replace cabin air filter (if equipped)
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 50,000 miles
(80,000 km)Change rear axle fluid (E-450, F-450/550 and
Motorhome)
*Rotate front wheels when specified, rear wheels only if unusual wear
is noted
Scheduled Maintenance Guide
151
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

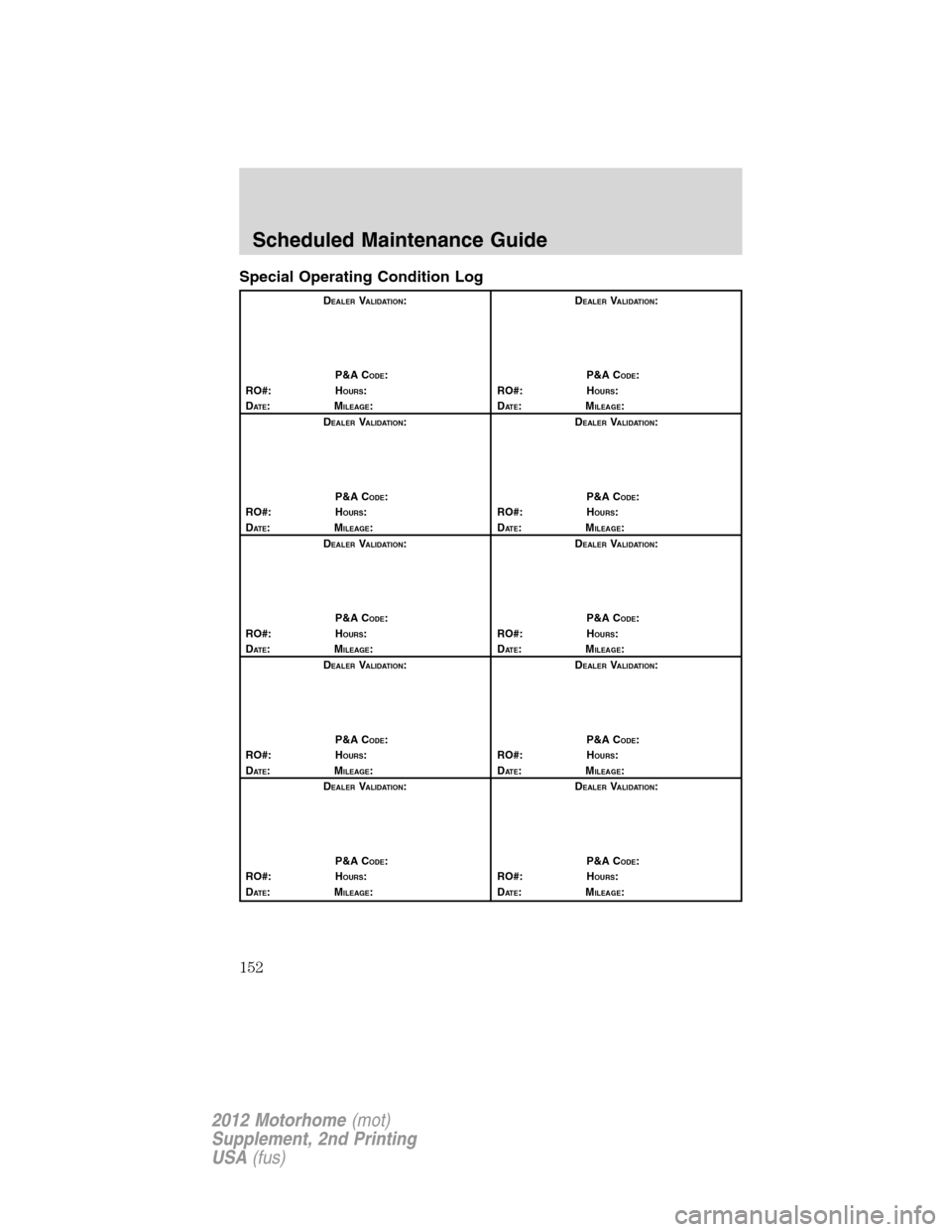

Special Operating Condition Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
152
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)
