2012 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS Owners Manual

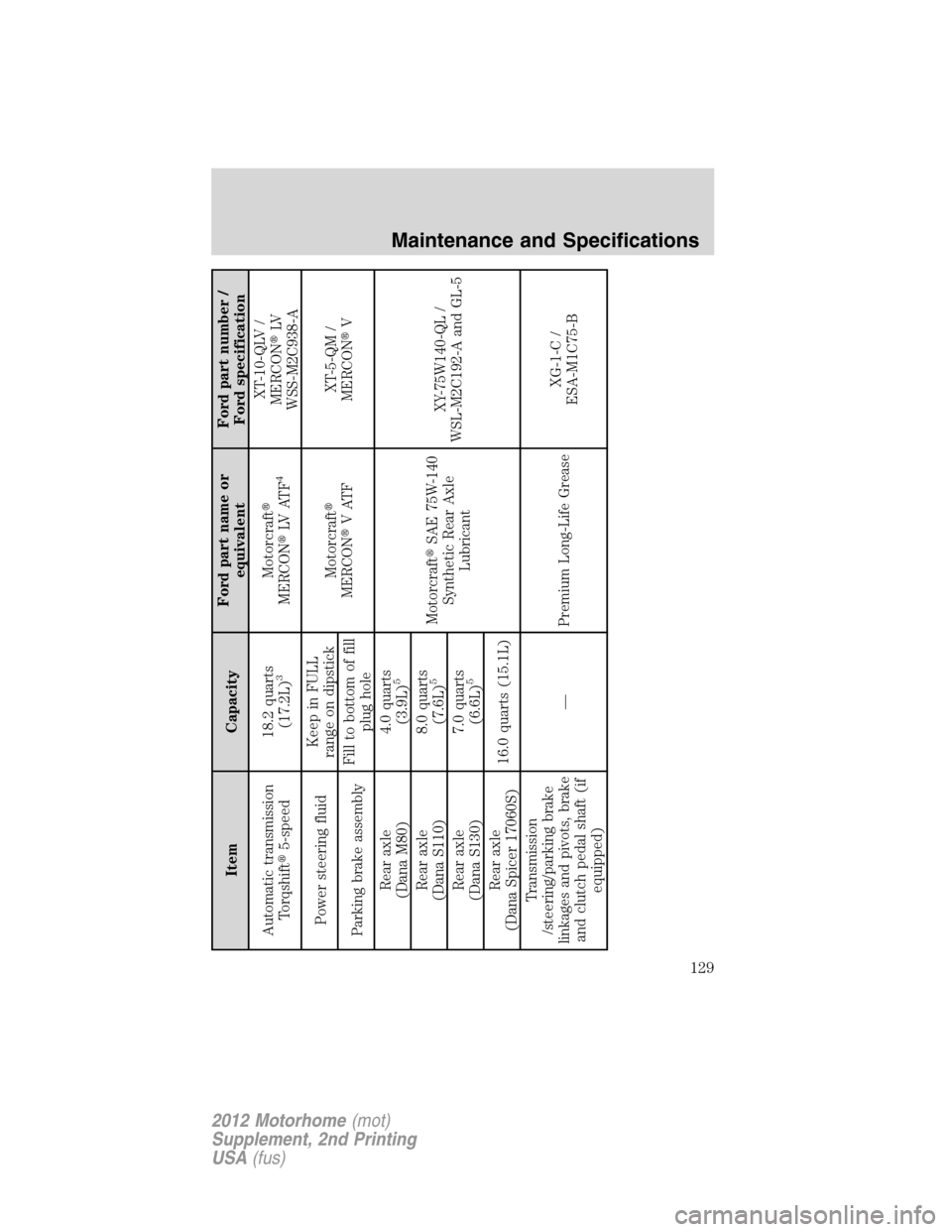

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Automatic transmission
Torqshift5-speed18.2 quarts
(17.2L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
WSS-M2C938-A
Power steering fluidKeep in FULL
range on dipstick
Motorcraft
MERCONVATFXT-5-QM /
MERCONV
Parking brake assemblyFill to bottom of fill
plug hole
Rear axle
(Dana M80)4.0 quarts
(3.9L)
5
MotorcraftSAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A and GL-5 Rear axle
(Dana S110)8.0 quarts
(7.6L)
5
Rear axle
(Dana S130)7.0 quarts
(6.6L)
5
Rear axle
(Dana Spicer 17060S)16.0 quarts (15.1L)
Transmission
/steering/parking brake
linkages and pivots, brake
and clutch pedal shaft (if
equipped)— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Maintenance and Specifications
129
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2 / - -
Fuel tank80 gallons (303L)
Motorhome
——
40 gallons (151L)
Commercial chassis
1Capacity is approximate and will vary due to second-stage manufacturer completion of HVAC
system. Fill to the Cold Fill Level on reservoir.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with in-tank cooler. The amount of transmission fluid and fluid level should be set by
the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated for
life. These lubricants do not need to be checked or changed unless a leak is suspected, service is
required or the axle assembly has been submerged in water. The axle lubricant should be changed
any time the rear axle has been submerged in water.
Maintenance and Specifications
130
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

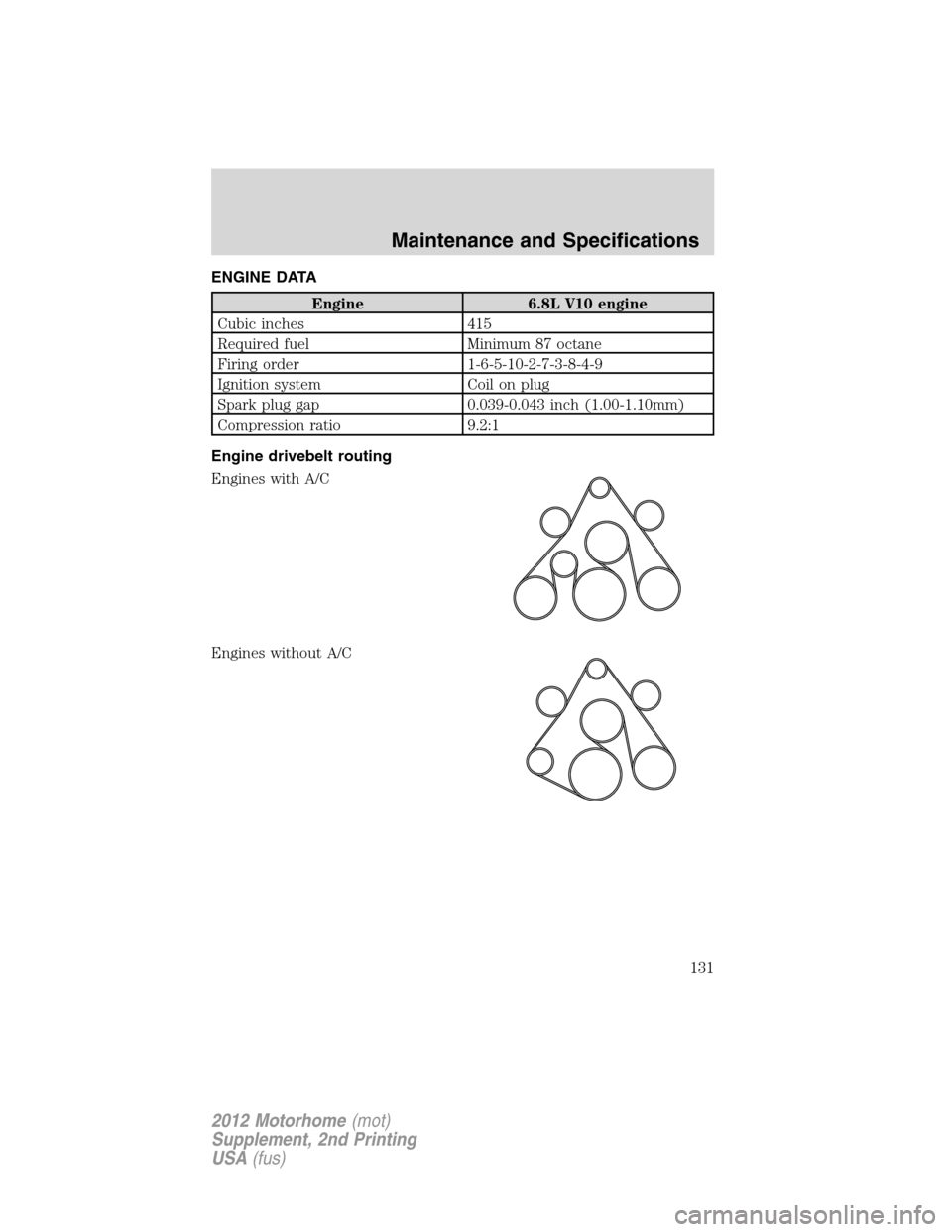

ENGINE DATA
Engine 6.8L V10 engine
Cubic inches 415
Required fuel Minimum 87 octane
Firing order 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug
Spark plug gap 0.039-0.043 inch (1.00-1.10mm)
Compression ratio 9.2:1
Engine drivebelt routing
Engines with A/C
Engines without A/C
Maintenance and Specifications
131
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

IDENTIFYING YOUR VEHICLE
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
Vehicle Identification Number
The vehicle identification number is located near the cowl to the right of
the air filter.
If you ever find it necessary to communicate with Ford Motor Company
about your vehicle, always include the VIN in your communication.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Maintenance and Specifications
132
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

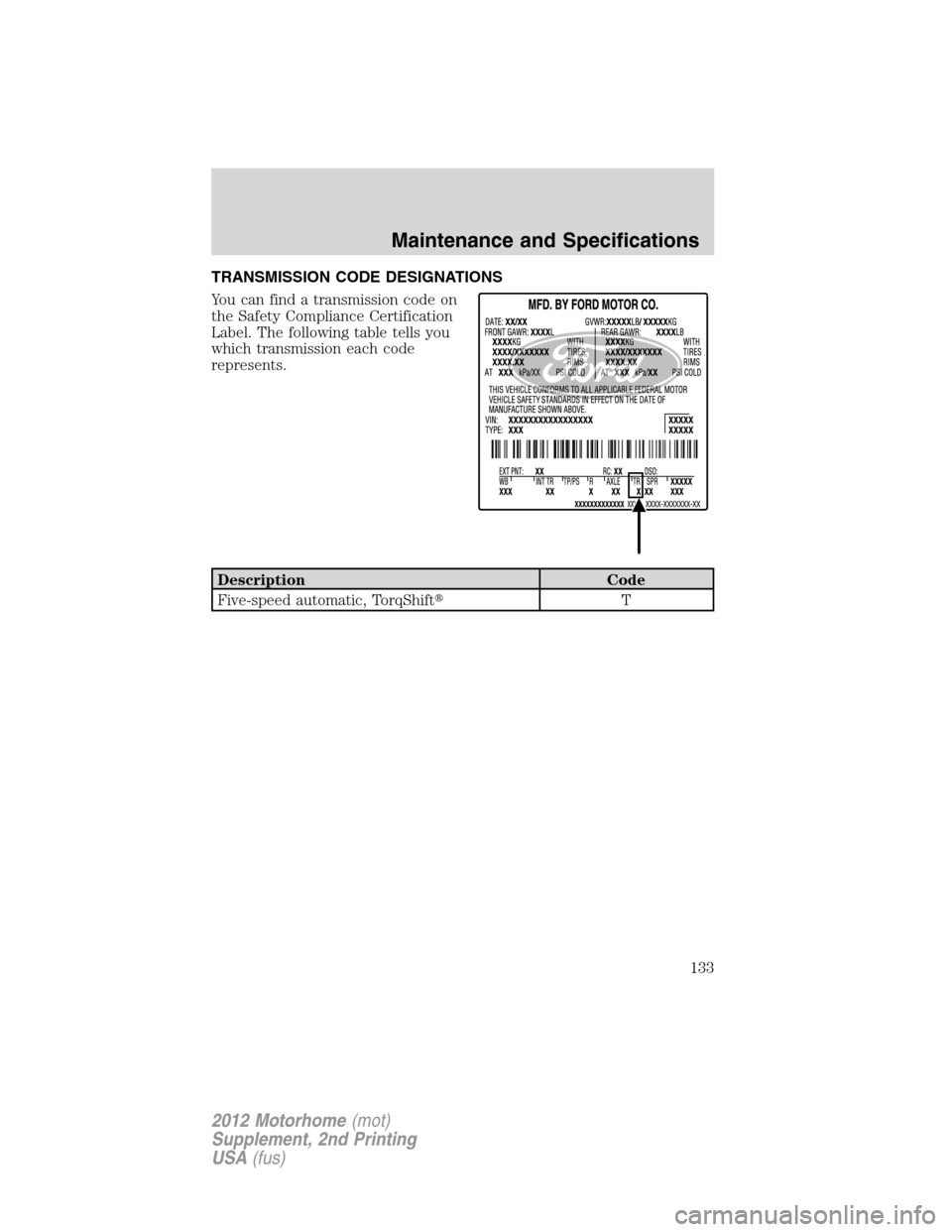

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic, TorqShiftT
Maintenance and Specifications
133
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
134
2012 Motorhome(mot)
Supplement, 2nd Printing
USA(fus)

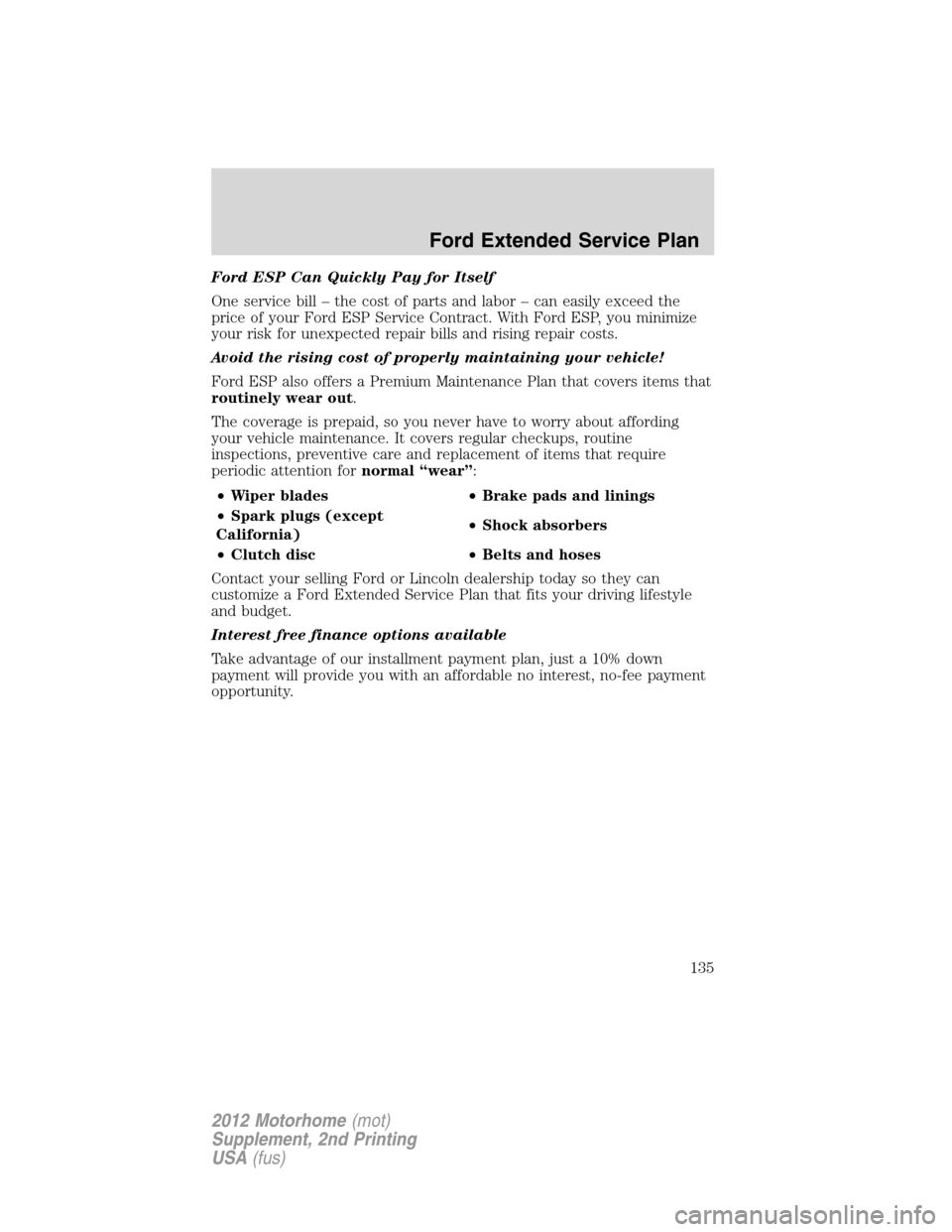

Ford ESP Can Quickly Pay for Itself
