2012 FORD EXPEDITION fuse box

Passenger compartment fuse panel
The fuse panel is located under the right-hand side of the instrument
panel.
To remove the trim panel for access
to the fuse box, pull the panel
toward you and swing it out away
from the side and remove it. To
reinstall it, line up the tabs with the
grooves on the panel, then push it
shut.
To remove the fuse box cover, press in the tabs on both sides of the
cover, then pull the cover off.
To reinstall the fuse box cover, place the top part of the cover on the
fuse panel, then push the bottom part of the cover until you hear it click
shut. Gently pull on the cover to make sure it is seated properly.
Roadside Emergencies
283
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
24 20A Horn
25 10A Demand lamps, Glovebox, Visor
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Airbag module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, 4x4, rear video
camera, 2nd row heated seats
36 5A Passive anti-theft system
37 10A Climate control
38 20A Subwoofer
39 20A Radio
40 20A Navigation amplifier
41 15A Power windows, Power vents,
Power moon roof, Auto dimming
rear view mirror, 110V AC power
point
42 10A Not used (spare)
43 10A Rear wiper logic, Rain sensor
44 10A Trailer tow battery charge relay
coil
45 5A Front wiper logic
46 7.5A Climate control, Auxiliary relay
control
47 30A Circuit
BreakerPower windows, Moon roof
48 — Delayed accessory relay
Roadside Emergencies
285
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Powertrain control module
(PCM) relay
2 — Starter relay
3 — Blower motor relay
Roadside Emergencies
286
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

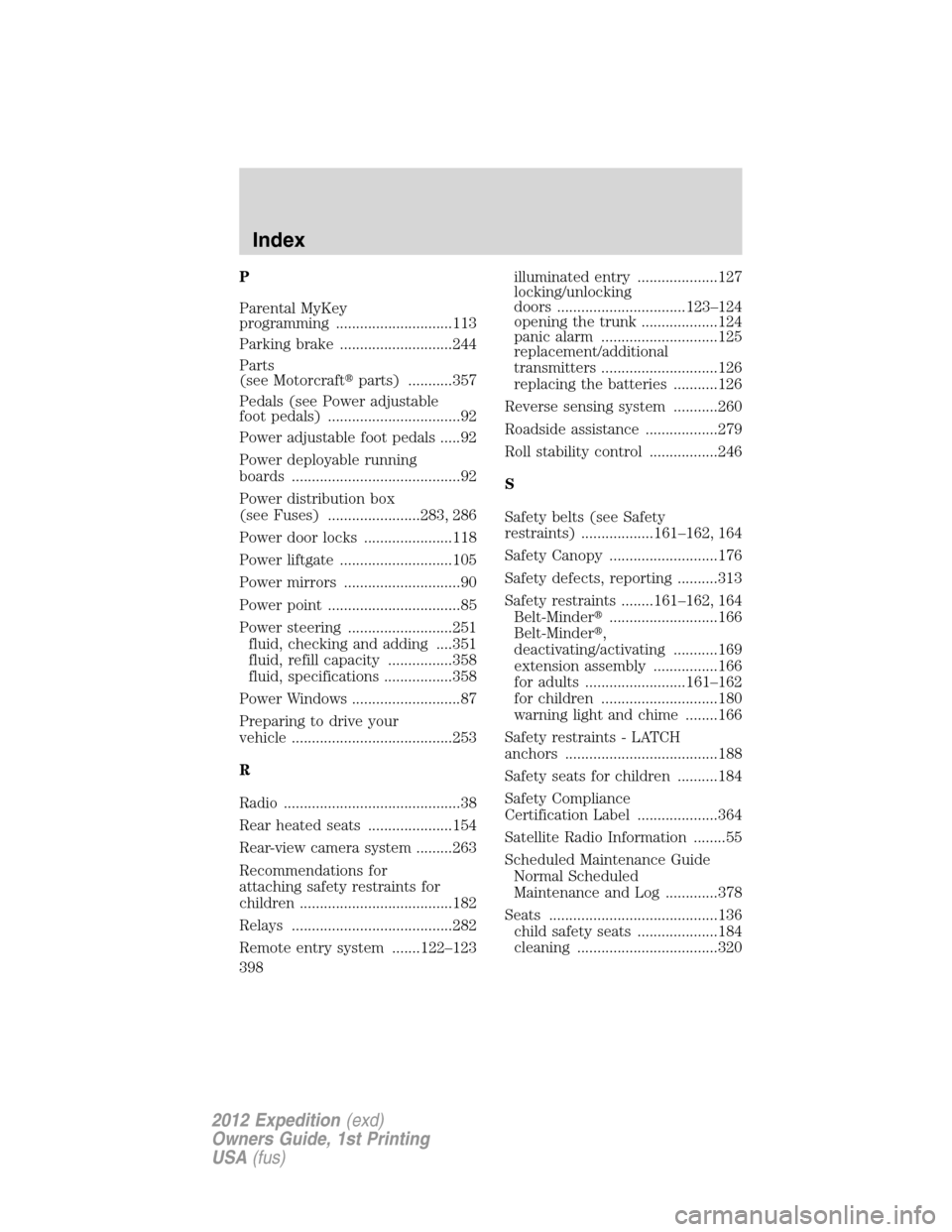

P
Parental MyKey
programming .............................113
Parking brake ............................244
Parts
(see Motorcraftparts) ...........357
Pedals (see Power adjustable
foot pedals) .................................92
Power adjustable foot pedals .....92
Power deployable running
boards ..........................................92
Power distribution box
(see Fuses) .......................283, 286
Power door locks ......................118
Power liftgate ............................105
Power mirrors .............................90
Power point .................................85
Power steering ..........................251
fluid, checking and adding ....351
fluid, refill capacity ................358
fluid, specifications .................358
Power Windows ...........................87
Preparing to drive your
vehicle ........................................253
R
Radio ............................................38
Rear heated seats .....................154
Rear-view camera system .........263
Recommendations for
attaching safety restraints for
children ......................................182
Relays ........................................282
Remote entry system .......122–123illuminated entry ....................127
locking/unlocking
doors ................................123–124
opening the trunk ...................124
panic alarm .............................125
replacement/additional
transmitters .............................126
replacing the batteries ...........126
Reverse sensing system ...........260
Roadside assistance ..................279
Roll stability control .................246
S
Safety belts (see Safety
restraints) ..................161–162, 164
Safety Canopy ...........................176
Safety defects, reporting ..........313
Safety restraints ........161–162, 164
Belt-Minder...........................166
Belt-Minder,
deactivating/activating ...........169
extension assembly ................166
for adults .........................161–162
for children .............................180
warning light and chime ........166
Safety restraints - LATCH
anchors ......................................188
Safety seats for children ..........184
Safety Compliance
Certification Label ....................364
Satellite Radio Information ........55
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............378
Seats ..........................................136
child safety seats ....................184
cleaning ...................................320
Index
398
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
