Cleaning 283
Maintenance and Specifications 290
Engine compartment 293
Engine oil 296
Battery 299
Engine Coolant and Motor/Electronics Coolant 301
Fuel information 307
Air filter(s) 320
Part numbers 323
Maintenance product specifications and capacities 324
Engine data 327
Accessories 330
Ford Extended Service Plan 332
Scheduled Maintenance 336
Normal scheduled maintenance and log 342
Index 353
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2011 Ford Motor Company
Table of Contents
3
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
19
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

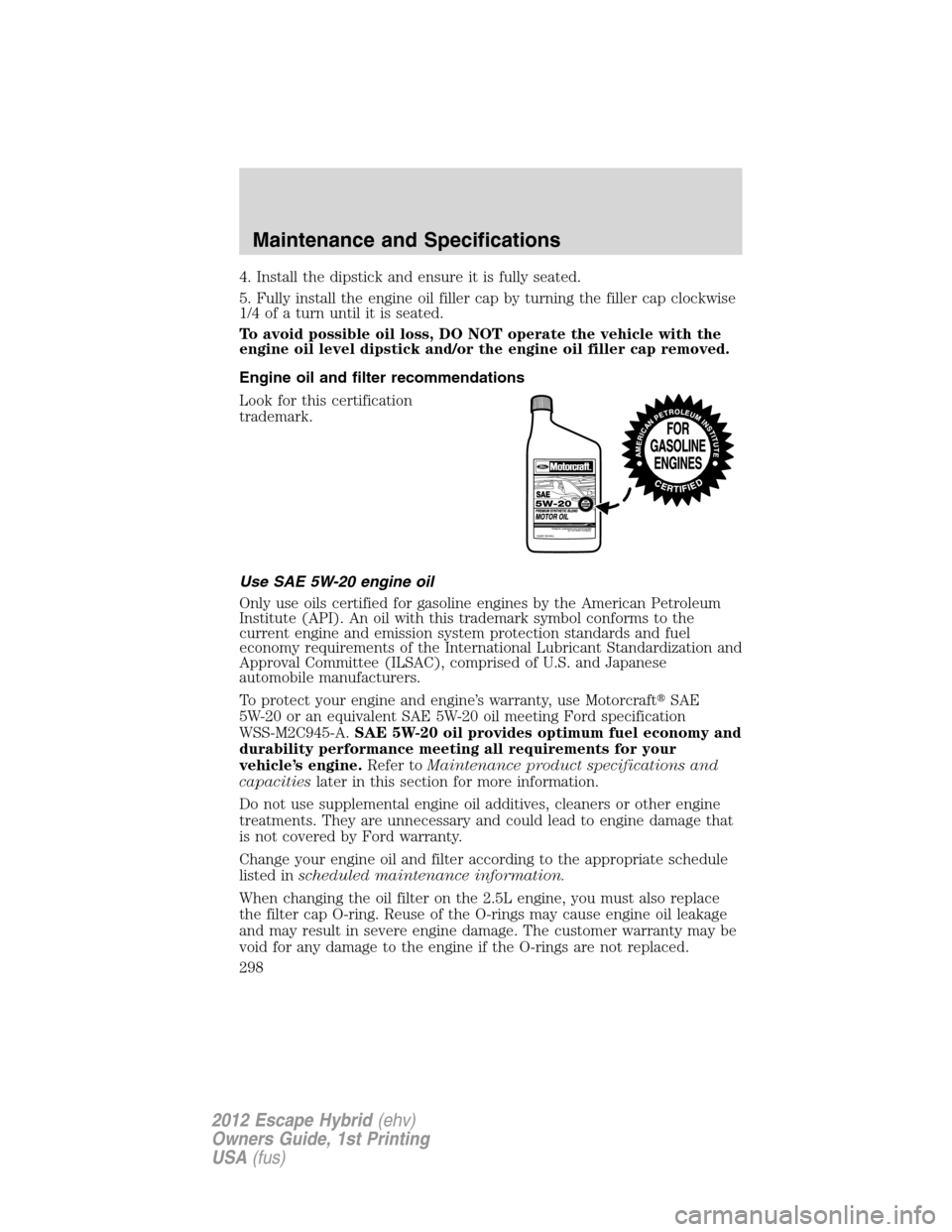

4. Install the dipstick and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until it is seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils certified for gasoline engines by the American Petroleum
Institute (API). An oil with this trademark symbol conforms to the
current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use MotorcraftSAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C945-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this section for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed inscheduled maintenance information.
When changing the oil filter on the 2.5L engine, you must also replace
the filter cap O-ring. Reuse of the O-rings may cause engine oil leakage
and may result in severe engine damage. The customer warranty may be
void for any damage to the engine if the O-rings are not replaced.
Maintenance and Specifications
298
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

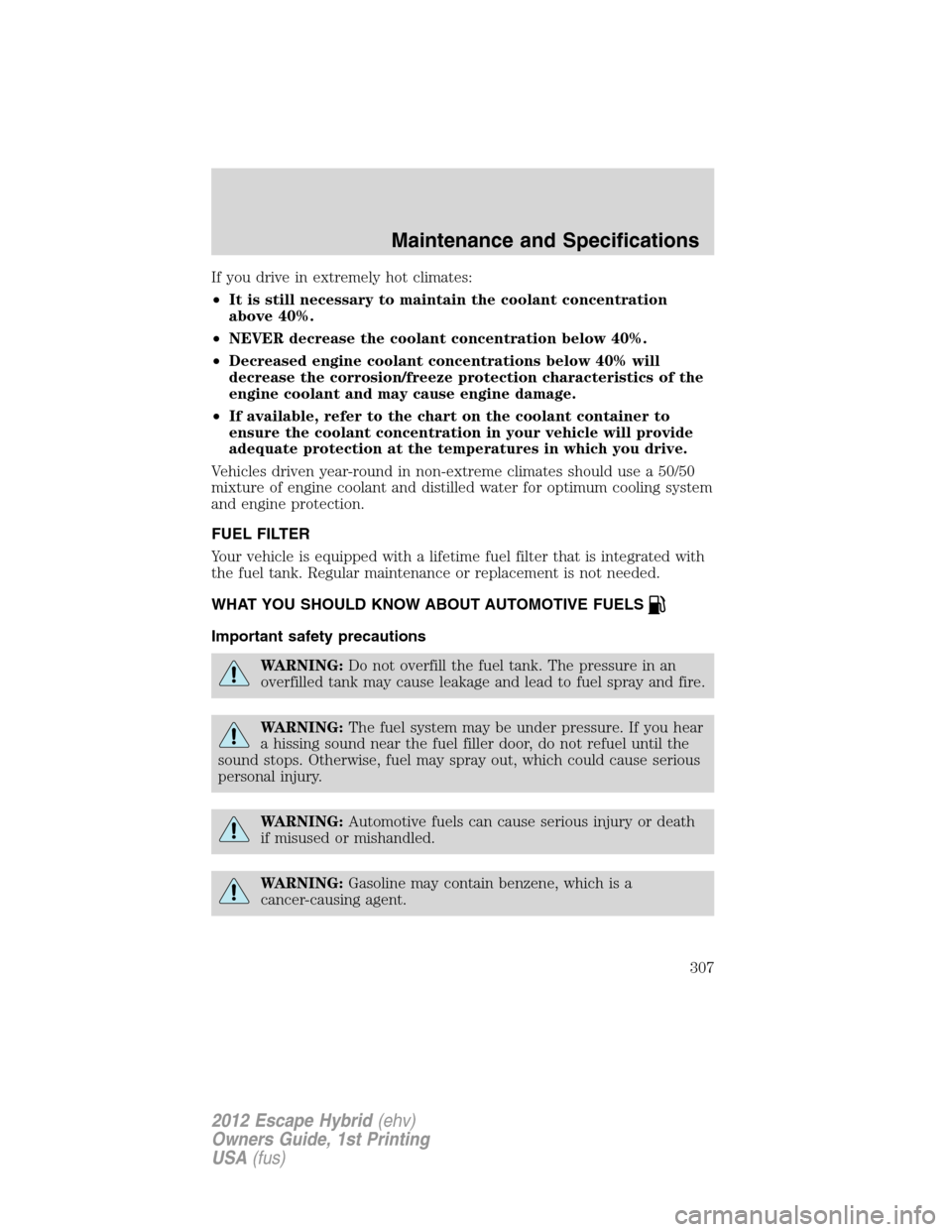

If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion/freeze protection characteristics of the
engine coolant and may cause engine damage.
•If available, refer to the chart on the coolant container to
ensure the coolant concentration in your vehicle will provide
adequate protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door, do not refuel until the
sound stops. Otherwise, fuel may spray out, which could cause serious
personal injury.
WARNING:Automotive fuels can cause serious injury or death
if misused or mishandled.
WARNING:Gasoline may contain benzene, which is a
cancer-causing agent.
Maintenance and Specifications
307
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)*
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
* Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
348
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

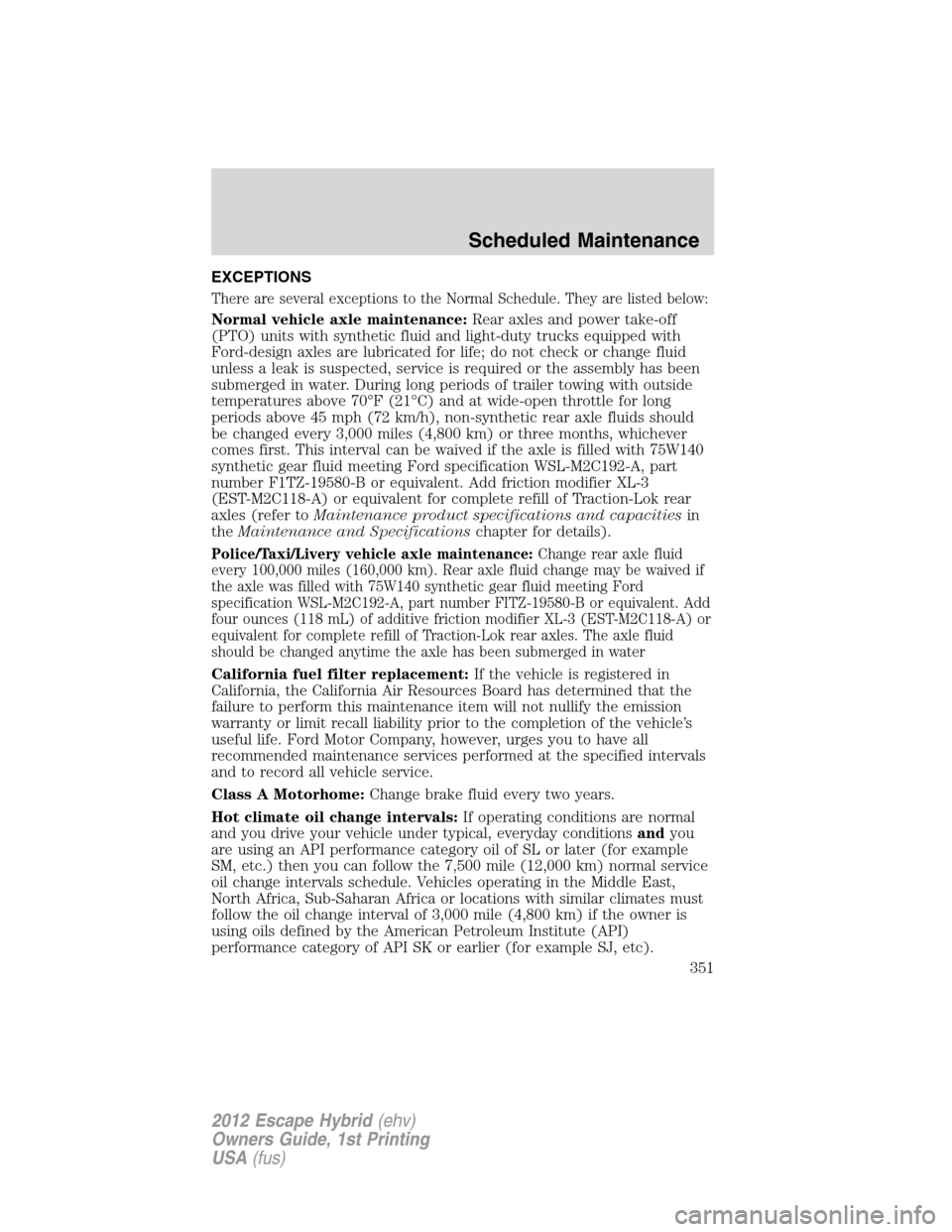

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of additive friction modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of Traction-Lok rear axles. The axle fluid
should be changed anytime the axle has been submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Scheduled Maintenance
351
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

in front seat ............................164
in rear seat ..............................164
LATCH .....................................167
recommendations ...................161
Child safety seats - booster
seats ...........................................173
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................283
waxing .....................................283
wheels ......................................284
wiper blades ............................286
Climate control (see Air
conditioning or Heating) ............54
Clock ............................................36
Compass, electronic ....................73
calibration .................................74
set zone adjustment .................74
Console ........................................75
Controls
power seat ...............................121
steering column ........................83
Coolant
checking and adding ......301–303
refill capacities ................306, 324
specifications ..........................324
Cruise control
(see Speed control) ....................81
Customer Assistance ................246
Ford Extended Service
Plan ..................................332, 335
Getting assistance outside
the U.S. and Canada ..............279
Getting roadside assistance ...246
Getting the service you
need .........................................275Ordering additional owner’s
literature .................................281
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................61
Dipstick
automatic transmission
fluid ..........................................319
engine oil .................................296
Driving under special
conditions ..................228, 240, 243
sand .........................................241
snow and ice ...........................243
through water .................242, 245
E
Electronic message center .........27
Emergencies, roadside
jump-starting ..........................270
running out of fuel .........269, 312
Emission control system ..........316
Engine ........................................327
cleaning ...................................284
idle speed control ...................299
lubrication specifications .......324
refill capacities ........................324
service points ..................293–294
Engine block heater .................214
Engine oil ..................................296
checking and adding ..............296
dipstick ....................................296
filter, specifications ........298, 323
recommendations ...................298
refill capacities ........................324
Index
354
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

specifications ..........................324
Event data recording ..................14
Exhaust fumes ..........................214
F
Fleet MyKey programming ........98
Floor mats .............................92–93
Fluid capacities .........................324
Fog lamps ....................................60
Four-Wheel Drive vehicles
driving off road .......................239
preparing to drive your
vehicle .....................................225
Fuel ............................................307
calculating fuel
economy ............................29, 313
cap ...........................................309
capacity ...................................324
choosing the right fuel ...........310
detergent in fuel .....................311
filler funnel .............................312
filling your vehicle
with fuel ..................307, 309, 314
filter, specifications ........307, 323
fuel pump/high voltage
shut-off switches ....................248
improving fuel economy ........313
octane rating ...................311, 327
quality ......................................311
running out of fuel .........269, 312
safety information relating
to automotive fuels ................307
Fuses ..................................249–250
G
Garage door opener ....................86
Gas cap (see Fuel cap) ............309Gas mileage
(see Fuel economy) .................313
Gauges .........................................25
H
Hazard flashers .........................247
Headlamps ...................................59
aiming ........................................62
bulb specifications ....................66
daytime running lights .............61
flash to pass ..............................60
high beam .................................60
replacing bulbs .........................67
turning on and off ....................59
Heating
heating and air conditioning
system .......................................54
Hood ..........................................292
I
Ignition ...............................211, 327
Illuminated visor mirror .............73
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................318
Instrument panel
cleaning ...................................286
cluster ........................................20
lighting up panel and
interior .......................................61
J
Jack ............................................258
positioning ...............................258
storage .....................................258
Jump-starting your vehicle ......270
Index
355
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)
