Dialing a phone number using voice commands
To dial a phone number using voice interaction, proceed
as follows:
Press the
steering wheel button and say“Dial”.
The system will respond with“Number, please”.
Say the phone number as a sequence of single digits (e.g.,
“0”, “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”, “9”, “+” (plus),
“#” (pound) or “*” (star).
For example, 248 555 1212 has to be said as: “two, four,
eight, five, five, five, one, two, one, two”.
The system will repeat the complete phone number and
display it.
If the number is complete, say“Dial”or press the
/MAINbutton on the steering wheel to start the call.
If you have not finished speaking the phone number,then say the remaining digits and then say“Dial”or
press the
/MAINbutton on the steering wheel to start
the call.
The system will start the call to the displayed phone
number.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
You can say the sequence of phone number digits in
“digit groups” which allows you to verify the recognized
number in several small portions. Digit groups are cre-
ated by the pauses you use while pronouncing the
sequence of digits. If you pause after pronouncing sev-
eral digits, a digit group is created. The system will
repeat the recognized digits.
If the spoken digits are correct, you can continue pro-
nouncing the phone number. If the spoken digits are
incorrect, you can delete the digit group by saying
1
BLUE&ME™ User’s Manual 35

“Delete”. The system will delete the last group of num-
bers and display the partially dialed phone number.
Then, you can say the digit group again and also the
remaining phone number digits.
To cancel the phone call, say“Cancel”.
To cancel the phone call and start dialing again, say
“Start over”.
To ask the system to repeat the recognized phone num-
ber, say“Repeat”. If no phone number was dialed, the
system says“No number available”.
If the repeated phone number is correct, say“Dial”to
start the call.
NOTE:When connected toBLUE&ME™and dialing a
phone number by voice commands, it is essential to
minimize background noise in the car and to ask the
other passengers to keep silent while you are speaking
the digits. Since the system is speaker independent, it canalso recognize other voices; there is a risk that some
numbers will be accidentally recognized, added to cor-
rect numbers or not recognized.
Dialing a phone number using the mobile phone
keypad
Alternatively, you can dial a phone number using your
mobile phone keypad and then continue your conversa-
tion using the hands-free communication system.
It is a requirement that you create a pairing relationship
and that the mobile phone is within range of the hands-
free communication system of your car.
To dial a phone number using your mobile phone key-
pad, proceed as follows:
•Dial the phone number on your mobile phone keypad
and connect the phone call following the procedure
required by your mobile phone.
36 BLUE&ME™ User’s Manual

•Conduct the conversation using the hands-free com-
munication system.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel, or end the phone call
from your mobile phone keypad.
Calling a phone number using call history (recent
calls)
RECENT CALLSoption is a list of the recent calls made
or received. It can consist of up to ten incoming calls, up
to ten outgoing calls and up to five missed calls.
To dial a phone number using manual interaction, pro-
ceed as follows:
•Press the/MAINbutton on the steering wheel to
open the Main Menu.
•SelectRECENT CALLSand then press thePRESET
UP/OKbutton on the rear of the steering wheel.
•The system will present a list of phone numbers. Use
the Scan up/Scan down buttons to select the required
phone number. Then press thePRESET UP/OKbutton
on the rear of the steering wheel or the
/MAIN
button on the steering wheel to start the call.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Or, using voice interaction:
To call back the last incoming phone number, press the
steering wheel button and say“Call back”.
The system will display information about the last caller
and ask if you would like to call back this contact. To
respond with “yes”, say“Yes”,otherwise say“No”.
1
BLUE&ME™ User’s Manual 37

To redial the last phone number you called, say“Redial”.
The system will display information about the last con-
tact you called and will ask if you would like to redial
this phone number. To redial the last phone number
called, say“Yes”, otherwise say“No”.
NOTE:If there are no incoming calls stored on the
RECENT CALLSlist,BLUE&ME™will say “No re-
ceived calls” and the display will read “No call found”.
Incoming Calls
With the hands-free communication system you can
respond to incoming phone calls using the steering wheel
buttons. When a phone call is received, the system will
display information about the caller ’s identity, if avail-
able.
The incoming phone call can have a customized ring tone
(if this function is available on your mobile phone).
Answering a phone call
•
To answer the phone call, press the/MAINbutton
on the steering wheel.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Rejecting a phone call
•
To reject the phone call, press thePHONE HANG UP
button on the steering wheel.
Ignoring a phone call
•
To ignore the phone call and mute the phone call ring
tone, press the
/ESCbutton. Press the/ESC
again to hear the call or ring tone again.
38 BLUE&ME™ User’s Manual

•To transfer the conversation to the hands-free phone,
enter the information required by your mobile phone.
(This process is different for each mobile phone).
•The phone conversation is then transferred to the
system.
Transferring a phone conversation from the
hands-free phone to your mobile phone
To transfer a phone conversation from the hands-free
communication system to your mobile phone, press the
PRESET UP/OKbutton on the rear of the steering wheel.
You can talk on your mobile phone and still use buttons
on the steering wheel. Specifically, you can press the
/MAINbutton on the steering wheel to switch be-
tween two phone calls on your mobile phone, or press
thePHONE HANG UP
button on the steering wheel
to end the active call and activate the call on hold.
Muting a phone call
To mute a phone call on and disable the microphone so
that you can talk without being listened to by the caller,
press the
/ESC.
Conference Call Function
NOTE:Only withBluetoothwireless technology en-
abled mobile phones supporting this function.
With the Conference Call function you can call another
contact while you are engaged in a phone conversation.
In this way you can speak with both contacts at the same
time.
To start a conference call while you are still engaged in a
phone conversation, call the second required contact as
described in MAKING A PHONE CALL.
When the Conference Call option is active, the display
will show“CONFERENCE”.
40 BLUE&ME™ User’s Manual

How To Read The Last SMS Text Received
After receiving a message,BLUE&ME™will store it
(both read or not read messages) in the inbox (refer to
INBOX).
To read the last message received, open theBLUE&ME™
Main menu and select the optionMESS. READER,then
press thePRESET UP/OKbutton on the rear of the
steering wheel. Select the optionREAD LASTand press
thePRESET UP/OKbutton on the rear of the steering
wheel;BLUE&ME™will read the last message received.
Or, using voice interaction:
Press the
steering wheel button and pronounce
“Read last one”;BLUE&ME™will read the text of the
last message received.
Inbox
BLUE&ME™will store up to 20 received messages (in
the event of linked messages, the number of storedmessages could be lower) when your mobile phone is
connected withBluetooth. When the inbox is full, the
new incoming message will delete the oldest message
received (even if not yet read). It is also possible to delete
just one message or to delete the entire inbox (refer to
MANAGING MESSAGES).
To read a particular message stored in the inbox, open the
BLUE&ME™Main menu and select the optionMESS.
READER,then press thePRESET UP/OKbutton on the
rear of the steering wheel.
Select theINBOXoption, then press thePRESET UP/OK
button on the rear of the steering wheel. Scroll stored
messages and select the desired one, the system will
display the SMS text senders identification data, if avail-
able. SelectREADand press thePRESET UP/OKbutton
on the rear of the steering wheel;BLUE&ME™will read
the selected message.
42 BLUE&ME™ User’s Manual

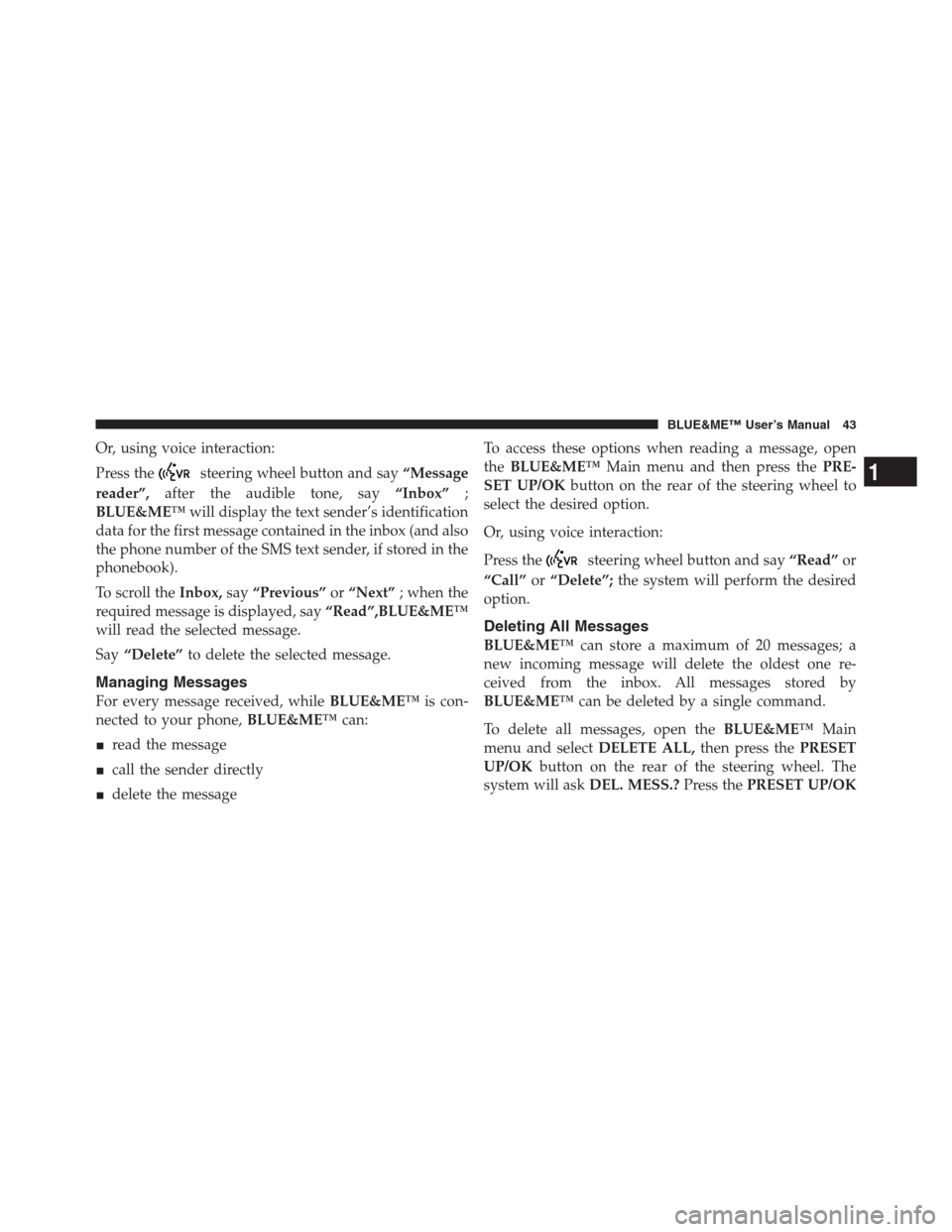

Or, using voice interaction:
Press the
steering wheel button and say“Message
reader”,after the audible tone, say“Inbox”;
BLUE&ME™will display the text sender’s identification
data for the first message contained in the inbox (and also
the phone number of the SMS text sender, if stored in the
phonebook).
To scroll theInbox,say“Previous”or“Next”; when the
required message is displayed, say“Read”,BLUE&ME™
will read the selected message.
Say“Delete”to delete the selected message.
Managing Messages
For every message received, whileBLUE&ME™is con-
nected to your phone,BLUE&ME™can:
read the message
call the sender directly
delete the messageTo access these options when reading a message, open
theBLUE&ME™Main menu and then press thePRE-
SET UP/OKbutton on the rear of the steering wheel to
select the desired option.
Or, using voice interaction:
Press the
steering wheel button and say“Read”or
“Call”or“Delete”;the system will perform the desired
option.
Deleting All Messages
BLUE&ME™can store a maximum of 20 messages; a
new incoming message will delete the oldest one re-
ceived from the inbox. All messages stored by
BLUE&ME™can be deleted by a single command.
To delete all messages, open theBLUE&ME™Main
menu and selectDELETE ALL,then press thePRESET
UP/OKbutton on the rear of the steering wheel. The
system will askDEL. MESS.?Press thePRESET UP/OK
1
BLUE&ME™ User’s Manual 43

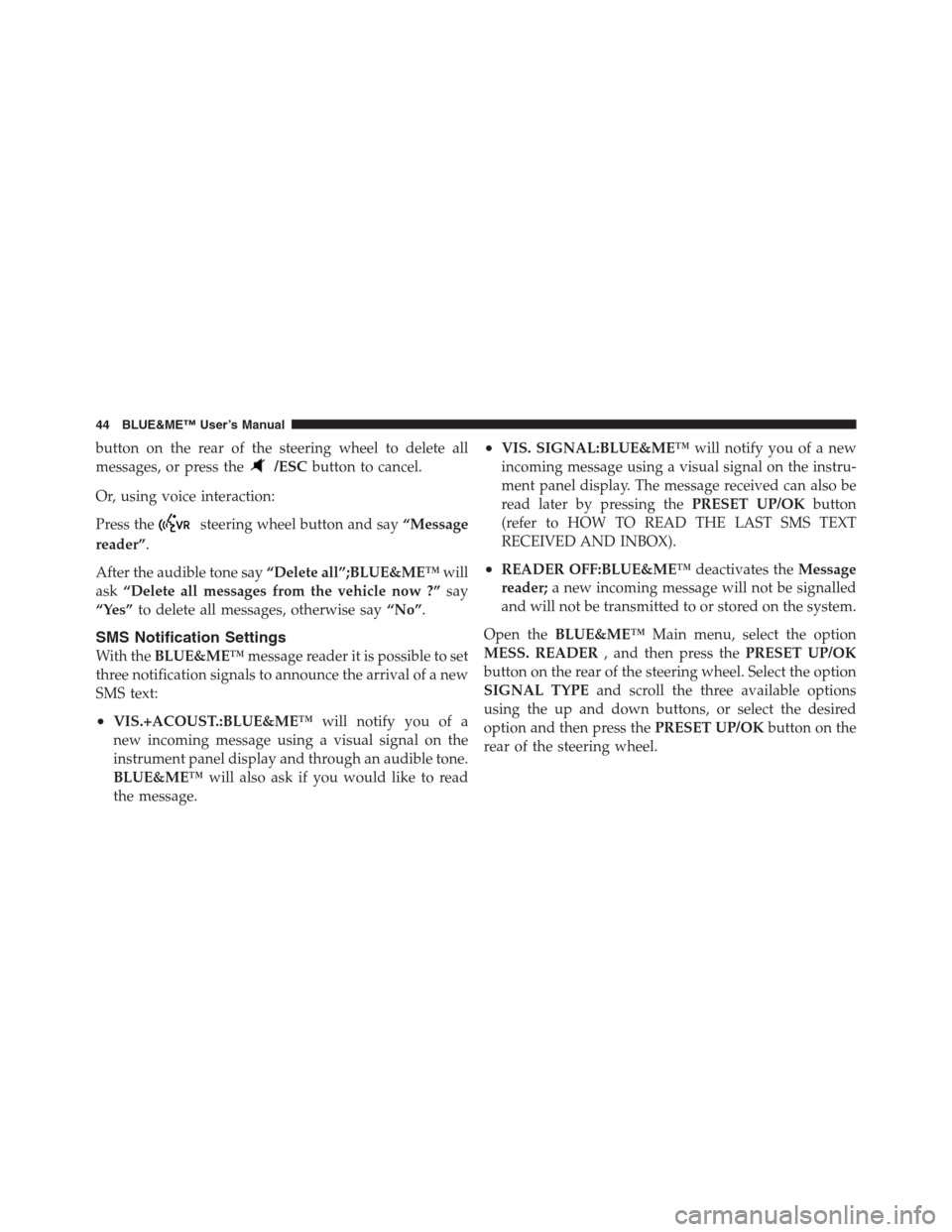

button on the rear of the steering wheel to delete all
messages, or press the
/ESCbutton to cancel.
Or, using voice interaction:
Press the
steering wheel button and say“Message
reader”.
After the audible tone say“Delete all”;BLUE&ME™will
ask“Delete all messages from the vehicle now ?”say
“Yes”to delete all messages, otherwise say“No”.
SMS Notification Settings
With theBLUE&ME™message reader it is possible to set
three notification signals to announce the arrival of a new
SMS text:
•VIS.+ACOUST.:BLUE&ME™will notify you of a
new incoming message using a visual signal on the
instrument panel display and through an audible tone.
BLUE&ME™will also ask if you would like to read
the message.
•VIS. SIGNAL:BLUE&ME™will notify you of a new
incoming message using a visual signal on the instru-
ment panel display. The message received can also be
read later by pressing thePRESET UP/OKbutton
(refer to HOW TO READ THE LAST SMS TEXT
RECEIVED AND INBOX).
•READER OFF:BLUE&ME™deactivates theMessage
reader;a new incoming message will not be signalled
and will not be transmitted to or stored on the system.
Open theBLUE&ME™Main menu, select the option
MESS. READER, and then press thePRESET UP/OK
button on the rear of the steering wheel. Select the option
SIGNAL TYPEand scroll the three available options
using the up and down buttons, or select the desired
option and then press thePRESET UP/OKbutton on the
rear of the steering wheel.
44 BLUE&ME™ User’s Manual
