2012 DACIA LODGY remote start

Downloaded from www.Manualslib.com manuals search engine keys ...................................................... (up to the end of the DU)
remote control door locking unit ........... (up to the end of the DU)
radio frequency remote control/key use ................................................................... (current page)
child safety ............................................................. (current page)
1.2
ENG_UD29226_2
Clés / télécommande à radiofréquence: généralité\
s (X67 - X92 - X52 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
Keys, radio frequency remote control: general information
KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
Radio frequency remote
control B
2 Locks all the opening elements.
3 Unlocks all the opening elements.
4 Coded key for ignition switch, driv -
er’s door and fuel filler cap.
Driver’s responsibility
Never leave your vehicle
with the keys inside when
leaving a child (or animal)
in the car, even for a short period.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.Key A
1 Coded key for ignition switch, doors
and fuel filler cap.
Advice
Avoid leaving the remote control in
hot, cold or humid areas.
BA
3
2
4
1
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).

Downloaded from www.Manualslib.com manuals search engine keys ...................................................... (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
radio frequency remote control/key use .................................................. (up to the end of the DU)
remote control electric door locking ...... (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
1.4
ENG_UD25326_1
Clé, télécommande à radiofréquence : utilisation (X92 - \
Renault)
ENG_NU_975-3_X92_Dacia_1

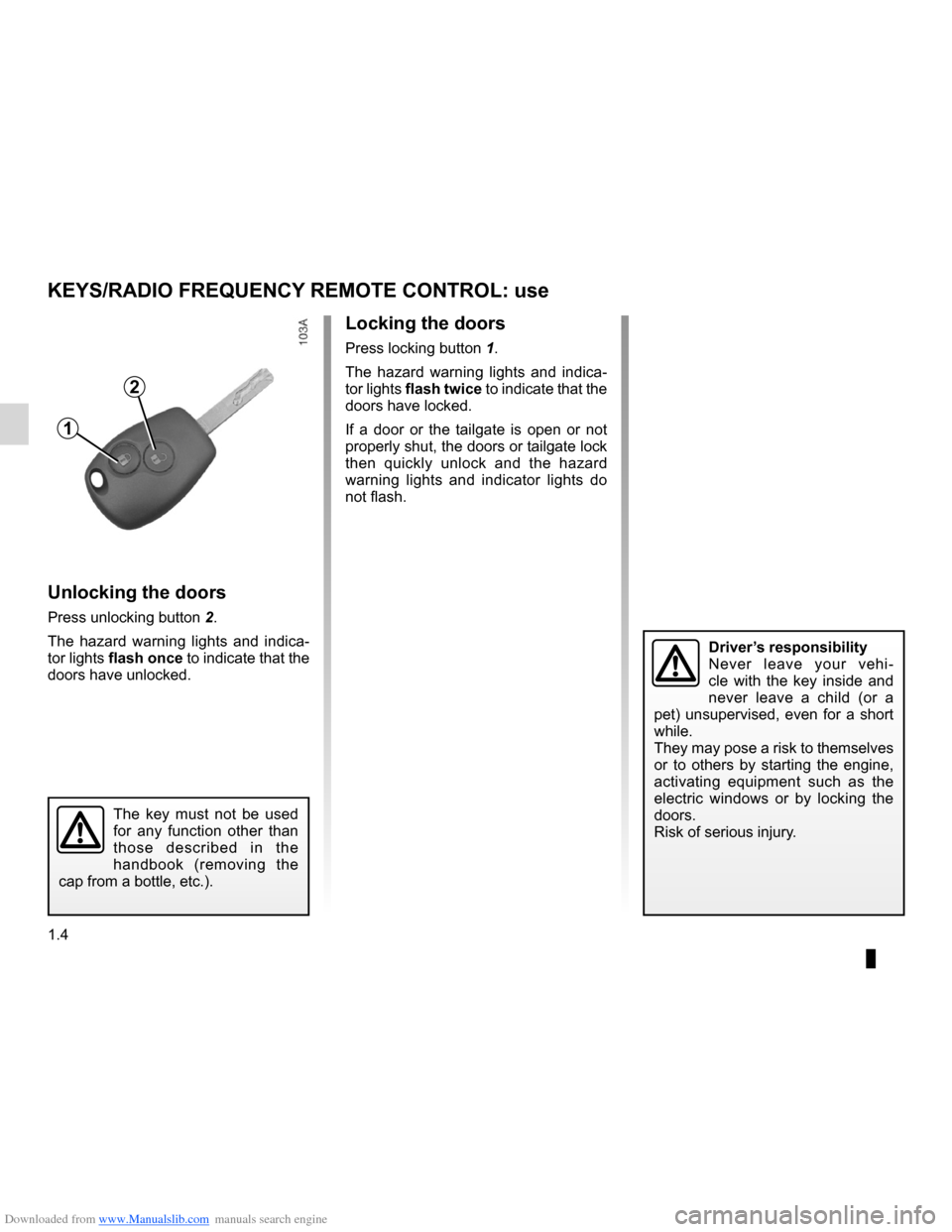

KEYS/RADIO FREQUENCY REMOTE CONTROL: use
Unlocking the doors
Press unlocking button 2.
The hazard warning lights and indica -
tor lights flash once to indicate that the
doors have unlocked.
2
1
Locking the doors
Press locking button 1.
The hazard warning lights and indica -
tor lights flash twice to indicate that the
doors have locked.
If a door or the tailgate is open or not
properly shut, the doors or tailgate lock
then quickly unlock and the hazard
warning lights and indicator lights do
not flash.
Driver’s responsibility
Never leave your vehi -
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
The key must not be used
for any function other than
those described in the
handbook (removing the
cap from a bottle, etc.).

Downloaded from www.Manualslib.com manuals search engine 1.18
ENG_UD24406_1
Dispositifs complémentaires à la ceinture avant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Driver’s and passenger air
bags
They are fitted on the driver’s side and,
depending on the vehicle, on the pas -
senger side.
Depending on the vehicle, the pres -
ence of this equipment is indicated by
the word “airbag” on the steering wheel
and dashboard (airbag zone 1 ) and
a symbol on the lower section of the
windscreen.
Each air bag system consists of:
– an airbag and gas generator fitted
on the steering wheel for the driver
and, depending on the vehicle, in the
dashboard for the front passenger;
– an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
– a single warning light
å;
– remote sensors.
Load limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
1

Downloaded from www.Manualslib.com manuals search engine driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD28712_3
Démarrage, Arrêt du moteur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_2
ÉDiesel injection
Turn the ignition key to ignition
“On” position M, and hold this position
until the preheating warning light goes
out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Feature when starting the engine, if the
outdoor temperature is very low (below
- 10 ° C): hold down the clutch pedal
until the engine starts.
Petrol injection
– Activate the starter without de-
pressing the accelerator.
– Release the key as soon as the
engine starts.
Starting, Stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.
