Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Weights (in kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
vehicle identification ............................. (up to the end of the DU)
paintwork reference .......................................................... (current page)
vehicle identification plates ................... (up to the end of the DU)
6.2
ENG_UD28934_2
Plaques identification (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6
Vehicle identification plates
VEHICLE IDENTIFICATION PLATES
Quote the details given on identifica-
tion plate A on all letters or orders.
The presence and location of the in-
formation depends on the vehicle.
Vehicle identification plate A
1 Manufacturer name.
2 EC design number or approval
number.
3 Identification number.
4 MAM (Maximum Authorised Mass)
for front axle.
A
5 GTW (Gross train weight: vehicle
fully loaded, with trailer).
6 MPAW (Maximim Permissible
Weight) for front axle.
7 MPAW on rear axle.
8 Reserved for related or additional
entries.
9 Diesel exhaust emissions.
10 Paint reference (colour code).
A1
3
4
2
5
6
7
8
9
10

Downloaded from www.Manualslib.com manuals search engine engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD26641_2
Caractéristiques moteur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_6

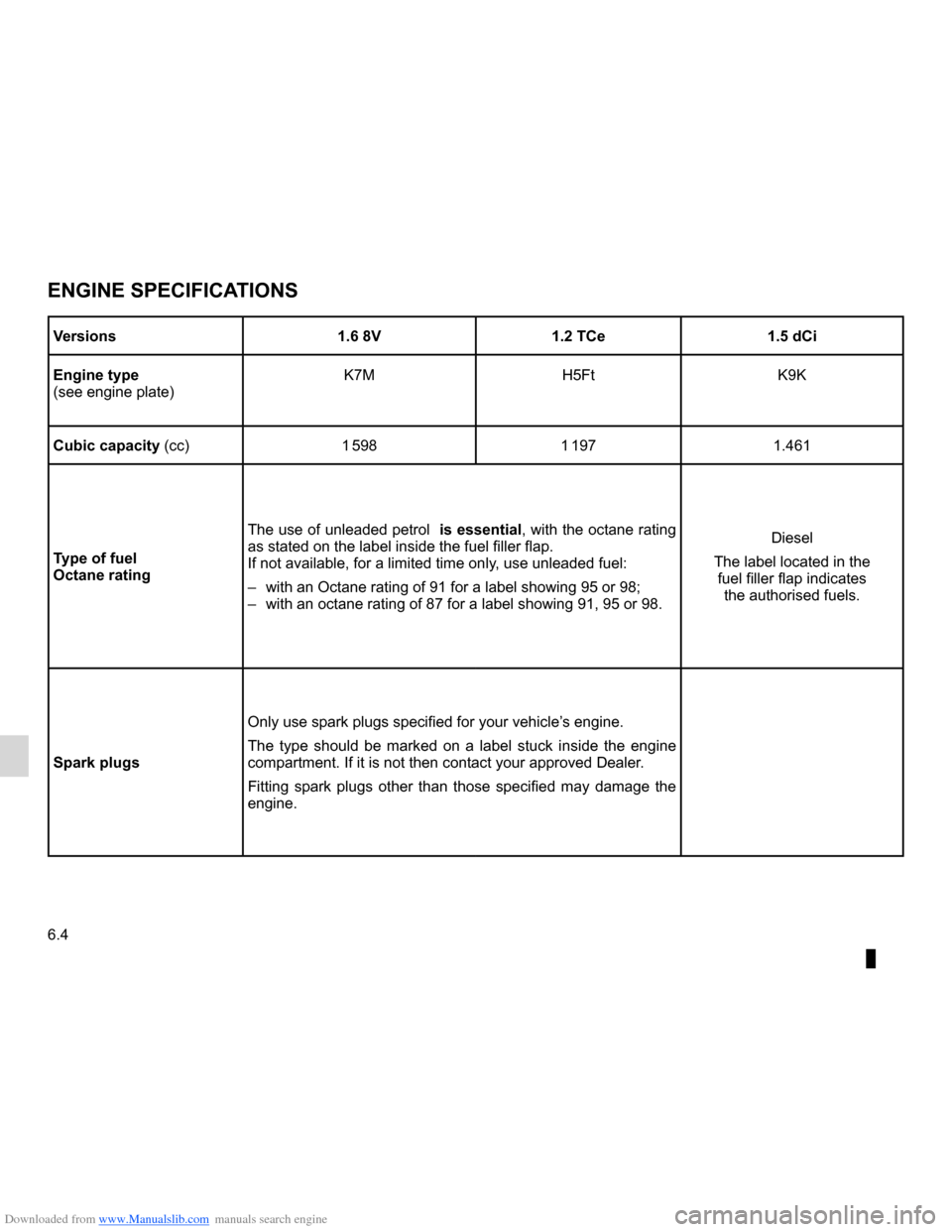

Engine specifications
ENGINE SPECIFICATIONS
Versions 1.6 8V1.2 TCe 1.5 dCi
Engine type
(see engine plate) K7M
H5FtK9K
Cubic capacity (cc) 1 598 1 197 1.461
Type of fuel
Octane rating The use of unleaded petrol
is essential, with the octane rating
as stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an Octane rating of 91 for a label showing 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates the authorised fuels.
Spark plugs Only use spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine
compartment. If it is not then contact your approved Dealer.
Fitting spark plugs other than those specified may damage the
engine.

Downloaded from www.Manualslib.com manuals search engine technical specifications ......................... (up to the end of the DU)
