2012 DACIA DUSTER Owners Manual

storage compartments .......................... (up to the end of the DU)
storage compartment............................ (up to the end of the DU)
glove box ............................................................... (current page)
fittings ................................................... (up to the end of the DU)
3.15
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
This glove box can be used to store A4
format documents.
Inside the cover, section
2

has been
provided for pens, maps, etc.
Passenger compartment storage space and fittings
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/4)
Passenger side glove box
Pull handle 1 to open it.
Precautions during use
Cover
A

in the bottom of the glove
box protects a socket reserved ex-
clusively for operations by the ap-
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
Nothing should be placed on the floor area in front of the driver as such
objects may slide under the pedal during braking manoeuvres, thus ob-
structing its use.
A
1
2

3.16
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Jaune NoirNoir texte
Centre console storage
compartment
4
(or location of the 4x2 (2WD) and 4X4
(4WD) mode selector)
Place for cups or ashtray 5

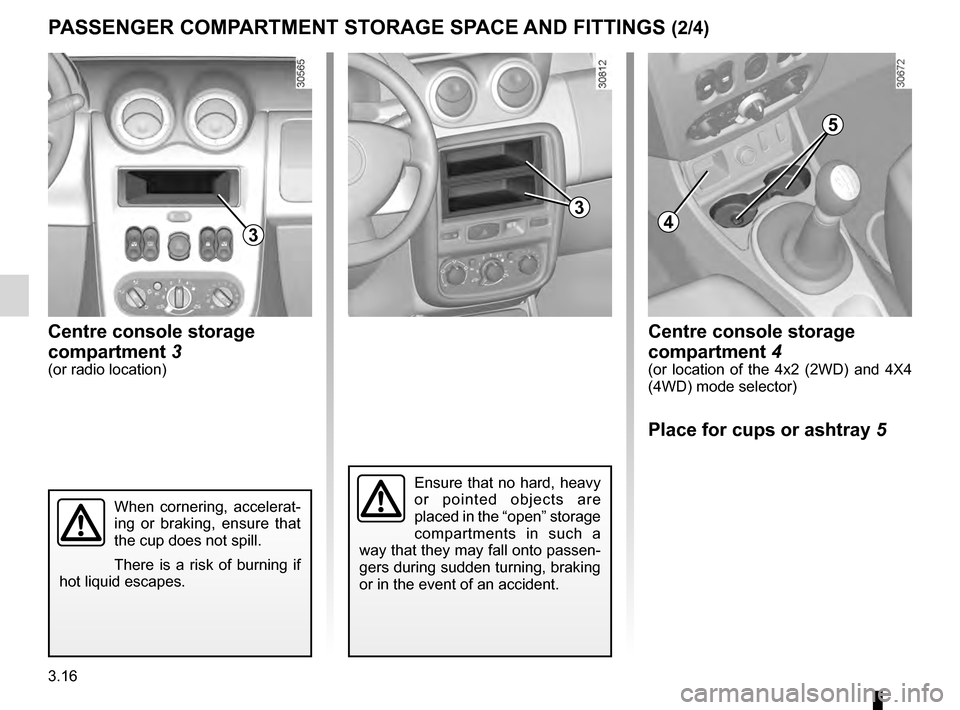

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/4)
Centre console storage
compartment
3
(or radio location)
When cornering, accelerat-
ing or braking, ensure that
the cup does not spill.
There is a risk of burning if
hot liquid escapes.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
4
5
3

JauneNoirNoir texte
3.17
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3

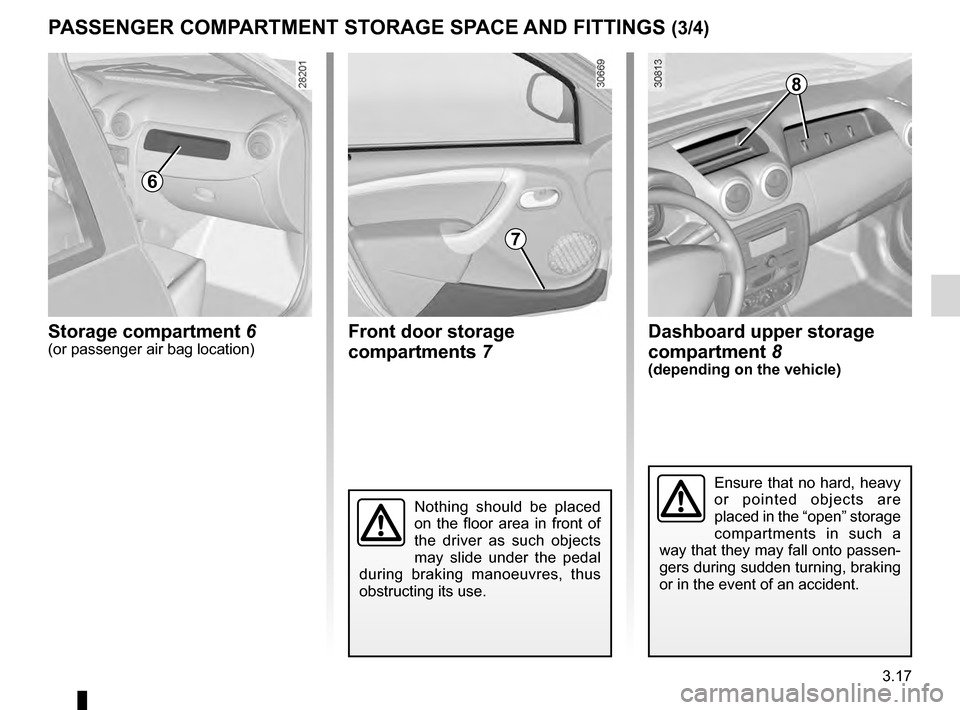

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Front door storage
compartments

7
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Dashboard upper storage
compartment 8
(depending on the vehicle)
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
7
Storage compartment 6(or passenger air bag location)
6
8

3.18
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3

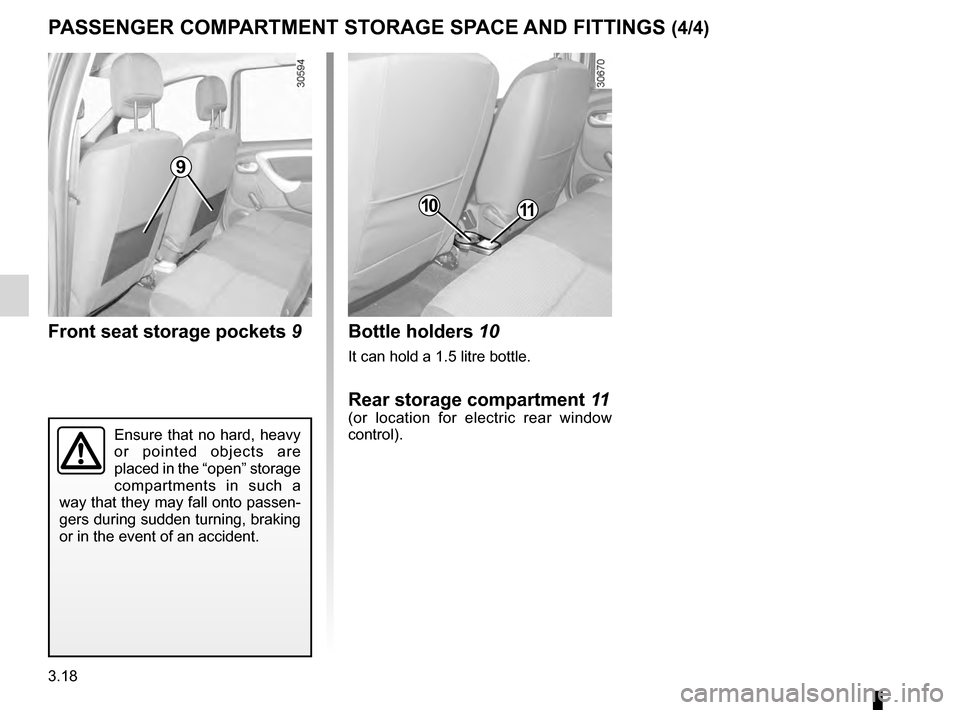

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Front seat storage pockets 9Bottle holders 10
It can hold a 1.5 litre bottle.
Rear storage compartment 11(or location for electric rear window
control).
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
9
1011

rear bench seat..................................... (up to the end of the DU)
rear seatsfunctions ......................................... (up to the end of the DU)
3.19
ENG_UD24693_4
Banquette arrière (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Rear bench seat
The seatback(s) A and/or B can be
folded away to allow bulky objects to be
carried.
Folding the seatback(s) down
onto the seat base
To fold down the seatback(s)
(depending on the vehicle)
Insert buckles

1
into housings
2 before
moving the seatback(s).
L

ower the rear headrests completely
(refer to the information on the “Rear
headrests” in Section 1).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
REAR BENCH SEAT
Lower handle(s) 3 .
Lower seatback(s)
A
and/or B.
To raise the seatback(s)
(depending on the vehicle)
Lift the seatback(s).
Check the seatbacks are securely
locked in position.
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
When refitting the seat-
back , make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
A
B
3
3
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1
2

tailgate ................................................................... (current page)
3.20
ENG_UD20574_2
Coffre à bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Luggage compartment
TAILGATE
Manual control
To open, insert the key in the lock and
turn it (movement
A).
Remove the key and press button
1 .
Lift the tailgate.
T

o close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement
B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B

transporting objectsin the luggage compartment ........... (up to the end of the DU)
towing rings .......................................... (up to the end of the DU)
towing towing equipment ............................ (up to the end of the DU)
towing equipment fitting ............................................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
3.21
ENG_UD24628_3
Transport d’objets dans le coffre (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Transporting objects in the boot
TRANSPORTING OBjECTS IN THE LuGGAGE COMPARTMENT
Always position the heavi-
est items directly on the
floor. Use the lashing points
on the luggage compart-
ment floor, if these are fitted to the
vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly.
Always place objects being transported
so that their longest side rests against
the back of the rear bench seatbacks,
as with normal loads (example
A )

or
against the back of the front seats when
the rear bench seatbacks are folded
down. Refer to the information on the
“Rear bench seat” in this section.
A
Fasten the rear seat belts,
even if the seats are not oc-
cupied.
Ensure that the load is evenly distrib-
uted over the largest loading surface to
prevent damage to the vehicle.

luggage compartment cover ................. (up to the end of the DU)
3.22
ENG_UD20577_3
Cache-bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Jaune NoirNoir texte
Luggage cover
Position for use A Position for use B
Gently pull the two handles 1 located
underneath the luggage compartment
cover and place the two ends
2

in the
housings

4 in

each side of the luggage
compartment.
In this position for use, it is possible to
place a light object (a jacket, for exam-
ple) in space

3
on the luggage compart-
ment cover.
Position for use C
Remove the two ends 5 of the luggage
compartment cover on the rear bench
seat side from the housings
6

in each
side of the luggage compartment.
Insert the two ends
7

of the luggage
compartment cover into the housings
6
and pull gently towards you.
Insert the two ends
5

of the luggage
compartment cover in housings

6
.
LuGGAGE COMPARTMENT COVER (1/2)
A2B
143
C
6
57
