2012 Citroen DS4 remote control

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
64Monochrome screenC
68 Colour screen and map
70Trip computer
78 Ventilation
80Manual air conditioning
82Dual-zone digital air conditioning
87 Rear screen demist - defrost
88 Front seats
93 Rear seats
94 Steering wheel adjustment
95 Mirrors
100 Remote control key
109 Alarm
112Doors
114 Boot
115 Electric windows
117 Fuel tank
119 Misfuel prevention (Diesel)
124 Lighting controls
125 Daytime running lamps
128 Automatic illumination of headlamps
129Welcome lighting
130 Headlamp adjustment
131 Directional lighting
133 Wiper controls
13 4 Automatic rain sensitive
wipers
138Courtesy lamps
139Interior mood lighting
140 Boot lamp
004004005005002002003003

9Familiarisation

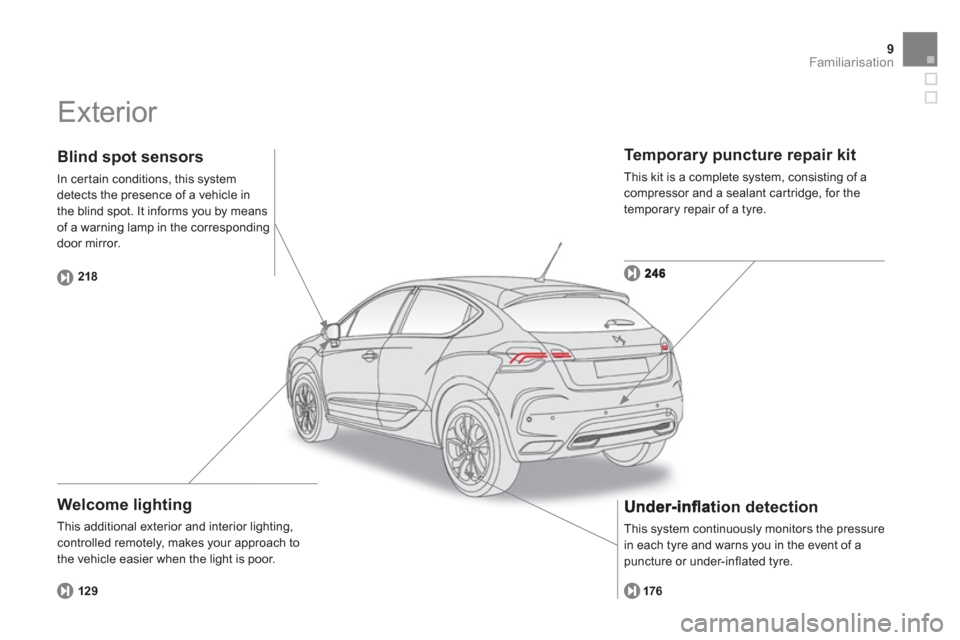

Exterior


Welcome lighting

This additional exterior and interior lighting, controlled remotely, makes your approach to
the vehicle easier when the light is poor.
Temporary puncture repair kit

This kit is a complete system, consisting of acompressor and a sealant car tridge, for the
temporary repair of a tyre.
12
9

Under-infl ation detection
This system continuously monitors the pressure
in each tyre and warns you in the event of a
puncture or under-inflated tyre.
176
Blind spot sensors
In cer tain conditions, this system
detects the presence of a vehicle in
the blind spot. It informs you by means
of a warning lamp in the corresponding door mirror.
218

100
Opening
A.
Folding/unfolding the key
(first press this button).
3-button remote
control

When a sensor detects a low level of light,
the remote switching on of the dipped beam headlamps, the sidelamps and the side spotlamps makes your approach to the vehicle easier.

Welcome lighting
Complete or selective unlocking of
the vehicle(rapid flashing of the direction
indicators).
Opening the windows (hold until the desired position is reached).
Selective unlockin
g of the boot.Normal lockin
g
(press once; fixed lighting of
the direction indicators).
Closin
g the windows(hold until the desired position is reached).
12
9
In the same way, the passenger compartment
lighting, such as the cour tesy lamps and
the footwell lamps, comes on.

47Monitoring
Servicetemporarily,accompanied by amessage. A min
or malfunction has occurredfor which there is no specific warninglamp. Identi
fy the malfunction by reading the message
displayed in the screen, such as, for example:
- the opening of the doors, boot or bonnet,
- the engine oil level,
- the remote control battery,
- the t
yre pressures,
- saturation of the par ticle emission filter on
Diesel vehicles
(see "Checks - § Checks/Particleemissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.
fixed, accompanied
b
y a message and anaudible signal. A ma
jor malfunction has occurred
for which there is no specific warninglamp. Identif
y the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.
Warning lampis onCauseAction/Observations
Particleemissions filter (Diesel)
fixed, accompanied by an audible signal message on the risk of
blockage of the particle emissions filter.
This indicates that the par ticleemissions filter is star ting to become saturated.
As soon as driving conditions allow, regenerate the filter by driving at a speed of at least 35 mph (60 km/h)until the warning lamp goes off.
fixed, accompanied by an audible signal andand a message that the
par ticle emissions filter additive level is too low. Thi
s indicates the low level of the additive reservoir.Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.

95
Comfort





Mirrors

Each fitted with an adjustable mirror glass permitting the lateral rear ward vision necessary for overtaking or parking. They can also be
folded for parking in confined spaces.

Demisting - Defrosting
Adjustment
)
Move control A
to the right or to the left to select the corresponding mirror. )
Move control B
in all four directions to
adjust. ) Return control Ato the central position.


Door mirrors
The objects obser ved are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.




Folding
)
From outside: lock the vehicle usingthe remote control or the key.)
From inside: with the ignition on, pull the control A
in the central position rear wards.


Unfolding
)
From outside: unlock the vehicle usingthe remote control or the key.)
From inside: with the ignition on, pull the control A
in the central position rear wards.

If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A.

The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or a qualified workshop.
Never fold or unfold the electric folding mirrors manually.
I
f your vehicle is fitted with heated
mirrors, the demisting-defrostingoperates by switching on the heatedrear screen (refer to the "Rear screen
demist-defrost" page).
The rear screen demist - defrost can onl
yoperate when the engine is running.

Remote control key System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and star t the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)Press this button to unfold the key.


Complete unlocking using the
remote control


Selective unlocking using theremote control
)Press the open padlock to unlockthe vehicle completely.
)Press the open padlock once to
unlock the driver's door only.
) Press the open padlock again to unlock the other doors and the boot.


Opening the windows using the
remote contro
l
) Maintain the press on the open
padlock until the desired position
is obtained. The windows stop as soon as you release the button.



Programming the unlocking
The complete or selective door
un
locking parameter is set via the
vehicle configuration menu.

101Access
Unlocking using the key
)Turn the key for wards in the driver's door lock to unlock the vehicle completely.

Selective unlocking of the boot
)
Press the central button on theremote control to unlock the boot. The doors remain locked.
If selective unlockin
g of the boot is deactivated, pressing this button also unlocks the doors.
Programming the unlocking
The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
Selective unlocking of the boot is
activated by default.
Each unlockin
g is confirmed by rapid flashingof the direction indicators for approximatelytwo seconds.
According to the version of your vehicle, the door mirrors unfold at the same time.
In low light, unlocking also brings on the
welcome li
ghting, both interior and exterior (see "Visibility").
Don't forget to lock the boot again by pressing the closed padlock button.

Locking the vehicle
Normal locking using the remote
control
Normal locking using the key
)Turn the key towards the rear in the driver's door lock to lock the vehicle.
) Press the closed padlock to lockthe vehicle.If one of the doors or the boot is still open, the central locking does nottake place; the vehicle locks itself then unlocks straight away, identifiable by the sound of the locks rebounding. When the vehicle is locked, if it isunlocked inadvertently, it will lock itself again automatically after thir ty secondsunless a door or the boot is opened.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or aqualified workshop. Lockin
g is confirmed by fixed lighting of the
direction indicators for approximately two seconds.
According to version, the door mirrors fold at
the same time.
In low light, locking also brings on of
the guide-me-home lighting (see "Visibility").


Closing the windows using the
remote contro
l
) Press and hold down the closed padlock until the desired position
is obtained. The windows stop
when you release the button.

When closing the windows using the remote control you must ensure thatnothing prevents them from closingcorrectly.
If you want to leave the windowspartly open, you must deactivate thevolumetric alarm monitoring.
