171Child safety








Manual child lock
Mechanical system to prevent opening of the rear door using its interior control.
The control is located on the edge of each rear door.


Locking
)Using the ignition key, turn the red controlas far as it will go:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.


Unlocking
)
Using the ignition key, turn the red control
as far as it will go:


- to the right on the left-hand rear door,

- to the left on the right-hand rear door.

Direction indicators
)Left: lower the lighting stalk passing thepoint of resistance.)Right: raise the lighting stalk passing the point of resistance.
"Motorway" function
)
Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.










Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident. )Press this button, the direction indicators
fl
ash.
They can operate with the ignition off.

If you forget to cancel the direction indicators for more than twenty seconds, the volume of theaudible signal will increase if the speedis above 40 mph (60 km/h).

Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on softground...), if you are unable to make progress,it may be advisable to temporarily deactivate
these systems, so that the wheels can spinfreely and allow the vehicle to move.
) Press the "ESP OFF"
button,located near the steering wheel.

Reactivation
These systems are reactivated automatically each time the ignition is switched back on or from 30 mph (50 km/h).)
Press the "ESP OFF"
button again to
reactivate them manually.

Operating fault

The trajectory control systems offer increased safety in normal driving, butthis should not encourage the driver to take extra risks or drive at high speed.
The correct functioning of these systems is assured provided thatmanufacturer's recommendations areobserved on:


- wheels (tyres and rims),

- braking components,

- electronic components,

- assembly and repair procedures.
After an impact, have these systems checked by a CITROËN dealer or a qualified workshop.
I
f this warning lamp comes on,
accompanied by an audible signal
and a message in the screen, this
indicates a fault with these systems.
Have it checked by a CITROËN dealer or aqualified workshop.
It is recommended that the systems bereactivated as soon as possible.
If this warnin
g lamp comes on in the instrumentpanel and the indicator lamp in the buttoncomes on, this indicates that these systems aredeactivated.

Safety
Seat belts


Front seat belts


The front seat belts are fitted with apretensioning and force limiting system.
This system improves safety in the frontseats in the event of a front or side impact.
Dependin
g on the severity of the impact, thepretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so improving their protection.

Fastening
)Pull the strap, then inser t the tongue in the buckle.)Check that the seat belt is fastenedcorrectly by pulling the strap.



Unfastening
)Press the red button on the buckle.)Guide the seat belt as it reels in.

Seat belt not fastened/unfastened warning lamp in the instrument panel
When the ignition is switched on,
this warning lamp comes on in the
instrument
panel if the driver and/or
the front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h)this warning lamp flashes for two minutes
accompanied by an audible signal of increasingvolume. Once these two minutes have elapsed,
this warning lamp remains on until the driver
and/or the front passenger fastens their seat belt.
Height adjustment
) To lower the attachment point, squeeze thecontrol Aand slide it downwards. )
To raise the attachment point, slide the control Aupwards.

Safety

Seat belt unfastened warninglamp in the instrument panel
This warning lamp comes on in the
instrument panel when one or more rear passengers unfasten their seat belt.
Seat belt unfastened warninglamps display
3. Right hand rear seat belt warning lamp.4.
Centre rear seat belt warning lamp.
5. Left hand rear seat belt warning lamp.
When the ignition is switched on, with the
engine running or when the vehicle is moving at less than 12 mph (20 km/h), the corresponding warning lamps 3, 4 and 5
come on in red for approximately 30 seconds, if the seat belt is not
fastened.
When the vehicle is moving at more than 12 mph (20 km/h), the corresponding warning lamps 3,4and 5come on in red, accompanied by anaudible signal and a message in the screen, if a rear passenger has unfastened their seat belt. From approximatel
y 12 mph (20 km/h),
this warning lamp flashes for two minutes
accompanied by an audible signal of increasingvolume. Once these two minutes have elapsed,
this warning lamp remains on until the one or more rear passengers fasten their seat belt.

185
Safety

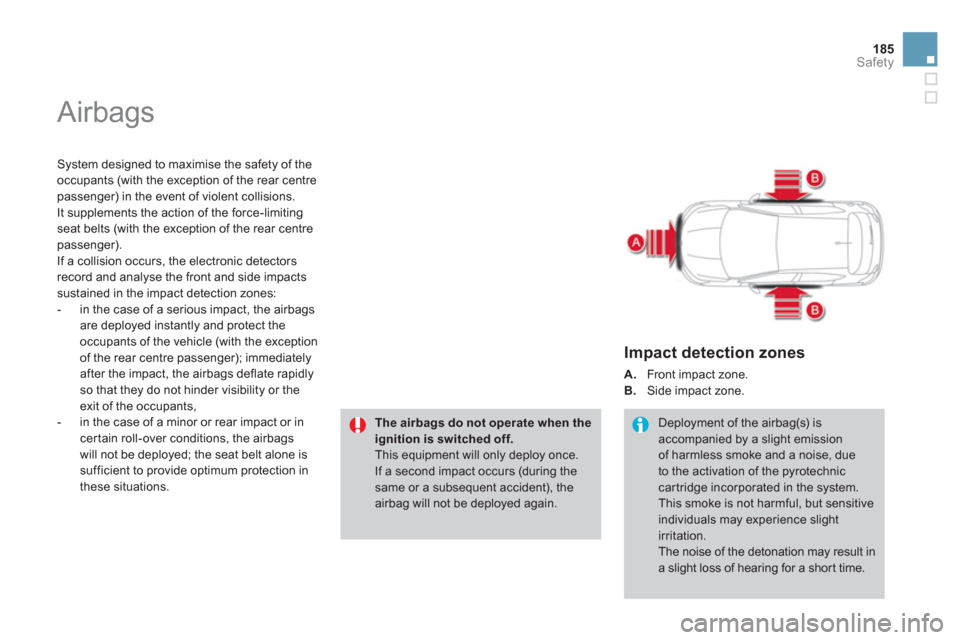

Airbags


System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limiting
seat belts (with the exception of the rear centrepassenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts sustained in the impact detection zones:


- in the case of a serious impact, the airbagsare deployed instantly and protect the
occupants of the vehicle (with the exception
of the rear centre passenger); immediatelyafter the impact, the airbags deflate rapidlyso that they do not hinder visibility or theexit of the occupants,

- in the case of a minor or rear impact or incer tain roll-over conditions, the airbags
will not be deployed; the seat belt alone is sufficient to provide optimum protection in
these situations.
The airbags do not operate when theignition is switched off.This equipment will only deploy once. If a second impact occurs (during the same or a subsequent accident), theairbag will not be deployed again.


Impact detection zones
A.Front impact zone.
B. Side impact zone.

Deployment of the airbag(s) isaccompanied by a slight emissionof harmless smoke and a noise, dueto the activation of the pyrotechnic cartridge incorporated in the system.
This smoke is not harmful, but sensitive individuals may experience slightirritation.
The noise of the detonation may result ina slight loss of hearing for a shor t time.

187
Safety

Deactivation
Only the passenger's front airbag can be deactivated:)inser t the key in the passenger airbagdeactivation switch,)turn it to the "OFF"position, )then, remove the key keeping the switch in
the new position.

According to version, this warninglamp comes on in the instrumentpanel and/or in the seat belt and passenger's front airbag warning lamps displaywhen the ignition is on and until the airbag is
reactivated.
To assure the safety of your child,the passenger's front airbag mustbe deactivated when you install a "rear facing" child seat on the front passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.
Reactivation
When you remove the child seat, turn the switch to the "ON"position to reactivate the airbag and so assure the safety of your front passenger in the event of an impact.
With the i
gnition on, this warninglamp comes on in the seat belt andpassenger's front airbag warning lamps display for approximately oneminute, if the passenger's front airbag
is activated.


Operating fault

If this warning lamp flashes in the
instrument panel and/or in the seat belt and
passenger's front airbag warning lamps
display, contact a CITROËN dealer or a qualified
workshop. The passenger's front airbag may no longer
be deployed in the event of a serious impact.
If even one of the two airbag warning lamps comes on continuously, do notinstall a child seat on the front passenger seat.
Have the system checked by a CITROËN dealer or a qualified workshop.


If this warning lamp comes on in theinstrument panel, accompanied by an
audible warning and the display of amessage, contact a CITROËN dealer or a qualified
workshop to have the system checked. The airbags mayno longer be deployed in the event of a serious impact.

195
Driving
With the ignition on or the engine running, torelease the parking brake, press on the brakepedalor the accelerator, pull then release
control A
.
Manual release


Before leaving the vehicle, ensurethat parking brake warning lamp inthe instrument panel is on fixed, not flashing.


Manual application
With the vehicle stationary, to apply the parkingbrake whether the engine is running or off, pullcontrol lever A.

The application of the parking brake is confirmed by:
- illumination o
f the braking warninglamp and of the P
warning lamp in
the control lever A,
- displa
y of the message"Handbrake on".
When the driver
’s door is opened with the engine running, a message is displayed
accompanied by an audible signal if the parkingbrake has not been applied, except in the case
of an automatic gearbox with the gear lever in position P.P
The full application of the parking brake is confirmed by:


- the brakin
g warning lamp and
the P warning lamp in the controllever Agoing off,

- displa
y of the message
"Handbrake off".

If you pull control lever Awithout pressingAthe brake pedal, the parking brake will not be released and a warning lamp willcome on in the instrument panel.


Maximum application

If necessary, you can make a maximum application
of the parking brake. This is obtained by means of a long pullon the control
l
ever A, until you see the message "Handbrake on maximum" and a beep is heard.
Maximum application is essential:

- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parkingbrake manually,

- when the gradient you are parked on may
vary (e.g. on a ferry, on a lorry, duringtowing).

In the case of towing, a loaded vehicle or parking on a gradient, make amaximum application of the parkingbrake then turn the front wheelstowards the pavement and engage agear when you park.
After a maximum application, the release time will be longer.
