CONTENTS
Direction indicators 116
Hazard warning lamps 116
Horn 116
Emergency or assistance call 116
Tyre under-infl ation detection 117
Braking assistance systems 119
Trajectory control systems 120
Seat belts 121
Airbags 124„
„
„
„
„
„
„
„
„
VIII - SAFETY 116 Î 127
Parking brake 128
Electric parking brake 129
Hill start assist 136
Manual gearbox 137
Gear shift indicator 138
6-speed electronic
gearbox system 139
Stop & Start 143
Automatic gearbox 146
Fixed centred controls steering
wheel 150
Speed limiter 152
Cruise control 154
Lane departure warning system 156
Parking space sensor 157
Parking sensors 159
"Hydractive III +" electronic
suspension 160
„
„
„
„
„
„
„
„
„
„
„
„
„
„
„
IX - DRIVING 128 Î 162
Bonnet 164
Running out of fuel (Diesel) 166
Petrol engines 167
Diesel engines 169
Checking levels 172
Checks 174„
„
„
„
„
„
X - CHECKS 163 Î 175
Temporary puncture repair kit 176
Changing a wheel 179
Changing a bulb 183
Changing a fuse 193
Battery 198
Energy economy mode 200
Towing the vehicle 201
Towing a trailer 202
Roof bars 203
Very cold protection 204
Cold climate screen 205
Matt paint 206
Accessories 207„
„
„
„
„
„
„
„
„
„
„
„
„
XI - PRACTICAL
INFORMATION 176 Î 208
Petrol engines 209
Petrol weights 210
Diesel engines 212
Diesel weights 214
Diesel weights - commercial
versions (Tourer) 218
Dimensions 219
Identifi cation markings 223„
„
„
„
„
„
„
XII - TECHNICAL
DATA 209 Î 224
Emergency or assistance 225
NaviDrive 3D 229
MyWay 273
Audio system 305„
„
„
„
XIII - AUDIO and
TELEMATICS 225 Î 324
VISUAL
SEARCH 325 Î 330
ALPHABETICAL
INDEX 331 Î 336

13
FAMILIARISATION
VISIBILITY


Front wipers

Control stalk positions

2
Fast wipe.

1
Normal wipe.

I
Intermittent wipe.

0
Off.


Lighting

Sidelamps.
Dipped/main beam. Lighting off.


)
Pull the control stalk towards you

to change between dipped and main
beam.

Front and rear foglamps on. Front foglamps on. Automatic illumination of head-
lamps.

Rear wiper (Tourer)



)
Rotate control C
to the desired position.

Off
Intermittent wipe
Screenwash
Ring A

Ring B



88



Screenwash



)
Pull the screen wipe control stalk
towards you.



94-95



94

One press downwards:



-
Auto:
Automatic rain sensitive wipers
activated.

- Single wipe.
If the ignition has been switched off for
around 1 minute, automatic wiping must
be selected again.

24












































ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear effi ciency
indicator invites you to change up; it is
displayed in the instrument panel, follow
its instructions.


With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according
to the type of gearbox, without pressing
the accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between
vehicles, use engine braking rather than
the brake pedal, and press the acce-
lerator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and also helps reduce the background traffi c noise.


If your vehicle has cruise control, make use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before mo-
ving off, particularly in winter; your
vehicle will warm up much faster while
driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices
before leaving the vehicle.

I
36
MONITORING




Front
foglamps


fi xed. The front foglamps are switched on. Turn the ring on the stalk rearwards
twice to switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are switched on. Turn the ring on the stalk rearwards
to switch off the rear foglamps.









Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action/Observations






Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed down.





Right-hand
direction
indicator


fl ashing with
buzzer. The lighting stalk is pushed up.






Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the "Dipped
beam headlamps" position.





Main beam
headlamps


fi xed.
The lighting stalk is pulled towards you. Pull the stalk to return to dipped
beam headlamps.



Hazard
warning
lamps


fl ashing with
audible signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction
indicators and their associated
indicator lamps fl ash simultaneously.

III
50
COMFORT

Air conditioning

We recommend use of the automatic
regulation of the air conditioning.
It permits automatic and optimised
control of all of the following functions:
air fl ow, temperature in the passenger
compartment and air distribution, by
means of various sensors (ambient
temperature, sunshine). This elimi-
nates any need for you to change
your settings other than the tempera-
ture value displayed.


)
Take care not to cover the sun-
shine sensor A
.
If you select the automatic mode
(by pressing the "AUTO" control)
and leave all of the vents open, opti-
mum comfort will be maintained and
humidity and condensation will be
removed regardless of the exterior
climatic conditions.
The temperature in the passenger
compartment can only be lower than
the ambient temperature if the air
conditioning is on.














HEATING, VENTILATION
AND AIR CONDITIONING
RECOMMENDATIONS In order to be effective, the air
conditioning must be used with the
windows closed. If the vehicle has
been parked in the sun for a long
period and the interior tempera-
ture is very high, fi rst ventilate the
passenger compartment with the
windows open for a few minutes,
then close the windows.
To keep the air conditioning system
in good working order it is essential
that it is operated at least once a
month.
The air conditioning uses engine
power during its operation. As a
result, the fuel consumption of the
vehicle increases.
In certain cases of particularly ardu-
ous use (e.g. towing the maximum
load on a steep gradient in high
temperatures), switching off the air
conditioning saves engine power
and improves the towing capacity.


Air inlet

Check that the exterior grille for the
air inlet, at the bottom of the wind-
screen, is clean and free of dead
leaves, snow, etc.
When washing the vehicle using a
high pressure nozzle, avoid spraying
at the air inlet.


Air circulation

Maximum comfort is obtained by
means of a good distribution of air in
the passenger compartment, both in
the front and in the rear.
To obtain a uniform distribution of
air, take care not to block the ex-
terior air intake grille located at the
base of the windscreen, the vents,
the air outlets under the front seats
and the air extractor located behind
the fl aps in the boot.
The front and rear vents are fi tted
with thumbwheels to adjust the air
fl ow and direction. We recommend
that you leave all of the vents open.


Dust filter/Odour filter
(active carbon)
There is a fi lter for excluding odours
and dust.
This fi lter must be changed in line
with the vehicle’s servicing schedule
(see the vehicle’s servicing booklet).

IV
!
75
ACCESS





ALARM *

System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring:


- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...




- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone breaks a window, enters the passenger com-
partment or moves inside the vehicle.




- Tilt
The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked.



Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the bat-
tery, the central control or the si-
ren wiring are put out of service or
damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.


Locking the vehicle with full
alarm system

Activation


)
Switch off the ignition and get out
of the vehicle.

)
Press the locking button on the
remote control.
The monitoring system is active: the
indicator lamp in the button fl ashes
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring.
Deactivation


)
Press the unlocking button on
the remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.



Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
and anti-tilt monitoring to avoid un-
wanted triggering of the alarm in
certain cases such as:


- leaving a pet in the vehicle,

- leaving a window partially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transport by sea.

Deactivation of the interior
volumetric and anti-tilt
monitoring


)
Switch off the ignition.

)
Within ten seconds, press the
button until the indicator lamp is
on continuously.

)
Get out of the vehicle.

)
Press the locking button on the
remote control immediately.

The exterior perimeter monitoring
alone is activated: the indicator lamp in
the button fl ashes once per second.

To be effective, this deactivation
must be carried out each time the
ignition is switched off.

*
According to country.

IV
80
ACCESS

Unlocking


)
Press button A
again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A

is inactive.


)
In this case, use the remote
control or the key to unlock the
vehicle.




Automatic central locking

System which provides full automatic locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot
lock automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic
central locking of the doors is active.

Unlocking


)
Above 6 mph (10 km/h), press
button A
to unlock the doors and
the boot temporarily.


Activation


)
Press button A
for more than
two seconds.
A confi rmation message appears on
the instrument panel screen, accom-
panied by an audible signal.

Deactivation


)
Press button A
again for more
than two seconds.
A confi rmation message appears on
the instrument panel screen, accom-
panied by an audible signal.








Emergency control

To lock or unlock the doors manu-
ally in the event of a malfunction of
the central locking system or battery
failure.
Locking the driver's door


)
Insert the key in the lock, then
turn it to the rear.


Unlocking the driver's door


)
Insert the key in the lock, then
turn it to the front.


Locking the front and rear
passenger doors


)
On the rear doors, check that the
child lock is not activated.

)
Remove the black cap, located
on the edge of the door, using
the key.

)
Insert the key in the socket with-
out forcing it, then without turn-
ing it, move the latch sideways
towards the inside of the door.

)
Remove the key and refi t the cap.


Unlocking the front and rear
passenger doors


)
Pull the interior door opening
control.

IV
84
ACCESS














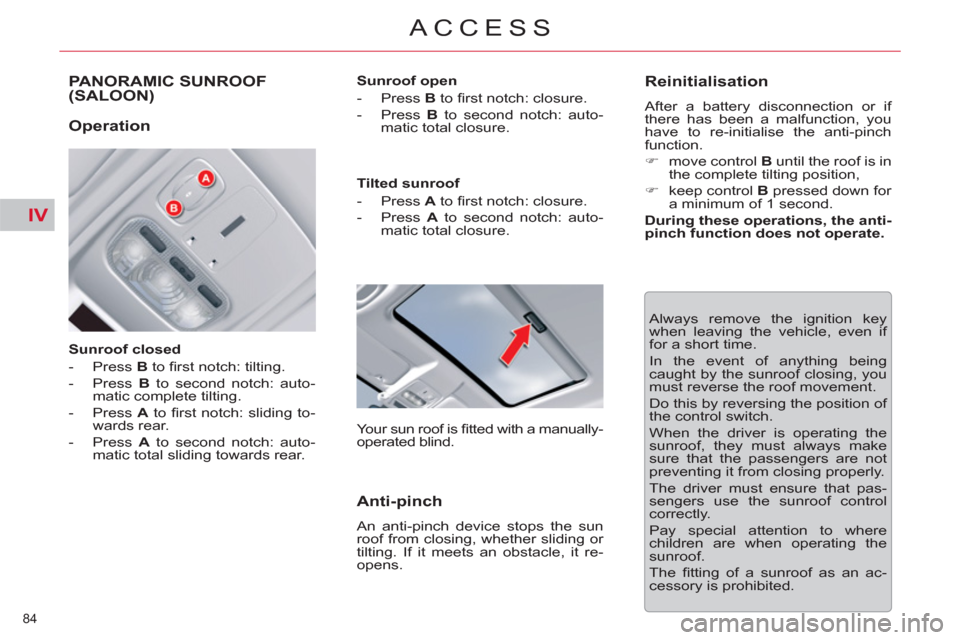

PANORAMIC SUNROOF
(SALOON)

Sunroof closed


- Press B
to fi rst notch: tilting.

- Press B
to second notch: auto-
matic complete tilting.

- Press A
to fi rst notch: sliding to-
wards rear.

- Press A
to second notch: auto-
matic total sliding towards rear.

Sunroof open


- Press B
to fi rst notch: closure.

- Press B
to second notch: auto-
matic total closure.


Always remove the ignition key
when leaving the vehicle, even if
for a short time.
In the event of anything being
caught by the sunroof closing, you
must reverse the roof movement.
Do this by reversing the position of
the control switch.
When the driver is operating the
sunroof, they must always make
sure that the passengers are not
preventing it from closing properly.
The driver must ensure that pas-
sengers use the sunroof control
correctly.
Pay special attention to where
children are when operating the
sunroof.
The fi tting of a sunroof as an ac-
cessory is prohibited.


Operation


Tilted sunroof


- Press A
to fi rst notch: closure.

- Press A
to second notch: auto-
matic total closure.

Your sun roof is fi tted with a manually-
operated blind.


Anti-pinch

An anti-pinch device stops the sun
roof from closing, whether sliding or
tilting. If it meets an obstacle, it re-
opens.


Reinitialisation


After a battery disconnection or if
there has been a malfunction, you
have to re-initialise the anti-pinch
function.


)
move control B
until the roof is in
the complete tilting position,

)
keep control B
pressed down for
a minimum of 1 second.

During these operations, the anti-
pinch function does not operate

.
