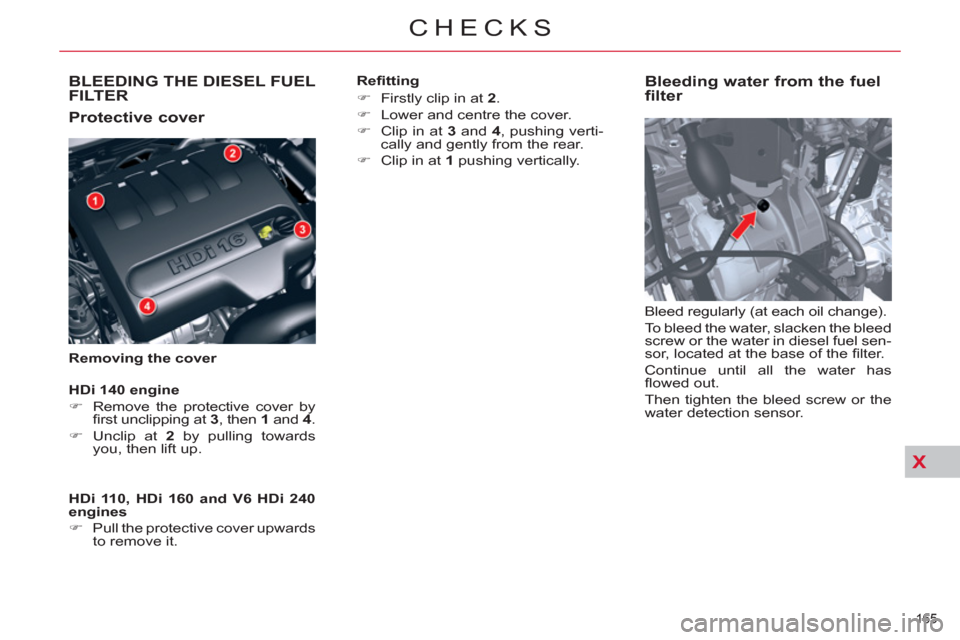

CHECKS
BLEEDING THE DIESEL FUEL
FILTER
Protective cover
Removing the cover
Bleeding water from the fuel
filter
Bleed regularly (at each oil change).
To bleed the water, slacken the bleed
screw or the water in diesel fuel sen-
sor, located at the base of the fi lter.
Continue until all the water has
fl owed out.
Then tighten the bleed screw or the
water detection sensor.
HDi 110, HDi 160 and V6 HDi 240
engines
)
Pull the protective cover upwards
to remove it.
HDi 140 engine
)
Remove the protective cover by
fi rst unclipping at 3
, then 1
and 4.
)
Unclip at 2
by pulling towards
you, then lift up.
Refi tting
)
Firstly clip in at 2
.
)
Lower and centre the cover.
)
Clip in at 3
and 4
, pushing verti-
cally and gently from the rear.
)
Clip in at 1
pushing vertically.
165
Page 177 of 340
X
!
175
CHECKS
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances.
It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
Automatic gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
Brake disc wear
For information on check-
ing brake disc wear, con-
tact a CITROËN dealer or
a qualifi ed workshop.
Parking brake
If a loss of effectiveness
of this system is noticed,
the parking brake must be
checked, even between
two services.
This system must be checked by a
CITROËN dealer.
Only use products recom-
mended by CITROËN or
products of equivalent quality
and specifi cations.
Do not use a dry cloth with an abra-
sive product for the maintenance of
aluminium parts; use a sponge and
soapy water.
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited
. Refer to the servicing booklet for the
details of the level checking interval
for this component.
Refer to the servicing booklet for de-
tails of the level checking interval for
this component.
Page 181 of 340
XI
179
PRACTICAL INFORMATION
CHANGING A WHEEL
Access to the tools
The tools are to be found in a protec-
tive holder inside the spare wheel.
)
Pull back the retaining strap for
access.
List of tools
All of these tools are specifi c to your
vehicle and may vary according to
equipment. Do not use them for any
other purpose.
1.
Wheelbrace
2.
Jack
3.
Tool for the removal/refi tting of
bolt protectors
4.
Towing eye
5.
Moveable chock
Page 182 of 340
XI
!
180
PRACTICAL INFORMATION
Access to the spare wheel
To remove the spare wheel
)
Lift up the boot fl oor and fold in
two (Saloon) or hook it using the
retractable handle (Tourer).
)
Detach the strap then push the
wheel forwards so as to be able
to lift it.
To reposition the spare wheel
)
Position the spare wheel fl at in
the boot, then pull it towards
you.
)
Next place the toolbox inside the
wheel, then secure the assembly
with the strap.
)
Release the boot fl oor to return it
to its initial position.
The tyre pressures are indi-
cated on the label located on
the driver's side centre door
pillar. Tyre pressures are given for
different vehicle loading conditions.
Page 190 of 340
XI
188
PRACTICAL INFORMATION
Wing-mounted lamps
)
Remove the lateral boot trim
fl ap A
. To do so, pull it towards
the inside of the boot, then pull it
upwards.
)
Disconnect connector B
.
)
Unscrew the 2 fi xings C
.
)
Remove the lamp from its housing.
)
Detach the bulb holder D
.
)
Replace the bulb.
)
Refi t the bulb holder D
.
)
Place the lamp in its housing.
)
Screw in the 2 fi xings C
.
)
Refi t connector B
.
)
Refi t the trim A
.
You can use the wheelbrace to screw
or unscrew the fi xings C
.
Page 192 of 340
XI
190
PRACTICAL INFORMATION
Wing-mounted lamps
Remove the lateral boot trim A
.
To do so:
)
Pull it towards towards the inside
of the boot.
)
Pull it upwards.
)
Disconnect the connector B
.
)
Unscrew the fi xing nut C
.
)
Remove the lamp from its housing.
)
Detach the bulb holder D
.
)
Replace the faulty bulb.
)
Refi t the bulb holder D
.
)
Place the lamp in its housing.
)
Screw in the fi xing nut C
.
)
Refi t the connector B
.
)
Refi t the trim A
.
You can use the wheelbrace to screw or unscrew the fi xing nut C
.
Page 202 of 340
XI
!
200
PRACTICAL INFORMATION
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you can still use functions such as the audio
and telematics system, windscreen
wipers, dipped headlamps, courtesy
lights, etc. for a maximum combined
duration of thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
If the telephone is being used at this
time:
- it will be maintained for 5 minutes
with radio-CD hands-free kit,
-
it will be interrupted after 10 minutes
with the MyWay audio-navigation
system,
- you can complete your call with
the NaviDrive system.
This period may be signifi cantly re-
duced if the battery charge is low.
Exiting economy mode
These functions are reactivated auto-matically next time the vehicle is
driven.
)
In order to resume the use of
these functions immediately, start
the engine and let it run for a few
minutes.
The time available will then be dou-
ble the duration for which the en-
gine was left running. However, this
time will always be between fi ve and
thirty minutes.
A fl at battery prevents the en-
gine from starting (refer to the
corresponding paragraph).
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle
using a removable towing eye.
Access to the tools
The towing eye is installed in the
jack box placed in the spare wheel.
For access to it:
)
open the boot,
)
raise the fl oor,
)
remove the towing eye from the
jack box.
Page 203 of 340
XI
201
PRACTICAL INFORMATION
Towing your vehicle
)
On the front bumper, unclip the
cover by pressing at the top.
)
Screw the towing eye in fully.
)
Attach the towing bar.
)
Switch on the hazard warning
lamps on the towed vehicle.
)
Place the gear lever in neutral
(position N
on the automatic gear-
box).
Towing another vehicle
)
On the rear bumper, unclip the
cover by pressing:
- on the right (Saloon),
- at the bottom (Tourer).
)
Screw the towing eye in fully.
)
Attach the towing bar.
)
Switch on the hazard warning
lamps on the towed vehicle. Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
the next time the engine is started.
In the event of a fault or malfunc-
tion with the electronic gearbox
system, the vehicle may be immo-
bilised with a gear engaged. In this
case the front of the vehicle must
be lifted for towing.
When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
