2012 Citroen C4 RHD Owner's Manual

9
DRIVING
167
The cruise control system can-
not, in any circumstances, re-
place the need to respect speed
limits, nor can it replace the need
for vigilance and responsibility
on the part of the driver.
You are advised to keep your
feet near the pedals at all times.






CRUISE CONTROL

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The functions of this system are grouped
together on the steering mounted con-
trols.


1.
Cruise control mode selection dial.

2.
Speed programming/value decrease
button.

3.
Speed programming/value increase
button.

4.
Cruise control off/resume button.

5.
Memorised speeds display button.
(see "Memorising speeds")


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

6.
Cruise control off/resume indication.

7.
Cruise control mode selection indi-
cation.

8.
Programmed speed value.

9.
Selecting a stored speed.
(see "Storing speeds")


Displays in the instrument panel

Operation

The cruise control is switched on

manually: it requires a minimum ve-
hicle speed of 25 mph (40 km/h) and
engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gear-
box system or automatic gearbox,
in sequential driving mode,

-
position A
on the electronic gearbox
system or D
on an automatic gearbox.

The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

9
DRIVING
168
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the
programmed speed.
On steep climbs or when towing,
the programmed speed may not
be reached or maintained.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- never fi t one mat on top of
another.



Programming



)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(Pause).

)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)); the cruise
control system is activated (ON).
You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehi-
cle, the programmed speed will stop at the closest stored
speed; refer to the corresponding section.


)
Stop the cruise control system by pressing button 4
:
this is confi rmed in the screen (Pause).


Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the speed.


Exiting cruise control mode



)
Turn dial 1
to the "0"
position: the cruise control mode
is deselected. It disappears from the screen.

)
Switch on the cruise control again with another press
on button 4
.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

9
DRIVING
169





PARKING SPACE SENSORS


System which measures the parking
space available between two vehicles
or obstacles. It measures the size of the
space and gives you information on:


- the possibility of fi tting into a free
space, depending on the dimensions
of your vehicle and the distances
needed for manoeuvring,

- the level of diffi culty of the manoeuvre
to be performed.
The system does not measure spaces
which are clearly much smaller or larger
than the size of the vehicle.

Displays in the instrument panel



- on fi xed:
the function is selected by
a press on control A
.

- off:
the function is not selected,
The parking space sensor
function warning lamp can
have two different states:

Operation

You have identifi ed a parking space:


)
Press button A
to select the function.

)
Operate the direction indicator on
the side where the space is to be
measured; a message is displayed
to confi rm that measurement is in
progress.

)
During measurement, go forward
the length of the space, at a speed
less than 12 mph (approx. 20 km/h),
to prepare for your manoeuvre.

)
Once the measurement has been
completed, the system informs you
of the level of diffi culty of the ma-
noeuvre by a message in the multi-
function screen accompanied by an
audible signal.

9
DRIVING
170

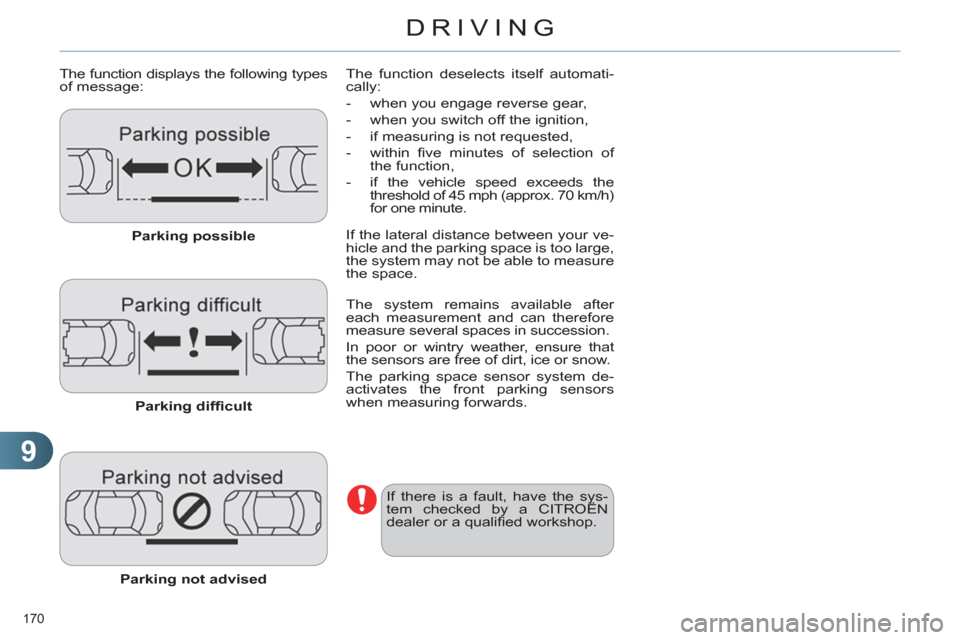

The function displays the following types
of message:

Parking possible


Parking diffi cult


Parking not advised

The function deselects itself automati-
cally:


- when you engage reverse gear,

- when you switch off the ignition,

- if measuring is not requested,

- within fi ve minutes of selection of
the function,

- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h)
for one minute.

If the lateral distance between your ve-
hicle and the parking space is too large,
the system may not be able to measure
the space.
If there is a fault, have the sys-
tem checked by a CITROËN
dealer or a qualifi ed workshop.

The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dirt, ice or snow.
The parking space sensor system de-
activates the front parking sensors
when measuring forwards.

9
DRIVING
171





PARKING SENSORS

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.

This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.

Rear parking sensors


Audible assistance
The proximity information is given by an
intermittent audible signal, the frequen-
cy of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.


Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is also dis-
played in the screen.

9
DRIVING
172
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).






Front parking sensors

Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.


Operating fault



The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi t-
ted (vehicle fi tted with a towbar
or bicycle carrier recommended
by CITROËN).

In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged,
an audible signal (long beep) in-
dicates that the sensors may be
dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h),
certain sound sources (motor-
cycle, lorry, pneumatic drill, etc.)
may trigger the audible signals
of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
screen, accompanied by an audible
signal (short beep).
Contact a CITROËN dealer or a qualifi ed
workshop.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.

10
CHECKS
173
TOTAL & CITROËN

Partners in performance and
protecting the environment

Innovation in the search for
performance
For over 40 year, the TOTAL Research and
Development departments have developed for
CITROËN, lubricants to match the latest techni-
cal innovations on CITROËN vehicles, both for
competition and for everyday motoring.
For you, this is an assurance that you will obtain
of the best performance for your engine.


Optimum protection for your
engine
By having your CITROËN vehicle
serviced with TOTAL lubricants,
you are contributing towards im-
proving the life and performances
of your engine, while also protect-
ing the environment.

prefers

10
CHECKS
174











BONNET


)
Push the exterior safety catch B
to
the left and raise the bonnet.

Opening



)
Open the front left door.

)
Pull the interior bonnet release le-
ver A
, located at the bottom of the
door aperture.

)
Unclip the stay C
from its housing
on the back of the bonnet.

)
Fix the stay in the notch to hold the
bonnet open.
The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.


Closing



)
Take the stay out of the support
notch.

)
Clip the stay in its housing on the
back of the bonnet.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
secured correctly.

Do not open the bonnet in high
winds.
When the engine is hot, handle
the exterior safety catch and the
bonnet stay with care (risk of
burns).






Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.
