2012 Citroen C3 windows

8


1.
Cruise control/speed limiter
switches.

2.
Headlamp height adjustment.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicators
control stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Gear lever.

8.
12 V accessory socket
USB port/auxiliary socket.

9.
Heated seat control.

10.
Bonnet release lever.

11 .
Door mirror controls.
Electric window controls.
Rear doors and electric windows
deactivation switch.

12.
Fusebox.

13.
Stop & Start switch
Electronic stability programme
switch (ESP/ASR).

14.
Front door window demisting/
defrosting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting/defrosting
vent.

21
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instru-
ctions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traffi c
noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

3
53
COMFORT

3. Air distribution adjustment

4. Air intake/Air recirculation
The intake of exterior air avoids the for-
mation of mist on the windscreen and
side windows.
The recirculation of interior air insulates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and the formation of mist. Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
The air distribution can be
adapted by placing the dial in
an intermediate position.

)
Move the manual con-
trol to the left to be in
the "recycling interior
air" position.

)
Move the manual con-
trol to the right to re-
turn to the "fresh air
intake" position.
Manual control panel


Electric control panel



)
Press the button to recir-
culate the interior air. The
indicator lamp comes on
to confi rm this.

)
Press the button again to allow fresh
air into the passenger compartment.
The indicator lamp goes off to con-
fi rm this.



5. Air conditioning On/Off

Switching off


)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the
demisting in winter, above 3 °C.


Switching on


)
Press the "A/C"
button, the button's
indicator lamp comes on.
The air conditioning does not
operate when the air fl ow adjust-
ment control 2
is in position " 0
".

To obtain cooled air more quickly,
you can use recirculation of inte-
rior air for a few moments. Then
return to fresh air intake.

3
54
COMFORT

With the heating/ventilation
system


)
Put the temperature and air fl ow
controls to the dedicated marked
position.

)
Put the air intake control to the
"Exterior air intake" position
(manual control to the right or electric
control with indicator lamp off).

)
Put the air distribution control to the
"Windscreen" position.


FRONT DEMIST - DEFROST


These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the manual air conditioning system



)
Put the temperature and air fl ow
controls to the dedicated marked
position.

)
Put the air intake control to the
"Exterior air intake" position
(manual control to the right or elec-
tric control with indicator lamp off).

)
Put the air distribution control to the
"Windscreen" position.

)
Switch on the air conditioning by
pressing the "A/C"
button; the associ-
ated green warning lamp comes on.


With Stop & Start, when the
demisting, air conditioning and
air fl ow functions are activated,
STOP mode is not available.

3
55
COMFORT
DIGITAL AIR CONDITIONING
The air conditioning operates when the
engine is running, as well as in STOP
mode with Stop & Start. For your comfort, when the en-
gine is switched off, the settings
are retained until the engine is
switched on again.
To prevent too great a distribu-
tion of cold air when the engine
is cold, the air fl ow will only reach
its optimum level gradually.
On entering the vehicle, if the
interior is very cold or hot, there
is no need to change the value
displayed in order to reach the
required level of comfort. The
system corrects the temperature
difference automatically and as
quickly as possible.


1. Automatic "comfort" programme
Press the "AUTO"
button. The
"AUTO"
symbol is displayed.
We recommend that you use this mode.
It provides optimised automatic control
of all of the following functions: passen-
ger compartment temperature, air fl ow,
air distribution and air intake, in accor-
dance with the comfort value that you
have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed.
2. Temperature adjustment
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
Press the "



"
and "



"
but-
tons to change this value. A
setting around the value 21
en-
ables optimum comfort to be
obtained. However, depending
on your requirements, a setting
between 18 and 24 is usual.
3. Automatic "visibility" programme
The automatic comfort pro-
gramme may not be suffi cient
for rapid demisting or defrost-
ing of the windscreen and side
windows (humidity, several
passengers, ice, etc.).
In this case, select the automatic visibil-
ity programme. The button 3
indicator
lamp comes on.
The system automatically controls the
air conditioning and the fl ow of air and
provides optimum air distribution to the
windscreen and side windows. It deacti-
vates air recirculation 5
.
To exit this programme, press button 3

again or "AUTO"
, the indicator lamp on
the button goes off and "AUTO"
is dis-
played.


Manual override

It is possible to adjust one or more func-
tions manually while leaving the other
functions in automatic mode.
The "AUTO"
symbol switches off.
To return to automatic mode, press the
"AUTO"
button.
Switching to manual mode may
not be suitable (temperature,
humidity, odour, condensation)
and does not provide optimum
comfort.

3
56
COMFORT

4. Air conditioning on/off
Press this button to switch off
the air conditioning.
Stopping the air conditioning may cause
some problems (humidity, misting).
Automatic operation of the air condi-
tioning is resumed when the button is
pressed again. The symbol "A/C"
is
displayed.

5. Air intake/Air recirculation
Press this button for recircula-
tion of the interior air. The air
recirculation symbol 5
is dis-
played.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
6. Air distribution adjustment Avoid prolonged recirculation of
interior air (risk of condensation
or deterioration of the air quality).
Pressing this button several
times in succession enables
the air fl ow to be directed in
turn towards:


- the windscreen and the side win-
dows (demisting or defrosting),

- the windscreen, side windows and
air vents,

- the windscreen, the side windows,
the air vents and the footwells,

- the windscreen, the side windows
and the footwells,

- the footwells,

- the air vents and the footwells,

- the air vents.

7. Air fl ow adjustment
Press the "full fan"
button to
increase the air fl ow.
The air fl ow symbol, the fan, fi lls pro-
gressively according to the value re-
quested.

Switching the system off
Avoid driving for long periods
with the air conditioning switched
off (risk of misting and reduction
of the air quality in the cabin). Press the air fl ow "empty fan"

button 7
until the fan symbol
disappears.
This action switches off all of the func-
tions of the air conditioning system.

Thermal comfort is no longer controlled.
A slight fl ow of air resulting from the
movement of the vehicle, remains per-
ceptible however.
Pressing the air fl ow "full fan"
button 7
or
on "AUTO"
reactivates the system with
the values set before it was switched off. Press the "empty fan"
button
to decrease the air fl ow. For maximum cooling or heating
of the cabin, it is possible to go
beyond the minimum 14 or maxi-
mum 28 values.


)
Press the blue button 2
un-
til "LO"
is displayed or the
red button 2
until "HI"
is dis-
played. Press this button again or press the
"AUTO"
button to resume automatic
management of the intake of air. The air
recirculation symbol 5
goes off.

4
ACCESS

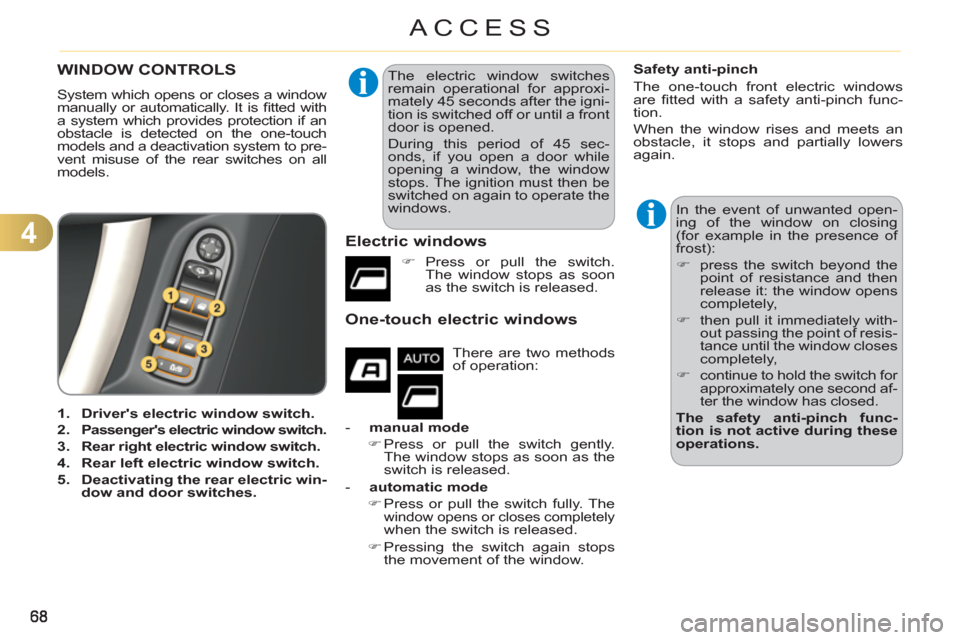

WINDOW CONTROLS
System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to pre-
vent misuse of the rear switches on all
models.


1.
Driver's electric window switch.


2.
Passenger's electric window switch.


3.
Rear right electric window switch.

4.
Rear left electric window switch.


5.
Deactivating the rear electric win-
dow and door switches.


Electric windows



)
Press or pull the switch.
The window stops as soon
as the switch is released.

The electric window switches
remain operational for approxi-
mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.
During this period of 45 sec-
onds, if you open a door while
opening a window, the window
stops. The ignition must then be
switched on again to operate the
windows.
One-touch electric windows

There are two methods
of operation:


- manual mode



)
Press or pull the switch gently.
The window stops as soon as the
switch is released.

- automatic mode



)
Press or pull the switch fully. The
window opens or closes completely
when the switch is released.

)
Pressing the switch again stops
the movement of the window.

Safety anti-pinch
The one-touch front electric windows
are fi tted with a safety anti-pinch func-
tion.
When the window rises and meets an
obstacle, it stops and partially lowers
again.
In the event of unwanted open-
ing of the window on closing
(for example in the presence of
frost):


)
press the switch beyond the
point of resistance and then
release it: the window opens
completely,

)
then pull it immediately with-
out passing the point of resis-
tance until the window closes
completely,

)
continue to hold the switch for
approximately one second af-
ter the window has closed.

The safety anti-pinch func-
tion is not active during these
operations.

4
69
ACCESS

Deactivating the rear window and
door switches


)
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
With the lamp on, the rear controls are
deactivated.
With the lamp off, the rear controls are
activated.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child
lock").


In the event of a malfunction you have
to reinitialise the operation of the elec-
tric windows:


)
release the switch and pull it again
until the window closes completely,

)
hold the switch for approximately
one second after closing,

)

press the switch to lower the window
automatically.

The safety anti-pinch function is not
active during these operations.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, reverse
the movement of the window.
To do this, press the switch con-
cerned.
When the driver operates the
passenger electric window
switches, they should ensure
that no one is preventing correct
closing of the windows.
The driver should ensure that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
