CONTENTS
Ventilation 50Heating 52Manual air conditioning 52Digital air conditioning 55Rear screen demist - defrost 57Scented air freshener 58Front seats 59Rear seats 61Mirrors 62Steering wheel adjustment 63
3 - COMFORT 50 Î 63
Remote control key 64
Window controls 68Doors 70Boot 73Fuel tank 74Misfuel prevention (Diesel) 76
4 - ACCESS 64 Î 76
Lighting controls 77Headlamp adjustment 80Wiper controls 81Courtesy lamps 84
Interior mood lighting 85Boot lamp 85
5 - VISIBILITY 77Î 85
Child seats 92ISOFIX child seats 97Child lock 100
7 - CHILD
SAFETY 92 Î 100 FAMILIARISATION 4
Î20
Monochrome screen A 43Monochrome screen C 4516/9 colour screen (MyWay) 48
2 - MULTIFUNCTION
SCREENS 43 Î49
Interior fi ttings 86Boot fi ttings 90
6 - FITTINGS86Î 91
Instrument panels 23Indicator and warning lamps 25Indicators 35Adjustment buttons 38Trip computer 40
1 - MONITORING 23Î42
ECO-DRIVING 21Î22

4

Rear parking sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.



127


Stop & Start
This system puts the engine temporarily
into standby during stops in the traf-
fi c (red lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system reduces fuel consumption,
exhaust emissions and the noise level
when stationary.



11 9


Temporary puncture repair kit
This kit is a complete system consisting
of a compressor and sealant cartridge,
to allow the temporary repair of a tyre.



136

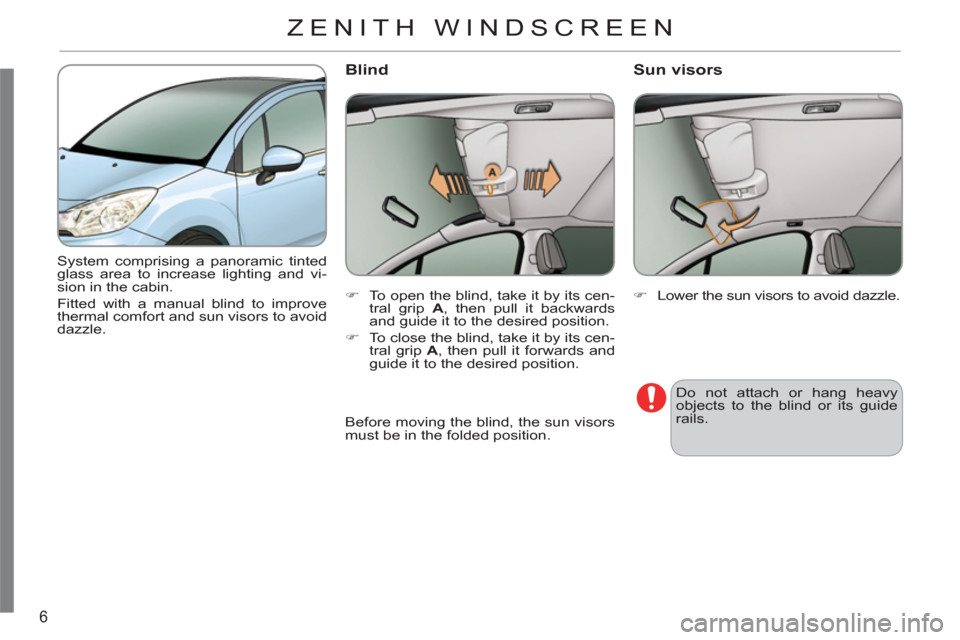

Zenith windscreen
This large windscreen provides incompa-
rable visibility and light in the passenger
compartment.



6


EXTERIOR

6
System comprising a panoramic tinted
glass area to increase lighting and vi-
sion in the cabin.
Fitted with a manual blind to improve
thermal comfort and sun visors to avoid
dazzle.

)
To open the blind, take it by its cen-
tral grip A
, then pull it backwards
and guide it to the desired position.

)
To close the blind, take it by its cen-
tral grip A
, then pull it forwards and
guide it to the desired position.

)
Lower the sun visors to avoid dazzle.
Do not attach or hang heavy
objects to the blind or its guide
rails.
Blind Sun visors

Before moving the blind, the sun visors
must be in the folded position.

ZENITH WINDSCREEN

FAMILIARI
S
AT I
ON

Interior mood lighting
This subdued passenger compartment
lighting improves visibility inside the vehi-
cle in low lighting conditions. It comprises
several lamps, located in the automatic
day/night mirror support and in the lower
dashboard storage compartment.



85



Gear shift indicator
Associated with the manual gearbox,
this system suggests when to change
up to obtain optimum fuel consumption.



111


Scented air freshener
The scented air freshener diffuses the
selected fragrance throughout the pas-
senger compartment from its location in
the ventilation system.



58



Digital air conditioning
After setting the desired level of comfort,
the system then automatically controls
this level according to the ambient condi-
tions.



55



Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Audio sys-
tem, USB port, Bluetooth hands-free
system, MyWay with 16/9 colour screen,
auxiliary inputs, Hi-Fi audio system.

MyWay




181


Audio system




213




INTERIOR

8


1.
Cruise control/speed limiter
switches.

2.
Headlamp height adjustment.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicators
control stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Gear lever.

8.
12 V accessory socket
USB port/auxiliary socket.

9.
Heated seat control.

10.
Bonnet release lever.

11 .
Door mirror controls.
Electric window controls.
Rear doors and electric windows
deactivation switch.

12.
Fusebox.

13.
Stop & Start switch
Electronic stability programme
switch (ESP/ASR).

14.
Front door window demisting/
defrosting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting/defrosting
vent.

13
FAMILIARI
S
AT I
ON

Lighting


Ring A

Ring B



77


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamps.
or
Front and rear foglamps.
Wipers


2.
Fast wipe.

1.
Normal wipe.

Int.
Intermittent wipe.

0.
Park.

AUTO È

Automatic wiping or single wipe.



81





82


Park.
Intermittent wipe.
Wash-wipe.
Control stalk A: windscreen wipers
Wash-wipe: pull the control stalk towards
you.
Switching on "AUTO" mode


)
Push the control stalk downwards
and release it.


Switching off "AUTO" mode


)
Push the control stalk upwards and
return it to position "0"
.

Ring B: rear wiper


83


SEEING CLEARLY

21
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instru-
ctions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traffi c
noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
MONITORING
Panel grouping together the vehicle operation indication dials and warning lamps.
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS


5.
Display management button


Servicing information.
Adjust the time and choose units.
Reset the service indicator.

6.
Instrument panel lighting button.


Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.


1.
Rev counter.

Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

3.
Fuel level.


Indicates the quantity of fuel remaining
in the tank.

4.
Screen.


A.
Ambient temperature.


(°Celsius or °Fahrenheit)

B.
Gear
shift
indicator.


C.
Time.


D.
Engine oil level indicator.



Appears a few seconds after switching
on the ignition, then disappears.

E.
Trip computer.


F.
Service indicato

r.


(miles or km) then,
Total mileage.


These two functions are displayed
successively when switching on the
ignition.


Screen
