CHECKS
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the servicing book-
let for the details of the level
checking interval for this com-
ponent.
Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
interval for this component.
Manual parking brake

If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
Checking this system must be done by
a CITROËN dealer or a qualifi ed work-
shop.
















Only use products recommend-
ed by CITROËN or products of
equivalent quality and specifi ca-
tion.
In order to optimise the opera-
tion of units as important as the
braking system, CITROËN se-
lects and offers very specifi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly prohibited
.

Particle emission filter (Diesel)

According to your version of instrument
panel, the start of saturation of the par-
ticle emissions fi lter is indicated by:
On a new vehicle, the fi rst opera-
tions of regeneration of the particle
emissions fi lter may be accom-
panied by the smell of "burning",
which is perfectly normal.
Following prolonged operation of
the vehicle at very low speed or
at idle, you may, in exceptional
circumstances, notice the emis-
sion of water vapour at the ex-
haust on acceleration. This does
not affect the behaviour of the
vehicle or the environment.

- fi xed illumination of the
particle emissions fi lter
warning lamp, accompa-
nied by an audible signal,
or

- temporary illumination of
the service warning lamp,
accompanied by an audible
signal and a message that
there is a risk of blockage of
the particle emissions fi lter.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, refer to the
"Additive level" section.
Electronic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
terval for this component.
Brake pads
Brake disc wear

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. For information on checking
brake disc wear, contact a
CITROËN dealer or a quali-
fi ed workshop.

11
136
PRACTICAL INFORMATION

The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.

TEMPORARY PUNCTURE REPAIR KIT

Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.

This kit is installed in the storage box,
under the boot fl oor.
Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


- a cable with adaptor for 12 V
socket,

- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.

Access to the kit

11
137
PRACTICAL INFORMATION

Avoid removing any foreign
bodies which have penetrated
into the tyre.


Repair procedure



)
Switch off the ignition.

)
Turn the selector A
to the
"sealant" position.

)
Check that the switch B
is in
position "O"
.
1. Sealing

)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white
pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the en-
gine running.

Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep it out of reach of children.
Do not start the compressor
before connecting the white
pipe to the tyre valve: the seal-
ant product would be expelled
through the pipe.

11
138
PRACTICAL INFORMATION

)

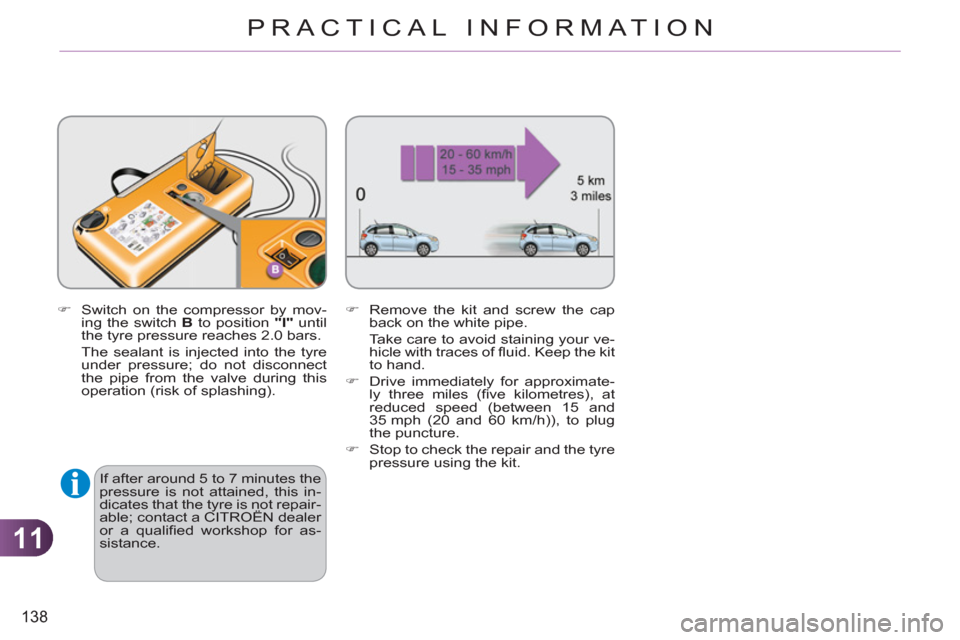

Switch on the compressor by mov-
ing the switch B
to position "I"
until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve-
hicle with traces of fl uid. Keep the kit
to hand.

)
Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph (20 and 60 km/h)), to plug
the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.


If after around 5 to 7 minutes the
pressure is not attained, this in-
dicates that the tyre is not repair-
able; contact a CITROËN dealer
or a qualifi ed workshop for as-
sistance.

11
139
PRACTICAL INFORMATION

)
Visit a CITROËN dealer or a
qualifi ed workshop as soon
as possible.
You must inform the technician
that you have used this kit.
After inspection, the technician
will inform you whether the tyre
can be repaired or must be re-
placed.


2. Infl ation


)
Turn the selector A
to the
"air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.
)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or quali-
fi ed workshop for assistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).

11
140
PRACTICAL INFORMATION
Removing the cartridge


)
Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in po-
sition "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.

)
Remove the kit then stow it.




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)

Unscrew the cartridge from the bottom.



Beware of discharges of fl uid.
The expiry date of the fl uid is in-
dicated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste dispos-
al site or a CITROËN dealer.
Do not forget to obtain a new
sealant cartridge, available from
CITROËN dealers or from a
qualifi ed workshop.

Checking tyre pressures/inflating accessories


You can also use the compressor, with-
out injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories (balls, bi-
cycle tyres...).


)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.

11
141
PRACTICAL INFORMATION
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools

The tools are installed in the boot under
the fl oor.
To gain access to them:


)
open the boot,

)
raise the fl oor,

)
remove the polystyrene storage box,

)
unclip and remove the box containing
the tools.
Wheel with trim

When removing the wheel
, fi rst detach the trim using the wheelbrace 1

pulling at the valve passage hole.

When refi tting the wheel
, refi t the trim starting by placing its cut-out at the
valve and press around its edge with the palm of your hand.

List of tools
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
Wheelbrace.
For removing the wheel trim and
removal of the wheel fi xing bolts.

2.
Jack with integral handle.
For raising of the vehicle.

3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.

4.
Socket for the security wheel
bolts (located in the glove box).
For adapting the wheelbrace to
the special "security" wheel bolts
(if your vehicle has them).

11
PRACTICAL INFORMATION

Access to the spare wheel

The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel may
be steel or of the "space-saver" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page.

Fitting the steel or "space-
saver" type spare wheel
If your vehicle is fi tted with al-
loy wheels, it is normal to notice,
when tightening the bolts on fi t-
ting, that the washers do not
come into contact with the steel
or "space-saver" type spare
wheel. The wheel is secured by
the conical contact of each bolt.
Taking out the wheel


)
Unscrew the yellow central bolt.

)
Raise the spare wheel towards you
from the rear.

)
Take the wheel out of the boot.


Putting the wheel back in place


)
Put the wheel back in its housing.

)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

)
Tighten fully until the central bolt
clicks to retain the wheel correctly.

)
Put the box back in place in the centre
of the wheel and clip it.

)
Put the polystyrene storage box
back in place.

)
Refi t the boot fl oor carpet by lightly
folding it in two (refer to the section
"Fittings - § Storage box").


On vehicles equipped with a
"space-saver" type spare wheel,
the punctured wheel cannot be
stowed in place of the "space-
