2012 Citroen C ZERO Owner's Manual

04
143
USING THE TELEPHONE
Make along press on SRC/TEL
to display the calls list.

In the list o
f calls, select the number and choose "Missed calls", "Dialed calls"
or "Answered calls".

Previous or next page in the calls list.
"OK"
starts the call.


MAKING A CALL - RECENTLY CALLED NUMBERS *




Navigation in the calls list.
The calls list includes the calls sent from and b
y from the vehicle via
the connected telephone.
It is possible to make a call directl
y from the telephone; stop the
vehicle as a safety measure.

* Dependin
g on the compatibility of the telephone.
For access to the calls list, it is also possible to press MENU, select "Telephone", then select "Call"
, and fi nally select "Calls
list".

04
144
USING THE TELEPHONE
Press MENU , select "Telephone".

An incoming call is announced by a ring and a superimposed display in the screen.
Select the desired number and confi rm.
"OK"
to start the call.
Press SRC/TEL
or select "YES " to
accept the call,
or
select "NO"
to reject the call.


MAKING A CALL - FROM THE DIRECTORY

RECEIVING A CALL

A long press on ESC
or on SRC/TEL
also rejects an incoming call.
Select Callthen "Directory".

04
145
USING THE TELEPHONE

HANG UP

In the contextual menu:

-
select "Combined mode"to transfer the call to the telephone.

-
select "Combined mode"
to transfer the call to the vehicle.
In the contextual menu:
-
select " Micro OFF
" to switch off themicrophone.
-
select " Micro OFF
" to switch the
microphone on again.
In certain cases, the combined mode has to activated
from the
telephone.
The Bluetooth connection will be restored automaticall
y if the ignition
has been switched off, then on again (depending on the compatibility
of the telephone).



MANAGING CALLS


A long press on SRC/TELalso ends
the call. In the contextual menu,
select "Hang up"to end the call.
SECRET - MUTE

(so that the caller cannot hear)

COMBINED MODE

(to leave the vehicle without ending the call)

05
146

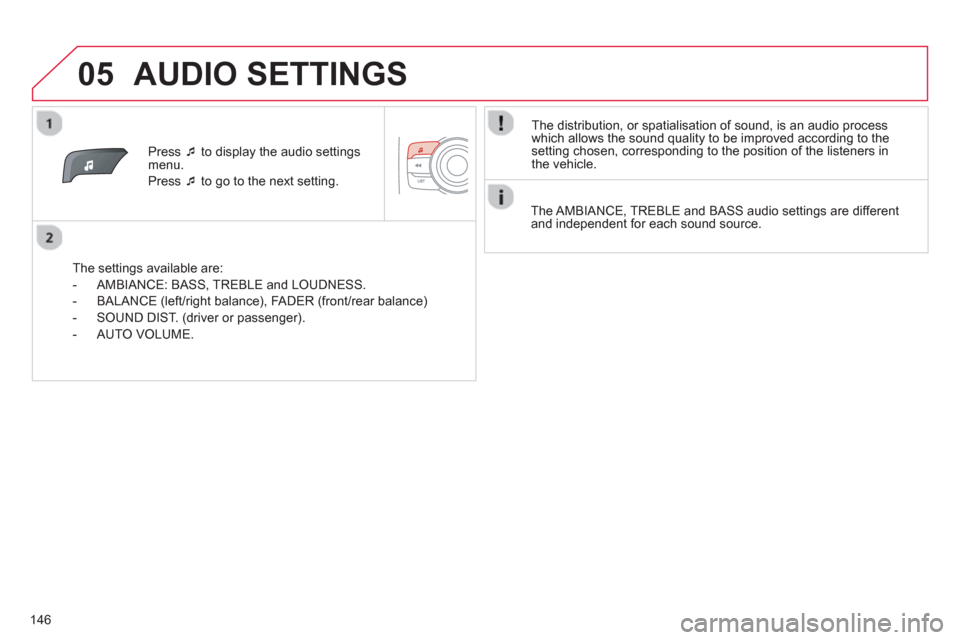

Press ‘to display the audio settings menu.
Press ‘to go to the next setting.

The settings available are:


- AMBIANCE: BASS
, TREBLE and LOUDNESS.

- BALAN
CE (left/right balance), FADER (front/rear balance)


- SOUND DIST. (driver or passenger).

- A
UTO VOLUME.

The distribution, or spatialisation of sound, is an audio process
w
hich allows the sound quality to be improved according to the setting chosen, corresponding to the position of the listeners in
the vehicle.
AUDIO SETTINGS
The AMBIANCE, TREBLE and BASS audio settings are different
and independent for each sound source.

06
147
CONFIGURATION

DISPLAY and LANGUAGE SETTINGS
Press MENU
then "Confi g.".
Select "System"
when you want to install an update. Information can be obtained from a CITROËN dealer.yyp

Select "Language"to modify the display language.
Select "Displaying"to activate or deactivate scrolling text.
Select "Version"
for information on the software.

07
148
SCREEN MENU MAP
1
2
2
2
2
1
2
2
2
1
2
2
2
2
3
3
1
2
2
4
4
4
1
2
3
2
3
3
3
3
3
3
3
2
2
3
3
3
MENU
Radi
o
TA
RD
S
TXT
Write freq.
Media
Normal
Random
Random all
Telephone
Call
Repeat
TA
Phone status
Directory
Calls list
Bluetooth
BT mana
gement
Search
Missed calls
Dialed calls
An
swered calls
Confi g.
Displaying
Scrolling text
Language
D
eutsch
En
glish
Español
Français
It
aliano

Nederlands

Português
Version
System Portu
guês-Brasil
Р
усский
T
ürkçe
2Time

149
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
There is a difference in sound quality between
the different audiosources (radio, CD...).
For optimum sound qualit
y, the audio settings (volume, bass, treble, ambience, loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
Check that the audio settings (volume, bass,
treble, ambience, loudness) are adapted to thesources listened to. It is advisable to adjust audio settings (bass, treble, Front-Rear balance, Left-Right balance) to the middle position, select the musical ambience and set the loudness correction
to the "Active" position in CD mode or to the "Inactive" position in radio mode.

When changing the settings for treble and
bass, the ambience
setting is deselected.
When chan
ging the
ambience setting, treble and bass are reset to zero.
Choosing an ambience imposes settings for treble and bass. Modifyingone without the other is only possible with a personalised ambience. Modify the treble and bass settings or the
ambience setting to obtain the desired sound
quality.

When changing the balance setting, distribution is deselected.
Choosing the "driver" distribution setting imposes a balance setting. Modify the balance setting or the distribution setting to obtain the desired sound quality. The
following tables contain answers to the most frequently asked questions.

150
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of receptionof the radio station
listened to gradually
deteriorates or the stored stations do not function(no sound, 87.5 MHz is
displayed...). The vehicle is too far from the transmitter used b
y the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Tr
affi c announcementTA is displayed. I donot receive any traffi c
information.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
Th
e stored stations arenot found (no sound, 87.5 MHz is displayed...). An in
correct waveband is selected. Press the SRC/TEL button to return to the
waveband (FM1 or FM2) on which the stations arestored.
