2012 Citroen C CROSSER Button a

9
FAMILIARI
S
AT I
ON

INSTRUMENTS AND CONTROLS
1.
Audio system controls.
2.
Telephone controls.
3.
Steering wheel adjustment control.
4.
Lighting and direction indicator control stalk.
Headlamp wash control.
5
. Instrument panel.
6
. Driver's airbag.
H
orn.
7. Cruise control switches.
8.
Gear lever.
9.
Parking brake.
10.
Bonnet release lever.
11.Enclosed storage compartment.
F
usebox.
12. Headlamp height adjustment.
Deactivation o
f the ASC system.
Deactivation o
f the audible parkingsensors.
13. Cup holder.
14.
Side adjustable air vent.
15.
Information button.
16.
Window demisting/defrosting vent.
17.
Windscreen demisting/defrostingvent.

18
FAMILIARI
S
AT I
ON

Cruise control

This maintains a constant vehicle speed
programmed by the driver.
1."ON/OFF"button: activation/deactivation of cruise control mode.
2."COAST SET"
button: storing of a driving speed then decreasing the cruising speed.
3."ACC RES"
button: increasing the cruising speed and recalling the stored speed.
4."CANCEL"
button: switching off the cruise control.

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second gear engaged.This detects obstacles
(person, vehicle,
tree, gate, ...) located behind the vehicle.
Th
e vehicle is fi tted with four sensors:
D. two side sensors.
E
. two central sensors.
Audible rear parking sensors
121
123


DRIVING SAFELY

Four wheel drive system

Three transmission modes are avail-
able and can be selected manually bythe driver to suit the circumstances:
A. Two wheel drive
(2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK).
 11 9
Also...
You can change transmission modewhen stationary or when driving at aspeed below 60 mph (100 km/h).

I
22
INSTRUMENT PANEL WARNING LAMPS


Warning lamp



is on



Cause



Actions/

Observations



Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.

Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.

Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

I
MONITORING
25 Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.
Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.
Symbols which appear in the top right corner of the screen.



Message



is on



Cause



Solution - action



Observations




Key in
ignition


Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.


Lighting


left on


Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.

I
31 The total distance is
displayed in zone 1
of the screen and the
trip distance in zone 2

(refer to the "Distance
recorders" section).
Distance recorder (A and B)

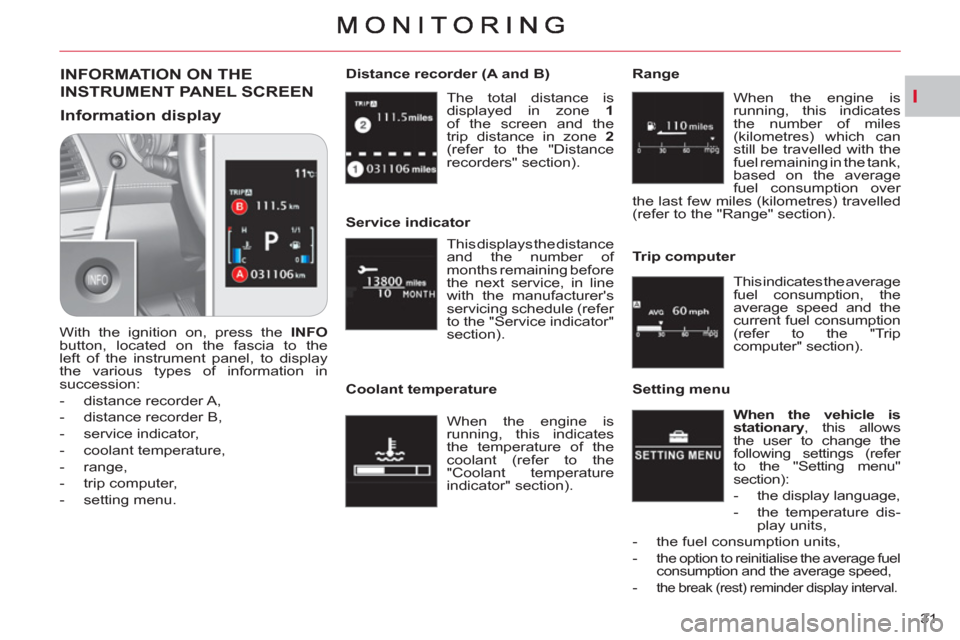

INFORMATION ON THE
IN
STRUMENT PANEL SCREEN
Information displa
y
With the ignition on, press the INFO
button, located on the fascia to the
left of the instrument panel, to display
the various types of information in
succession:


- distance recorder A,

- distance recorder B,

- service indicator,

- coolant temperature,

- range,

- trip computer,

- setting menu. This displays the distance
and the number of
months remaining before
the next service, in line
with the manufacturer's
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank,
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the average
fuel consumption, the
average speed and the
current fuel consumption
(refer to the "Trip
computer" section).
Trip computer

When the vehicle is
stationary
, this allows
the user to change the
following settings (refer
to the "Setting menu"
section):


- the display language,

- the temperature dis-
play units,

- the fuel consumption units,

-
the option to reinitialise the average fuel
consumption and the average speed,

- the break (rest) reminder display interval.




Setting menu

I
!
!
MONITORING
32 The total distance is
displayed in zone 1
of
the screen and the trip
distance in zone 2
.
DISTANCE RECORDERS (A/B)

System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the critical
position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.

You must stop your vehicle as soon
as it is safe to do so.


Wait a few minutes before switching
off the engine.

Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running
, this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km)
, dashes are displayed.
Refuel as soon as possible. The display
of the range is updated.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Contact a CITROËN dealer or a
qualifi ed workshop. This fi gure may increase following a
change in the style of driving or the
relief, resulting in a reduction in the
current fuel consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect the
battery, the previous fuel
consumption data is lost and the
value displayed will be different from
that displayed before the battery was
disconnected. The distance displayed
must be considered an approximate
indication.

I
MONITORING
33
SERVICE INDICATOR Resetting the service indicator to zero
Your CITROËN dealer or a qualifi ed
workshop carries out this operation
after each service.
If you have carried out your vehicle's
service yourself, the zero reset
procedure is the following:


)
switch off the ignition.

)
press the INFO
button several times
in succession until the service indi-
cator is displayed.

)
press and hold the INFO
button for
a few seconds until the spanner
fl ashes
.

)
press the INFO
button while the
spanner is fl ashing to change the dis-
play "---"
to "CLEAR"
then the time
remaining before the next service is
due is displayed.


Service overdue
O
peration
When the ignition is switched on, you
must press the INFO
button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a certain
time, the display of "---"
is reinitialised
and the display indicates the time
remaining before the next service is
due. System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:


- the distance travelled (in miles (km)),

- the time elapsed since the last ser-
vice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user's driving habits.
Example:
the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--"
remains displayed
until the fi rst service of a new vehicle
has been carried out.

Example:
the display indicates that the
service is overdue. This service must
be carried out by a CITROËN dealer or
a qualifi ed workshop. Each time the ignition is switched on,
the display "PERIODIC INSPECTION"

is displayed for a few seconds to
indicate that the service must be carried
out without delay.

I
MONITORING
34
TRIP COMPUTER Average fuel consumption (l/100 km or km/l or mpg)
This is the average fuel
consumption since the
last zero reset.
This fi gure may change following
a change in the style of driving or
the relief resulting in an increase
or decrease in the current fuel
consumption.


Average speed (km/h
or mph)
This is the average
speed calculated since
the last zero reset.
Resetting the information to zero

When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed for long
periods in place of the digits while
driving, contact a CITROËN dealer or
a qualifi ed workshop.


Current fuel consumption(l/100 km or km/l or mpg)
This is the average fuel
consumption during the
last few seconds of driving.
Information display

With the ignition on, press the INFO

button on the dashboard, to the left
of the instrument panel, several times
in succession to display the different
information:


- average fuel consumption,

- average speed,

- current fuel consumption. When the required information is
displayed, press the INFO
button for
more than two seconds to reset all of
the information to zero.

Automatic
If the ignition key remains in the
OFF position for more than 4 hours,
the information is reset to zero
automatically.
