2012 Citroen C CROSSER Button a
[x] Cancel search: Button aPage 45 of 244
I
MONITORING
43
1.
RDS Auto Correct:
Activate/deactivate automatic ad-
justment.
2.
GMT/GMT+1/GMT+2
Select the time zone.
3.
Summer Time:
Summer time On/Off.
)
Press button D
to confi rm and re-
turn to the previous menu.
)
Press button C
to access the "Time"
menu
.
You must deactivate automatic
adjustment (RDS Auto Correct) to
change the time zone and summer
time settings.
On each screen, you can return to
the previous screen by pressing
button D "Return"
.
Once this menu has been selected, you
can access the following functions: LIGHTING RHEOSTAT
With the lighting on or off, press the
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 50 of 244
II
COMFORT
48
Air conditioning On/Off (5)
)
Press button 5
to activate the air
conditioning.
The indicator lamp comes on.
Intake of exterior air/
Recirculation of interior air (4)
This function insulates the passenger
compartment from exterior odours and
smoke.
)
Press button 4
to select the air in-
take mode.
When the indicator lamp on button 4
is off, the exterior air intake function is
on.
When the indicator lamp on button 4
is
on, the intake of exterior air is off and
the system is in air recirculation mode.
Do not drive for long periods in interior
air recirculation mode, except in truly
exceptional atmospheric conditions.
Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
cally. However, you can deactivate its
automatic control if you wish to change
the air intake mode at any time.
Personalisation of the Air
Conditioning On/Off function
This function is controlled automati-
cally. However, you can deactivate its
automatic control if you wish to activate
or deactivate the air conditioning at any
time.
The settings are retained, even after
switching off the ignition.
Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically.
Changing the status
Press the Air Conditioning On/Off button
for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, or if the temper-
ature control dial is set to the minimum
temperature, the air conditioning sys-
tem is controlled automatically.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
Page 51 of 244
II
COMFORT
49
Windows and windscreen demisting/defrosting
Demisting/defrosting
1.
Press button A
to select "exterior air
intake". The indicator lamp on this
button goes off.
2.
Place the air distribution dial in the
"windscreen, side windows and
footwells" position.
3.
Select the air fl ow required.
4.
Select the temperature required.
5.
Press the "air conditioning on/off"
button B
to activate the air condi-
tioning. The indicator lamp on this
button comes on.
Rapid demisting/defrosting
1.
Place the air distribution dial in the
"windscreen and side windows" po-
sition.
2.
Select the maximum air fl ow.
3.
Select the maximum temperature.
Rear screen demisting/
defrosting (6)
With the engine running, press button 6
to activate the demisting/defrosting of
the rear screen and door mirrors.
The indicator lamp on the button comes
on while the demisting/defrosting is in
operation.
The demisting/defrosting goes off au-
tomatically to prevent excessive con-
sumption of current.
Demisting/defrosting can be stopped
before it is switched off automatically
by pressing the button again.
It is advisable to switch off the
rear screen demisting/defrost-
ing as soon as possible as lower
current consumption reduces fuel
consumption.
Page 54 of 244
II
!
COMFORT
52
Front armrest
You can move the console housing cover
in order to use it as an armrest.
With the engine running
, tilt the button
to the position required.
The temperature of the seat is regulated
automatically.
There are two setting positions:
- "HI": High heating
- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A
come on when
the system is activated.
Heated seats adjustment
)
To raise it, pull upwards.
)
To lower it, push it downwards,
pressing the height adjustment but-
ton at the same time.
)
To remove it, raise it to the high
position, then remove it pressing
the height adjustment button at the
same time.
)
To r efi t it, engage the rods of the
head restraint in the apertures,
pressing the height adjustment but-
ton at the same time.
Head restraint height adjustment
Never drive with the removed head
restraints in the vehicle as they
could be thrown around the vehi-
cle on sharp braking. They must always
be in place and adjusted correctly.
After installing the head restraint,
check that the height adjustment but-
ton has engaged correctly.
The adjustment is correct when the
top of the head restraint is aligned
with the top of the head of the seated
person.
Page 57 of 244
II
!
COMFORT
55

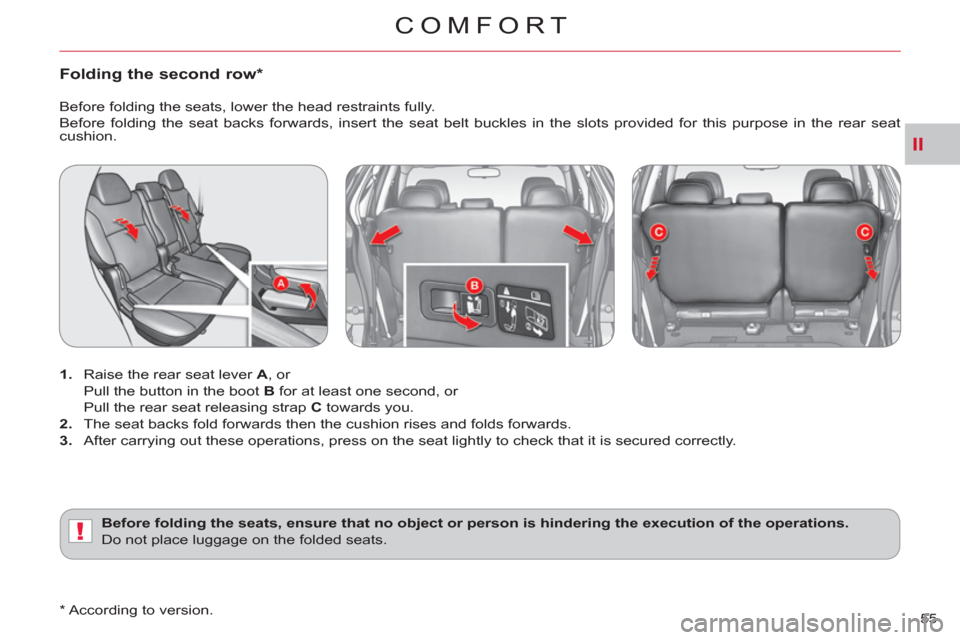

Folding the second row *
1.
Raise the rear seat lever A
, or
Pull the button in the boot B
for at least one second, or
Pull the rear seat releasing strap C
towards you.
2.
The seat backs fold forwards then the cushion rises and folds forwards.
3.
After carrying out these operations, press on the seat lightly to check that it is secured correctly. Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt buckles in the slots provided for this purpose in the rear seat
cushion.
Before
folding
the
seats
,
ensure that no object
or person is hindering
the execution of the operations.
Do not place luggage on the folded seats.
*
According to version.
Page 63 of 244
II
!
COMFORT
61
DOOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Direct control B
in all four directions
to adjust the mirror.
When adjustment is complete, return
control A
to the central position.
Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position
)
by pressing the control C
.
- from inside, with the ignition switch
in the "LOCK" position:
)
by pressing the control C, within
30 seconds.
- from outside using the remote control:
)
by pressing the "closed pad-
lock button briefl y 3 times to fold
them,
)
by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the door
mirrors can be confi gured via the co-
lour screen "Equipment" menu or de-
activated by a CITROËN dealer or a
qualifi ed workshop. The mirrors can also be folded
manually.
If you have folded the mirrors using
the control C
, you must use this con-
trol to unfold them, otherwise the mir-
rors will not be lock in place correctly.
If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:
)
Press the control C
to unfold
them.
Page 64 of 244
II
COMFORT
62
REAR VIEW MIRROR
Adjust the mirror by moving it up or
down and/or to the left or right.
The rear view mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
AUTOMATIC REAR VIEW
MIRROR *
AUTOMATIC REAR VIEW
MIRROR WITH REVERSING
CAMERA*
This automatically and gradually
changes between the day and night po-
sitions.
To prevent dazzling, the glass of the
mirror darkens automatically depend-
ing on the intensity of the light from be-
hind. It clears as the light (headlamps of
following vehicles, sunlight) decreases,
ensuring maximum visibility.
You can deactivate automatic mode by
pressing the " AUTO
" button.
Combined with a camera fi tted at the
rear of the vehicle, this mirror allows the
driver to see what there is behind the
vehicle when reversing.
With reverse engaged, is screen is
displayed automatically in the mirror
glass.
A warning message appears suggesting
that you check around your vehicle.
The screen disappears when another
gear is engaged.
You can deactivate automatic mode by
pressing the " AUTO
" button.
*
According to country of sale.
Page 67 of 244
II
COMFORT
65
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.
Cooled upper glove box
Press button A
on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A
.
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is illuminated on opening when the
vehicle lighting is on.
