2012 CHRYSLER TOWN AND COUNTRY washer fluid

•Key not programmed
•Vehicle Not in Park
•Key Left Vehicle
•Key Not Detected
•Press Brake Pedal and Push Button to Start
•Door(s) Ajar (with a single chime, if vehicle is in
motion)
•Liftgate Ajar (chime will sound when vehicle starts
moving)
•Low Tire Pressure
•Service TPM System (refer to “Tire Pressure Monitor-
ing System” in “Starting And Operating”)
•Turn Signal On
•RKE Battery Low
•Service Keyless System
•LOW WASHER FLUID
•Oil Change Required
•Check Gascap
•Left Front Turn Signal Light Out
•Left Rear Turn Signal Light Out
•Right Front Turn Signal Light Out
•Right Rear Turn Signal Light Out
•Park Assist Disabled
•Service Park Assist System
•Personal Settings Not Available — Vehicle Not in Park
•Blind Spot System Off — This message is displayed
when the ignition is turned to ON to indicate the Blind
Spot System has been turned off.
308 UNDERSTANDING YOUR INSTRUMENT PANEL

•Electronic Speed Control SETThis light will turn on when the electronic
speed control is SET. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
EVIC Amber Telltale Lights
This area will show reconfigurable amber caution tell-
tales. These telltales include:
•Low Fuel LightWhen the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
•Loose Gascap Indicator If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the telltale display area. Tighten
the fuel filler cap properly and press the SELECT button to turn off the message. If the problem continues, the
message will appear the next time the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
•Windshield Washer Fluid Low Indicator
This light will turn on to indicate the wind-
shield washer fluid is low.
EVIC Red Telltale Lights
This area will show reconfigurable red telltales. These
telltales include:
•Door AjarThis light will turn on to indicate that one or
more doors may be ajar.
310 UNDERSTANDING YOUR INSTRUMENT PANEL

ENGINE COMPARTMENT — 3.6L
1 — Air Filter6 — Engine Coolant Reservoir
2 — Power Steering Fluid Reservoir 7 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 8 — Engine Oil Fill
4 — Battery 9 — Coolant Pressure Cap
5 — Totally Integrated Power Module (Fuses) 10 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 553

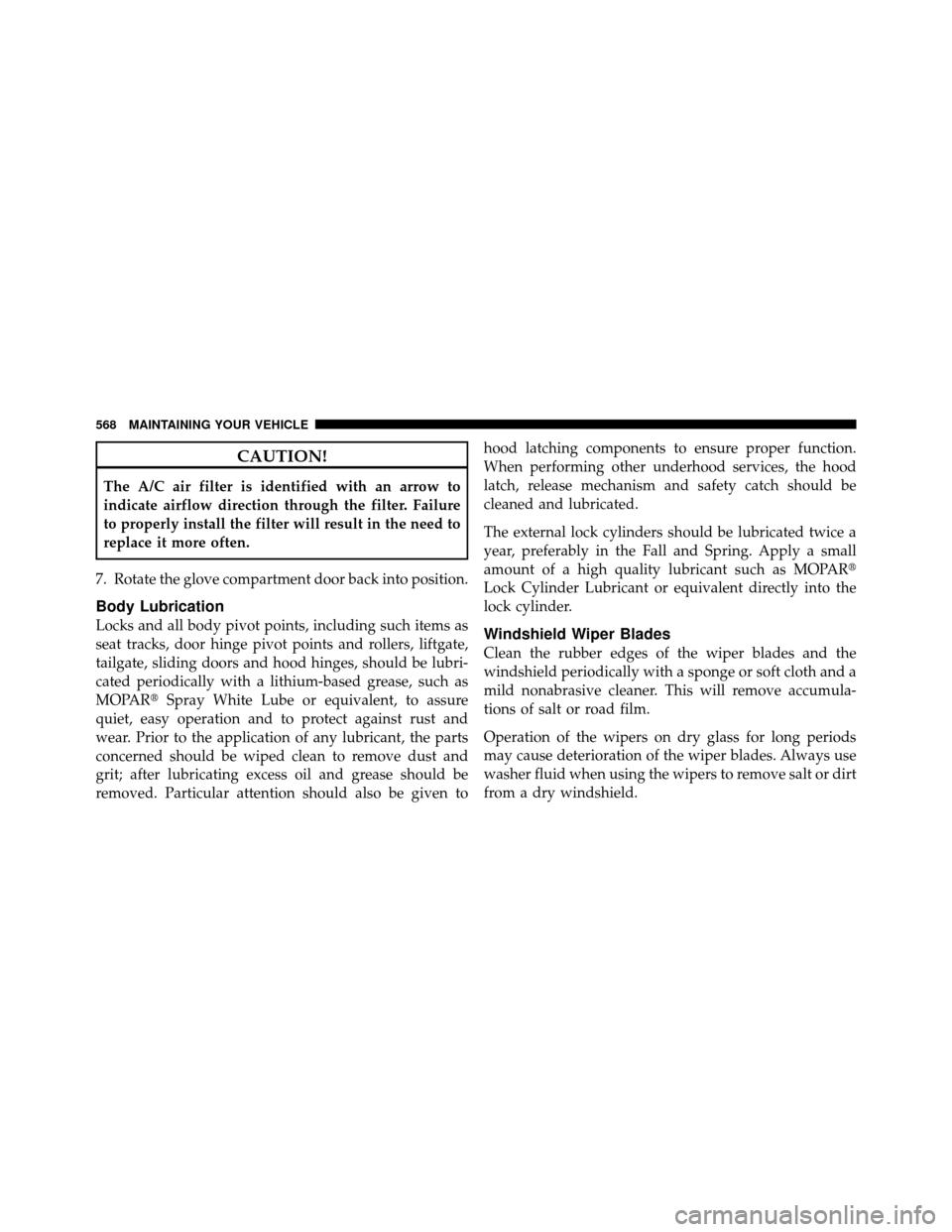

CAUTION!
The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to properly install the filter will result in the need to
replace it more often.
7. Rotate the glove compartment door back into position.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium-based grease, such as
MOPAR Spray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
568 MAINTAINING YOUR VEHICLE

Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the engine
compartment and should be checked at regular intervals.
Fill the reservoir with windshield washer solvent (not
radiator antifreeze) and operate the system for a few
seconds to flush out any residual water.
The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
After the engine has warmed, operate the defroster for a
few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. MOPAR All
Weather Windshield Washer Solution or equivalent, used
with water as directed on the container, aids cleaning
action, reduces the freezing point to avoid line clogging,
and is not harmful to paint or trim.
7
MAINTAINING YOUR VEHICLE 569

Adding Engine Coolant (Antifreeze).......... 572
Adding Fuel ........................... 499
Adding Washer Fluid ..................... 569
Additives, Fuel ......................... 493
Adjustable Pedals ....................... 216
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 561
Air Conditioner Maintenance ............... 565
Air Conditioning ........................ 398
Air Conditioning Controls ................. 398
Air Conditioning Filter .................419,566
Air Conditioning Refrigerant ............... 565
Air Conditioning System .............398,406,565
Air Conditioning System, Zone Control ........ 398
Air Conditioning, Operating Tips ............ 419
Air Conditioning, Rear Zone .............403,414
Air Pressure, Tires ....................... 471
Airbag .............................. 75,84
Airbag Deployment ....................... 85
Airbag Light .................... 82,88,105,297Airbag Maintenance
....................... 87
Airbag, Side ........................ 78,81,84
Airbag, Window (Side Curtain) ...........79,81,84
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 298
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 349
Anti-Lock Warning Light .................. 293
Anti-Theft System ........................ 17
Antifreeze (Engine Coolant) ..............571,599
Disposal ........................... 573
Appearance Care ........................ 579
Ashtray ............................... 258
Assist, Hill Start ........................ 457
Assistance Towing ....................... 143
Auto Down Power Windows ................ 44
Auto Up Power Windows .................. 44
Automatic Dimming Mirror ................ 116
Automatic Door Locks ..................... 37
630 INDEX

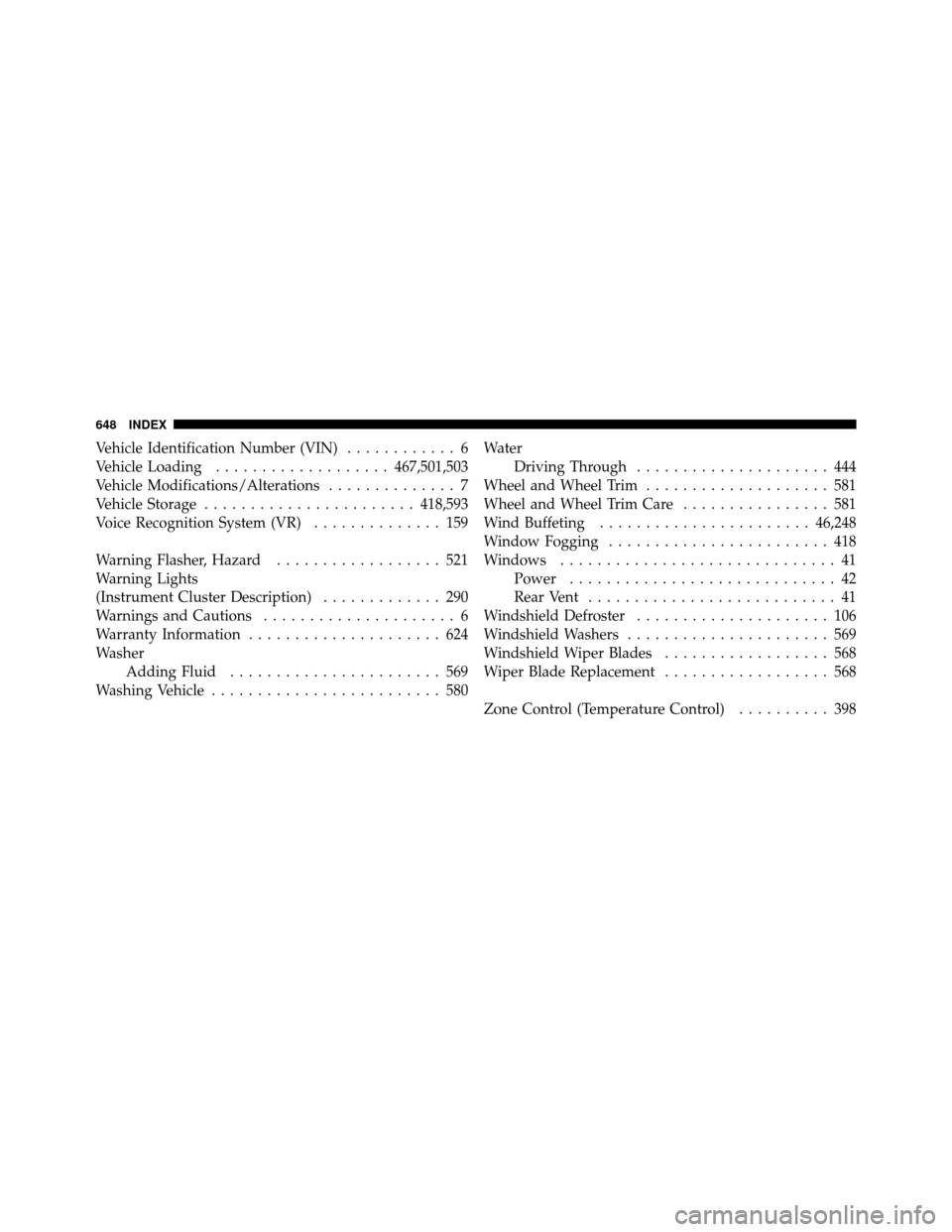

Vehicle Identification Number (VIN)............ 6
Vehicle Loading ................... 467,501,503
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 418,593
Voice Recognition System (VR) .............. 159
Warning Flasher, Hazard .................. 521
Warning Lights
(Instrument Cluster Description) ............. 290
Warnings and Cautions ..................... 6
Warranty Information ..................... 624
Washer Adding Fluid ....................... 569
Washing Vehicle ......................... 580 Water
Driving Through ..................... 444
Wheel and Wheel Trim .................... 581
Wheel and Wheel Trim Care ................ 581
Wind Buffeting ....................... 46,248
Window Fogging ........................ 418
Windows .............................. 41
Power ............................. 42
Rear Vent ........................... 41
Windshield Defroster ..................... 106
Windshield Washers ...................... 569
Windshield Wiper Blades .................. 568
Wiper Blade Replacement .................. 568
Zone Control (Temperature Control) .......... 398
648 INDEX
