INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Before reaching the red area, ease up on the
accelerator.
2. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front fog
lights are on.
3. Park/Headlight ON Indicator — If Equipped This indicator will illuminate when the park
lights or headlights are turned on. 4. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on, a continuous chime will sound to
alert you to turn the signal off. If either indicator flashes
at a rapid rate, check for a defective outside light bulb.
5. High Beam Indicator This indicator shows that the high beam head-
lights are on. Push the multifunction lever forward
to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
6. Odometer Display / Electronic Vehicle Information
Center (EVIC) Display — If Equipped
Odometer Display / Trip Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
290 UNDERSTANDING YOUR INSTRUMENT PANEL

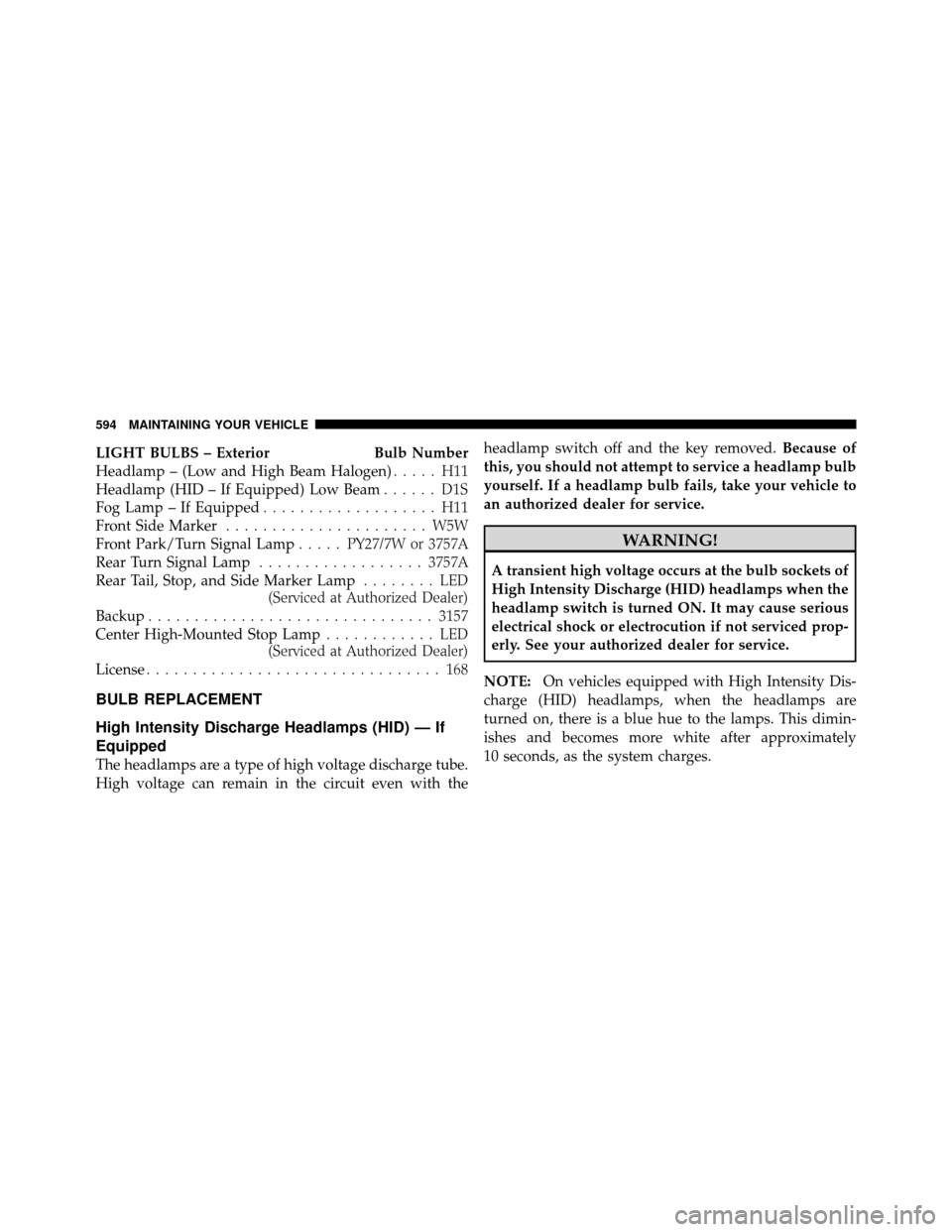

LIGHT BULBS – ExteriorBulb Number
Headlamp – (Low and High Beam Halogen) ..... H11
Headlamp (HID – If Equipped) Low Beam ...... D1S
Fog Lamp – If Equipped ................... H11
Front Side Marker ...................... W5W
Front Park/Turn Signal Lamp .....PY27/7W or 3757A
Rear Turn Signal Lamp .................. 3757A
Rear Tail, Stop, and Side Marker Lamp ........ LED
(Serviced at Authorized Dealer)
Backup ............................... 3157
Center High-Mounted Stop Lamp ............ LED
(Serviced at Authorized Dealer)
License ................................ 168
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the headlamp switch off and the key removed.
Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE: On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
594 MAINTAINING YOUR VEHICLE

Lane Change Assist...................... 208
Lap/Shoulder Belts ....................... 61
LATCH
(Lower Anchors and Tether for CHildren) ....... 94
Latches ............................... 107
Hood ............................. 201
Lead Free Gasoline ...................... 491
Leaks, Fluid ........................... 107
Life of Tires ............................ 477
Liftgate ................................ 53
Light Bulbs ............................ 107
Lights ............................. 107,202
Airbag ..................... 82,88,105,297
Alarm ............................ 298
Anti-Lock .......................... 293
Automatic Headlights ................. 205
Back-Up ........................... 597
Battery Saver ....................... 207
Brake Assist Warning .................. 456 Brake Warning
...................... 298
Bulb Replacement ................. 593,594
Center Mounted Stop .................. 598
Daytime Running .................... 206
Dimmer Switch, Headlight .............. 204
Electronic Stability Program (ESP) Indicator . . 456
Engine Temperature Warning ............ 302
Exterior ........................... 107
Fog ......................... 207,290,596
Hazard Warning Flasher ............... 521
Headlight Switch ..................... 205
Headlights On Reminder ............... 206
High Beam Indicator .................. 290
High Beam/Low Beam Select ............ 208
Illuminated Entry ..................... 20
Interior ......................... 203,204
License ............................ 598
Lights On Reminder .................. 206
Low Fuel ....................... 301,310
