WARNING! (Continued)
•Guard against carbon monoxide with proper
maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnor-
mal conditions repaired promptly. Until repaired,
drive with all side windows fully open.
•Keep the liftgate closed when driving your vehicle
to prevent carbon monoxide and other poisonous
exhaust gases from entering the vehicle.

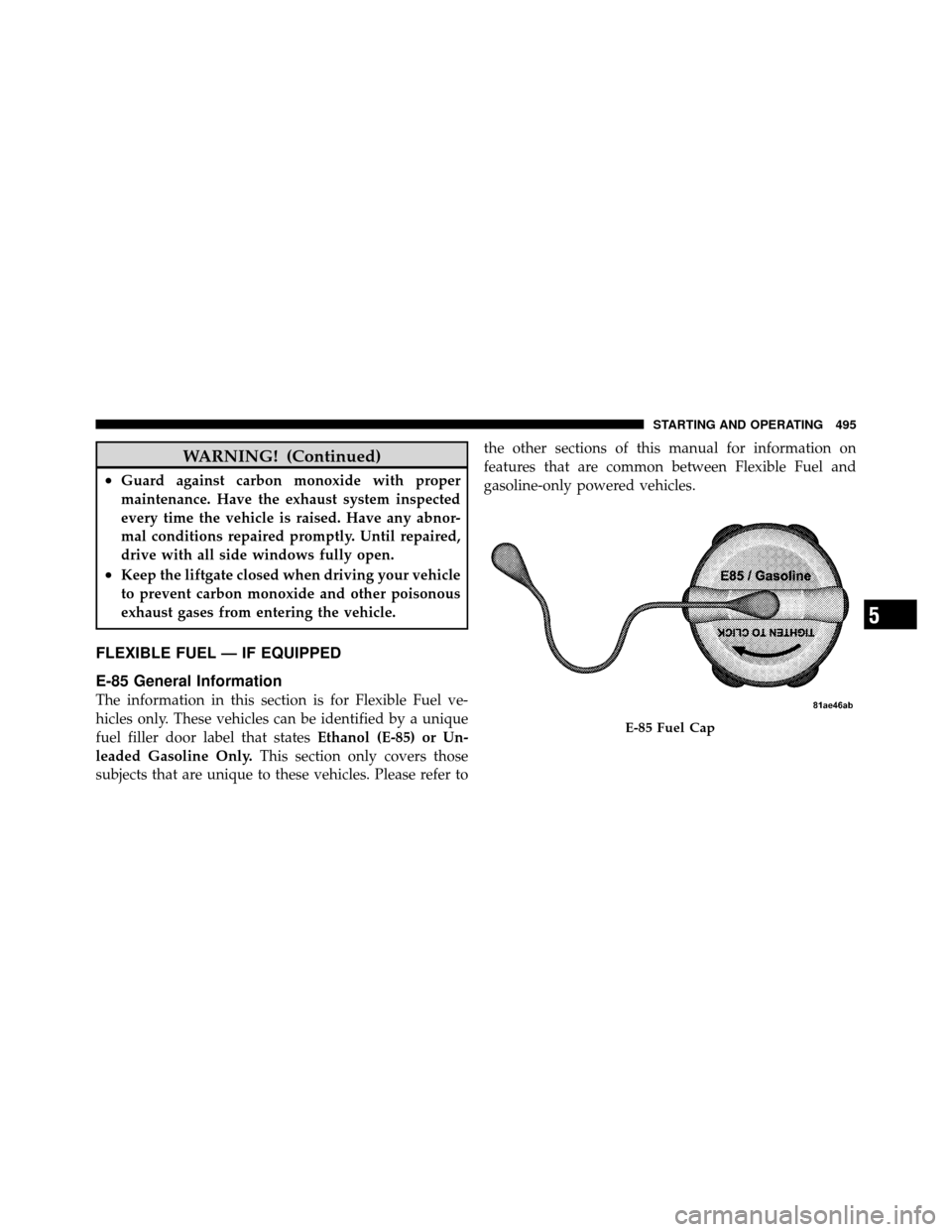

FLEXIBLE FUEL — IF EQUIPPED
E-85 General Information
The information in this section is for Flexible Fuel ve-
hicles only. These vehicles can be identified by a unique
fuel filler door label that statesEthanol (E-85) or Un-
leaded Gasoline Only. This section only covers those
subjects that are unique to these vehicles. Please refer to the other sections of this manual for information on
features that are common between Flexible Fuel and
gasoline-only powered vehicles.
E-85 Fuel Cap
5
STARTING AND OPERATING 495

Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the engine
compartment and should be checked at regular intervals.
Fill the reservoir with windshield washer solvent (not
radiator antifreeze) and operate the system for a few
seconds to flush out any residual water.
The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
After the engine has warmed, operate the defroster for a
few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. MOPAR All
Weather Windshield Washer Solution or equivalent, used
with water as directed on the container, aids cleaning
action, reduces the freezing point to avoid line clogging,
and is not harmful to paint or trim.
7
MAINTAINING YOUR VEHICLE 569

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or equivalent or any com-
mercial household-type glass cleaner. Never use an abra-
sive type cleaner. Use caution when cleaning the inside
rear window equipped with electric defrosters or the
right rear quarter window equipped with the radio
antenna. Do not use scrapers or other sharp instruments
that may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
584 MAINTAINING YOUR VEHICLE

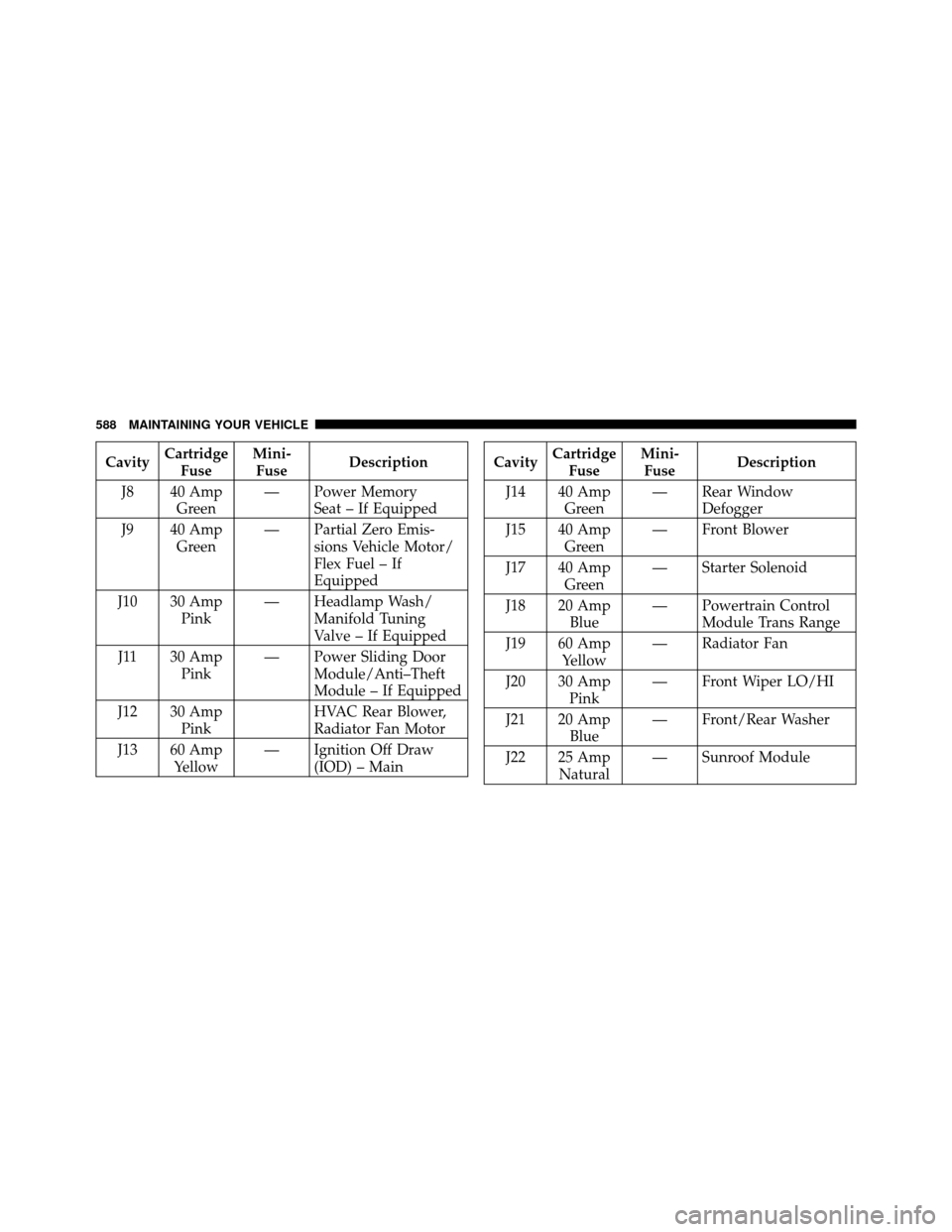

CavityCartridge
Fuse Mini-
Fuse Description
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle Motor/
Flex Fuel – If
Equipped
J10 30 Amp Pink — Headlamp Wash/
Manifold Tuning
Valve – If Equipped
J11 30 Amp Pink — Power Sliding Door
Module/Anti–Theft
Module – If Equipped
J12 30 Amp Pink HVAC Rear Blower,
Radiator Fan Motor
J13 60 Amp Yellow — Ignition Off Draw
(IOD) – MainCavity Cartridge
Fuse Mini-
Fuse Description
J14 40 Amp Green — Rear Window
Defogger
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
Module Trans Range
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof Module
588 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
M19 — 25 Amp NaturalPowertrain
M20 — 15 Amp BlueInstrument Cluster
Interior Light, Switch
Bank, Steering Col-
umn Module, Switch
Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
M24 — 25 Amp NaturalRear WiperCavity
Cartridge
Fuse Mini-
Fuse Description
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If
Equipped
M26 — 10 Amp RedPower Mirror Switch,
Driver Window
Switch
M27 — 10 Amp RedWireless Control
Module, Keyless
Entry Module
M28 — 10 Amp RedPowertrain, Transmis-
sion Control Module
M29 — 10 Amp RedOccupant Classifica-
tion Module
M30 — 15 Amp BlueRear Wiper Module,
Power Folding Mirror
M31 — 20 Amp YellowBack-Up Lamps
7
MAINTAINING YOUR VEHICLE 591

CavityCartridge
Fuse Mini-
Fuse Description
M32 — 10 Amp RedAirbag Module,
THATCHUM – If
Equipped
M33 — 10 Amp RedPowertrain
M34 — 10 Amp RedPark Assist, Heater
Climate Control Mod-
ule, Headlamp Wash,
Compass, Rear Cam-
era, Door Lamps,
Flashlight, Relay Die-
sel Cabin Heater, Rad
Fan Diesel – If
Equipped
M35 — 10 Amp RedHeated MirrorsCavity
Cartridge
Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3 (In-
strument Panel or
with Console Center)
M37 — 10 Amp RedAntilock Brakes, Sta-
bility Control, Stop
Lamp, Fuel Pump
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors, Liftgate
Lock/Unlock Motors
The heated mirrors, lower instrument panel power outlet
and removable floor console, when in the front position
are fused with self-resetting fuses that are only service-
able by an authorized dealer. The power seats are fused
by a 30 Amp circuit breaker located under the driver’s
seat. The power windows are fused by a 25 Amp circuit
breaker located under the instrument panel near the
592 MAINTAINING YOUR VEHICLE

Adding Engine Coolant (Antifreeze).......... 572
Adding Fuel ........................... 499
Adding Washer Fluid ..................... 569
Additives, Fuel ......................... 493
Adjustable Pedals ....................... 216
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 561
Air Conditioner Maintenance ............... 565
Air Conditioning ........................ 398
Air Conditioning Controls ................. 398
Air Conditioning Filter .................419,566
Air Conditioning Refrigerant ............... 565
Air Conditioning System .............398,406,565
Air Conditioning System, Zone Control ........ 398
Air Conditioning, Operating Tips ............ 419
Air Conditioning, Rear Zone .............403,414
Air Pressure, Tires ....................... 471
Airbag .............................. 75,84
Airbag Deployment ....................... 85
Airbag Light .................... 82,88,105,297Airbag Maintenance
....................... 87
Airbag, Side ........................ 78,81,84
Airbag, Window (Side Curtain) ...........79,81,84
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 298
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 349
Anti-Lock Warning Light .................. 293
Anti-Theft System ........................ 17
Antifreeze (Engine Coolant) ..............571,599
Disposal ........................... 573
Appearance Care ........................ 579
Ashtray ............................... 258
Assist, Hill Start ........................ 457
Assistance Towing ....................... 143
Auto Down Power Windows ................ 44
Auto Up Power Windows .................. 44
Automatic Dimming Mirror ................ 116
Automatic Door Locks ..................... 37
630 INDEX

ConnectorUCI .............................. 352
Universal Consumer Interface (UCI) ....... 352
Conserving Fuel ........................ 314
Console .............................. 265
Console, Floor .......................... 265
Console, Overhead ....................... 232
Console, Removable ...................... 269
Contract, Service ........................ 623
Coolant Pressure Cap (Radiator Cap) .......... 573
Cooling System ......................... 570
Adding Coolant (Antifreeze) ............. 572
Coolant Capacity ..................... 599
Coolant Level .................... 570,574
Disposal of Used Coolant ............... 573
Drain, Flush, and Refill ................ 571
Inspection .......................... 574
Points to Remember .................. 574 Pressure Cap
........................ 573
Radiator Cap ....................... 573
Selection of Coolant (Antifreeze) ....571,599,600
Cupholders ......................... 254,585
Customer Assistance ..................... 621
Data Recorder, Event ...................... 88
Daytime Running Lights ................... 206
Dealer Service .......................... 557
Defroster, Rear Window ................... 273
Defroster, Windshield .................. 106,412
Diagnostic System, Onboard ................ 554
Dimmer Control ........................ 204
Dipsticks Automatic Transmission ................ 579
Oil (Engine) ........................ 558
Power Steering ...................... 447
Disabled Vehicle Towing ................... 547
