To set the rating, activate the DVD Setup Menu and
follow these additional instructions:
•Using the remote control’s Left and Right cursor
buttons, select the Rating tab.
•HighlightChange Rating, and then press the remote
control’s ENTER button.
•Enter the current password. Select a digit, use the
remote control’s Up and Down cursor buttons to set
the value for the current digit, and then press the
remote control’s Right cursor button to select the next
digit. Repeat this digit selection sequence for all four
digits.
•After the four-digit password is entered, press the
remote control’s ENTER button. If the password is
correct, the Rating Level menu is displayed.
•Using the remote control’s Up and Down cursor
buttons, select the new rating level, and then press the
remote control’s ENTER button to accept the change.
Product Agreement
This product incorporates copyright protection technol-
ogy that is protected by U.S. patents and other intellec-
tual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is
intended for home or other limited viewing uses other-
wise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Dolby Digital and MLP Lossless Manufactured
under license from Dolby Laboratories. Dolby,
MLP Lossless, and the double-D symbol are trademarks
of Dolby Laboratories. Confidential unpublished works.
Copyright 1992-1997 Dolby Laboratories. All right re-
served.
394 UNDERSTANDING YOUR INSTRUMENT PANEL

General Information
This system complies with Part 15 of the FCC Operation
is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel, at the three and nine
o’clock positions.

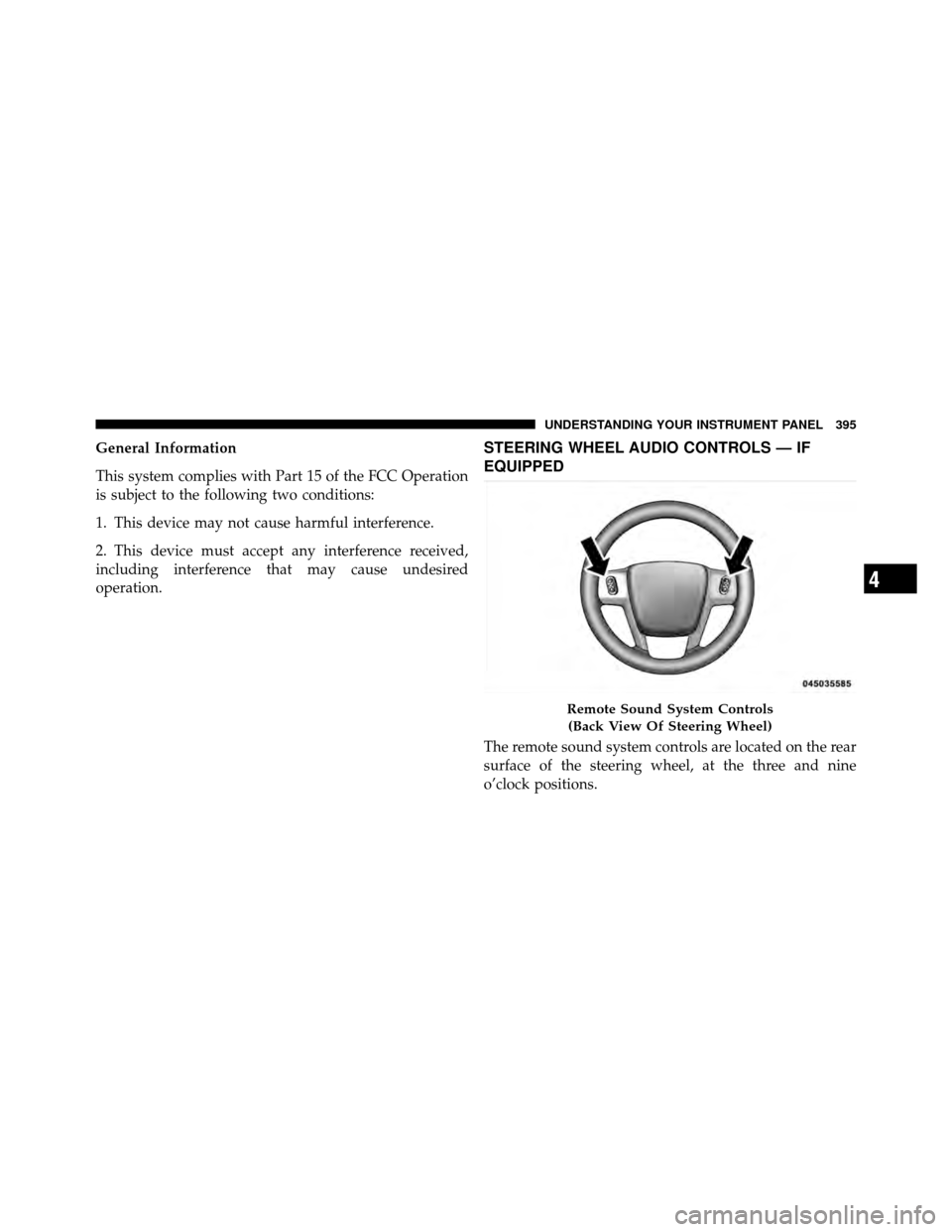

Remote Sound System Controls(Back View Of Steering Wheel)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 395

1. Left Front Temperature Control
Provides left front seat occupant with independent tem-
perature control. Turn left for cooler or right for warmer
temperature settings.2. Rear Blower Control — If Equipped
Use this control to regulate the amount of air forced
through the rear system in any mode you select. The rear
blower speed increases as you move the control to the
right from the “O” (Off) position. There are seven blower
speeds. To allow the rear overhead control, turn blower
knob fully to the left, past The
Ooff position.
3. Front Blower Control
Use this control to regulate the amount of air forced
through the system in any mode you select. The blower
speed increases as you move the control to the right from
the “O” (Off) position. There are seven blower speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position. Blower control should be left in the ON
position to allow the climate control to either warm or
cool the vehicle.

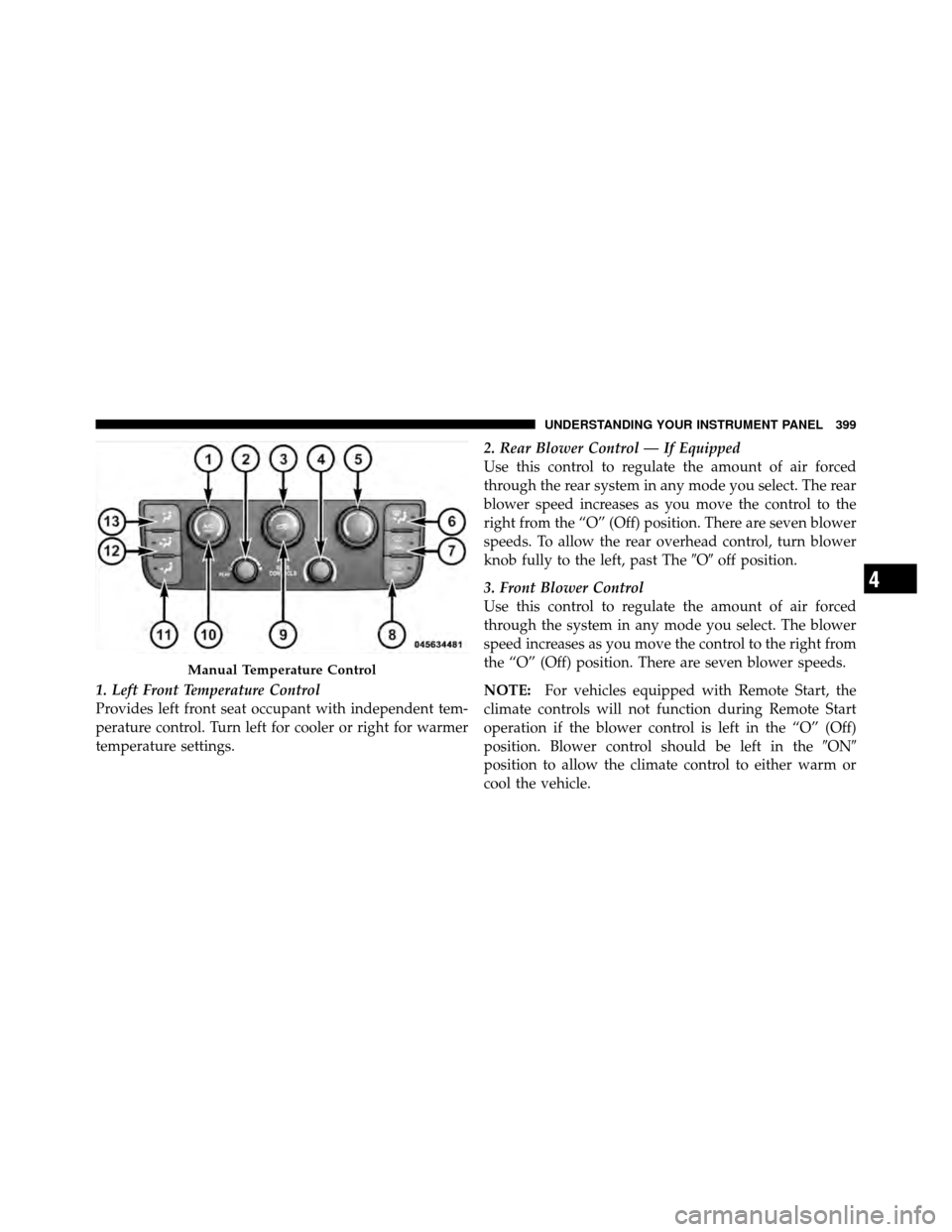

Manual Temperature Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 399

DisposalAntifreeze (Engine Coolant) ............. 573
Engine Oil ......................... 560
Domelight ............................. 203
Door Locks ............................. 34
Door Locks, Automatic .................... 37
Door Opener, Garage ..................... 236
Driving On Slippery Surfaces .................. 443
Through Flowing, Rising, or Shallow
Standing Water ...................... 444
Driving to Achieve Maximum Fuel Economy .... 314
E-85 Fuel ............................. 495
Economy (Fuel) Mode .................... 433
Electric Remote Mirrors ................... 118
Electrical Power Outlets ................... 248
Electronic Brake Control System ............. 452
Brake Assist System ................... 453 Electronic Speed Control (Cruise Control)
...... 217
Electronic Stability Control (ESC) ............. 454
Electronic Vehicle Information
Center (EVIC) ....................... 229,304
Emergency, In Case of Hazard Warning Flasher ............... 521
Jacking ......................... 522,531
Jump Starting ....................... 540
Overheating ........................ 521
Emission Control System Maintenance ......... 555
Engine Air Cleaner ......................... 561
Block Heater ........................ 431
Break-In Recommendations ............. 103
Checking Oil Level ................... 558
Compartment ....................... 553
Compartment Identification ............. 553
Coolant (Antifreeze) .................. 600
Cooling ........................... 570
634 INDEX

Map/Reading Lights..................... 233
Memory Feature (Memory Seat) ............. 196
Memory Seat ........................ 1 19,196
Methanol ............................. 492
Mini-Trip Computer ...................... 316
Mirrors ............................... 116
Automatic Dimming .................. 116
Electric Remote ...................... 118
Exterior Folding ..................... 118
Heated ............................ 119
Memory ........................... 196
Outside ........................... 117
Rearview .......................... 116
Vanity ............................ 120
Mode Fuel Saver ......................... 314
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 482
Mopar Parts ......................... 557,624MTBE/ETBE
........................... 492
Multi-Function Control Lever ............... 207
Navigation System (Uconnect™ gps) .......... 229
New Vehicle Break-In Period ................ 103
Occupant Restraints ................... 57,81,85
Occupant Restraints (Sedan) ...........78,79,81,84
Odometer ............................. 290
Oil Change Indicator ................ 292,293,313
Oil Change Indicator, Reset ...........292,293,313
Oil, Engine ......................... 558,600
Capacity ........................... 599
Change Interval ..................... 559
Checking .......................... 558
Disposal ........................... 560
Filter .......................... 560,600
Filter Disposal ....................... 560
Identification Logo ................... 559
10
INDEX 641

Radial Ply Tires......................... 473
Radiator Cap (Coolant Pressure Cap) .......570,573
Radio Operation ........................ 397
Radio Remote Controls .................... 395
Rear Air Conditioning .................403,414
Rear Camera ........................... 229
Rear Cross Path ......................... 127
Rear Heater ............................ 403
Rear Park Sense System ................... 220
Rear Window Defroster ................... 273
Rearview Mirrors ........................ 116
Reclining Front Seats ..................... 171
Recorder, Event Data ...................... 88
Recreational Towing ...................... 517
Reformulated Gasoline .................... 491
Reminder, Seat Belt ....................... 74
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 395
Remote Starting System .................... 30 Removable Floor Console
.................. 269
Replacement Keys ........................ 16
Replacement Parts ....................... 557
Replacement Tires ....................... 478
Reporting Safety Defects ................... 624
Resetting Oil Change Indicator .........292,293,313
Restraint, Head ......................... 172
Restraints, Child ....................... 89,93
Rocking Vehicle When Stuck ................ 544
Roof Rack (Luggage Rack) ................. 274
Rotation, Tires .......................... 481
Safety Checks Inside Vehicle ................ 105
Safety Checks Outside Vehicle ............... 107
Safety Defects, Reporting .................. 624
Safety Information, Tire ................... 460
Safety Tips ............................ 104
Safety, Exhaust Gas .................... 57,104
Satellite Radio Antenna ................... 349
10
INDEX 643

Sliding Door............................ 46
Slippery Surfaces, Driving On ............... 443
SmartBeams ........................... 209
Snow Chains (Tire Chains) ................. 479
Snow Tires ............................ 480
Spare Tire ....................... 474,475,524
Speed Control (Cruise Control) .............. 217
Speedometer ........................... 297
Starting ............................... 425
Automatic Transmission ................ 425
Cold Weather ....................... 429
Engine Fails to Start .................. 429
Remote ............................ 30
Starting and Operating .................... 425
Starting Procedures ...................... 425
Steering Power .......................... 446,447
Tilt Column ........................ 214
Wheel, Heated ...................... 215 Wheel, Tilt
......................... 214
Steering Wheel Audio Controls .............. 395
Steering Wheel Mounted Sound
System Controls ......................... 395
Storage ............................ 258,593
Storage Bin ............................ 258
Storage, Vehicle ...................... 418,593
Storing Your Vehicle ...................... 593
Stow n Go (Fold in Floor) Seats ............. 176
Sun Roof .............................. 245
Sunglasses Storage ....................... 233
Sunroof Maintenance ..................... 248
Supplemental Restraint System - Airbag ........ 75
Synthetic Engine Oil ...................... 560
System, Remote Starting .................... 30
Tachometer ............................ 290
Telescoping Steering Column ............... 214
Temperature Control, Automatic (ATC) ........ 406
10
INDEX 645

Weight............................ 509
Towing Assistance ....................... 143
Traction Control ......................... 452
Traction Control Switch ................... 452
Trailer Towing .......................... 503
Cooling System Tips .................. 516
Hitches ............................ 508
Minimum Requirements ................ 511
Trailer and Tongue Weight .............. 510
Wiring ............................ 514
Trailer Towing Guide ..................... 509
Trailer Weight .......................... 509
Transaxle Selection of Lubricant ................. 601
Transmission ........................... 577
Automatic ....................... 431,577
Fluid .......................... 578,601
Transmitter Battery Service
(Remote Keyless Entry) .................... 27 Transmitter, Garage Door Opener (HomeLink®) . . 236
Transmitter, Remote Keyless Entry (RKE)
........ 20
Transporting Pets ........................ 100
Tread Wear Indicators .................... 476
Trip Odometer .......................... 290
Turn Signals ................... 208,290,595,597
UCI Connector ......................... 352
Uconnect™ (Hands-Free Phone) ............. 129
Umbrella Holder ........................ 260
Uniform Tire Quality Grades ................ 627
Universal Consumer Interface (UCI) Connector . . . 352
Universal Transmitter ..................... 236
Unleaded Gasoline ....................... 491
Upholstery Care ........................ 582
Vanity Mirrors .......................... 120
Variance, Compass ....................... 319
Vehicle Certification Label ................. 501
10
INDEX 647
