Black plate (64,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
10-64 Vehicle Care
Used Replacement Wheels
{WARNING
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
If your vehicle is a Hybrid, see the
Hybrid Supplement for more
information.
{WARNING
If the vehicle has P265/65R18 or
P275/55R20 size tires, do not use
tire chains. There is not enough
clearance. Tire chains used on a
vehicle without the proper amount(Continued)
WARNING (Continued)
of clearance can cause damage
to the brakes, suspension,
or other vehicle parts. The area
damaged by the tire chains could
cause loss of control and a crash.
Use another type of traction
device only if its manufacturer
recommends it for the vehicle's
tire size combination and
road conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive
slow and readjust or remove the
traction device if it is contacting
the vehicle. Do not spin the
wheels.
If traction devices are used, install
them on the rear tires. Notice:
If the vehicle has
P265/70R17 size tires, use tire
chains only where legal and only
when necessary. Use chains that
are the proper size for the tires.
Install them on the rear tires only.
Do not use chains on the front
tires.
Tighten them as tightly as
possible with the ends securely
fastened. Drive slowly and
follow the chain manufacturer's
instructions. If the chains contact
the vehicle, stop and retighten
them. If the contact continues,
slow down until it stops. Driving
too fast or spinning the wheels
with chains on will damage the
vehicle.

Black plate (81,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
Vehicle Care 10-81

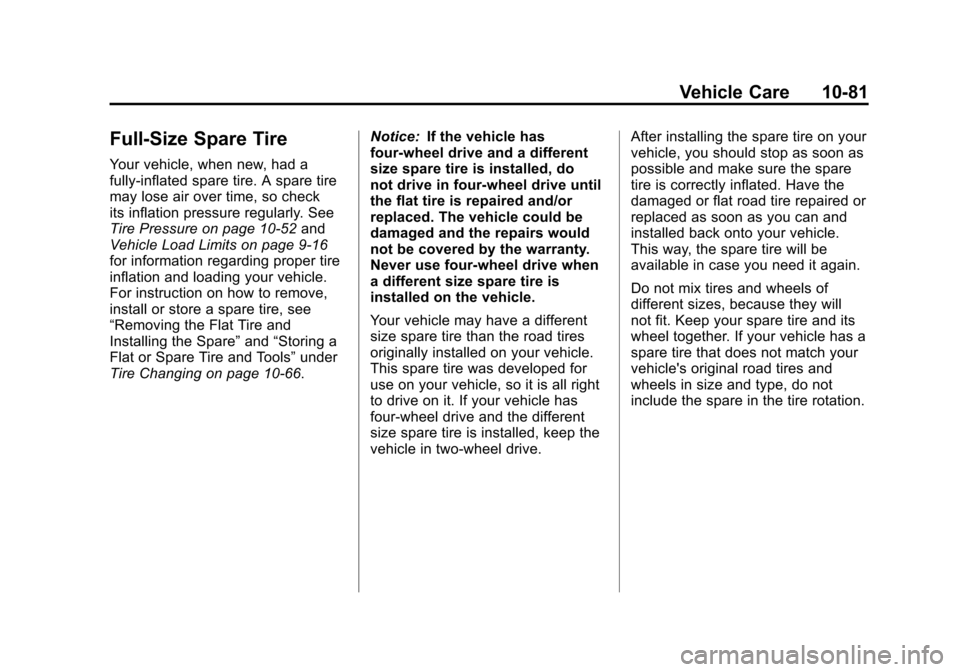

Full-Size Spare Tire
Your vehicle, when new, had a
fully-inflated spare tire. A spare tire
may lose air over time, so check
its inflation pressure regularly. See
Tire Pressure on page 10‑52and
Vehicle Load Limits on page 9‑16
for information regarding proper tire
inflation and loading your vehicle.
For instruction on how to remove,
install or store a spare tire, see
“Removing the Flat Tire and
Installing the Spare” and“Storing a
Flat or Spare Tire and Tools” under
Tire Changing on page 10‑66. Notice:
If the vehicle has
four-wheel drive and a different
size spare tire is installed, do
not drive in four-wheel drive until
the flat tire is repaired and/or
replaced. The vehicle could be
damaged and the repairs would
not be covered by the warranty.
Never use four-wheel drive when
a different size spare tire is
installed on the vehicle.
Your vehicle may have a different
size spare tire than the road tires
originally installed on your vehicle.
This spare tire was developed for
use on your vehicle, so it is all right
to drive on it. If your vehicle has
four-wheel drive and the different
size spare tire is installed, keep the
vehicle in two-wheel drive. After installing the spare tire on your
vehicle, you should stop as soon as
possible and make sure the spare
tire is correctly inflated. Have the
damaged or flat road tire repaired or
replaced as soon as you can and
installed back onto your vehicle.
This way, the spare tire will be
available in case you need it again.
Do not mix tires and wheels of
different sizes, because they will
not fit. Keep your spare tire and its
wheel together. If your vehicle has a
spare tire that does not match your
vehicle's original road tires and
wheels in size and type, do not
include the spare in the tire rotation.

Black plate (5,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
INDEX i-5
FluidAutomatic Transmission . . . . .10-11
Brakes . . . . . . . . . . . . . . . . . . . . . . 10-25
Four-Wheel Drive
Transfer Case . . . . . . . . . 9-36, 9-41
Power Steering . . . . . . . . . . . . . 10-22
Washer . . . . . . . . . . . . . . . . . . . . . 10-23
Fog Lamps Bulb Replacement . . . . . . . . . . . . . 6-6
Folding Mirrors . . . . . . . . . . . . . . . . 2-17
Four-Wheel Drive . . . . . . . . . . . . 9-36, 9-41, 10-27
Front Axle . . . . . . . . . . . . . . . . . . . . 10-27
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . 3-3
Heated and Ventilated . . . . . . . . . 3-9
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-60 Additives . . . . . . . . . . . . . . . . . . . . . 9-61
E85 (85% Ethanol) . . . . . . . . . . . 9-62
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 9-65 Fuel (cont'd)
Filling the Tank . . . . . . . . . . . . . . . 9-63
Fuels in Foreign Countries . . . . 9-61
Gasoline Specifications . . . . . . . 9-60
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Low Fuel Warning Light . . . . . . . 5-24
Management, Active . . . . . . . . . . 9-28
Recommended . . . . . . . . . . . . . . . 9-60
Requirements, California . . . . . 9-61
System Messages . . . . . . . . . . . . 5-39
Fuel Economy Driving . . . . . . . . . . . . . . . . . . . . . . . . 1-27
Full-Size Spare Tire . . . . . . . . . . 10-81
Fuses Engine CompartmentFuse Block . . . . . . . . . . . . . . . . 10-37
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-37
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . 10-41G
Garage Door Opener . . . . . . . . . . 5-53Programming . . . . . . . . . . . . . . . . . 5-53
Gasoline Specifications . . . . . . . . . . . . . . . . . 9-60
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 5-14
Engine Oil Pressure . . . . . . . . . . 5-13
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Odometer . . . . . . . . . . . . . . . . . . . . . 5-12
Speedometer . . . . . . . . . . . . . . . . . 5-12
Tachometer . . . . . . . . . . . . . . . . . . . 5-12
Trip Odometer . . . . . . . . . . . . . . . . 5-12
Voltmeter . . . . . . . . . . . . . . . . . . . . . 5-15
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 5-10
General Information Service and Maintenance . . . . . 11-1
Towing . . . . . . . . . . . . . . . . . . . . . . . . 9-65
Vehicle Care . . . . . . . . . . . . . . . . . . 10-2

Black plate (12,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
i-12 INDEX
Start Assist, Hills . . . . . . . . . . . . . . 9-44
Start Vehicle, Remote . . . . . . . . . . 2-5
Starter Switch Check . . . . . . . . . 10-29
Starting the Engine . . . . . . . . . . . . 9-24
Steering . . . . . . . . . . . . . . . . . . . . . . . . 9-4Fluid, Power . . . . . . . . . . . . . . . . 10-22
Wheel Adjustment . . . . . . . . . . . . . 5-2
Wheel Controls . . . . . . . . . . . . . . . . 5-2
Steps Power Assist . . . . . . . . . . . . . . . . . 2-13
Stoplamps and Back-up Lamps
Bulb Replacement . . . . . . . . . . 10-34
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Storage Areas Armrest . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Cargo Cover . . . . . . . . . . . . . . . . . . . 4-2
Center Console . . . . . . . . . . . . . . . . 4-2
Glove Box . . . . . . . . . . . . . . . . . . . . . 4-1
Roof Rack System . . . . . . . . . . . . . 4-3
Stuck Vehicle . . . . . . . . . . . . . . . . . . 9-15
Sun Visors . . . . . . . . . . . . . . . . . . . . . 2-21
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 2-22 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . iv
System
Infotainment . . . . . . . . . . . . . . . . . . . 7-1
Roof Rack . . . . . . . . . . . . . . . . . . . . . 4-3
T
Tachometer . . . . . . . . . . . . . . . . . . . . 5-12
TaillampsBulb Replacement . . . . . . . . . . 10-34
Text Telephone (TTY) Users . . . 13-6
Theft-Deterrent Systems . . . . . . . 2-14 Immobilizer . . . . . . . . . . . . . . . . . . . 2-14
Third-Row Seats . . . . . . . . . . . . . . . 3-16
Throttle, Adjustable . . . . . . . . . . . . 9-22
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Tires
Buying New Tires . . . . . . . . . . . 10-59
Chains . . . . . . . . . . . . . . . . . . . . . . 10-64
Changing . . . . . . . . . . . . . . . . . . . 10-66
Designations . . . . . . . . . . . . . . . 10-47
Different Size . . . . . . . . . . . . . . . 10-61
Full-Size Spare . . . . . . . . . . . . . 10-81
If a Tire Goes Flat . . . . . . . . . . 10-65 Tires (cont'd)
Inflation Monitor System . . . . 10-54
Inspection . . . . . . . . . . . . . . . . . . 10-57
Messages . . . . . . . . . . . . . . . . . . . . 5-42
Pressure Light . . . . . . . . . . . . . . . . 5-23
Pressure Monitor System . . . 10-53
Rotation . . . . . . . . . . . . . . . . . . . . 10-57
Secondary Latch System . . . 10-78
Sidewall Labeling . . . . . . . . . . . 10-45
Terminology and
Definitions . . . . . . . . . . . . . . . . . 10-49
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . 10-61
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . 10-63
Wheel Replacement . . . . . . . . 10-63
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . 10-58
Tow/Haul Mode . . . . . . . . . . . . . . . . 9-35
Tow/Haul Mode Light . . . . . . . . . . 5-22
Towing Driving Characteristics . . . . . . . . 9-66
Equipment . . . . . . . . . . . . . . . . . . . . 9-75
General Information . . . . . . . . . . 9-65

Black plate (13,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
INDEX i-13
Towing (cont'd)Recreational Vehicle . . . . . . . . 10-87
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 9-70
Trailer Sway Control (TSC) . . . 9-84
Vehicle . . . . . . . . . . . . . . . . . . . . . 10-87
Traction Control System (TCS)/StabiliTrak
®Light . . . . . . . . . . . . 5-23
Trailer
Sway Control (TSC) . . . . . . . . . . 9-84
Tow Mirrors . . . . . . . . . . . . . . . . . . . 2-17
Trailer Towing . . . . . . . . . . . . . . . . . 9-70
Transfer Case . . . . . . . . . . . 9-36, 9-41
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 9-31
Fluid, Automatic . . . . . . . . . . . . .10-11
Messages . . . . . . . . . . . . . . . . . . . . 5-43
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . 13-13
Trip Odometer . . . . . . . . . . . . . . . . . 5-12
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Turn Signal
Bulb Replacement . . . . . . . . . . 10-34
U
Ultrasonic Parking Assist . . . . . . 9-51
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 10-61
Universal Remote System . . . . . 5-53 Operation . . . . . . . . . . . . . . . . . . . . . 5-58
Programming . . . . . . . . . . . . . . . . . 5-53
Using This Manual . . . . . . . . . . . . . . . . iv
V
Vehicle Canadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-4
IdentificationNumber (VIN) . . . . . . . . . . . . . . . 12-1
Load Limits . . . . . . . . . . . . . . . . . . . 9-16
Messages . . . . . . . . . . . . . . . . . . . . 5-35
Personalization . . . . . . . . . . . . . . . 5-45
Reminder Messages . . . . . . . . . . 5-44
Remote Start . . . . . . . . . . . . . . . . . . 2-5
Security . . . . . . . . . . . . . . . . . . . . . . 2-13
Towing . . . . . . . . . . . . . . . . . . . . . . 10-87
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . 10-52 Vehicle Identification
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Ventilation, Air . . . . . . . . . . . . . . . . . 8-13
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Voltmeter Gauge . . . . . . . . . . . . . . 5-15
W
Warning Brake System Light . . . . . . . . . . . 5-21
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . 5-10
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . iv
Cautions and Danger . . . . . . . . . . . .iv
Hazard Flashers . . . . . . . . . . . . . . . 6-5
Washer Fluid . . . . . . . . . . . . . . . . . 10-23
Washer Fluid Messages . . . . . . . 5-45
Wheels Alignment and TireBalance . . . . . . . . . . . . . . . . . . . 10-63
Different Size . . . . . . . . . . . . . . . 10-61
Replacement . . . . . . . . . . . . . . . 10-63
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-58
