2012 BMW 535I GRAN TURISMO Owners Manual

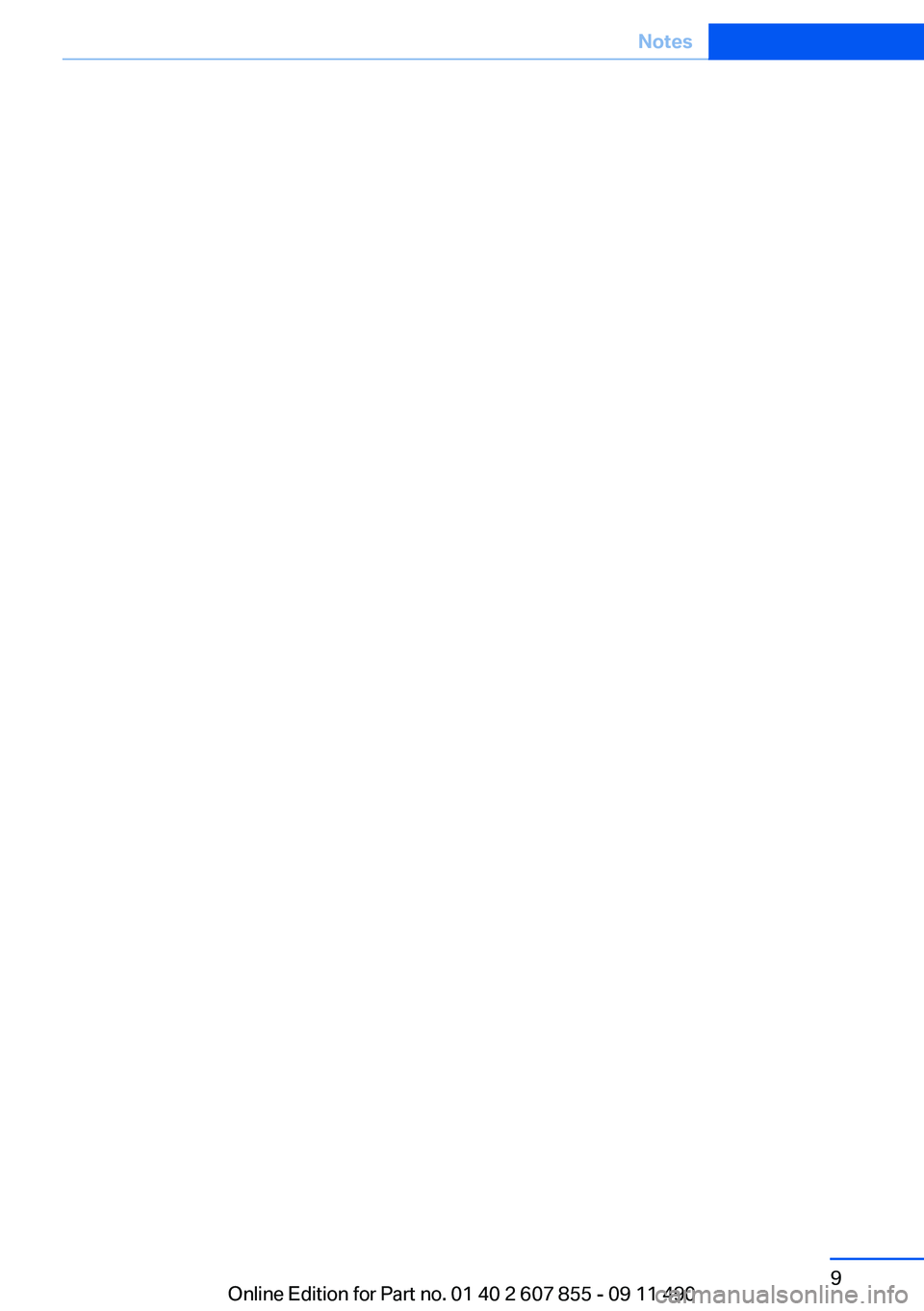

Seite 9Notes9
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

Online Edition for Part no. 01 40 2 607 855 - 09 11 490

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 607 855 - 09 11 490

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.

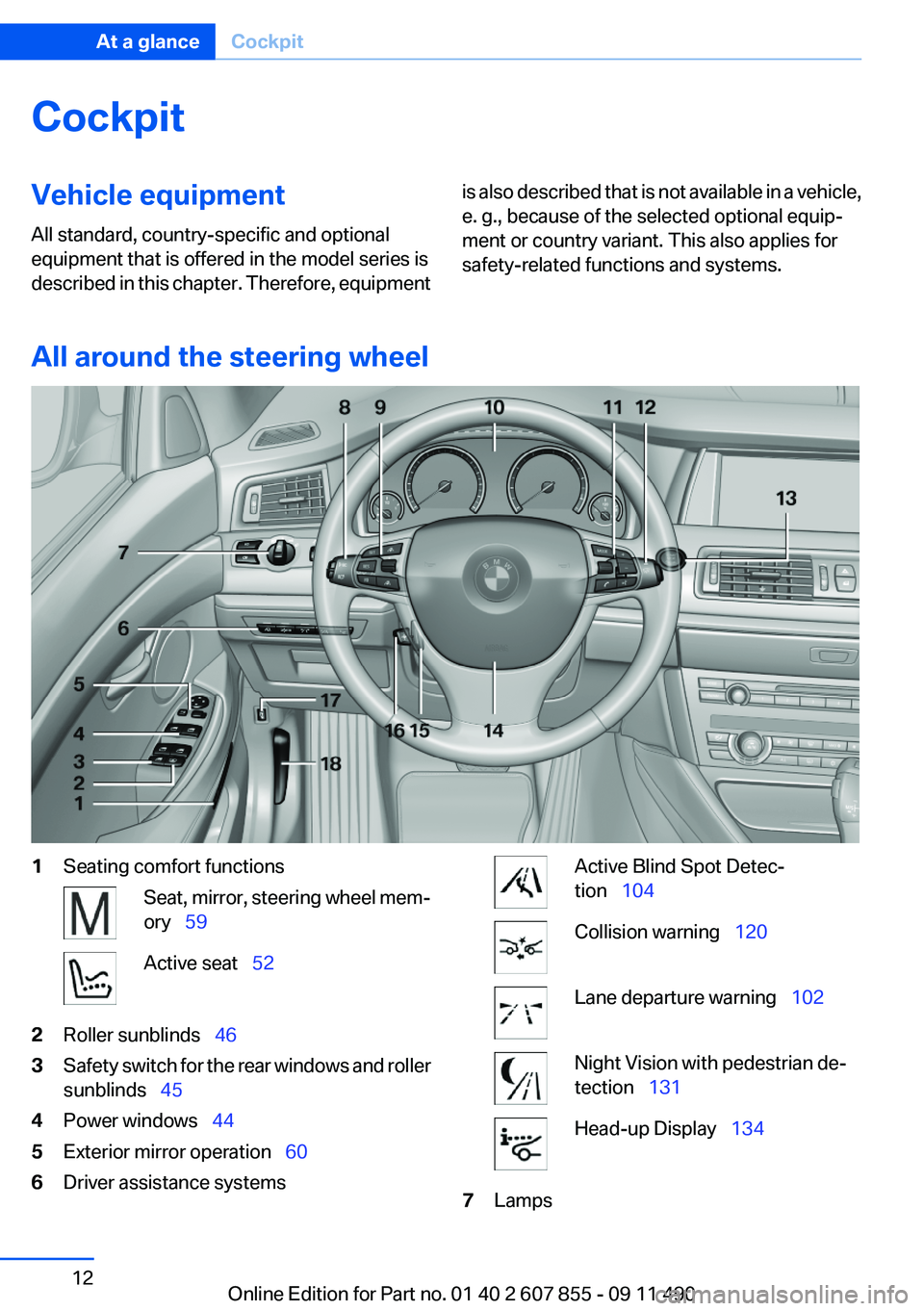

All around the steering wheel
1Seating comfort functionsSeat, mirror, steering wheel mem‐
ory   59Active seat   522Roller sunblinds   463Safety switch for the rear windows and roller
sunblinds   454Power windows   445Exterior mirror operation   606Driver assistance systemsActive Blind Spot Detec‐
tion   104Collision warning   120Lane departure warning   102Night Vision with pedestrian de‐
tection   131Head-up Display   1347LampsSeite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

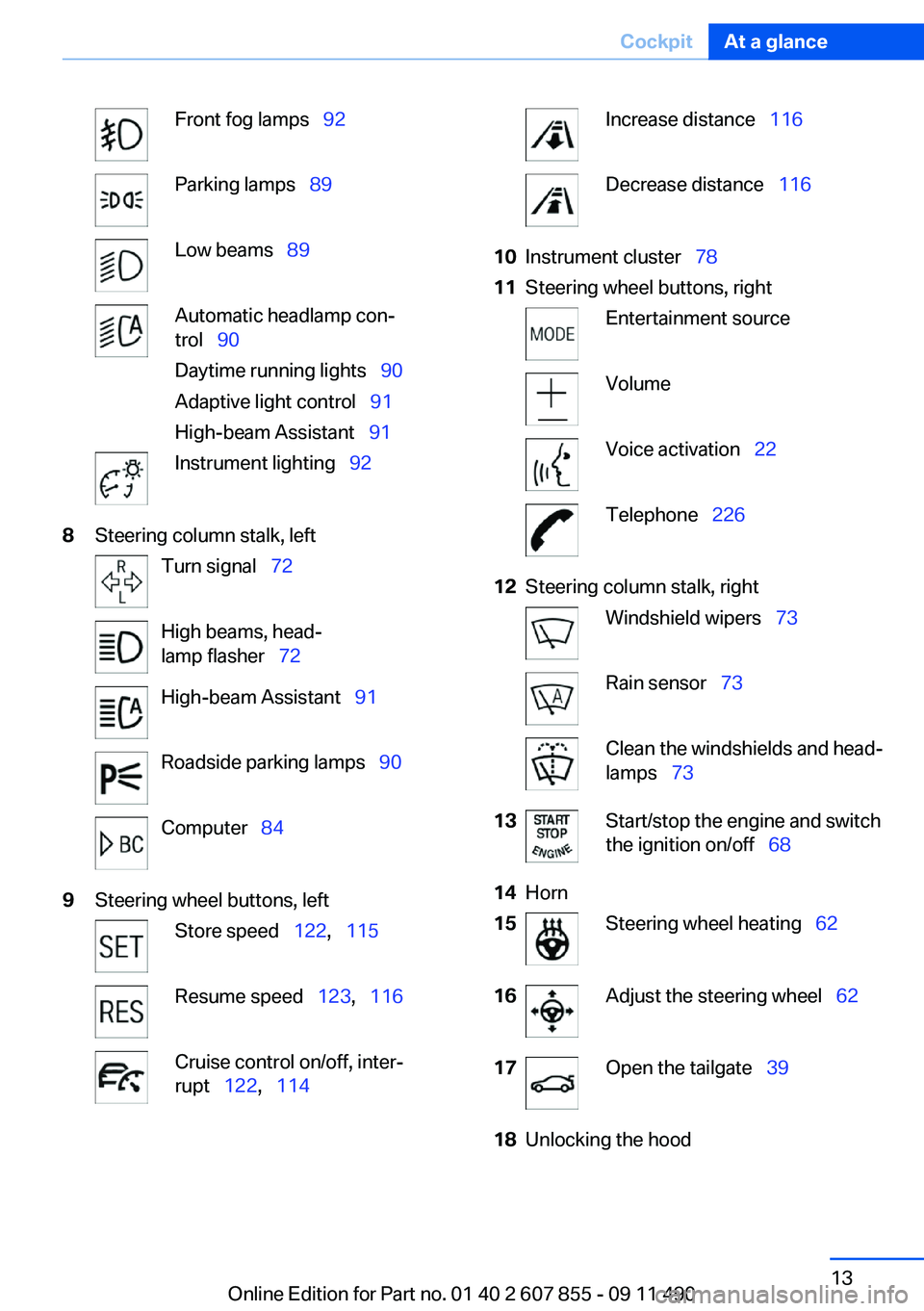

Front fog lamps  92Parking lamps  89Low beams  89Automatic headlamp con‐
trol   90
Daytime running lights   90
Adaptive light control   91
High-beam Assistant   91Instrument lighting  928Steering column stalk, leftTurn signal  72High beams, head‐
lamp flasher   72High-beam Assistant   91Roadside parking lamps   90Computer  849Steering wheel buttons, leftStore speed   122,  115Resume speed   123,  116Cruise control on/off, inter‐
rupt   122,  114Increase distance   116Decrease distance   11610Instrument cluster  7811Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  22Telephone  22612Steering column stalk, rightWindshield wipers   73Rain sensor  73Clean the windshields and head‐
lamps   7313Start/stop the engine and switch
the ignition on/off   6814Horn15Steering wheel heating   6216Adjust the steering wheel   6217Open the tailgate  3918Unlocking the hoodSeite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

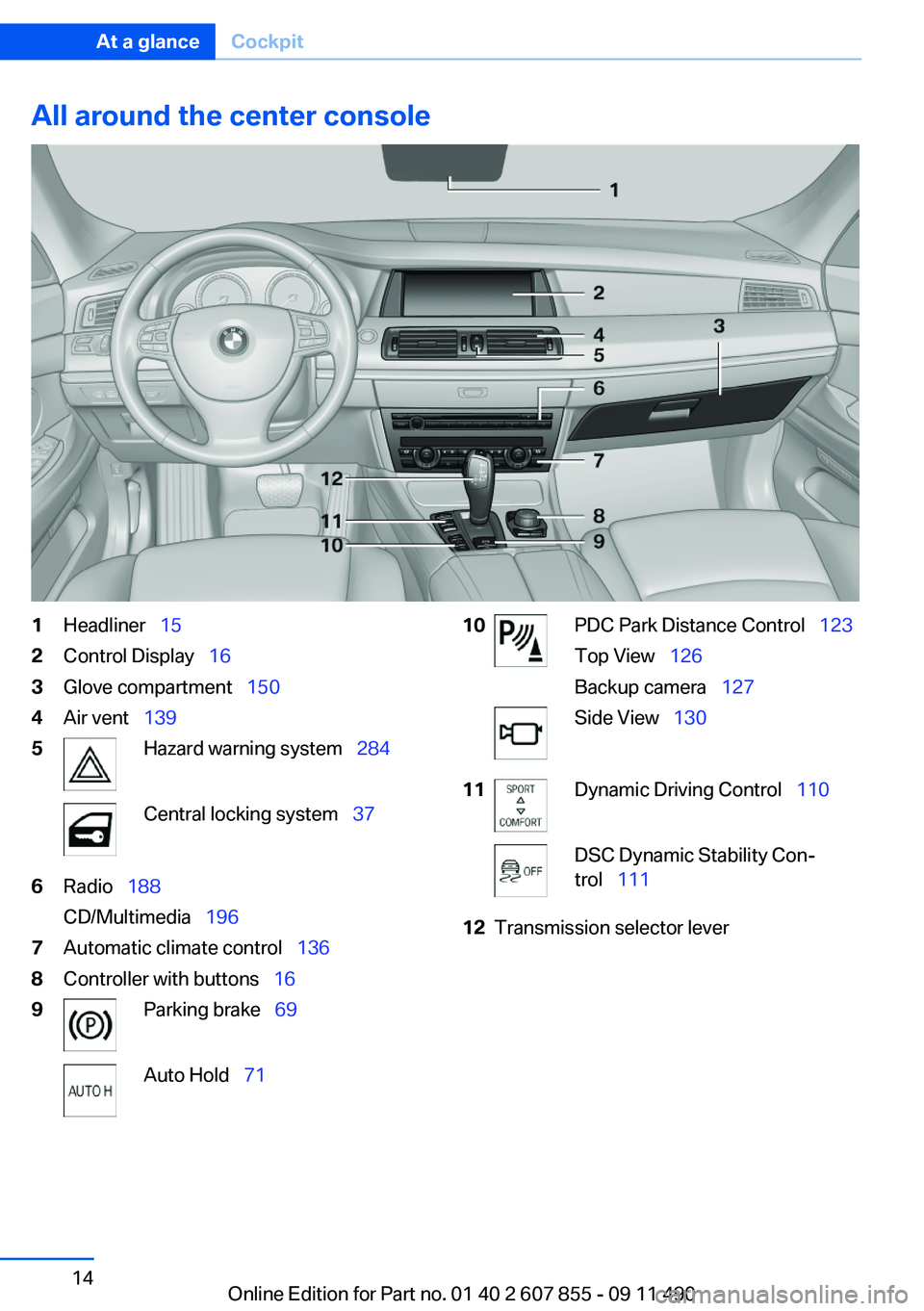

All around the center console1Headliner  152Control Display   163Glove compartment   1504Air vent  1395Hazard warning system   284Central locking system  376Radio  188
CD/Multimedia   1967Automatic climate control   1368Controller with buttons  169Parking brake  69Auto Hold  7110PDC Park Distance Control   123
Top View   126
Backup camera   127Side View  13011Dynamic Driving Control   110DSC Dynamic Stability Con‐
trol   11112Transmission selector leverSeite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

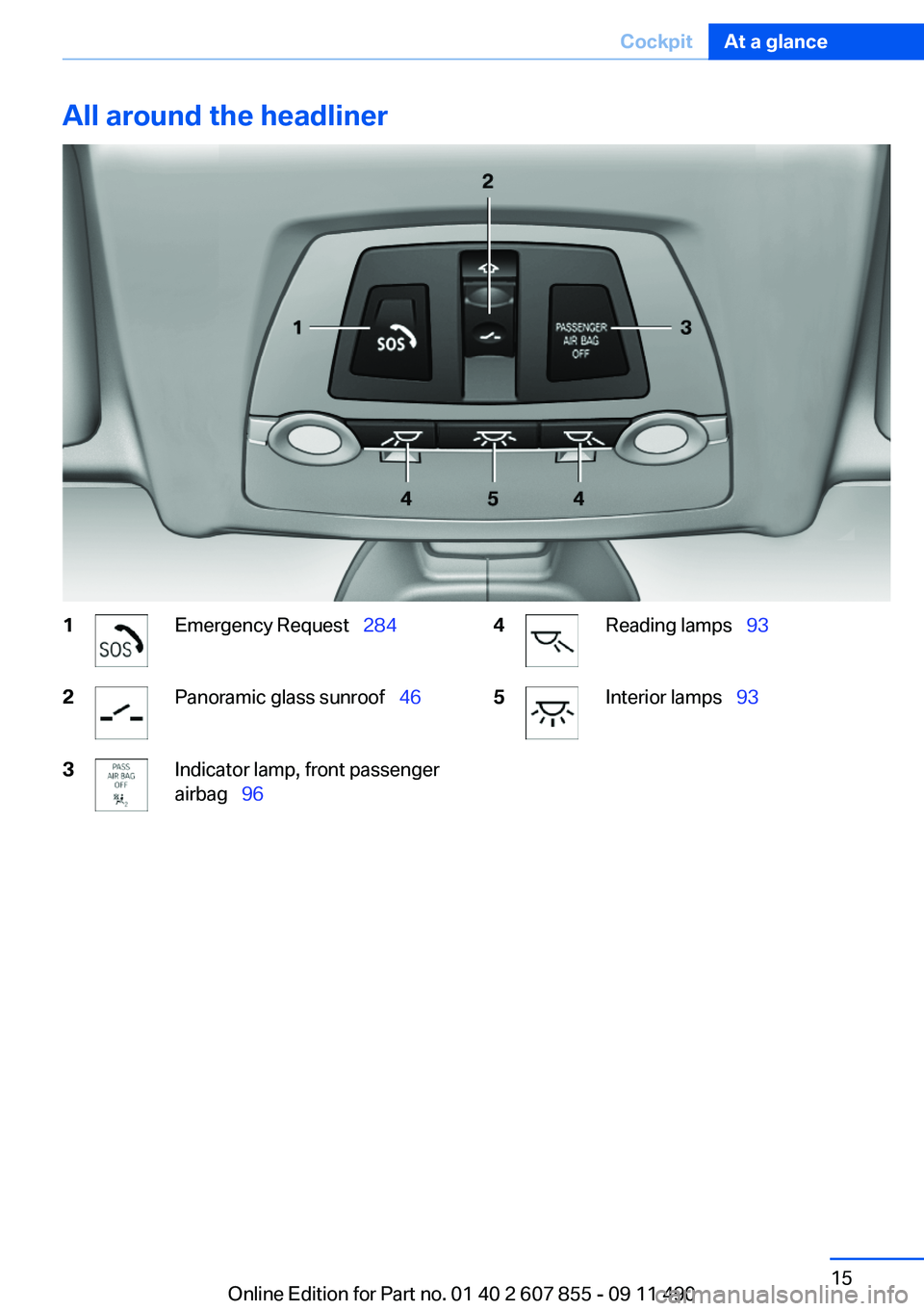

All around the headliner1Emergency Request  2842Panoramic glass sunroof   463Indicator lamp, front passenger
airbag   964Reading lamps   935Interior lamps  93Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
The concept
The iDrive combines the functions of a multitude
of switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and posing
an unnecessary hazard to your vehicle's occu‐
pants and to other road users, never attempt to
use the controls or enter information unless traf‐
fic and road conditions allow this.◀
Controls at a glance
Controls1Control Display2Controller with buttons
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and create the settings.Control Display
Notes▷To clean the Control Display, follow the care
instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
Online Edition for Part no. 01 40 2 607 855 - 09 11 490
