Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, airbags, child restraints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the information
and warnings in this section - for your own
safety as well as for that of your passengers.
The information in this section applies to all
model versions of your vehicle . Some of the
features described in this sections may be
standard equipment on some models, or may
be optional equipment on others. If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Make certain that you follow the instruc­
tions and heed the WARNINGS in this
Manual. It is in your interest and in the
interest of your passengers.
- Always keep the complete owner's litera­
ture in your Audi when you lend or sell
your vehicle so that this important infor­
mation will always be available to the
driver and passengers.
- Always keep the owner's literature handy
so that you can find it easily if you have
questions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
reduce the risk of injury in a wide variety of
accident situations .
Your safety and the safety of your passengers
should not be left to chance. Advances in
technology have made a variety of features
available to help reduce the risk of injury in an
Driving Safely 91
accident. The following is a listing of just a
few of the safety features in your Audi:
- sophisticated safety belts for driver and all
passenger seating positions,
- safety belt pretensioners ,
- front airbags,
- knee airbags,
- side airbags in the seats
- adjustable head restraints,
- adjustable steering column.
These individual safety features can work to­
gether as a system to help protect you and
your passengers in a wide range of accidents.
These features cannot work as a system if
they are not always properly adjusted and
properly used!
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody's job! Vehicle and occu­
pant safety always depends on the informed and careful driver.
For your safety and the safety of your passen­
gers,
before driving always:
~ Make sure that all lights and signals are op­
erating correctly .
~ Make sure that the tire pressure is correct.
~ Make sure that all windows are clean and
afford good visibility to the outside.
~ Secure all luggage and other items carefully
c::>page 62.
~ Make sure that nothing can interfere with
the pedals.
~ Adjust front seat, head restraint and mir­
rors correctly for your height .
~ Instruct passengers to adjust the head re­
straints according to their height .
~ Make sure to use the right child restraint
correctly to protect children¢
page 130,
Child Safety.
~ Sit properly in your seat and make sure that
your passengers do the same¢
page 59,
Seats and storage. .,..
•
•

92 Driving Safel y
• Fasten your safety belt and wear it proper ly.
Also instruct your passengers to fasten their
safety belts proper ly
¢ page 101.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver's ability to concentrate on the rood
without being distracted.
The driver is responsible for the safety of the
vehicle and all of its occupants. If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road
¢ .&, .
Therefore:
• Do not let yourself be distracted by passen­
gers or by using a cellular telephone.
• NEVER drive when your dr iving ability is im­
paired (by medicat ions, alcohol, drugs, etc.) .
• Observe all traffic laws, rules of the road
and speed limits and plain common sense .
• ALWAYS adjust your speed to road, traff ic
and weather condit ions.
• Take frequent breaks on long trips . Do not
drive for more than two hours at a stretch .
• Do NOT drive when you are tired , under
pressure or when you are stressed.
A WARNING , .
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used .
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 104 Correct seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the steering wheel so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone¢
fig . 104 .
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢.&, .
• Grasp the top of the steer ing whee l with
your elbow(s) slightly bent.
• Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possible .
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face.
• Adjust the angle of the seatback so that it is
in an upright position so that your back
comes in full contact with it when yo u drive.
• Fasten and wear safety be lts correctly
¢ page 102.
• Always keep both feet in the footwell so
that you are in control of the vehicle at all
times .

Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapte r exp lains why safety be lts a re nec ­
essary, how they work and how to adjust and
wear them correctly.
~ Read all the information that fo llows and
heed all of the inst ruct ions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of ser ious
personal in jury and death .
- Safety belts are the sing le most effective
means availab le to red uce the r isk of se­
rious injury and death in a utomob ile acci­
de nts . For your prot ecti on and that of
yo ur passenge rs, always co rrec tly wear
sa fe ty bel ts when the ve hicle is mov ing.
- P re g nant women, injured, or physically
imp aired perso ns must also use safe ty
belts. L ike a ll vehicle occup ants, they are
more like ly to be ser ious ly injure d if they
do not wea r safety be lts . The best way to
protect a fet us is to protect the mother -
thro ughout the entire pregnancy.
Number of seats
Your Audi R8 has two seating posit ions in the
front. Each seating position has a safety belt.
A WARNING
Not wearing safety belts or wearing them
im proper ly increases the risk of ser ious
personal in ju ry and death.
- Never st rap more than one person, in­
clu ding small ch ild ren, into any belt. It is
especially dangerous to place a safety
belt over a child s itting on yo ur lap.
- Never let mo re people ride in t he ve hicle
t h an t he re are safety be lts ava ilable.
Sa fety belts 1 O 1
- Be s ure everyone riding in the vehicle is
properly restrained w ith a separate sa fe­
ty belt or child restra int.
4 Safety belt warning light
Your vehicle has a warning system for the
driver and front seat passenger to remind you
about the importance of buckling up .
Fig. 1 10 Safety be lt warn ing lig ht in the instr ume nt
cl uster -enla rged
Before driv ing off, always :
~ Fasten your safe ty be lt and make su re you
wear it p roperly.
~ Ma ke s ure that yo ur passengers a lso buck le
up and wear their safety belts properly.
~ Protect children w it h a child restraint sys-
tem app ropriate for the size and age .
The wa rning light . in the instrument cluster
li ghts up w hen t he ig nit ion is switched on as a
rem inder to fasten the safety belts. In addi­
tion , you will hear a warning tone for a certa in
per iod of t ime .
Fasten your safety belt and make sure that
your passengers also put on the ir safety
belts properly .
A WARNING
-Safety belts are the s ingle most effect ive
means ava ilable to reduce t he risk of se­
rio us i nju ry and death in au tomobile a cci­
dents. Fo r yo ur pro tection and tha t of
your passen gers, a lways wear safety
be lts cor rectly when the vehicle is mov­
ing . •
•

102 Safety belts
-Failure to pay attention to the warning
light that comes on could lead to person­
al injury.
Why safety belts?
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision. It's simply
not true!
Fig. 111 Driver is properly restrained in a sudden brak ­
i ng maneuve r.
Safety belts used properly can make a big dif­
ference. Safety belts help to keep passengers
in their seats, gradually reduce energy levels
applied to the body in an accident, and help prevent the uncontrolled movement that can
cause serious injuries. In addition, safety belts
reduce the danger of being thrown out of the
vehicle .
Safety belts attach passengers to the car and
give them the benefit of being slowed down more gently or "softly " through the "give" in
the safety belts, crush zones and other safety
features engineered into today's vehicles. By
"absorbing " the kinetic energy over a longer
period of time, the safety belts make the
forces on the body more "tolerable" and less likely to cause injury.
Although these examples are based on a fron ­
tal collision, safety belts can also substantial­
ly reduce the risk of injury in other kinds of
crashes. So, whether you're on a long trip or
just going to the corner store, always buckle up and make sure others do, too. Accident sta­
tistics show that vehicle occupants properly
wearing safety belts have a lower risk of being injured and a much better chance of surviving
an accident. Properly using safety belts also
greatly increases the ability of the supplemen­
tal airbags to do their job in a collision . For
this reason, wearing a safety belt is legally re­
quired in most countries including much of
the United States and Canada.
Although your Audi is equipped with airbags,
you still have to wear the safety belts provid­ ed . Front airbags, for example, are activated
only in some frontal collisions . The front a ir­
bags are not activated in all frontal collisions,
in side and rear collisions, in roll overs or in
cases where there is not enough deceleration
through impact to the front of the vehicle.
The same goes for the other airbag systems in
your Audi. So, always wear your safety belt
and make sure everybody in your vehicle is
properly restrained!
Important safety instructions about
safety belts
Safety belts must always be properly posi­ tioned across the strongest bones of your
body .
.,. Always wear safety belts as illustrated and
described in this chapter .
.,. Make sure that your safety belts are always
ready for use and are not damaged.
_&. WARNING
Not wear ing safety belts or wearing them
improperly increases the r isk of serious
personal injury and death. Safety belts can
work only when used correctly.
-Always fasten your safety belts correctly
before driving off and make sure all pas­
sengers are properly restrained.
- For maximum protection, safety belts
must always be positioned correctly on
the body.
- Never strap more than one person, in­ cluding small children, into any single
safety belt.
- Never place a safety belt over a chi ld sit­
ting on your lap.

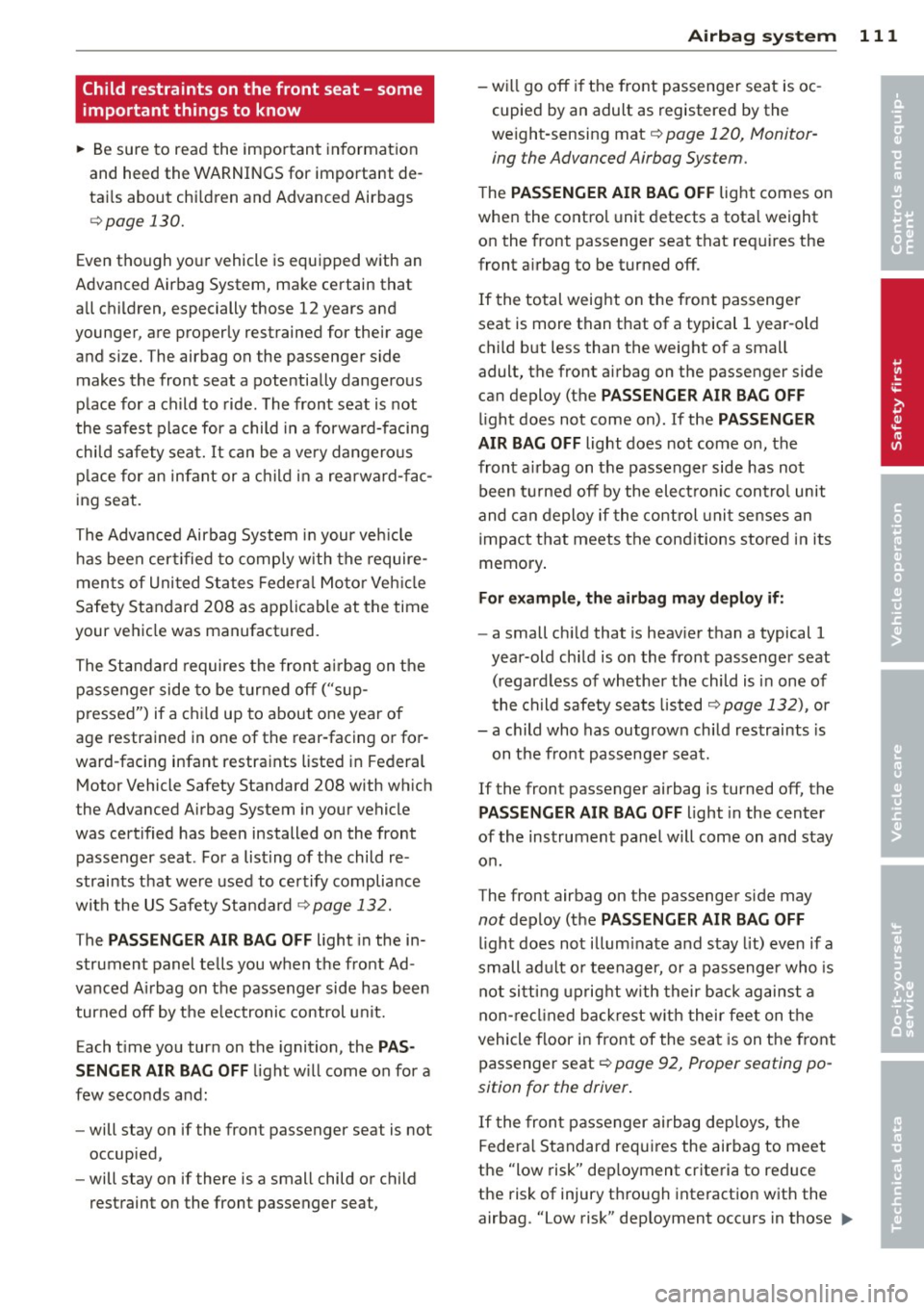

Child restraints on the front seat - some
important things to know
.. Be sure to read the important information
and heed the WARNINGS for important de­
tails about chi ldren and Advanced Airbags
~ page 130.
Even though your vehicle is equipped with an
Advanced Airbag System, make certain that
a ll chi ldren, especially those 12 years and
younger, are properly restrained for their age and s ize. The airbag on the passenger side
makes the front seat a potentially dangerous
p lace for a child to ride. The front seat is not
the safest place for a child in a forwa rd-facing
chi ld safety seat. It can be a very dangero us
p lace for an infant or a c hild in a rearward-fac ­
ing seat.
The Advanced Airbag System i n your veh icle
has been cert ified to comp ly with the require­
men ts of United States Federa l Mo to r Veh icle
Safety Standard
208 as applicable at the time
your vehicle was manufactured.
The Standard requires the front a irbag on the
passenger side to be t urned off ("sup­
p ressed") if a chi ld up to about one year of
age restrained in one of the rear -facing or for­
ward -facing infant restraints listed i n Federal
Motor Vehicle Safety Standard
208 with wh ich
the Advanced Airbag System in your vehicle
was certified has been installed o n the front
passenger seat . For a listing of the child re­
straints that were used to certify compliance
with the US Safety Sta ndard
~ page 132.
The PASSENG ER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad­
vanced A irbag on the passenger side has been
turned off by the e lectronic control u nit.
Each t ime you turn on the ignition, the
PAS­
SENGER AIR BAG OFF
light w ill come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied ,
- will stay on if there is a small child or child
restraint on the front passenger seat,
A irbag sys tem 111
- w ill go off if the front passenger seat is oc ­
cupied by an adult as registered by the
weight -sensing mat ¢
page 120, Monitor­
ing the Advanced Airbag System.
T he PASSENGER AIR BAG OFF light comes on
whe n the contro l unit detects a tota l weight
on the front passenger seat that req uires the
front a irbag to be turned off.
If the total weight on the front passenger
seat is more than that of a typical
1 year-o ld
c h ild but less than the weight of a small
adult, the front airbag on the passenger side
can deploy (the
PASSENGER AIR BAG OFF
li ght does not come on). If the PASSENG ER
AIR BAG OFF
light does not come on, the
front a irbag on t he passenger side has not
been t urned off by the elect ronic con trol unit
and can deploy if the control unit senses an
impact that meets the cond itions stored in its
memory .
For exampl e, th e airb ag may deplo y if:
- a small ch ild that is heav ie r than a typical 1
year-old ch ild is o n the front passenger seat
(regard less of whether the child is in one of
the child safety seats listed
~ page 132), or
- a child who has outgrown child restraints is
on the front passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light in the center
of the instrument panel will come on and stay
o n.
The front airbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illum inate and stay lit) ev en if a
small ad ult o r teenager, or a passenger who is
not si tt ing uprig ht w ith their back against a
non-re clined ba ck rest w ith their feet on the
vehicle floor in front of the sea t is on the front
passenger seat ¢
page 92, Proper seating po­
sition for the driver .
If the front passenger airbag dep loys, the
Federa l Standard requ ires the airbag to meet
the "low risk" dep loyment criteria to reduce
the risk of injury th ro ugh interaction with the
airbag. "Low risk" dep loyment occ urs in those ..,. •
•

112 Airbag sys te m
cr ashes that take place a t lower decelerations
as defined in the electronic control u nit
c:::> page 120, PASSENGER AIR BAG OFF light.
A lways remember, a chi ld safety seat or infant
carrier insta lled on the front seat may be
struck and knocked o ut of position by the rap­
id ly inf lating passenger's a irbag in a frontal
coll is ion. The airbag cou ld greatly reduce the
effectiveness of the child restraint and even
seriously inju re the child during inflat ion .
A WARNING
A child in a rearward-facing child safety
s e at insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
t he front a irbag inflates -even with an Ad­
vanced Airbag System.
- T he inflating a irbag will hit the child
safe ty seat or infant car rier wit h great
f orce and w ill smash the ch ild safety seat
and child against the backrest, door or
roof .
- Never install a rearward facing child
safety seat on the front passenger seat
unless the PASSENGER AIR BAG OFF
light comes on and stays on. If the PAS­
SENGER AIR BAG OFF
light does not
come o n and stay on the inflating airbag
wi ll hit the child safe ty seat or infant car­
rie r with great fo rce and will smash the
c hild s afety seat and child against the
backres t, door or roo f. Have the airbag
system inspe cted immedia tely by your
authorized Audi dealer.
- F orward-fac ing ch ild safety sea ts inst al­
led on the front passenger 's seat may in ­
terfere with the deployment of the air­
bag and cause serious personal injury to
the ch ild.
A WARNING
If, in exceptional c ircumstances, you must
install a forward-facing child restra int on
the front passenger's seat:
- Always make sure the forward-fac ing
seat has been des igned and certified by its manufacturer fo
r use on a front seat
wit h a passenger front and s ide a irbag.
- Never put the fo rward-facing child re­
straint up against or very near the instru­
ment panel.
- Always move the passenge r seat into its
rearmost pos ition in the seat's fore and
aft ad justment range, as far away from
the airbag as possible before installing
the forward-fac ing ch ild restra int. The
backrest must be ad justed to an up right
position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the
time wheneve r the ig nit ion is switched
on.
A WARNING
To reduce the risk of serio us inju ry, ma ke
sure that the
PASSENGER AIR BAG OFF
light wi ll be displayed whenever a child re­
straint is insta lled on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, per form the checks de­
scribed
c:::> page 120 , Monitoring the Ad ­
vanced Airbag System.
- Never install a rearward facing child
safety seat on the front passenger seat
un less t he
PASSENGER AIR BAG OFF
lig ht comes on and stays on. If the PAS­
SENGER AIR BAG OFF
li ght does not
come on and stay on, the inf lating ai rbag
will hit the child safety seat or in fant car­
rier w ith great force and w ill sm ash the
child safety seat and child against t he
backrest, door or roof. Have the a irbag
system inspected immediately by your
author ized Audi dealer.
- Always carefu lly follow instr uctions from
child restraint manufacturers when in­
stalling c hild restra ints .
A WARNING
-If, in except ional circumstances, you m ust
i nstall a forward or rearward-facing child
restra int on the front passenger 's seat : "'

but less than the weight of a small adult, the
front airbag on the passenger side may deploy (the
PASSENG ER AIR BAG OF F light does not
come on).
For example, the a irb ag may depl oy if:
- a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whether the child is in one of
the chi ld safety seats listed
¢ page 132),
-a ch ild who has outgrown child rest raints is
on the front passenger seat.
I f the front passenger airbag is turned off, the
PA SSENGER AIR B AG OFF light in the center
of the inst rument panel w il l come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illuminate and stay lit) if:
- a small adult or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upr ight w ith
their back against a non-reclined backrest
with their feet on the veh icle floo r in front
of the seat is on the front passenge r seat.
If the front passenger airbag deploys, the
Federal Standard requires the airbag to meet
the " low risk " deployment criteria to help re­
duce the risk of inju ry through interaction
with the airbag . "Low risk" deployment occurs
in those crashes that take place at lower de­
celerations as defined in the electronic control unit
¢ page 120.
Please be sure to read the important informa­
tion in the sections that follow and be sure to
heed a ll of the WARNINGS.
_& WARNING
To reduce the risk of injury when an airbag
inflates, a lways wear safety belts properly.
- If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, your risk of injury is much higher.
- You w ill also receive serio us injuries and
cou ld even be killed if you are up against
the a irbag or too close to it when it in-
A irbag system 11 5
flates - even with an Advanced Airbag
¢page 109.
_& WARNING
A child in a rearward-fac ing ch ild safety
seat installed on the front passenger seat
will be ser ious ly injured and can be killed if
the front airbag inflates - even with an Ad­
vanced A irbag System .
-Although the Advanced Airbag System in your veh icle is designed to turn
off the
front airbag when a rearward-facing child restraint has been instal led on the
front passenger seat, nobody can abso­ lutely guarantee that dep loyment is im­
possible in all conceivable situations that
may happen during the usefu l life of your
vehicle.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, door, or roof.
- Never install a rearward facing child
safety seat on the front passenger seat
unless the
PA SSENGER AIR BAG OFF
light comes on and stays on . If the PAS­
SENGER AIR BAG OFF
light does not
come on and stay on the inflating a irbag
will hit the child safety seat or infant car­ rier with great force and wi ll smash the
child safety seat and child against the
backrest, door or roof. Have the a irbag
system inspected immediately by your
author ized Audi dealer.
_& WARNING
If, in except iona l circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer fo r use on a front seat
with a passenger front and s ide a irbag.
- Never put the forward-facing child re­
straint up against or very near the instru- ment panel.
~
•
•

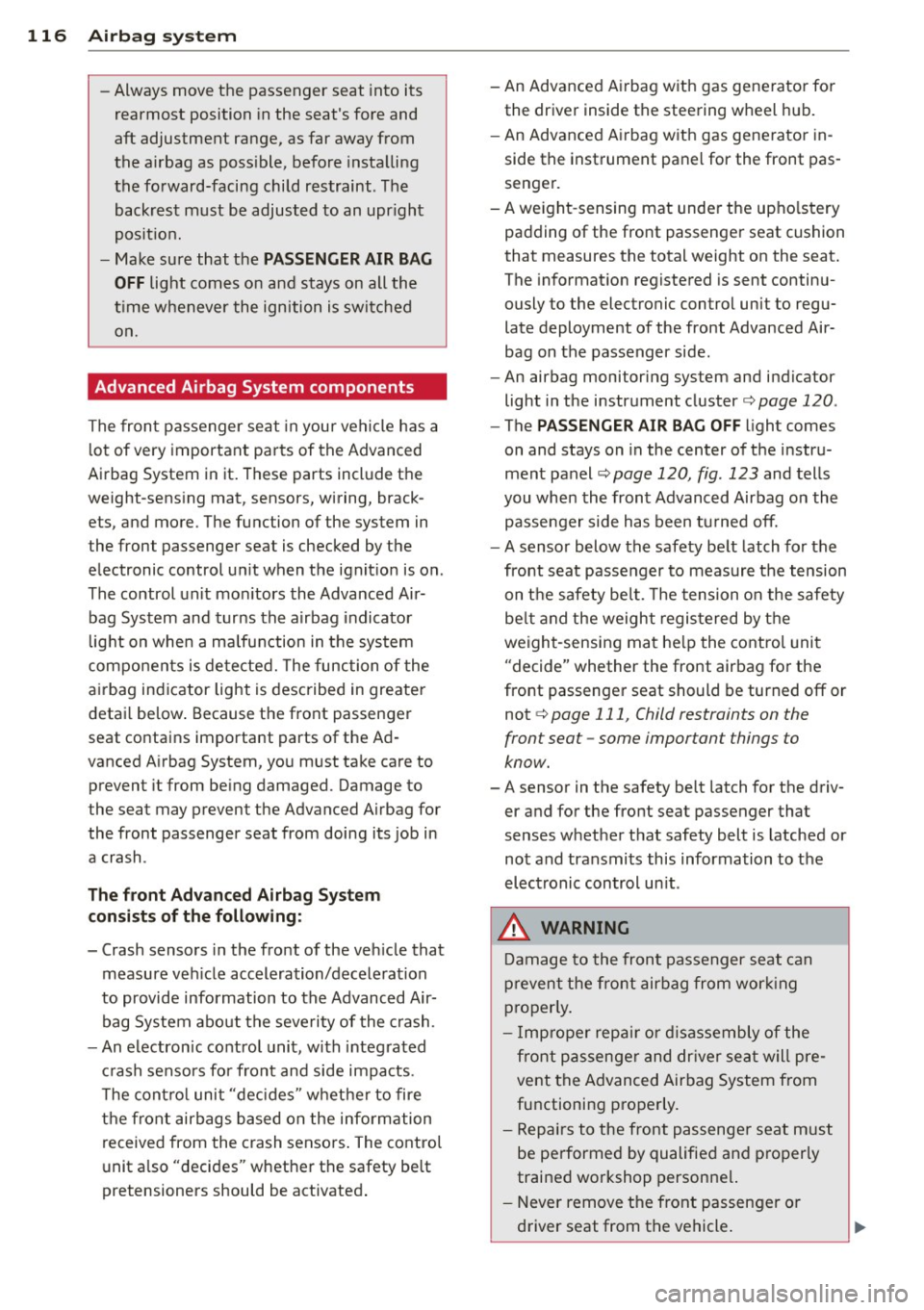

116 Airbag sys te m
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is switched
on.
Advanced Airbag System components
The fron t passenger sea t in your vehicle h as a
lot of very important par ts of the Advanced
Airbag System in it. These parts include t he
weight -sensing mat, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control un it when the ignit ion is on.
The control unit mon itors the Advanced Air­
bag System and turns the airbag indicator
l ight on when a ma lfunction in t he system
components is detected. The func tion of the
a ir bag ind icator light is described in greater
detai l be low . Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you m ust take care to
prevent it from be ing damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration
to provide information to the Advanced Air­
bag System abou t the seve rity of the crash.
- An electron ic co ntrol unit, with integ rated
crash sensors for front and side impacts .
T he cont ro l unit "dec ides " w het her to fire
the front airbags based on the information
received from the crash senso rs . The contro l
unit a lso "decides" whethe r the safety be lt
pretensioners should be activated . -
An Advanced A irbag w ith gas generator for
the driver inside the steering w heel hub.
- An Advanced A irbag w ith gas generato r in­
side the inst rument panel for the front pas­
senger.
- A we ight -sensing mat unde r th e upho ls tery
pa dding of the front passenger seat cushion
that measures the total weight on the seat .
The informat ion registered is sent continu­
ously to the electronic control unit to regu­ late deployment of the front Advanced Air­
bag on the passenger side .
- An airbag monitoring sys tem and indicator
light in t he instrument cluster
c::> page 120.
- The PASSENGER AIR BAG OFF light comes
on and stays on in the center of the instru­
ment panel
c::> page 120, fig. 123 and tells
you when the front Advanced Airbag on the passe nger side has been tu rned off.
- A senso r below the safety be lt latch fo r the
front seat passenger to measure the tension on t he safety be lt. The tension on the safety
be lt a nd the weight regis tered by the
weight-sensing mat he lp the cont rol uni t
"decide" whether the front airbag fo r the
front passenger seat should be turned off or
not
c> page 111, Child restraints on the
fron t seat -some important things to
know.
-A sensor in the safety belt latch fo r the driv­
er and for the front seat passenger that
senses whether t hat safety belt is latched or
not and transmits this information to t he
elect ronic control un it .
,&. WARNING
D amage to the fron t passenger seat can
p revent the fro nt airbag from wor king
properly.
- I mp roper repai r or d isassembly of the
front passenge r and dr ive r sea t will pre­
vent the Advanced Air bag System from
functioning p roperly.
- Repairs to the front passenge r seat m ust
be pe rformed by qualifie d and p roperly
trained workshop personnel.
- Never remove the front passenger o r
d river seat from t he vehicle .
-
