In strument s and control s 9
@ Buttons for :
- All-weather lights
- Night vision assistant* ..... .
- Rear fog lights .. .. .. ..... .
@ Power exterior m irror ad just -
ment .. .. .. .... .......... .
@ Rear lid switch ... . .. .. ..... .
@
@
@ Power w indows
MM I display
Emergency flashers
@ G love compartment . .. .. ... .
@ Fron t passenger's a irb ag .... .
@ Valet parking feature ....... .
@ Drives (MMI)
@ Buttons /Indicator lights for
- Parking system ........... .
- PASS ENG ER AIR BAG OFF ... .
- Rear spoiler .. .. . ... ...... .
- Elect ron ic Stabilization Pro-
gram (ESP) .... . .. .. ..... .
@ Climate controls, depending on
vehicle equipment:
- Three -zone clima te control ..
- Four-zone au tomat ic climate
con tro l ... .. ............ .
@ Storage compartment or ash-
tray* with c igarette lig hter* ...
@) I S TART ENGI NE STOPI button
@ MMI controls
@ 12-volt socket*, (upholder
@ Elec tromec hanical p arking
brake . ... .... ... .. .. ..... .
@ Selector lever (automat ic trans­
mission)
(!) Tips
41
98
41
47
35
38
42
56
141
39
108
150
186
186
65
67
54 ,54
71
55,55
74
102
- Some of the equipment or features
shown in the genera l ill ustration may be
standard equ ipment on your vehicle or
may be opt ional equ ipment depending
on your model. Always ask your author­
ized Aud i dea le r i f you have a quest io n
abou t your ve hicl e.
- Ope rat ion of t he Mu lti Med ia Interface
(M MI) is described in a separate manua l.

10 Instruments and warning/indicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Overv iew of the inst rument cluster
CD Coolant temperature gauge ...
@ Tachometer (engine rev counter)
@ Turn signals ........... .. .. .
© Display with
- Driver information system .. .
- Warning/ind icator lights
® Tachometer 10
11
43
22
11
@ Fuel
gauge . . . . . . . . . . . . . . . . . 11
@ Tips
The instrument illumination (for dials and
needles) turns on when the ignition is on
and the vehicle lights are turned off . As
the daylight fades, the illumination of the
dia ls likewise dims automatically and will
go out completely when the outside light
is very low. This feature is meant to rem ind
you to switch on the headlights when out­
side light conditions become poor.
Engine coolant temperature gauge
The engine coolant gauge CD c:> page 10, fig. 3
only works when the ignition is on . To prevent
damage to your engine, please note the fol­
l owing important points:
Engine cold
If only the LEDs at the bottom of the gauge
turn on, the engine has not reached operating
temperature yet. Avoid high engine speeds, heavy engine loads and heavy th rottle applica­
t ions.
Normal temperature
The engine has reached its operating temper­
ature once the LEDs up to the center of the
gauge turn on unde r normal driv ing cond i­
t ions . Th e LEDs higher up may turn on when
the engine is under heavy load or the exterior
temperature is high. This is no need to worry
as long as the . warning light in the instru­
ment cluster does not illuminate . If the LEDs
in the upper area of the disp lay and the indica­
tor light . in the instr ument cluster display
turn on, the coolant temperature is too high
c:> page 15.
A WARNING
-Always observe the warn ing in
c:> page 210, Engine compartment, be­
fore open ing the hood and checking the
engine coolant level.

Instrument s and warnin g/indic ator ligh ts 11
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment.
You could burn yourself . Let the engine
cool off first so that you cannot hear or
see any steam or engine coolant.
Q) Note
- Mount ing additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the rad iator . At h igh outside
temperatures or high eng ine load, the
engine could overheat.
- The front spo ile r has been designed to
proper ly distrib ute the cooling air wh en
t h e veh icle i s moving.
If the spoiler is
damaged, this cou ld red uce the cooling
effect and the engine co uld then over ­
heat . Ask yo ur authorized Audi dea ler fo r
ass istance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
If engine R PM drops be low 1 ,500, you should
downshift to the next lower gea r. T he red area
at the end of the sca le indicates maximum
pe rmissib le engine RPM after the break- in pe­
riod. Before reach ing this area, move these­
lector lever to position "D/S (Drive)" or ease
your foot off the accelerator peda l.
(D Note
The tachometer needle should only br iefly
be in the red zone: you cou ld damage your
eng ine! The beginn ing of the red zone var­
ies depending on the e ng ine.
@ For the sake of the environment
Upshift ing early saves fuel and reduces en­
g ine noise.
Fuel gauge
The fuel gauge only wo rks when the ignition is
on .
If the fuel level drops below 2.6 gallons (10 liters), the bottom LED turns red and the
indicator
light~ turns on ¢
page 20. The
bottom LED blinks red when the fue l level is
very low.
T he possible range based on the current f uel
level is shown in tab@¢
page 22, fig . 4 .
(D Note
Neve r run the tan k comp letely dry. An ir­
r egular supp ly o f fu el can cause engine
misfiring and fuel could enter the exha ust
system . The cata lytic converter could then
overheat and be damaged.
Warning/indicator Lights
Description
The ind icator lights in the instrument cluster
blink or turn on. They indicate funct ions or
malfunctions
q ,& .
Messages may appear with some indicato r
lights. A warning signal will sound at the
same time. The indicator lights and messages
in the center of the displays may be rep laced
by other d isplays . To show them again, select
the tab for ind icator lights and messages us­
ing the multifunction steering whee l
¢
page 22. I f there are several malfunc­
tions, you can display them one at a time us­
ing the thumbwheel.
Some indicators lights in the d isplay can tu rn
o n in seve ra l c olors.
&_ WARNING
- F ailure to heed warning l igh ts an d other
important vehicle in formation may resu lt
in serious personal inj ury or vehicle dam­
age .
- Whenever stalled or stoppe d for repair,
move the vehicle a safe d istance off the
road, stop the engine, and turn on the
emergency flasher
q page 42.
- The engine compartment of any motor
veh icle is a potentially hazardous area.
Before you check anything in the engine

16 Instrum ent s and w arn ing /indic ato r light s
-The engine compartment of any vehicle
is a dangerous area. Before you perform
any work in the engine compartment,
turn of the eng ine and allow it to cool.
Follow the warning stickers¢
page 210,
Engine compartment.
@ Note
Do not continue driving if the. symbol
illuminates. There is a malfunct ion in the
eng ine cooling system -you could damage
your eng ine .
0 Battery
This warning/indicator light detects a mal ­
function in the generator or in the vehicle's
electrical system.
The .warning/indicator light illuminates
when you sw itc h on the ignit ion and must go
out after the engine has started .
• Alte rnator fault: Batte ry is not being
c ha rged
I f the indicator light t urns on and the mes­
sage appears, there is a malfunction in the
generator or vehicle electr ica l system.
Drive to yo ur authorized Audi dea ler or quali ­
fied workshop immediately. Because the vehi ­
cle battery is discharging, turn off a ll unnec­
essary electrical equ ipment such as the radio.
Seek professional ass istance if the battery
charge level is too low .
(•i Low battery charge: b atte ry will be
cha rged while dri ving
If the indicator light turns on and the mes­
sage appears, there may be limited starting
ab ility.
If th is message turns off after a litt le while,
the battery charged enough whi le driving.
I f the message does not turn off, have you r
author ized Audi dealer or qua lified workshop
correct the mal function.
,(,. Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warning/indicator light illuminates
when the ignition is switched on to remind
the driver and any front passenger to put on
the safety belt. Addit ionally, an acoustic warn­
ing (gong) wi ll also sound .
For more Information¢
page 128, ~ Safety
belt warning light .
"l!::7": Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair . Driving
with a low-oil-pressure indication is likely to
inflict severe damage to the engine .
• Swit ch off engine and check oil le vel
If the indicator light turns on the message ap­
pears, the oil pressure is too low .
"" Pull off the road .
... Stop the vehicle.
... Tu rn off the engine .
... Check the engine oil level ¢ page 221.
"" If the eng ine oil level is too low, add eng ine
oil
¢ page 221. Make sure that the oil pres­
sure warning symbol. appears no longer
in the display befo re you start dr iv ing again .
"" If the eng ine o il level is co rrect and the i ndi­
cato r ligh t still turns on, tu rn the engine off
and do not cont inue dr iv ing. Seek professio­
na l assistance .
@ Tips
- The engin e oil pressure symbol. is
not an indicator for a low engine oil lev­
el. Do not rel y on it. In ste ad, check the
oil level in your engine at regula r inter­
vals, p referably each time you refuel ,
and always be fore going on a long tr ip.
- The yellow oil level warning indication
II requires oil refill or workshop se rv­
i ce without delay. Do not wait until the
red oil pressure warning. sta rts to

Instruments and warning/indicator lights 17
flash before you respond to the low oil level warning
Ill. By then, your engine
may already have suffered serious dam­
age.
~ . Engine oil level
• WARNING: Please add oil immediately
When the symbol and the driver message ap­
pear, the oil has to be replenished right now
,=;,page 218.
If the indicator light and the message appear,
add engine oil immediately
,=;, page 221.
II Add oil, max. x qt (l). You may continue
driving
When the symbol and the driver message ap­
pear, add the amount of oil appearing in the
display at the next opportunity
¢ page 218.
@ -Steering column lock
• Do not drive vehicle: Steering defective
If the indicator light turns on and the mes­
sage appears, there is an electronic steering
column lock malfunction. You cannot switch
the ignition on.
Do
not tow your vehicle because it cannot be
steered. Seek professional assistance.
l!l!I Steering lock: system fault. Please con­
tact dealer
If the indicator light turns on and the mes­
sage appears, there is an electronic steering
column lock malfunction .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
A WARNING
-
Your vehicle must not be towed in the
event of a malfunction in the electronic
steering column lock because it cannot be
steered due to the locked steering.
If it is
towed with the steering locked, there is
the risk of an accident.
©-Engine start system
• Engine start system fault. Please con­
tact dealer
If the indicator light turns on and the mes­
sage appears, do
not switch the ignition off
because you may not be able to switch it on
again.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
II! Engine start system fault. Please con­
tact dealer
If the indicator light turns on and the mes­
sage appears, there is a malfunction in the en­ gine start system.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
t!i1 !i: Safety systems
The ffll (USA models)!Ei (Canada models) in­
dicator light monitors the safety systems e .g.
airbags, pretensioners and illuminates for a
few seconds each time you switch the ignition
on.
If the
ffl (USA models);Ei (Canada models)
indicator light does not go out, or if it illumi ­
nates while you are driving, or if it starts to
blink, then there is a malfunction somewhere
in the system.
If the light does not illuminate
when you switch the ignition on, this also
means there is a malfunction.
A WARNING ~
If you have a malfunction in the safety sys-
tems, contact your authorized Audi dealer
immediately. Otherwise the safety sys­
tems may not work properly in an acci­
dent .

20 Instruments and warning/indicator lights
!?' Engine speed limitation
Ap plies to vehicles: wit h eng ine spee d limi tation
(ii Engine speed maximum XXXX RPM
The engine speed is automatically limited to
the speed displayed in the driver information
system. This protects the engine from over­
heating.
The engine speed limitation deactivates once
the engine is no longer in the critical tempera­
ture range and you have released the accelera­
tor pedal once.
If the engine speed limitation was activated by an engine control malfunction, the indica­
tor light~ also turns on. Make sure that the
speed does not go above the speed displayed .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
~ . Engine oil level
II! Add oil, max. x qt (l) . You may continue
driving
When the symbol II and driver message ap­
pear, add the amount of oil appearing in the
display at the next opportunity
c:> page 221.
~ .... Engine oil sensor
• Oil level! Sensor defective
If the symbol illuminates, contact your au­
thorized Audi dealer and have the oil sensor inspected. Until you have this done, check the
oil level each time you refuel just to be on the
safe side<=>
page 221.
Bil Fuel level indicator
Ji Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2.6 gallons (10 liters) of fuel left in the
tank . Time to refuel
<=> page 212.
Ji Tank system malfunction! Contact dealer
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
tank system.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
o Windshield washer fluid level
B Please refill washer fluid
If the symbol illuminates, add windshield
washer fluid to the washer system/headlight
washer system*
c:> page 230.
~ Windshield wipers
,,., Windshield wiper defective
There is a malfunction with the windshield
wipers.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected .
~/0$ Defective light bulb warning
fa-If the indicator light turns on, a bulb has
failed. The message indicates the location of
the bulb.
[I-if a rear fog lamp has failed, the indicator
light turns on to indicate the location on the
vehicle .
Vehicle lights: malfunction
If the message appears, there is a malfunc ­
tion in the headlights or light switch .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected .
A WARNING
-
-Light bulbs are pressurized and could ex-
plode while they are being changed caus­
ing serious personal injury.
- Work with due care when handling the
high-voltage section of gas discharge
(xenon) lights. Failure to do so could re­
sult in death or serious injury.

22 Instruments and warning/indicator lights
Driver information
display
Overview

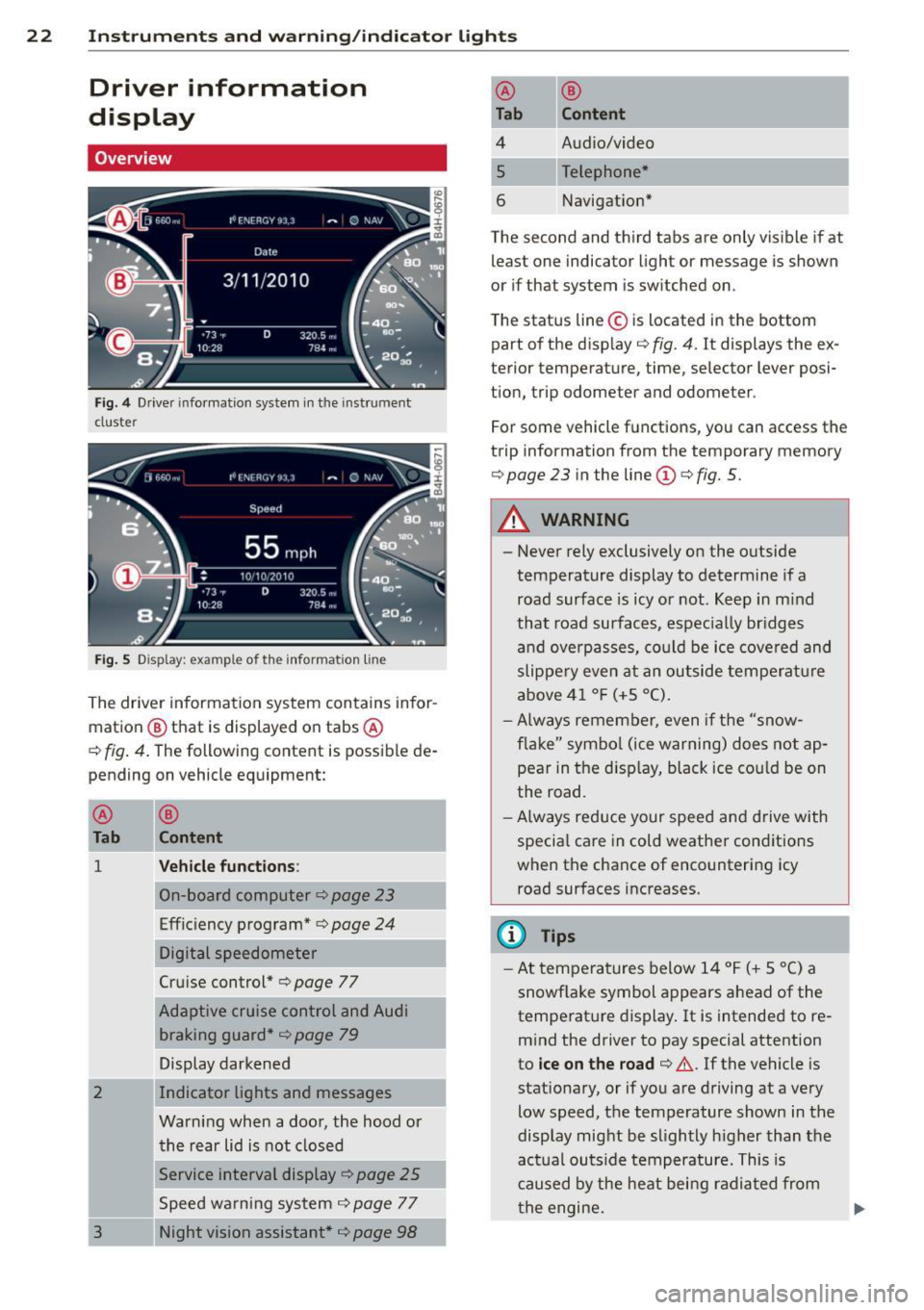

Fig. 4 Driver informat ion system in the instrument
cluste r
Fig. S Display: example of the informat ion line
The driver information system contains infor­
mation @ that is displayed on tabs @
c:;, fig. 4. The following content is possible de­
pending on vehicle equipment:
@
Tab
1
2
3
®
Content
Vehicle functions :
On-board computer c::>page 23
Efficiency program* c> page 24
Digital speedometer
Cruise control*
c:;, page 77
Adaptive cruise control and Audi braking guard*
c::> page 79
Display darkened
Indicator lights and messages
Warning when a door, the hood or the rear lid is not closed
Service interval display
c:;, page 25
Speed warning system c:> page 77
Night vision assistant*
c:> page 98
-@ ®
Tab Content
4 Audio/video
5 Telephone*
6 Navigation*
The second and third tabs are only visible ifat
least one indicator light or message is shown
or if that system is switched on.
The status line © is located in the bottom
part of the display ¢
fig. 4. It displays the ex­
terior temperature, time, selector lever posi­
tion, trip odometer and odometer.
For some vehicle functions, you can access the
trip information from the temporary memory
c:> page 23 in the line (D c::> fig. 5.
A WARNING
--
-Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not. Keep in mind
that road surfaces , especially bridges
and overpasses, could be ice covered and
slippe ry even at an outside temperature
above 41 °F (+S °C).
- Always remember, even if the "snow­
flake" symbo l (ice warning) does not ap­
pear in the d isp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather conditions
when the chance of encountering icy
road surfaces increases.
(D Tips
- At temperatures below 14 °F (+ 5 °C) a
snowf lake symbol appears ahead of the
temperature display. It is intended to re­
mind the driver to pay special attention
to
ice on the road c:> .&.. If the vehicle is
stationary, or if you are driving at a very
low speed, the temperature shown in the
display might be slightly h igher than the
actual outside temperature. This is
caused by the heat being radiated from
th e engine.
