2012 AUDI A7 technical specifications

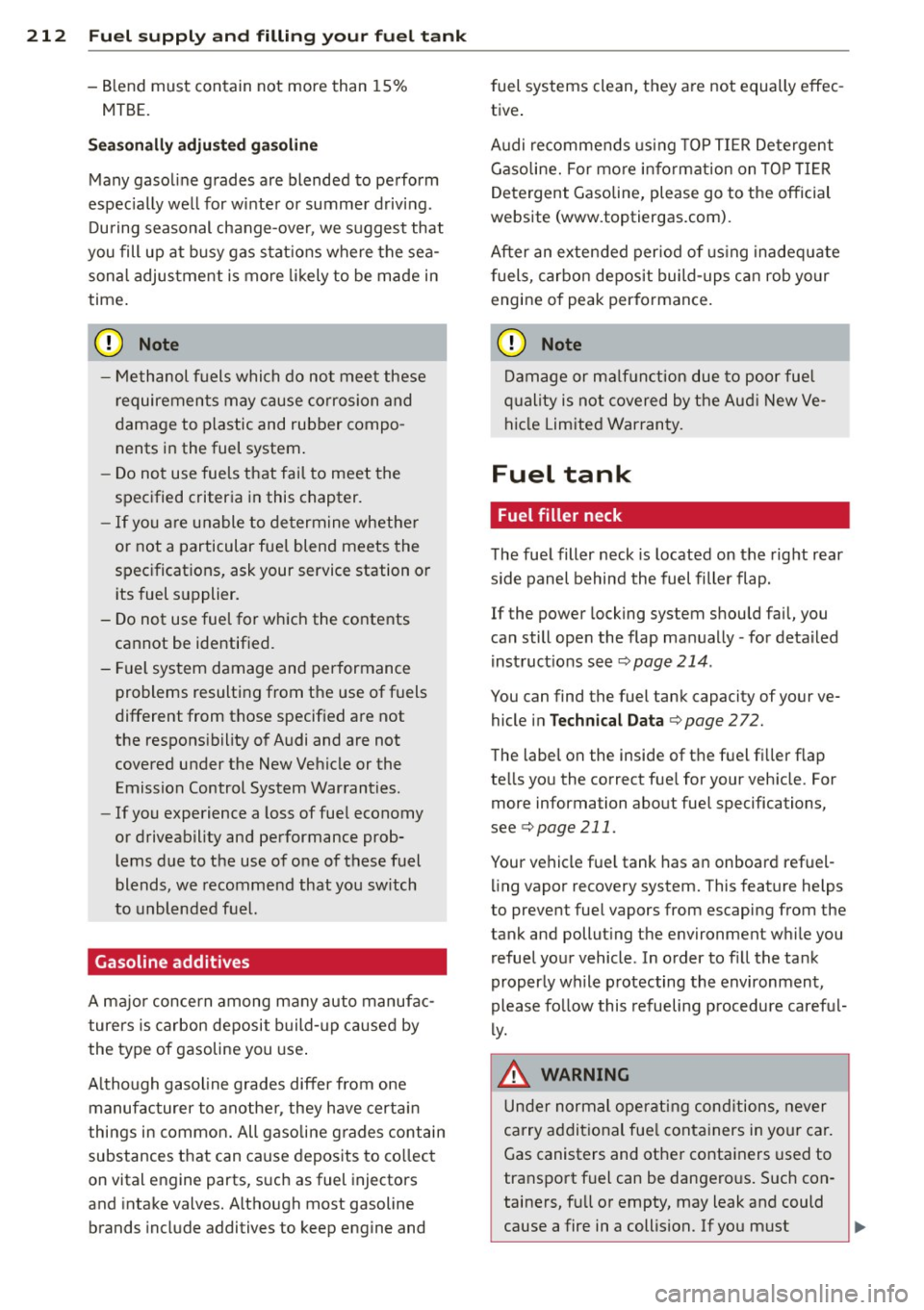

212 Fuel supply and filling your fuel tank
-Blend must contain not more than 15%
MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform
espec ially we ll for winter or summer driv ing.
During seasonal change-over, we suggest that
you fill up at busy gas stat ions where the sea­
sonal adjustment is more likely to be made in
time.
(CT) Note
- Methanol fuels which do not meet these
requirements may cause corrosion and
damage to plastic and rubber compo­
nents in the fuel system .
- Do not use fuels that fai l to meet the
specified criteria in this chapter.
- If yo u are unable to determine whether
or not a particular fuel blend meets the
specifications, ask your service station or
its fuel sup plier.
- Do not use fuel for which the contents cannot be identified.
- Fuel system damage and performance
problems resulting from the use of fuels
different from those specified are not
the respons ibility of Audi and are not
covered under the New Vehicle or the Emission Control System Warranties.
- If you experience a loss of fuel economy
or driveability and performance prob­ l ems due to the use of one of these fuel
blends, we recommend that you switch
to unblended fuel.
Gasoline additives
A major concern among many auto manufac ­
turers is carbon deposit build- up caused by
the type of gasoline you use.
A lthough gasoline grades differ from one
manufacturer to another, they have certain
things in common. All gasoline g rades contain
substances that can cause deposits to co llect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline
brands include additives to keep engine and fuel
systems clean, they a re not equally effec­
tive .
A udi recommends using TOP TIER Detergent
Gasoline. For more information on TOP TIER
Detergent Gasoline, please go to the official
website (www.toptiergas.com).
After an extended period of using inadequate
f uels, carbon deposit build-ups can rob yo ur
engine of peak performance.
(D Note
'
Damage or malf u nct ion due to poor fuel
quality is not covered by the Aud i New Ve­
hicle Limited Warranty.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
s ide panel behind the fuel filler flap.
If the power locking system should fail, you
can still open the flap manually- for detailed
instructions see
¢page 214.
You can find the fuel tank capacity of your ve­
hicle in
Technical Data ¢ page 272.
The label on the inside of the fuel fi ller flap
tells you the correct fue l for your veh icle. For
more information about fuel specifications,
see
¢ page 211.
Your vehicle fuel tank has an on board refuel­ li ng vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and polluting the environment while you refuel your vehicle . In order to fill the tank
properly wh ile protecting the environment,
please fo llow this refueling procedure careful­
ly.
.8, WARNING
Under normal operating cond itions, never
carry additional fuel containers in your car.
Gas canisters and other containers used to
transport fuel can be dangerous. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must

Side assist Activating and deactivating . . . . . . . . . . . 88
Cleaning sensors ............ ... .. . 202
Description . ............. .... .. .... 88
Informational and alert stage signals .. 90
Messages in instrument cluster display . 94
MMI settings .... .. ...... .. .. .. .. .. 93
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 89
Safety tips . . . . . . . . . . . . . . . . . . . . . . . . 94
Sensor detection area . . . . . . . . . . . . . . . 89
Side curtain airbags ........... .... .. 160
Description .... .. .. ...... .. .. .. .. . 160
How they work .............. ... ... 161
Safety instructions ........ .. .. .. .. . 161
Side marker lights ......... .. .. .. .. .. 41
Ski sack ..... .. ................ ..... 62
also refer to Trunk pass-through .. .. .. 63
Sliding/tilting sunroof Emergency closing .......... .. .. .. .. 40
Opening and closing ...... .. .. .. .. .. 39
Snow chains . ................ ... ... 247
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Sources of information about child re-
straints and their use ....... .. .. .. .. . 181
Space-saving spare tire ...... .. .. .. .. . 253
Spare tire .... ................ ... ... 253
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 25
Speed rating letter code ..... .. .. .. .. . 243
Speed warning system ...... .. .. .. .. .. 76
Star button . . . . . . . . . . . . . . . . . . . . . . . . . 23
START ENGINE STOP button ........... 71
Starting from rest .......... .. .. .. .. .. 75
Startingoffwithatrailer .... .. .. .. .. .. 75
Starting the engine .................. 71
Steering Electrically adjustable steering wheel .. 70
Manually adjustable steering wheel .. .. 70
also refer to Electro-mechanical power
assist ..... .. ................ .... 189
Steering wheel Easy entry feature . . . . . . . . . . . . . . . . . . 71
Indicator light . . . . . . . . . . . . . . . . . . . . . 17
Steering wheel heating .... .. .. .. .. .. 69
Steering wheel column Adjusting electrically ...... .. .. .. .. .. 70
Adjusting manually ....... .. .. .. .. .. 70
Steps for determining correct load limit . 239
Index 287
Stopping the engine . ............... .. 73
Storage . . . . . . . . . . . . . . . . . . . . . . . . 55, 60
Sunroof .... .. .. .. ... ............ ... 39
Sun shade .. .. .. .. ................. . 45
Sun visors ........ .. ................ 45
Symbols
refer to Warning/indicator lights ..... . 11
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 11, 22
Technical modifications .............. 276
Temperature display ............. .. .. . 22
T ether anchors . . . . . . . . . . . . . . . . . . . . . 180
Tether strap . . . . . . . . . . . . . . . . . . . . . . . 180
The first 1,000 miles (1,500 km) and after-
wards ...... .. .. .. ................. 192
Three-zone climate control . . . . . . . . . . . . 65
Tie-downs . . . . . . . . . . . . . . . . . . . . . 61, 125
Tips for the environment
Saving fuel . ... .. .. ................ 58
tiptronic ... .. .. .. ................. 102
A ut omatic Shift Lock (ASL) ...... .. .. 104
Driving .......................... 102
Dynamic shift program ............. 105
Emergency mode ... ............... 106
Kick-down . .. .. .. ................. 104
Manual shift program .............. 105
Selector lever .. .. ... ... ...... ..... 103
Tire pressure . ...................... 23 7
Tire pressure monitoring system ....... 249
Loss of air pressure ................ 250
Malfunction . .. .. ................. 250
Resetting tire pressures ............ . 251
Tires ...... ... .. .... .......... ..... 231
Service life ....... ................ 241
Speed rating letter code ........ .. .. 243
Tire manufacturing date ........ .. .. 243
Tire specifications ................ . 243
Tread depth ....... ............... 241
Uniform tire quality grading ........ . 245
Winter tires . .. ...... ............. 246
T ires and vehicle load limits ....... .... 239
Tires and wheels Checking tire pressure ............. . 237
Cold tire inflation pressure ......... . 235
Dimensions .. .. .. ................. 242
•
•
