2012 AUDI A7 engine

Battery charging
Starting the engine requires a well charged battery .
Fig. 174 Eng ine compartment : connectors for a charg ­
er and jump sta rt cab les
A lwa ys re ad and heed all WARNING S below
c:> &. and c:> &. in Working on the battery on
page 227 .
.. Switch off the ignit ion and all electrical con­
sumers .
.. Make sure the area is well ventilated when
you charge the battery .
.. Open the engine hood
c:>page 216.
.. Open the red cove r on the posit ive pole
c:>fig. 174.
.. Connect the charger connectors accord ing
to the instructions to the
jump start b olts .
(Bolts under the red cover= "positive", Bolts
with hex head= "negative").
.. Only now plug the mains lead for the charg­
ing equipmen t into the wall outlet and turn
it on
c:> 8_ .
.. Ma ke sur e t he charging rat e is not over
30 amp s/14 .8 Vol t.
.. When the batte ry is fully charged: Turn the
charging eq uipment off a nd remove the
ma ins lead from the wall outlet .
.. Now remove the clamps for the charging
equipment.
.. Close the red cover on the positive pole.
.. Close the hood
c:> page 217.
A discharged battery can free ze at tempera­
tures of on ly 32 F
0 (0 °C). A llow a frozen bat­
tery to thaw completely before attempt ing to
charge it
c:> .&. . However, we recommend not
using a thawed battery again because the bat-
Checkin g and fillin g 229
tery casing can be cracked due to ice forma ­
tion and can leak battery acid.
Battery charging (Maximum charging rate
of 30 amps /14.8 Volt )
When charging at low voltages (e.g. with a
trickle cha rger ), the battery cables do not
have to be disconnected f irst . The battery
caps should
not be opened when charging a
battery.
It is not necessary to remove the battery from
the luggage compartment, and it is also not
necessary to disconnect the cables.
Fast ch arging the batte ry (charging rat e
a bove 14.8 Volt s)
For technica l reasons do not use a battery
charger that uses voltage greater than 14.8
Volts to charge your vehicle's battery .
A WARNING
-
Charging a battery can be dange rous .
- Always follow the operating instructions
provided by the battery charger manu­
facturer when charg ing your battery .
- Never charge a frozen battery. It may ex­
plode because of gas trapped in the ice .
Allow a frozen battery to thaw out first.
- Do not reuse batteries wh ic h were fro­
zen. The battery housing may have
cracked and weakened when the battery
froze.
- Cha rge the battery in a well ventilated
area . Keep away from open flame or elec­
trical spar k. Do not smo ke. Hyd rogen gas
generated by the bat tery is explos ive.
- To reduce the danger of explosion, never
connect or d isconnect charger cab les
while the charger i s ope rat ing.
- Fast cha rging a batte ry is dange rous and
should only be at tempted by a compe­
tent techn ician wi th the prope r equip­
ment .
- Ba ttery acid that may spi ll dur ing charg­
ing should be washed off with a solution
of warm water and baking soda to neu ­
tralize the ac id.

230 Checking and filling
(D Note
Never use a fast charger as a booster to
start the engine. This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc., as well
as the battery charger.
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery.
Intelligent energy management in your vehi­
cle is responsible for distributing the electri­
cal energy throughout your vehicle
~ page 190. The intell igent energy manage­
ment system will keep the engine battery
charged better than vehicles without this sys­
tem. To make sure the additional electrica l en­
ergy is available once again after you have
changed the battery, we recommend that you install batteries of the same type and manu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the battery housing. Your
author ized dealer must code the battery in
the energy management system to enable you
to use the energy management funct ions cor­
rectly after replacing the battery .
The new battery must have the same capacity,
voltage (12 volts), amperage, construct ion
and plug sealing.
When installing the battery, make sure the ig­
nition and all electr ical consumers are switch ­
ed off.
(D Note
Make sure the ventilation hose on the side
of the battery is connected, otherwise
fumes or battery ac id can leak out.
@ For the sake of the environment
Because of the problem of proper disposal
of a battery, we recommend your author­
ized Audi dealer change the battery for
you . Batteries contain su lfuric acid and l
ead and must always be disposed of prop­
erly in compliance with all environmental
regulations. Disposing of vehicle batter ies
i mproperly is very dangerous to the envi­
ronment.
Windshield/head Light
washer container
Fig. 175 En g in e compart men t: w inds hield and head ­
lighr washer fluid reservoir
The washer fluid conta iner is marked w ith the
symbol~ on its cap.
"' Before you check anything in the engine
compartment,
always read and heed all
WARNINGS ~.&. in Working in the engine
compartment on page 216.
"' Lift the filler cap tongue to add washer flu ­
id. You can fill the container to the top.
"' Press the cap back onto the filler neck after
fi lling the container.
You can find the reservoir
capacity in the table
in
~ page 272.
Clean water should be used when filling up. If
possible, use soft water to prevent scaling on
washer jets. Always add a glass cleaner solu­
tion (with frost protection in the winter).
@ Note
Do not mix engine coolan t ant ifreeze or
any other additives to fill up the wind­
shield washer reservoir .

236 Tires and wheels
change. In the event of discrepancies, the tire
pressure labe l is located on the driver's side B­
p ill ar a lways takes precedence.
The table below lis ts the recommended cold
tire inflation pressures for the Audi model covered
by your Owner's Literature at the vehi ­
cle's capacity weight and the tire sizes instal­
l ed on the respective models as orig inal
equipment, or as a factory option.
I Engine Tire designation
Tire pressure front Tire pressure rear I
(displace-
normal load full load normal load full load
ment in
li-condition condition condition condition
I
ter) PSI II kPA PSI JI kPA PSI II kPA PSI II kPA :
6-cylinder 235/55
Rl 7 99Y
3.0 High Performance 32
220
35 240 29 200
38 260
255/45 Rl8 99H '
32 220 35
240
29 200 38 260 All Season I
255/45 Rl8 99Y
32 220 35 240 29 200 38 260
High Performance
255/40 Rl9100H XL
35 240
38 260
30 2 10 41
280 All Season
255/40
Rl9100YXL
36 250 38 260 32 220 41 280
High Performance
265/35 R20 99Y XL '
36 250 38 260 32 220 41 280
High Performance .. • .. .. .. .. ..
XL= reinforced or extra load tire. It may also appear as xl, EXTRA LOAD, or RF on the tire side­
wall.
The correct tire pressure for the spore wheel is
loc ated on a label on the driver's side B-pillar.
Because technical changes may be made to
vehicle equ ipment dur ing the model year, a l­
ways compare the tire size designation on the
tire pressure labe l on your vehicle w ith the
tires on your vehicle . Make sure that the tire
size information on the vehicle label is the
same as the size of the ti res on the vehicle.
This is especially important if the vehicle be­
longs to someone else or you bought the vehi­
cle with different rims/tires or you bought the
vehicle as a previously owned vehicle.
Remember, your safety and that of your pas­
sengers also depends on making sure that load limits are not exceeded. Vehicle load in­
cludes everybody and everything in and on the
vehicle . These load limits are technically refer­
red to as the vehicle's Gross Vehicle We ight
Rating ("GVWR"). The Gross Ax le Weight Rat­
ing ("GAWR") is the maximum load that can be applied at each
of the vehicle's two ax les .
T he Gross Vehicle Weight Rat ing and the
Gross Axle Weight Rating are listed on the
safety compliance sticke r label located on the
driver's side B-pillar. The tire pressure labe l on
your Audi lists the maximum combined
weight of all of the occupants and luggage or
other cargo that the vehicle can carry . For the
location of the tire pressure label
¢fig. 176 .
A WARNING
-Overloading a vehicle can cause loss of ve-
hicle control, a crash or other accident, se­
r ious personal injury, and even death.
- Carrying more weight than your veh icle
was designed to carry will prevent the
vehicle from handling properly and in­
crease the risk of a loss of vehicle con­
trol.

252 What do I do n ow ?
What do I do now?
Emergency warning
triangle
App lies to vehicles: with emerge ncy warning triangle
The warning triangle is located on the inside
of the trunk lid .
-
"' M ~ 0 6
~ ~
Fig. 183 Trunk lid: Warning triang le
.,. To open the cover, turn the locking mecha ­
nism and pull the cover downward .
" m
.,. Remove the warning triangle from its hold­
er.
The rear lid is only designed to hold the warn ­
ing triangle offered by the original accessories
program. If you would like to retrofit your ve­
hicle with a warning triangle, p lease contact
your authorized Audi dealer.
Vehicle tool kit
Vehicle tool kit and jack
The vehicle tool kit is located in the luggage
compartment under the cargo floor cover.
Fig . 184 Luggage compartment: cargo floor cover
folded upward/spa re t ire
Fig. 185 Trunk lid: Veh icle tool kit
.,. Fold the floor to the seatback with the help
of the handle .
.,. Tu rn the handwheel counter-clockwise
~ fig. 184 and remove the spare t ire to
reach the vehicle tool kit.
The onboard tool k it includes:
- Hooks to remove the wheel covers*
- Plastic hook to remove wheel bolt covers*
- Wheel bolt wrench
-Alignment pin for changing wheels
- Screwdriver with reversib le b lade
- Towing loop
-Jack
Before storing the jack, make sure it is wound
back down as far as it will go.
A WARNING
Improper use of the vehicle jack can cause
serious pe rsonal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts can­
not attain the necessary tighten ing tor­
que if you use the hex head, potentially
causing an acc ident.
- The factory-supplied jack is intended on­
ly for your vehicle model. Under no c ir­
cumstances sho uld it be used to
lift
heavy veh icles or other loads; you risk in­
juring yo urself.
- Never start the engine when the vehicle
is raised, which could cause an accident.
- Support the vehicle securely with appro­ priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potentia l risk for injury. .,.

254 What do I do now?
-Never st ore the inflatable spare tire or
jack and tools in the passenger com­
partm ent.
- Always s tore a ll jacking equipment,
too ls, and the inflatable spare tire in
the luggage compartment.
- Tighten the knurled retaining screw for
the inflatable spare tire securely.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang­
ing a wheel .
" After you experience a tire fa ilure, pull t he
ca r well away from moving traffic and try to
r each
level gro und before you stop c::> ,&. .
" All passengers sho uld leave the car and
move to a safe loca tion (fo r inst ance, behind
the g uardrail)
c::> ,&. .
" Engage the parking brake to prevent your
vehicle from ro lling unintentionally
c::> ,&. .
" Move selecto r lever to pos ition Pc::> ,&. .
" If you are tow ing a trailer, unh itch the tra il­
er from your veh icle .
" Take the
jack and the spare tire out of the
l uggage compartment
c::> page 252 ,
c::> page 253.
.&_ WARNING
You or your p assengers cou ld be injured
while changing a whee l if you do not fol ­
low t hese safety preca utions:
- If you have a fl at t ire, move a safe dis­
tance off the road . Tur n off the engine,
t ur n the emergency flas hers o n and use
other warning dev ices to alert other mo­
torists .
- Make su re that passengers wait in a safe
place away from the vehicle and well
away from the road and traff ic.
- To help p revent the veh icle from mov ing
sudden ly and possibly slipping off the
jack, always fully set the parking brake and block th e whee l diago na lly opposite
-
the wheel be ing changed . When one
front wheel is lifted off the ground, plac­ ing the Automatic Transmission in "P"
(Park) will
not prevent the vehicle from
mov ing .
- Before you change a wheel, be sure t he
ground is level and firm. If necessary, use a sturdy board under the jack .
- After insta lling the spare wheel, make
sure tha t you replace the fla t tire/wheel
i n its storage area prope rly and tighten
the knurled retain ing screw secu rely.
Changing a wheel
When you change a wheel , follow these ­
quence described below step-by-step and in
exactly that order.
1. Remove the decorative wheel cover* . For
more details see also
c::> page 255, Deco­
rative wheel covers
or c::> page 255,
Wheels with wheel bolt caps.
2 . Loosen the wheel bolt s c::>page 255.
3. Loc ate the p roper moun ting poin t for th e
jac k an d align the jack be low that poin t
c::>page 256 .
4. Raise the car with the jack c::> page 256.
5. Remove the wheel with the flat tire and
then insta ll
the spare c::> page 257.
6. Tig hte n all whee l bolts lightly .
7.
Lower the vehicle wi th the jack .
8 . Use the wheel bolt w rench and
firmly
t ig ht en al l w heel bo lts c::> page 25 5.
9. Re place the decora tive wheel cover* .
A WARNING
Always read and fo llow all WA RNINGS and
i nformat io n
c::> & in Raising the vehicle on
page 257
and c::> page 258 .
After changing a wheel
A wheel change is not complete withou t the
doing the following .
" Replace the too ls and the jac k in their prop-
er lo cat io n. .,.

Fuse panel@ (bl ack )
No. Equipment
Vehicle electrical system control
6 module 1, Vehicle e lectr ica l sys-
tern control module 2
7 Audi adaptive cruise control
8
Airbag control module, front
passenger 's seat sensor system
9 Gateway
Homelink (garage door opener),
10 night vision system contro
l
module
Image processing (Audi active
11 lane assist , Audi adaptive cruise
control)
12 Steering
13 Terminal 15 in the luggage com-
partment
14 Terminal 15 in the
instrument
panel (front passenger's s ide)
15 Terminal 15 engine
16 Starter
Fuse panel e (brown)
No . Equipment
1 Gateway
2 Climate control
3 ESP co ntrol module
Front door (driver's side)
5
Power seat adjustment (dr iver's
seat)
6
Steering
7 Sunroof
8
Rear door control module (driv-
er's side)
9
Lumbar suppor t (Fro nt p assen-
ger seat)
11 Sunroof, rear spoiler
12 Driver door control mod ule
Amps
5
10
5
5
5
10
5
15
30 15
4 0
Amps
5
10
10
30
7,5 35
20 1 5
5
20
1 5
Fu se s and bulb s 261
Fuse panel © (red )
No. Equipment
2 Fue l pump
3 Brake light sensor/brake pedal
sensor system
4 Engine acoust ics
5 Rear door control module (driv-
er's side)
6 Left rear seat
7 Horn
8 Win dsh ield wipe r
9 Light/rain sensor
10 L
u mbar support (dr iver seat)
11 Front passenge
r door control
module
12 Right rear door control mod
ule
Front passenger side cockpit fuse
assignment Amps
2
5
5/5
7,5 30
7,5 15
30
5
5
15 15
Fi g. 195 Fro nt passe nge r side cock pit : fu se pa nel with
p last ic bracket
Fuse panel A (black )
No. Equipment
1 Head-up D isplay
2 MMI Display
3 CD/DVD changer
Chip card reader (not in all coun-
5 tr ies)
6 Instrument cluster
Amps
5
5
5
7,5
5
5
7 Steeri ng col umn switch module 5

262 Fuses and bulb s
Fuse panel @ (black )
No . Equ ipment Amps
=
8
Headlight range adjustment/
5/7,5
adaptive lighting system
10 Left headlight (headlight with
7,5
adaptive light)
Fuse panel
@ ( brown )
No .II Equ ipm ent
II Amp s
1 Climate control 10
2 Climate control system blower 40
3 Diagnostic connector 10
4 Electrical ignition lock 5
5 Power steering column adjust-
ment
5
Steering column switch module 10
7 Power steer
ing column adjust-
ment 25
8 Light switch
Luggage compartment fuse assignment
Fig. 196 Luggage compartment: fuse panel with plas·
tic bracket
Fuse panel @ (bl ack )
No. II Equipment
I[ Amp s
4 E lectromechanical parking brake 30
5 Electromechanical parking brake 30
6 Front door (front passenger's
35
side)
7 Rear exterior lighting Rear sun shade, closing aid, lug­
s gage compartment lock, con ­
venience key, START ENGINE
STOP, fuel filler door 30
20
-Fuse pane
l@ (blac k) I
No. Equipm ent Amps
=· 9 Power seat adjustment 15
10 Parking system
s
30
Fus e pane l
B (red)
No . Equipment Amps
1 Left belt tensioner
25
Right belt tensioner 25
3 Socket 20
20
Electromechanical parking brake
5
adaptive air suspension 15
7 Rear door (front passenger's
35
side)
Rear exterior lighting 30
9
Luggage compartment lid con-
30
t rol module
10 Telephone 5
11 Sound amp lifier 30
12 Rear spoiler 20
Fuse pane l c (b rown )
No. Equipment Amps
1 Rad
io receiver, Sound amplif ier/
30/20
MMI unit/dr ives
2 Tank leak detection system 5
AEM control module/battery 15/
4
module 7,5
6 Battery fan 35
Rad io receiver
7,5
7,5
9
Automatic dimming interior
5/15
rearview mirror/battery module
Parking system 5
Fu se panel o (gre en)
No. Equipment Amps
1 Audi pre sense 5
2 Electromechanical parking brake 5
3 adaptive a
ir suspension
5
Automatic transmission 7,5
...

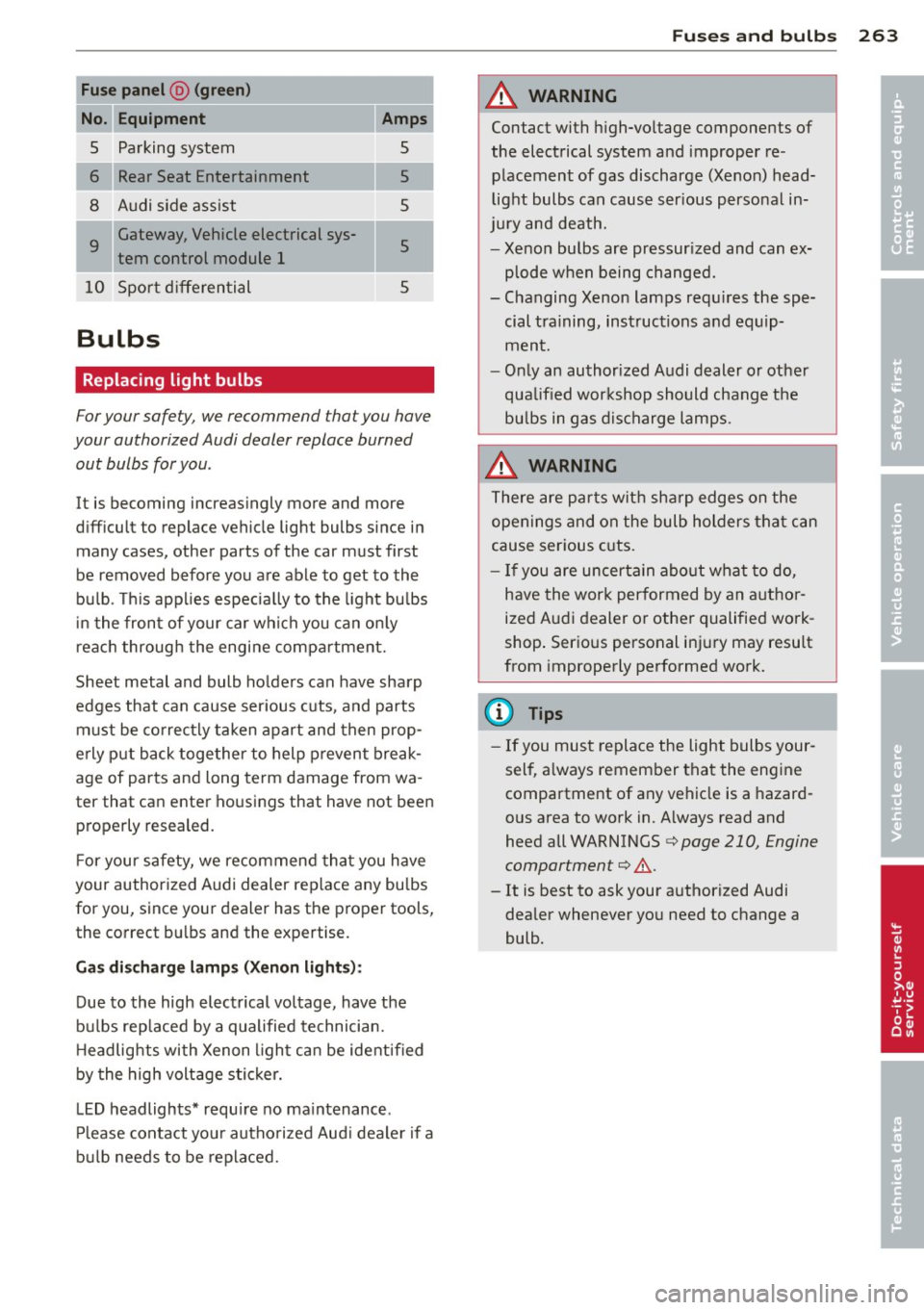

Fuse panel @ (green )
Equipment Amps
Parking system 5
Rear Seat Entertainment s
8 Audi side ass ist 5
9
Gateway, Vehicle electrical sys-
5 tern control module 1
10 Sport d ifferential 5
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned
out bulbs for you .
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bu lb. Th is applies especia lly to the light bu lbs
i n the front of your car which you can only
reach through the engine compartment ,
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, and parts
must be correctly taken apart and then prop­
e rly p ut back together to help prevent break­
age of parts and long term damage from wa­
ter that can enter housings that have not been properly resealed.
F or your safety, we recommend that you have
your authorized Audi dealer replace any bu lbs
for you, since your dealer has the proper tools, the correct b ulbs and the expertise.
Gas disc harge la mp s (X enon li ght s):
Due to the high electrical voltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon l ight can be identified
by the high voltage stic ke r.
LED headlights* requ ire no ma intenance .
Please contact your autho rized Aud i deale r if a
bu lb needs to be replaced.
Fu ses and bulb s
A WARNING
Contact with h igh-vo ltage components of
the electrical system and improper re­
placement of gas discharge (Xenon) head­
light bulbs can cause ser ious personal in­
jury and death.
- Xenon bulbs are pressur ized and can ex­
plode when being changed.
- Changing Xenon lamps requ ires the spe­
cial tra ining, instructions and equip­
ment.
- On ly an authorized Audi dealer or other
qualified wor kshop should change the
bu lbs in gas discharge lamps .
A WARNING
There are parts with sharp edges on the
openings and on the bulb holders tha t can
cause serious c uts.
- If you are uncertain abo ut what to do,
have the work performed by an author­
ized Audi dealer or other qualified work­
shop . Ser ious personal inj ury may result
from improperly performed work.
(D Tips
- If you must replace the light bulbs your­
sel f, a lways remember that the engine
compartment of any vehicle is a hazard­
ous area to work in. A lways read and
heed all WARNINGS
¢ page 210, Engine
compartment¢ ,&..
- It is best to ask your authorized Audi
dealer whenever yo u need to change a
bulb.
-
263
•
•
