Instrument s and warning /indicator lights 11
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Overv iew of the instrument cluster
CD Coolant temperature gauge .. .
@ Tachometer (eng ine rev counter)
@ Turn signals ............... .
@ Display with
®
®
-Driver information system .. .
- Wa rning/ind icator lights
Tachometer Fuel gauge
@ Tips
11
12
43
23
12
12
The instrument illumination (for dials and
needles) turns on when the ignition is on
and the vehicle lights are turned off. As
the daylight fades, the illumination of the
dials likewise dims automatically and wil l
go out completely when the outside light
is very low. This feature is meant to rem ind
you to switch on the headlights when out­
side light conditions become poor.
Engine coolant temperature gauge
The engine coolant gauge CD¢ page 11, fig. 3
only works when the ignition is on. To prevent
damage to your eng ine, please note the fol­
l owing important points:
Engine cold
If only the LEDs at the bottom of the gauge
turn on, the eng ine has not reached operating
temperature yet . Avoid high engine speeds,
heavy engine loads and heavy throttle applica­
tions.
Normal temperatu re
The engine has reached its operating temper­
ature once the LEDs up to the center of the
gauge turn on under normal driving cond i­
t ions. The LEDs higher up may turn on when
the engine is under heavy load or the exterior
temperature is high. This is no need to worry
as long as the. warning light in the instru ­
ment cluster does not illuminate . If the LEDs
in the upper area of the display and the indica­
tor light . in the instrument cluster display
turn on, the coolant temperature is too high
¢page 16.
A WARNING
-Always observe the warn ing in
¢ page 214, Engine compartment, be­
fore opening the hood and checking the
engine coolant level.

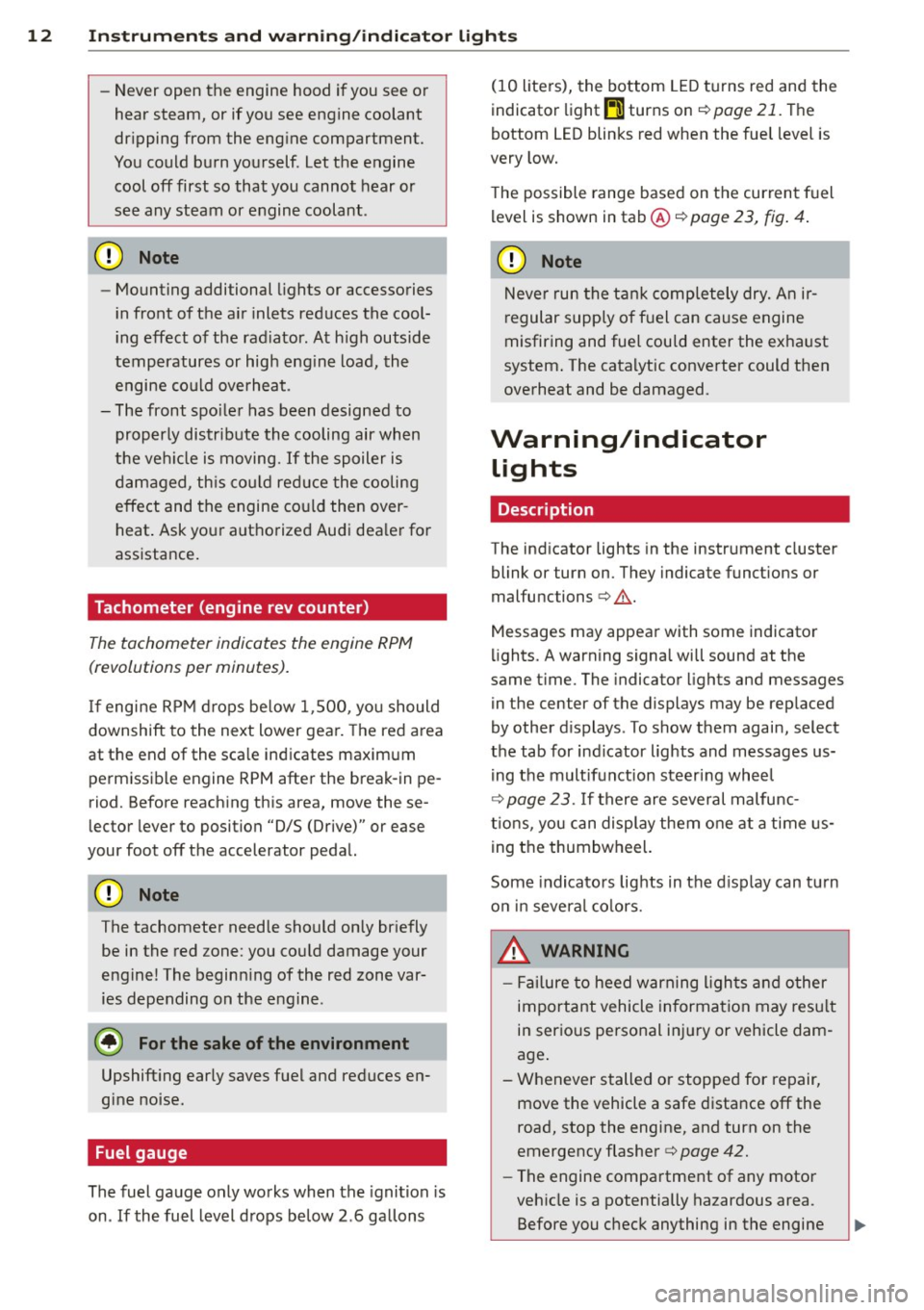

12 Instrum ent s and w arn ing /indic ato r light s
-Never open the engine hood if you see or
hear steam, or if you see engine coolant
dripping from the engine compartment.
You could burn yourself . Let the engine
cool off first so that you cannot hear or
see any steam or engine coolant .
@ Note
-Mounting additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the rad iator . At h igh outside
temperatures or high eng ine load, the
engine could overheat.
- The front spo iler has been designed to
proper ly distribute the cooling air when
t h e ve hicle is moving.
If the spoiler is
dam aged, th is co uld red uce the cooling
effect and the engine co uld then over­
heat . Ask your authorized Audi dea ler for
assistance .
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
If engine RP M drops be low 1,500, yo u should
downshift to the next lower gear. The red a rea
at the end of the sca le indicates maximum
perm iss ib le engine RPM after the break-in pe­
riod. Before reaching this area, move these­
lector lever to position "D/S (Drive)" or ease
your foot off the accelerator pedal.
(D Note
The tachometer needle should on ly br iefly
be in the red zone: you could damage your
engine! The beginn ing of the red zone var­
ies depending on the engine .
@ For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.
Fuel gauge
The fuel gauge only works when the ignition is
on .
If the fuel level d rops below 2 . 6 ga llons (10 liters), the bottom LED turns red and the
indicator
light~ turns on ¢
page 21. The
bottom LED blinks red when the fuel level is
very low.
T he possible range based on the current fuel
level is shown in tab@¢
page 23, fig . 4 .
(D Note
Never run the tank completely dry. An ir ­
r egular supply of f uel can cause engine
misfiring and fuel could enter the ex ha ust
system . The catalytic converter could then
overheat and be damaged.
Warning/indicator Lights
Description
The ind icator lights in the instrument cluster
blink or turn on. They indicate funct ions or
malfunctions ¢,& .
Messages may appear with some indicato r
lights. A warning signal will sound at the
same t ime. The indicator lights and messages
in the center of the displays may be rep laced
by other d isplays . To show them again, select
the tab for ind icator lights and messages us­
i ng the multifunction steering wheel
¢
page 23. If t here are several malfunc­
t ions, you can display them one at a time us­
ing the thumbwheel.
Some indicato rs lights in the d isplay can turn
on in severa l co lors.
A WARNING
- F ailure to heed w arning l igh ts and other
important vehicle in forma tion may res ult
in ser io us personal inj ury or vehicle dam­
age .
- Whenever stalled or stopped for repair, move the vehicle a safe d istance off the
road, stop the engine, and turn on the
emergency flasher¢
page 42.
-The engine compartment of any motor
veh icle is a potentially hazardous area.
Before you chec k anything in the engine

Instruments and warning/indicator lights 17
Follow the warning stickers¢ page 214,
Engine compartment.
@ Note
Do not continue driving if the . symbol
illuminates. There is a malfunction in the
engine cooling system -you co uld damage
your eng ine.
D Battery
This warning/indicator light detects a mal ­
function in the generator or in the vehicle's
electrical system.
The . warning/indicator light illuminates
when you switch on the ignition and must go
out after the engine has started.
• Alternator fault: Battery is not being
charged
If the indicator light turns on and the mes­
sage appears, there is a malfunction in the
generator or vehicle e lectrica l system.
Drive to you r authorized Audi dealer or quali­
fied workshop immediately. Because the vehi­
cle battery is discharging, turn off all unnec­
essary electrical equipment such as the radio .
Seek professional assistance if the battery
charge leve l is too low.
(•i Low battery charge : battery will be
charged while driving
If the indicator light turns on and the mes­
sage appears, there may be limited star ting
ability.
I f this message turns off after a litt le wh ile,
the battery charged enough wh ile driving.
If the message does not turn off, have your
author ized Audi dealer or qualif ied workshop
correct the malfunction.
~ Safety belts
This warning/indicator light reminds you to
put on your safety belt.
The . warning/indicator light illuminates
when the ignition is switched on to remind
the driver and any front passenger to put on
the safety belt. Additionally, an acoustic warn­
ing (gong) wi ll also sound.
For more Information¢
page 133, i Safety
belt warning light.
~ Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair . Driving
with a low-oil-pressure indication is likely to
inflict severe damage to the engine .
• Switch off engine and check oil level
If the indicator light turns on the message ap­
pears, the oil pressure is too low.
"" Pull off the road .
... Stop the vehicle.
... Tur n off the engine .
"" Check the engine oil level¢ page 225.
"" If the eng ine oil level is too low, add eng ine
oil ¢
page 225. Make sure that the oil pres­
sure warning symbol. appears no longer
in the display before you start dr iv ing again .
"" If the engine oil level is correct and the indi ­
cator light still turns on, turn the engine off
and do not continue driving. Seek professio­
na l assistance .
(D Tips
-The engine oil pressure symbol. is
not an indicator for a low engine oil lev­
el. Do not rely on it. Instead, check the
oil level in your engine at regular inter­
vals, preferably each time you refuel ,
and always before going on a long trip.
- The yellow oil level warning indication
II requires oil refill or workshop serv­
ice without delay. Do not wait until the
red oil pressure warning . starts to
flash before you respond to the low oil ..,

Instruments and warning/indicator lights 21
!?i Engine speed limitation
A ppl ies to vehicles: wit h en gin e s pee d l im itat ion
(II Engine speed maximum XXXX RPM
The engine speed is automatically limited to
the speed displayed in the driver information
system. This protects the engine from over­ heating.
The engine speed limitation deactivates once
the engine is no longer in the critical tempera­
ture range and you have released the accelera­
tor pedal once.
If the engine speed limitation was activated by an engine control malfunction, the indica­
tor light~ also turns on. Make sure that the
speed does not go above the speed displayed.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
~ . Engine oil level
II Add oil, max. x qt (l). You may continue
driving
When the symbol Ill and driver message ap­
pear, add the amount of oil appearing in the
display at the next opportunity ¢
page 225.
~ .... Engine oil sensor
II Oil level! Sensor defective
If the symbol illuminates, contact your au­
thorized Audi dealer and have the oil sensor inspected. Until you have this done, check the
oil level each time you refuel just to be on the
safe side¢
page 225.
Bil Fuel level indicator
Ii Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2.6 gallons (10 liters) of fuel left in the
tank . Time to refuel
¢ page 216.
Ii Tank system malfunction! Contact dealer
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
tank system.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
C> Windshield washer fluid level
II Please refill washer fluid
If the symbol illuminates, add windshield
washer fluid to the washer system/headlight
washer system* ¢
page 234.
~ Windshield wipers
rlJ Windshield wiper defective
There is a malfunction with the windshield
wipers.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
~/0$ Defective light bulb warning
f'a-If the indicator light turns on, a bulb has
failed. The message indicates the location of
the bulb.
IJ-if a rear fog lamp has failed, the indicator
light turns on to indicate the location on the
vehicle.
Vehicle lights: malfunction
If the message appears, there is a malfunc ­
tion in the headlights or light switch .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
A WARNING
- Light bulbs are pressurized and could ex­
plode while they are being changed caus­
ing serious personal injury.
- Work with due care when handling the
high-voltage section of gas discharge
(xenon) lights. Failure to do so could re­
sult in death or serious injury.

Instrument s and warning /indicator lights 23
Driver information
display
Overview
Fi g. 4 Dr iver info rmat ion system i n th e inst rum ent
clus te r
Fi g. 5 Display: exa mple of th e informat ion line
The driver informa tion sys tem contains in for ­
mat ion
@ t h at is displayed on tabs@
c::> fig. 4. The following content is possible de­
pending on vehicle equipment:
@
Tab
1
2
3
®
Content
Vehicle functions :
On-board computer c>page 24
Efficiency program* c::> page 25
Digital speedometer
Cr uise control*
c::> page 76
Adaptive cruise control and Audi
braking guard *
c> page 78
Display darkened
Indicator lights and messages
Warning when a doo r, the hood or
t he rear lid is not closed
Service interva l display
c::> page 26
Speed wa rning sy stem c::> page 76
Night vision assistant * c> page 97
--~~-
@ ®
Tab Content
4 Audio/video
Telephone* Navigation*
The second and th ird tabs are only vis ible if at
least one indicator light or message is shown
or if that system is sw itched on .
The status line © is located in the bottom
part of the d isp lay
<=> fig. 4. It displays the ex­
terior temperat ure, time, selector lever posi­
tion, trip odometer and odometer .
For some vehicle f unctions , you can access t he
trip information from the temporary memory
c> page 24 in the line© c> fig. 5.
A WARNING
-
-Never re ly e xclusively on the o utside
temperature display to determ ine if a
road surface is icy or not. Keep in m ind
that road surface s, espec ia lly br idg es
a nd overpa sses, co uld be ice co ve red and
slippe ry even at a n o utside tempe rat ure
above 41 ° F (+ S °C).
- Always remember, even if the "snow­
f la ke" sym bo l (ice warning) does not ap ­
pear in t he dis play, black ice cou ld be on
the road.
- Always red uce your spee d an d drive with
special care in cold weathe r cond itions
when t he chance of enco untering icy
road surfaces increases.
(D Tips
- At tempe ra tu res below 14 ° F (+ 5 °C ) a
snowfla ke symbol a ppears ahead of the
temperat ure display . It is intended to re­
mind the driver to pay special attention
to
ice on the road c> .&. . If the vehicle is
stationa ry, or if you a re driving at a very
low speed, the temperature shown in the
display might be slightly higher than the
actual ou ts ide temperature. This is
c au sed by the heat bei ng r adia ted fro m
th e engine.

Instrument s and warning /indicator lights 25
on until it is switched off. If yo u continue driv ­
ing within two hours after switching the igni­
tion off, the new val ues are included when
calculating the current tr ip informat ion.
Unlike the short-term memory, the long-term
memory is not e rased automatica lly. You can
se lect the t ime period for eval uat ing trip in ­
formation yo urself.
F or some vehicle functions, you can access the
trip information from the temporary memory
i n the line
(I) ~ page 23, fig. 5.
Efficiency program
The eff iciency p rogram can help yo u to u se
l ess fuel. I t eva luates dr iving information in
re ference to fue l consumpt ion and shows oth ­
er equipment inf luencing co nsumption as we ll
as shift recommendations.
c> page 25. Fue l
economy messages
c> page 25 provide tips
for efficient driving. The eff ic iency prog ram
uses distance and consumption data from tr ip
computer
1.
To display the efficiency program, call up Ve ­
hicle functions and select the menu option
Efficiency program . If the data are deleted in
the efficiency program , those values are also
reset in trip computer.
(D Tips
- All stored va lues w ill be lost if the veh i­
cle battery is disconn ected.
- Fuel consumptions (ave rage and cu r­
ren t), range and spe ed are displayed in
m etr ic uni ts on Cana dian models .
Other equipment
Fig. 8 Tri p co mpute r: ot her eq uipment
Req uirement: The e fficiency program m ust be
displayed
~ page 25.
1-Tur n the thumbw heel u ntil th e other e quip-
men t ap pears in the display.
Ot her equ ipment t hat is c urrently affe cti ng
fuel consump tion is liste d in t he eff iciency
progr am. The disp lay sh ows up to th ree o ther
items of eq uipment @. The equ ipment using
the most fuel is listed first . If more than th ree
items us ing fuel are switched on, the equip ­
ment that is c urrently using the most fuel is
displayed .
A scale @also s hows the c urrent tota l co n­
sumption of all other equipment .
Fuel economy messages
Fig. 9 Dis play : exa m ple of a fuel eco nomy m essage
Fuel economy me ssage s are di splayed when
fuel consum ption is increased by cert ain con­
di tions. If you fo llow these fuel economy mes ­
sa ges, you ca n re duce your ve hicle's consump­
t ion o f fuel. The messages appear a utomat i­
ca lly and are only d isp layed in the efficiency
program. The fue l economy messages turn off
automat ica lly afte r a certain period of t ime .
.,. To turn an economy message off immedi-
ately after it appears, press any button on
the mult ifunct ion steering wheel.
{!) Tips
- Once yo u have tur ned a f ue l economy
m essage off, it will o nly appear agai n af­
ter yo u turn the ign itio n on again .
- The fue l economy messages are not dis­
played in every instance, but rather in in­
te rvals over a period of time.
